Hoshizaki KM-520MAJ/B-300SF 556 lb Crescent Cube Ice Machine w/ Bin - 300 lb Storage, Air Cooled, 115v

The Hoshizaki KM-520MAJ/B-300SF ice machine with bin measures 22 inches wide by 32¹/₂ inches deep by 74 inches high with a 6-inch required clearance from the top, sides, and rear. When ambient temperatures are 70 degrees and incoming water is 50 degrees, this unit produces 556 pounds of crescent-style ice cubes over 24 hours. Because this unit is self-contained, it's simple to install. Its condenser is air cooled and operates utilizing R404A hydrocarbon refrigerant—a non-toxic, eco-friendly alternative. Its ever EverCheck™ alert system and CycleSaver™ design increases this unit's efficiency by producing high capacities in half the number of cycles.

The Hoshizaki KM-520MAJ/B-300SF ice machine's bin increases the amount of ice an establishment can store at one time; this bin can hold 300 pounds of produced ice cubes. Insulated with foamed-in polyurethane, the ice melts at a slower rate, and this bin is sealed with a polyethylene liner for security. The ice maker and bin are protected with antimicrobial H-GUARD protectant, which inhibits bacteria, mold, and other contaminations. The ice maker and bin base's exterior are made of stainless steel for durability and corrosion resistance. Overall, this ice machine and bin combo measures 22 inches wide by 32³/₁₀ inches deep by 74 inches high and sits on 6-inch painted, flanged legs for stability.

Product Details

• Part of the Slim-Line series
• Produces 556 lb. in 24 hrs. in ideal conditions
• Air-cooled, self-contained condenser
• Removable filter
• Crescent-style cubes
• Ice dimensions: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Stainless steel exterior
• R-404A hydrocarbon refrigerant
• EverCheck alert system
• CycleSaver design
• Antimicrobial H-GUARD protectant
• Required ambient temperature range: 45-100 degrees F
• Required water temperature range: 45-90 degrees F
• Required water pressure: 10-113 PSI
• 6-in. rear, sides, and top clearance required

Bin Details

• Top-hinged front-door opening
• Can hold 300 lb. of ice
• Stainless steel exterior
• Polyethylene bin liner increases sanitary storage
• Foamed-in polyurethane insulation
• 6-in. painted, flanged legs
• Protected with H-GUARD antimicrobial agent
• ³/₄-in. FPT drain

Dimensions & Utilities

• Ice maker: 22 in. W x 27¹⁹/₅₀ in. D x 28 in. H
• Bin: 22 in. W x 32³/₁₀ in. D x 46 in. H
• Overall: 22 in. W x 32³/₁₀ in. D x 74 in. H
• 10.6 A, 4.68 kW per 100 lb. of ice
• 115 V/ 60 Hz/ 1 ph

Product Features

From The Manufacturer

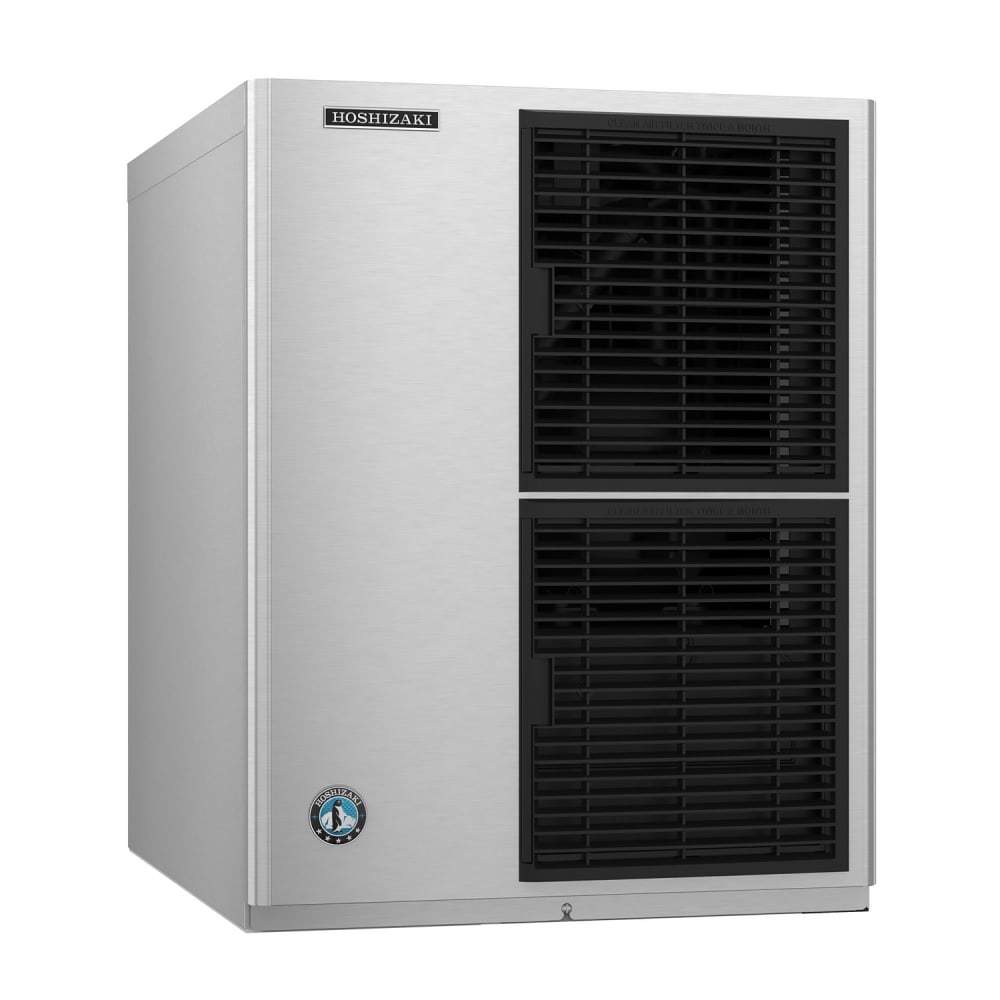

KM-520MAJ Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 556 lb/24 hours at 70°/50° (480 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 10.6 amps, NSF, UL, ENERGY STAR®

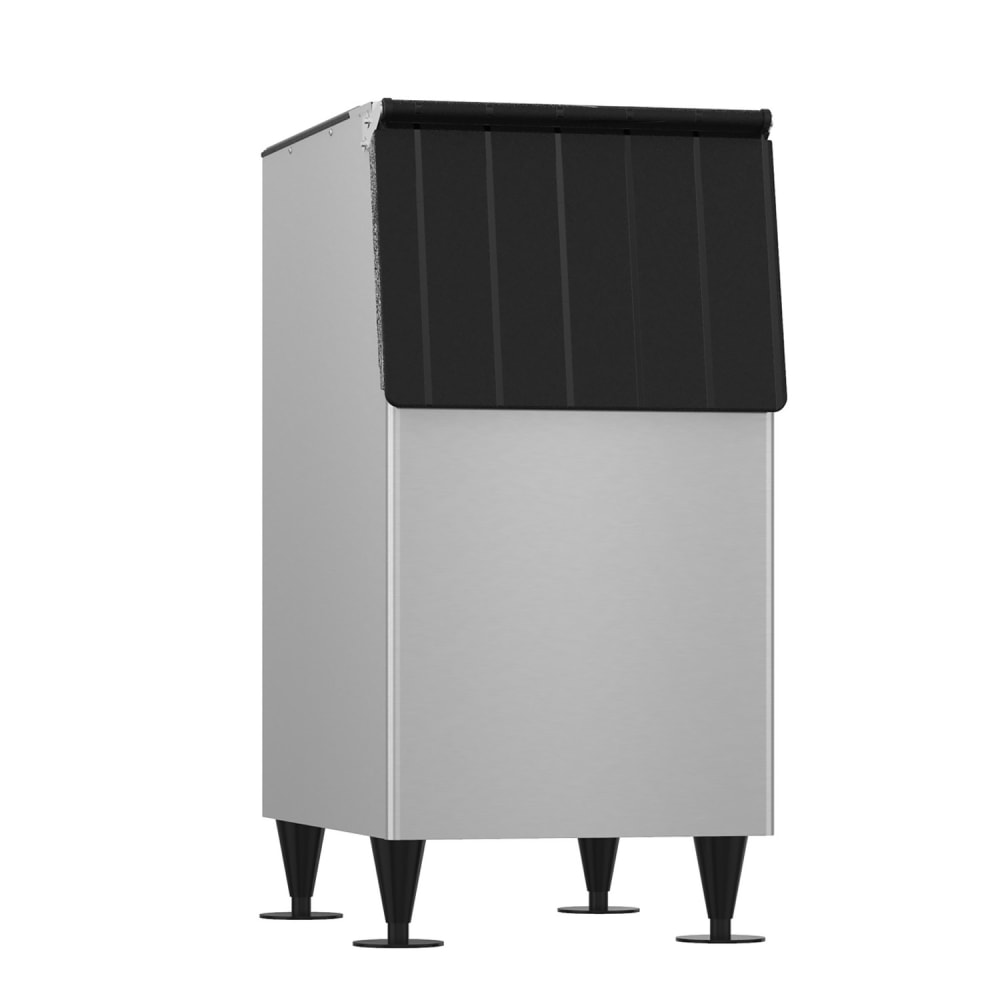

B-300SF Ice Bin, 22"W, top-hinged front-opening door, 300-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, 6" painted flange legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
