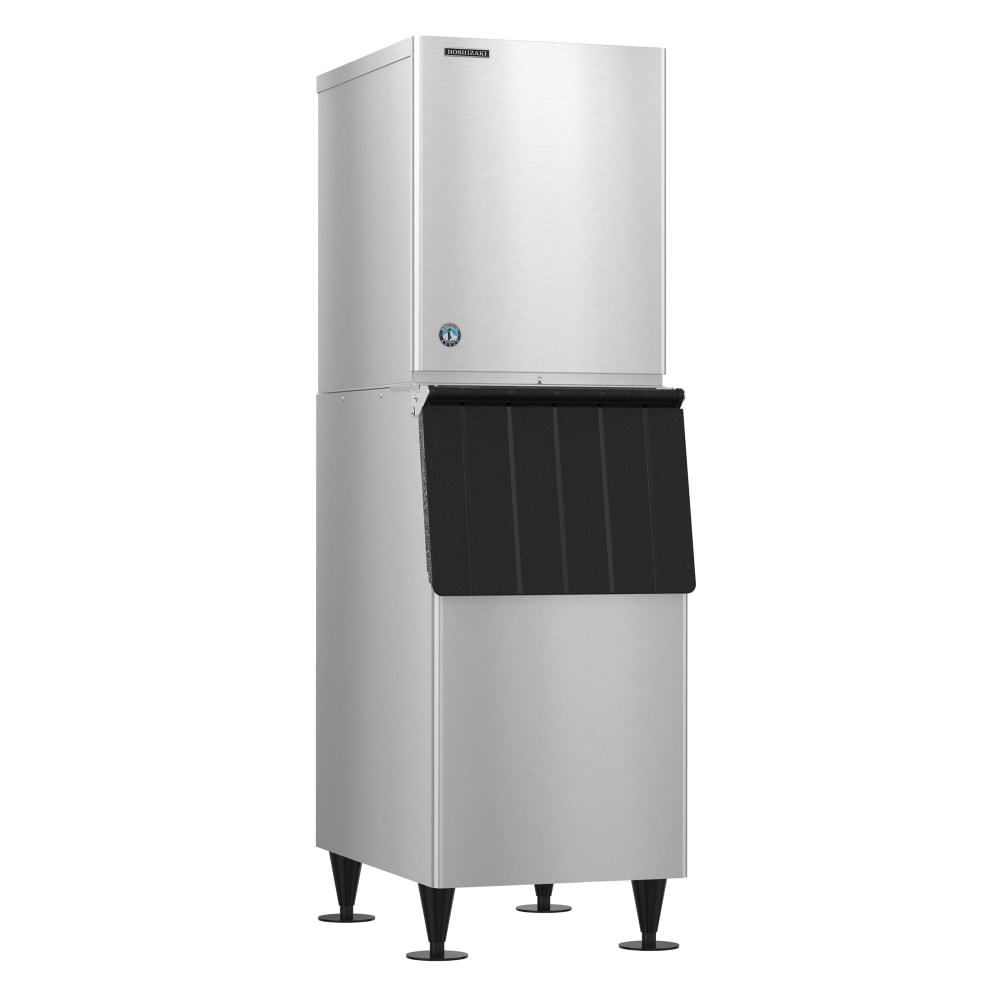

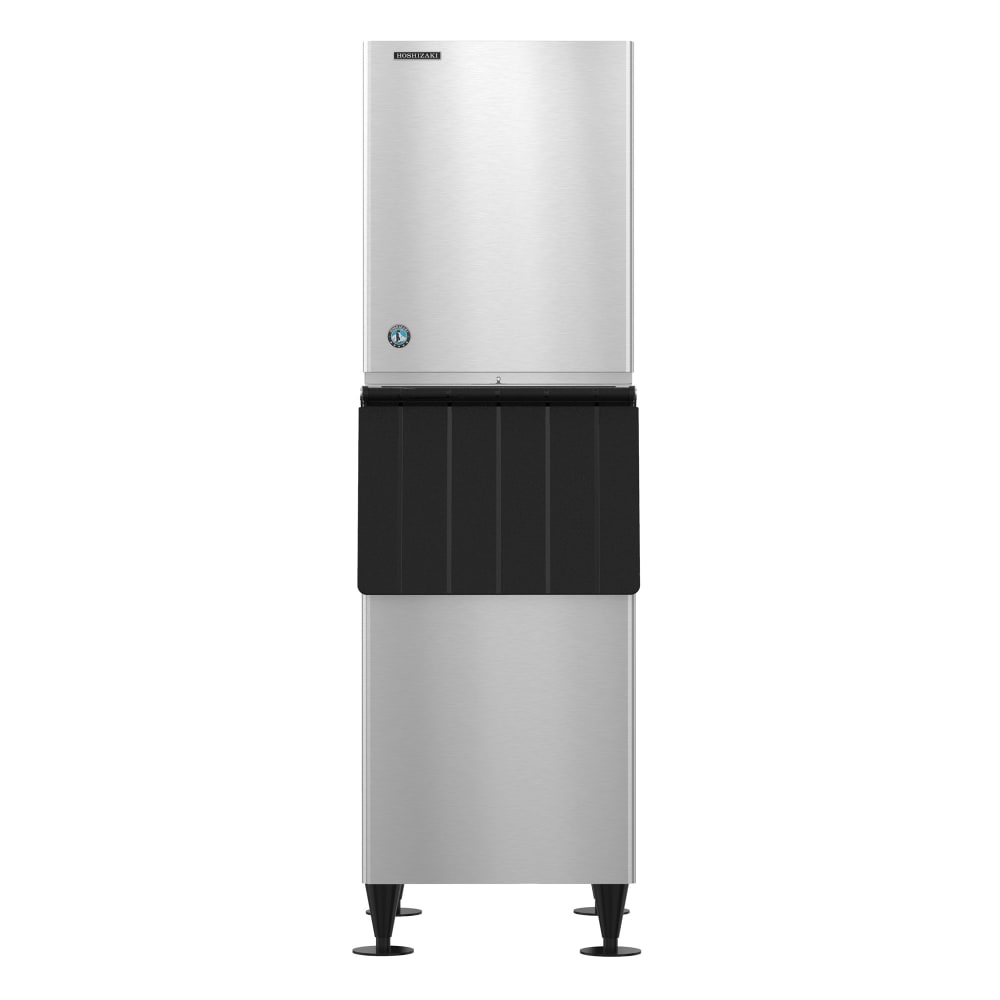

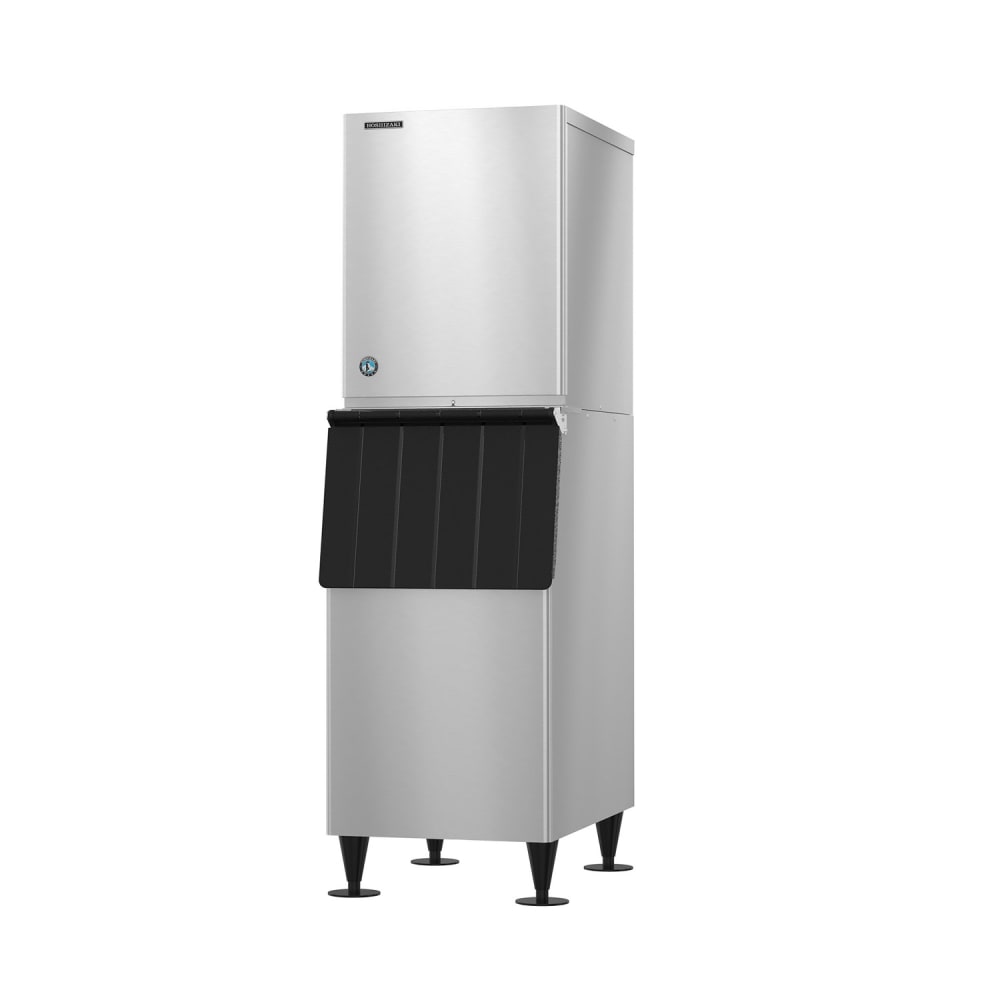

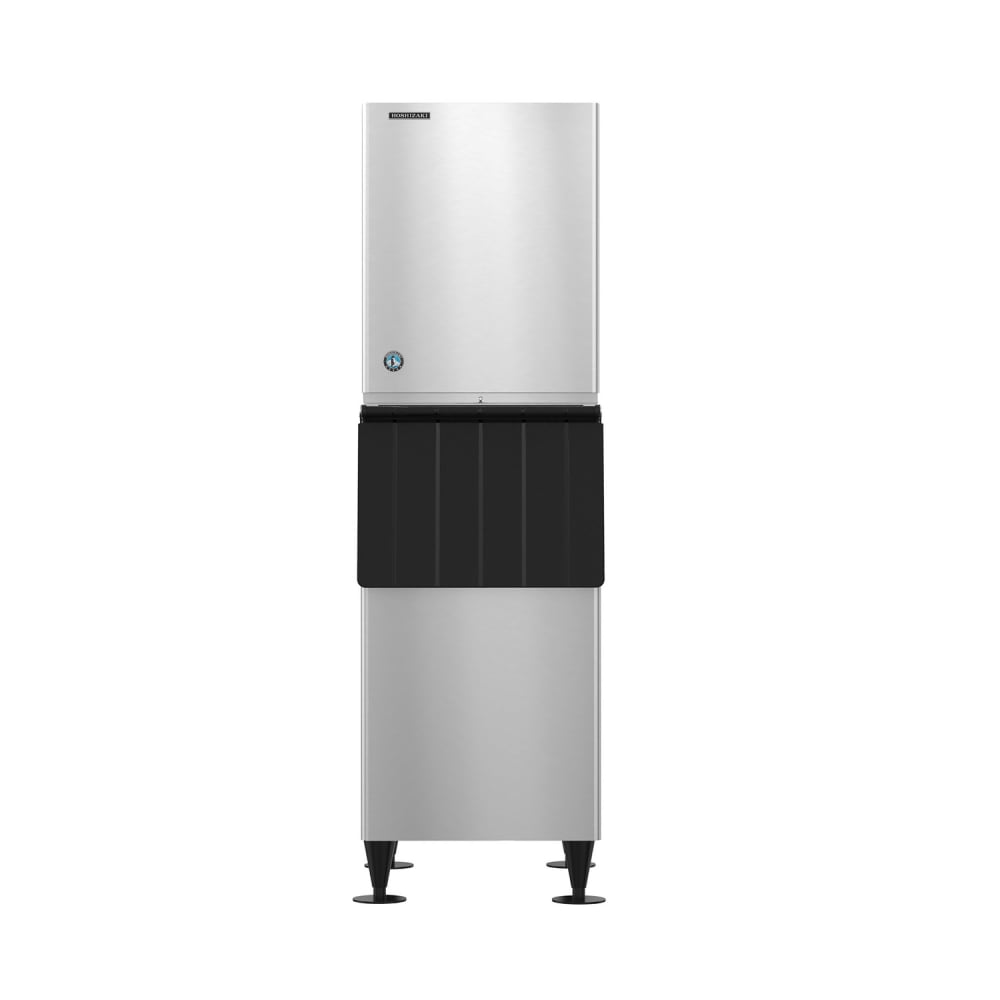

Hoshizaki KM-520MWJ/B-300SF 474 lb KM Series Crescent Cube Ice Machine w/ Bin - 300 lb Storage, Water Cooled, 115v

The Hoshizaki KM-520MWJ/B-300SF crescent ice cube machine makes 474 pounds of ice every 24 hours under ideal conditions. The water-cooled condenser uses 75 gallons of water for every 100 pounds of ice. The unit is fully self-contained for streamlined installation, and the panels are removable for maintenance. The unit features a corrosion-resistant, durable, long-lasting stainless steel finish.

The Hoshizaki KM-520MWJ/B-300SF ice cube machine has a 300-pound bin capacity. The interior is accessed through the top-hinged, front-opening lid. Its exterior is made of stainless steel, and the exterior’s H-GUARD antimicrobial protection inhibits bacteria growth to preserve ice quality. The unit’s painted legs elevate the base to enable sweeping or mopping underneath.

Ice Maker Details

• 474 lbs. every 24 hours
• Creates crescent-style ice
• Water-cooled operation
• Self-contained condenser
• Removable panels
• Stainless steel finish

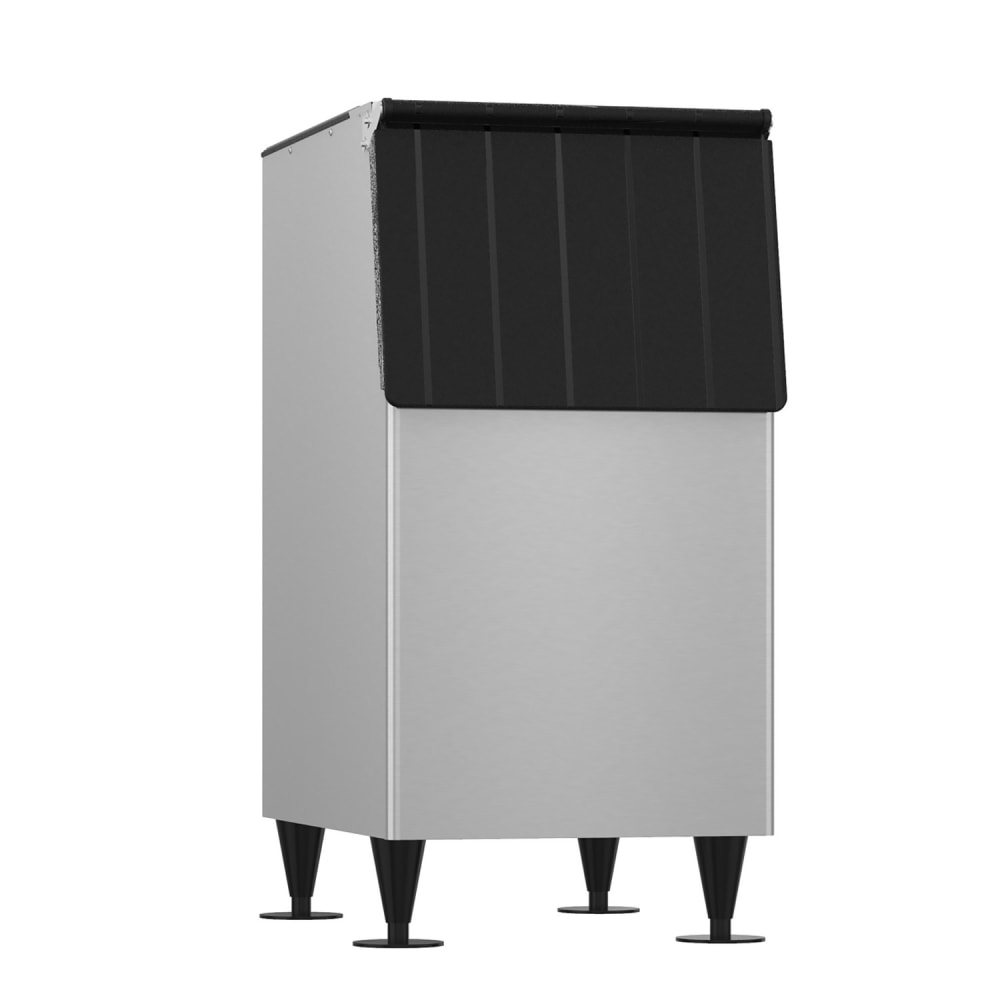

Bin Details

• 300-lb. capacity
• Top-hinged front opening
• Stainless steel
• Painted flange legs
• H-GUARD antimicrobial protection

Dimensions & Utilities

• Ice Maker: 22 in. W x 27²/₅ in. D x 28 in. H
• Bin: 22 in. W x 32¹/₂ in. D x 46 in. H
• 8.45 A
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Hoshizaki KM-520MWJ/B-300SF within the 48 contiguous states.

From The Manufacturer

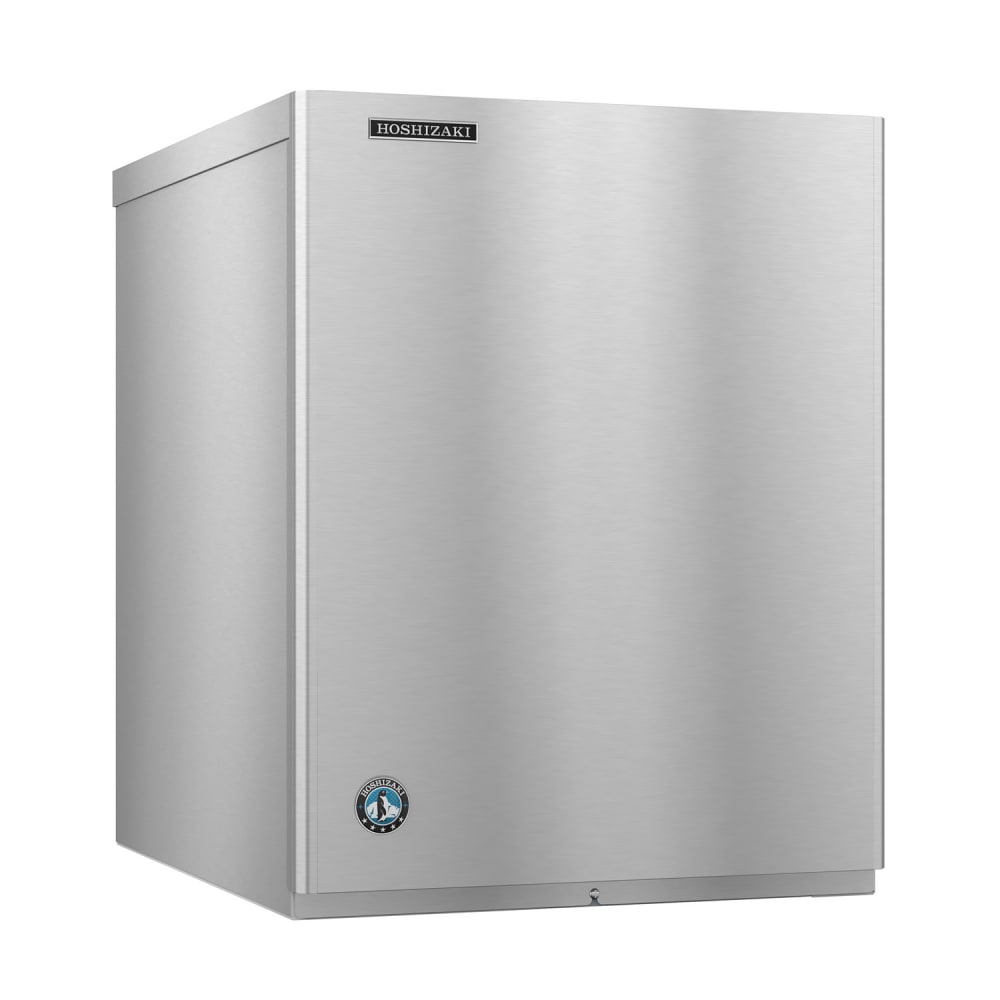

Ice Maker, Cube-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 474 lb/24 hours at 70°/50° (444 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 8.45 amps, NSF, UL

Ice Bin, 22"W, top-hinged front-opening door, 300-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, 6" painted flange legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-520MWJ/B-300SF Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
