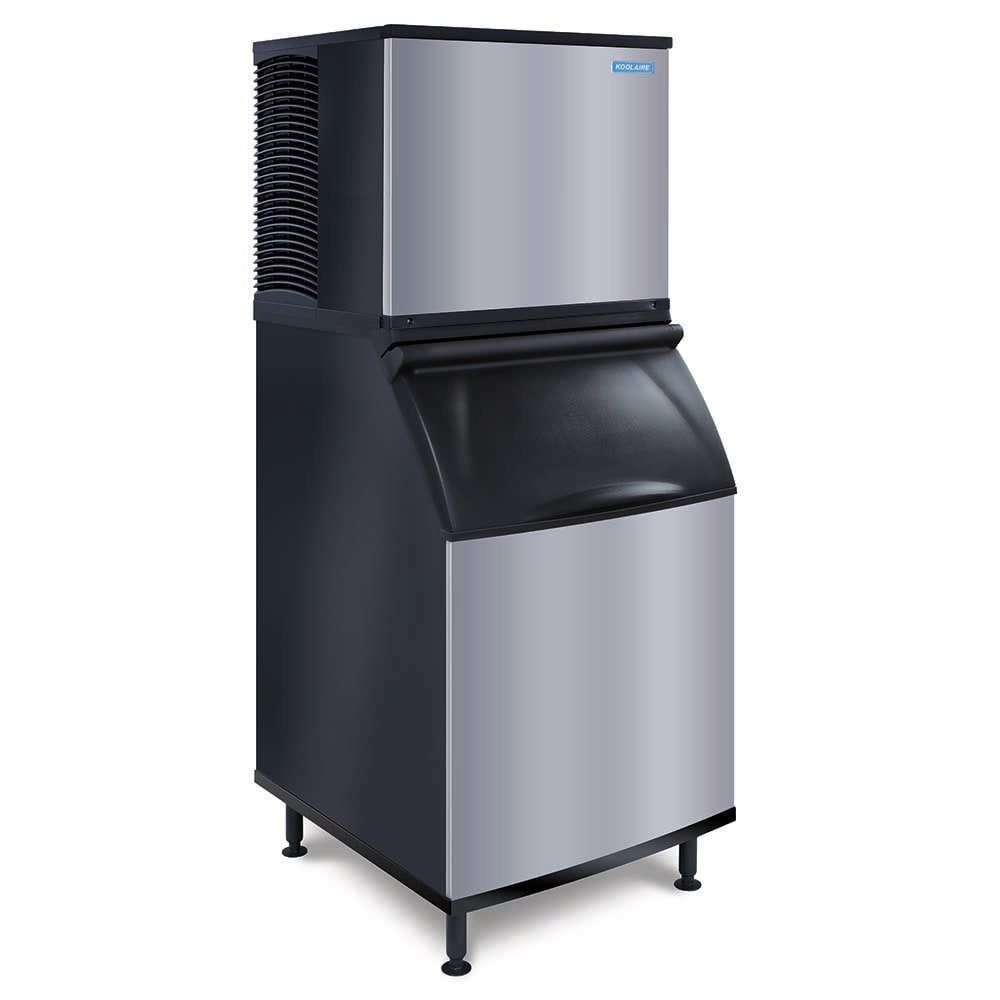

Koolaire KYT1000A/K570 960 lb KYT Series Half Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 208-230v

The Koolaire KYT1000A/K570 ice maker with bin has a highly accessible food zone with white plastic built into areas that touch ice and water to show if the unit is dirty. The exterior of the ice maker and bin has a finish that is similar to stainless steel and resists smudges and corrosion. Its air-cooled, self-contained condenser uses fans to blow cold air across the condenser and chill the equipment. This process freezes water in the evaporator so that it can produce half-size cubes measuring 0.375 inch by 1.125 inches by 0.875 inch. Without using tools, users can remove the distribution tube, pump, water shield, floats, and trough for maintenance and cleaning.

For stability, the Koolaire KYT1000A/K570 ice maker with bin has four legs that can adjust to various heights. The bin's interior is constructed of polyethylene, which is resistant to water, and its stay-open door does not close on the user when he or she is scooping ice. Insulated with foam, the sides block out heat and keep ice frozen. An 82-ounce scoop is included with the unit, and an internal scoop holder ensures germs from the scoop do not contaminate the ice.

Ice Maker Details

• 960-lb. capacity
• 775-lb. AHRI-capacity
• Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Stainless steel-like finish on the exterior enables it to resist smudges and fingerprints/li>
• Food zone is accessible and has white plastic to highlight surfaces that need to be cleaned
• Water shield, distribution tube, pump, floats, and trough are removable by hand
• Air-cooled, self-contained condenser
• Uses R410A refrigerant
• Required ambient air temperature: 40-110 degrees F
• Required water temperature: 40-90 degrees F
• Required water pressure: 20-80 PSI

Bin Details

• 532-lb. ice capacity
• 17.9-cu.-ft. AHRI-certified interior space
• Exterior functions like stainless steel for corrosion resistance
• Interior is constructed of polyethylene
• 6-in. legs are adjustable
• Foam-insulated door limits sweat and retains cold air to slow down the melting process
• Door stays open for scooping ice
• Internal scoop holder and 82-oz. ice scoop included

Dimensions & Utilities

• Bin: 30 in. W x 34 in. D x 50 in. H
• Ice maker: 30 in. W x 24 in. D x 29.5 in. H
• 10.8 A, 4.9 kW
• 230 V/60 Hz/1 ph

*Free shipping on Koolaire KYT1000A/K570 within the 48 contiguous states.

From The Manufacturer

Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W, production capacity up to 960 lb/24 hours at 70°/50° (775 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R410a refrigerant, NSF, cULus, CE (replaces KY-1000A)

Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor
