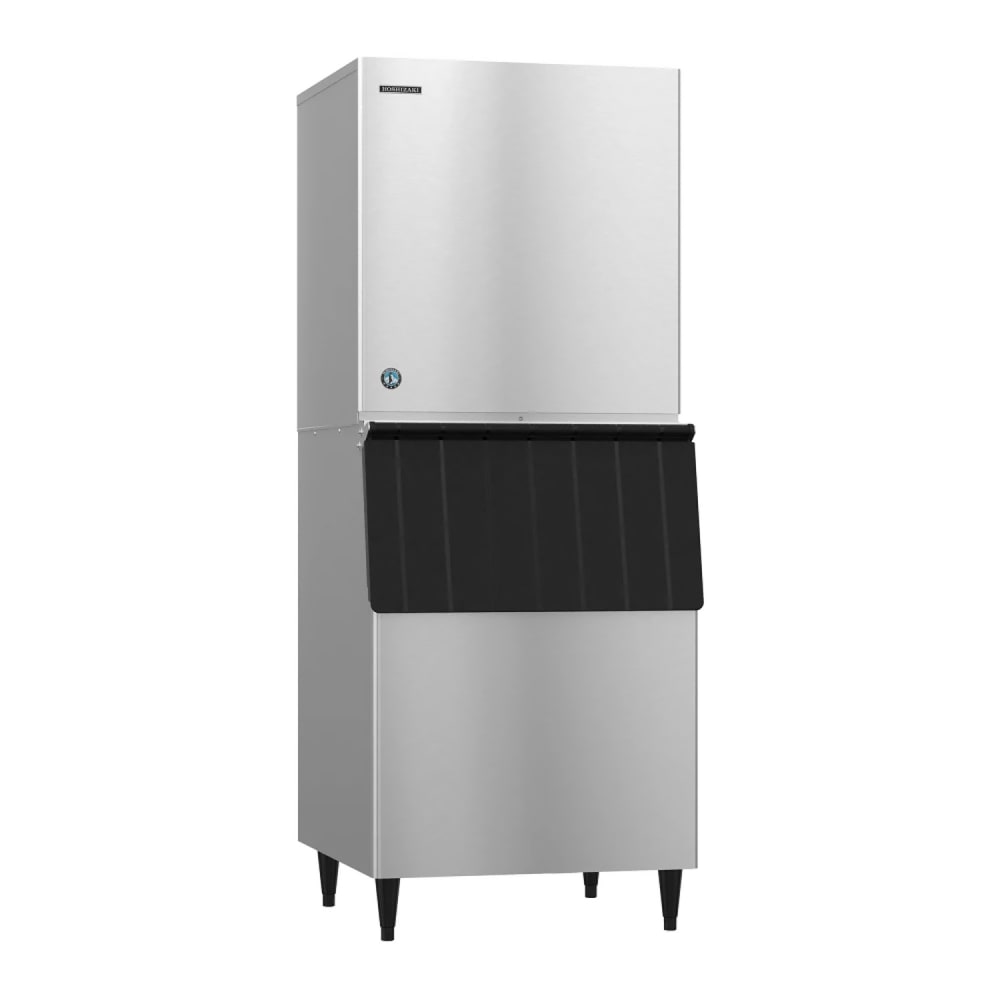

Hoshizaki KM-1100MWJ/B-500SF 1073 lb KM Series Crescent Cube Ice Machine w/ Bin - 500 lb Storage, Water Cooled, 208-230v

The Hoshizaki KM-1100MWJ/B-500SF ice maker with bin makes a maximum of 1,073 pounds of crescent-cube ice per day. Its self-contained condenser streamlines installation and cools with R404A refrigerant, and if maintenance is needed, the EverCheck™ alert system informs operators that something is wrong with the unit. To provide clean and fresh-tasting ice, the bin and head are both coated with H-GUARD Plus antimicrobial to slow bacteria growth. Resisting corrosion, the finish of the head is stainless steel.

The bin section of the Hoshizaki KM-1100MWJ/B-500SF ice machine with bin holds as much as 500 pounds of ice for later use. Preventing employees from grabbing ice by hand, it comes with an antimicrobial scoop for sanitary retrieval. Lined with polyethylene to ensure ice stays clean, the bin opens from the front. To slow ice melting and reduce energy consumption, the bin is insulated with foamed-in-place polyurethane.

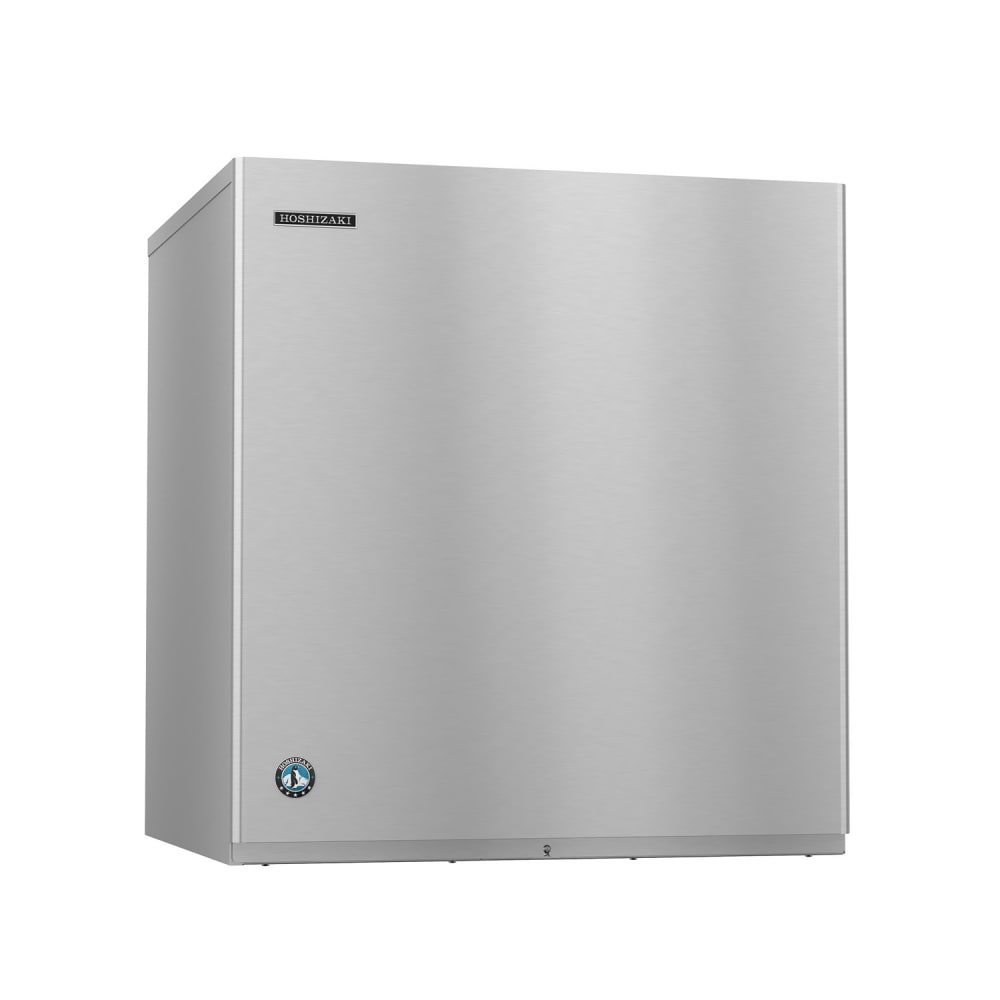

Ice Machine Details

• 1,073-lb. maximum daily ice production
• 1,006-lb. AHRI-certified daily ice production
• Makes crescent-cube ice
• Crescent-cube ice size: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• Water-cooled, self-contained compressor
• H-GUARD Plus antimicrobial reduces bacteria buildup
• EverCheck alert system informs users of problems
• CycleSaver™ performs a cycle quickly
• Durable stainless steel finish
• Cools with R404A refrigerant
• Corrosion-resistant stainless steel evaporator
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 17,100-BTU heat transfer capacity

Product Features

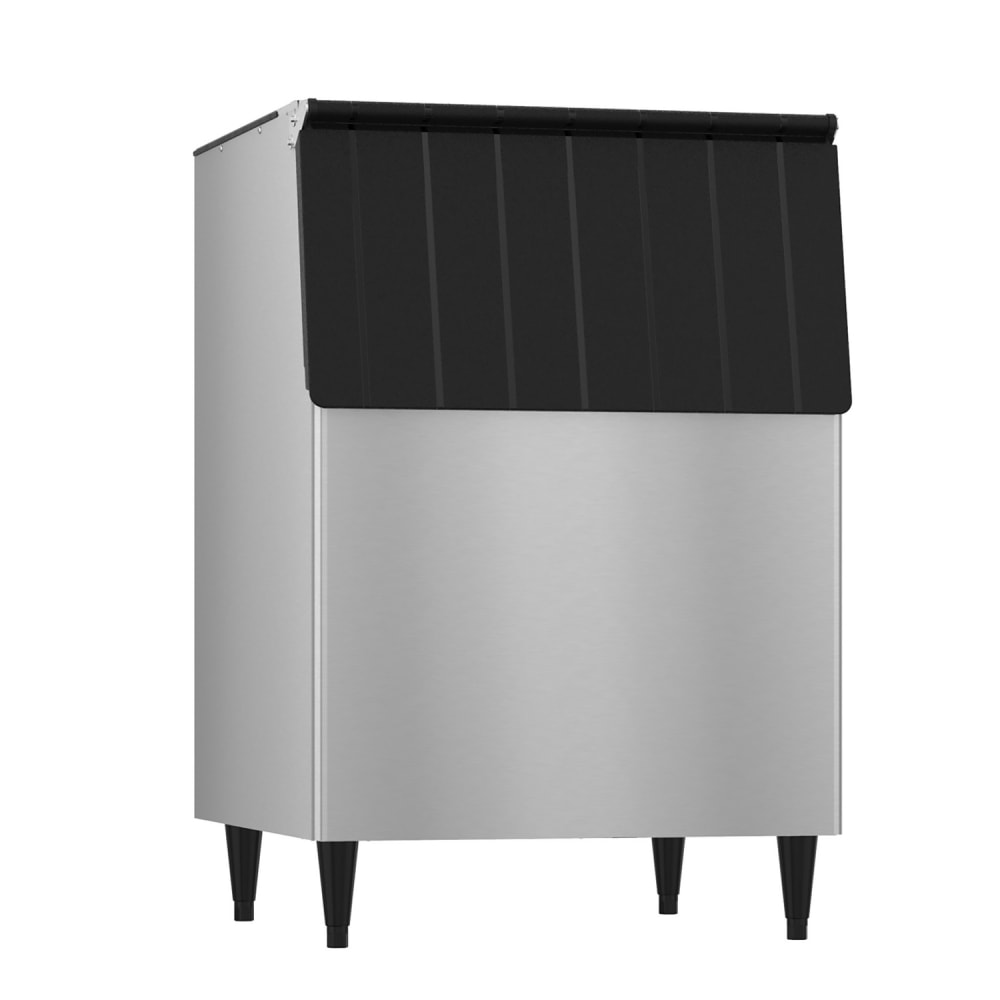

Ice Bin Details

• 500-lb. ice storage capacity
• Ice scoop and bin protected with H-GUARD Plus antimicrobial
• Polyethylene-lined bin enhances sanitation
• Insulated with foamed-in-place polyurethane
• Vinyl clad construction with painted legs
• Front opening

Dimensions & Utilities

• Ice machine head: 30 in. W x 27.38 in. D x 32.5 in. H
• Ice bin interior: 27 in. W x 27.7 in. D x 37.6 in. H
• Ice bin overall: 30 in. W x 32.5 in. D x 46 in. H
• 9.6 A, 4 kW
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 1073 lb/24 hours at 70°/50° (1006 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 9.6 amps, NSF, UL

Ice Bin, 30"W, top-hinged front-opening door, 500-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
