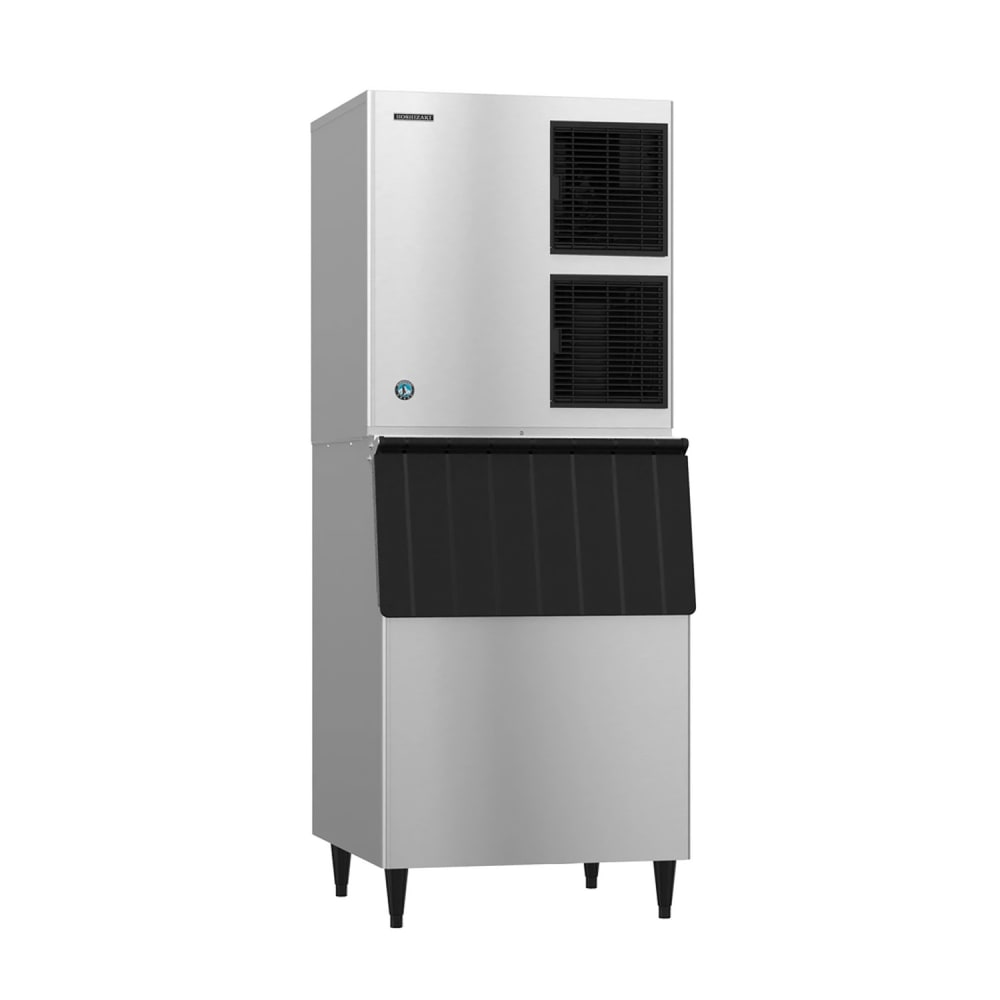

Hoshizaki KM-1100MAJ/B-500SF 1087 lb KM Series Crescent Cube Ice Machine w/ Bin - 500 lb Storage, Air Cooled, 208-230v

The Hoshizaki KM-1100MAJ/B-500SF ice maker with bin stores 500 pounds of ice and produces 1,087 pounds per day when operating in ideal conditions. To keep ice clean and fresh, the ice maker and scoop include H-Guard Plus protection, which slows bacterial formation. The EverCheck™ alert system informs users if something is amiss with the ice maker, simplifying maintenance and keeping the unit running properly.

The bin included with the Hoshizaki KM-1100MAJ/B-500SF ice maker is insulated with foamed-in-place polyurethane to ensure ice stays cold and solid. It is lined with polyethylene so it is sanitary for storage and can be cleaned swiftly. The unit is sturdy for stacking or side-by-side installation with other ice makers and bins.

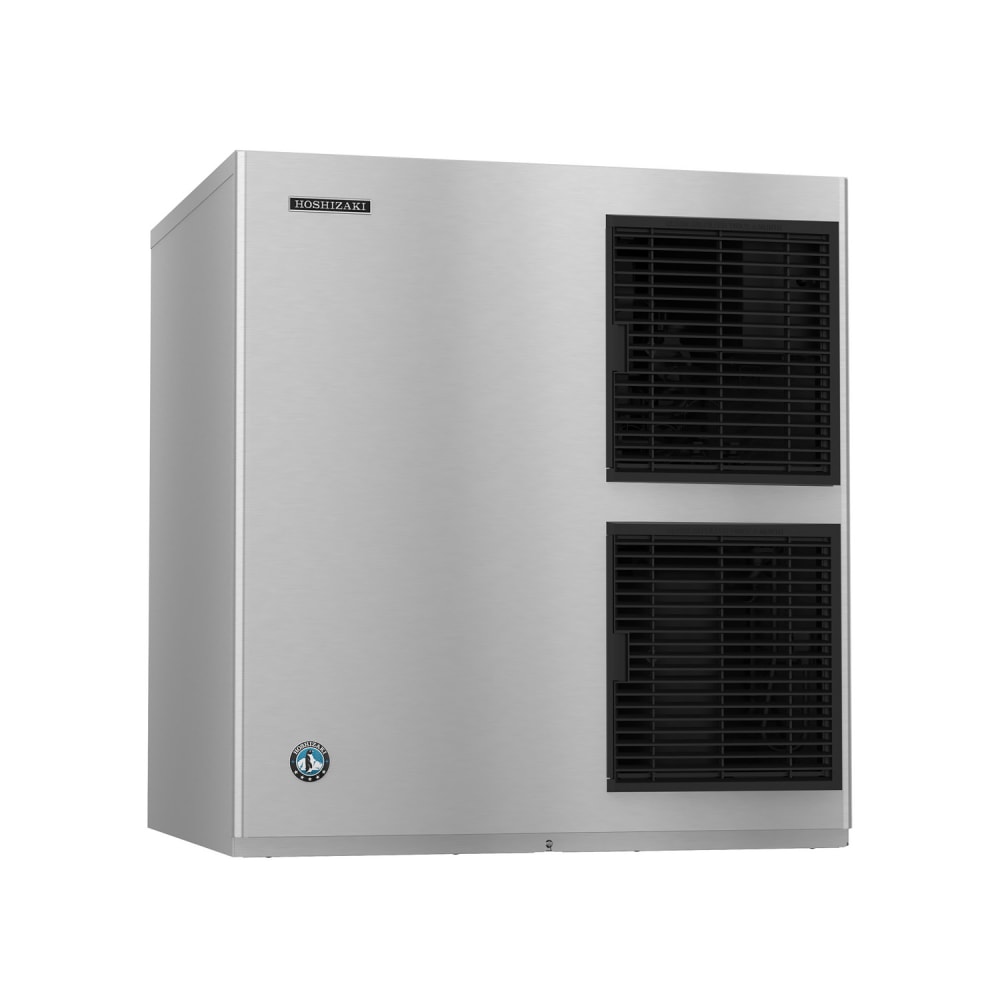

Ice Maker Details

• 1,087-lb. maximum daily ice production
• 935-lb. AHRI-certified daily ice production
• Crescent cube ice size: ¹⁄₂ in. x 1¹⁄₂ in. x 1¹⁄₈ in.
• Removable air filters facilitate maintenance and replacement
• Stainless steel exterior is durable and expedites cleaning
• H-Guard Plus antimicrobial slows bacteria development
• EverCheck alert system informs users if something is operating inadequately
• Stainless steel evaporator resists corrosion
• Air-cooled, self-contained refrigeration unit
• Uses R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 15,800-BTU heat transfer capacity
• Ideal clearances: 12 in. at the top, sides, and rear

Product Features

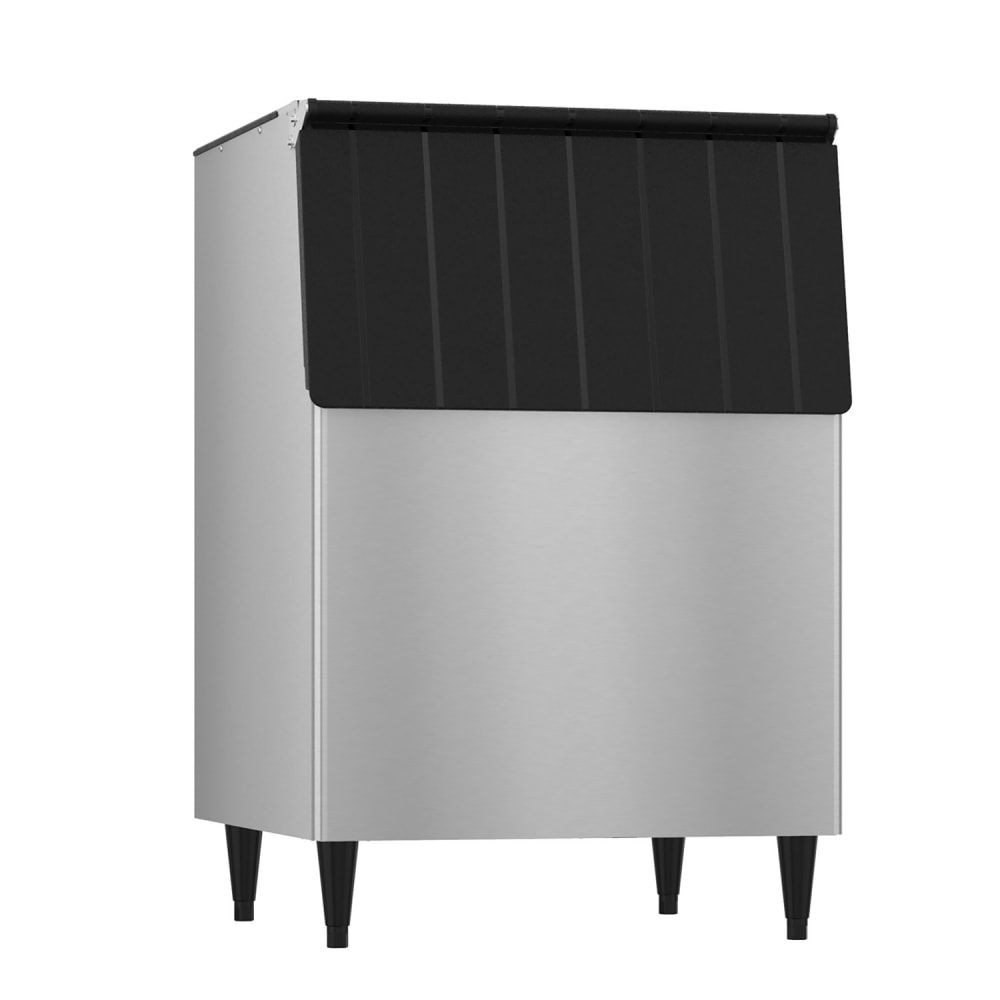

Ice Bin Details

• 500-lb. application capacity
• Ice scoop is included for product retrieval
• H-Guard Plus antimicrobial shields the scoop from bacteria
• Front-opening door for smooth access
• Sturdy construction enables stacking
• Polyethylene-lined for sanitary purposes
• Polyurethane insulation keeps the ice cold
• Vinyl clad
• Painted legs

Dimensions & Utilities

• Bin: 30 in. W x 32.5 in. D x 46 in. H
• Ice maker: 30 in. W x 27.38 in. D x 32.5 in. H
• 12.5 A, 4.9 kW
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 1087 lb/24 hours at 70°/50° (935 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 12.5 amps, NSF, UL

Ice Bin, 30"W, top-hinged front-opening door, 500-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
