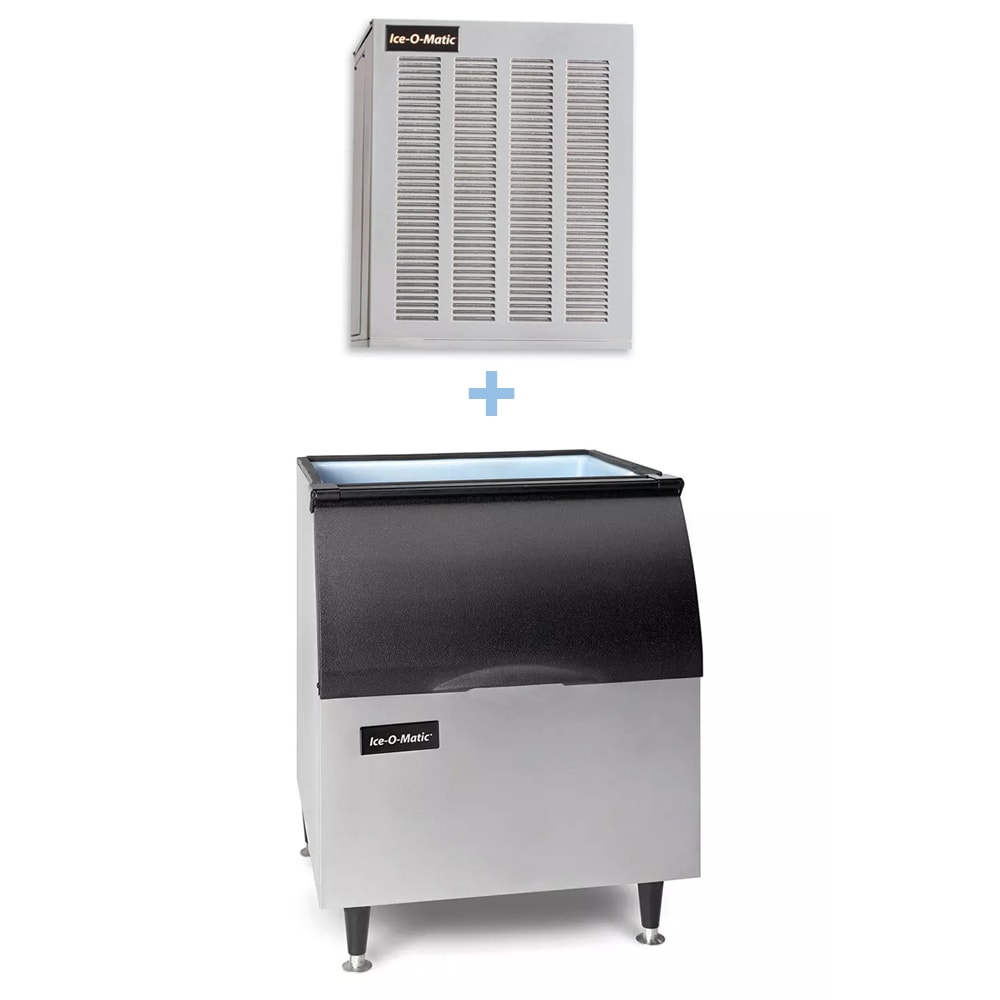

Ice-O-Matic GEM0956A/B40PS/KBT19 1053 lb Pearl Ice® Nugget Ice Machine w/ Bin - 344 lb Storage, Air Cooled, 208-230v

The Ice-O-Matic GEM0956A/B40PS ice machine with bin has an air-cooled, self-contained condenser. The auger and evaporator are made of stainless steel to resist corrosion and rust, and the unit has a durable stainless steel finish. A popular choice for customers, this machine makes soft, chewable nugget ice. A Water Sensor monitors how much water is remaining in the unit to inform users, and SystemSafe technology reports issues to prevent further damage.

To resist corrosion, the Ice-O-Matic GEM0956A/B40PS ice maker's bin is lined with polyethylene. It's also insulated with foam to prevent ice from melting while it's stored. Holding 344 pounds of ice, the bin can be accessed behind a top-hinged, sloped front door. It's positioned on 6-inch legs to stabilize on uneven floors, and the exterior is durable aluminum.

Ice Maker Details

• Part of the Pearl Ice® series
• 1,053-lb. maximum daily ice production
• Makes nugget ice
• Ice dimensions: ¹⁄₂ in. H x ³⁄₈ in. dia.
• Self-contained, air-cooled condenser
• Rust-resistant stainless steel finish
• Stainless steel auger and evaporator are corrosion resistant
• Workload monitored with SystemSafe technology
• Water Sensor monitors low and empty levels
• 5,600-BTU heat transfer capacity
• Ideal incoming water pressure: 20-120 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F

Product Features

Ice Bin Details

• 344-lb. application capacity
• Hinged, sloped front door
• Polyethylene liner provides corrosion protection
• Melting prevented with foam insulation
• Strong aluminum exterior
• Positioned on 6-in. adjustable legs

Dimensions & Utilities

• Ice maker: 21 in. W x 24 in. D x 27 in. H
• Ice bin: 30 in. W x 31 in. D x 37¹/₂ in. H
• 11.8 A, 4.06 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic GEM0956A/B40PS/KBT19 within the 48 contiguous states.

From The Manufacturer

Pearl Ice® Maker, soft, chewable ice crystals, air-cooled, self-contained condenser, approximately 1053 lb/478 kg production/24 hours, durable stainless finish, cULus, NSF, CE, ENERGY STAR®

Ice Bin, 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF; (KBT19) Bin Kit for 22” CIM, MFI and GEM Series on a 30” bin

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Compressor Parts

Ice-O-Matic GEM0956A/B40PS/KBT19 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Installation Guide

Brochure
