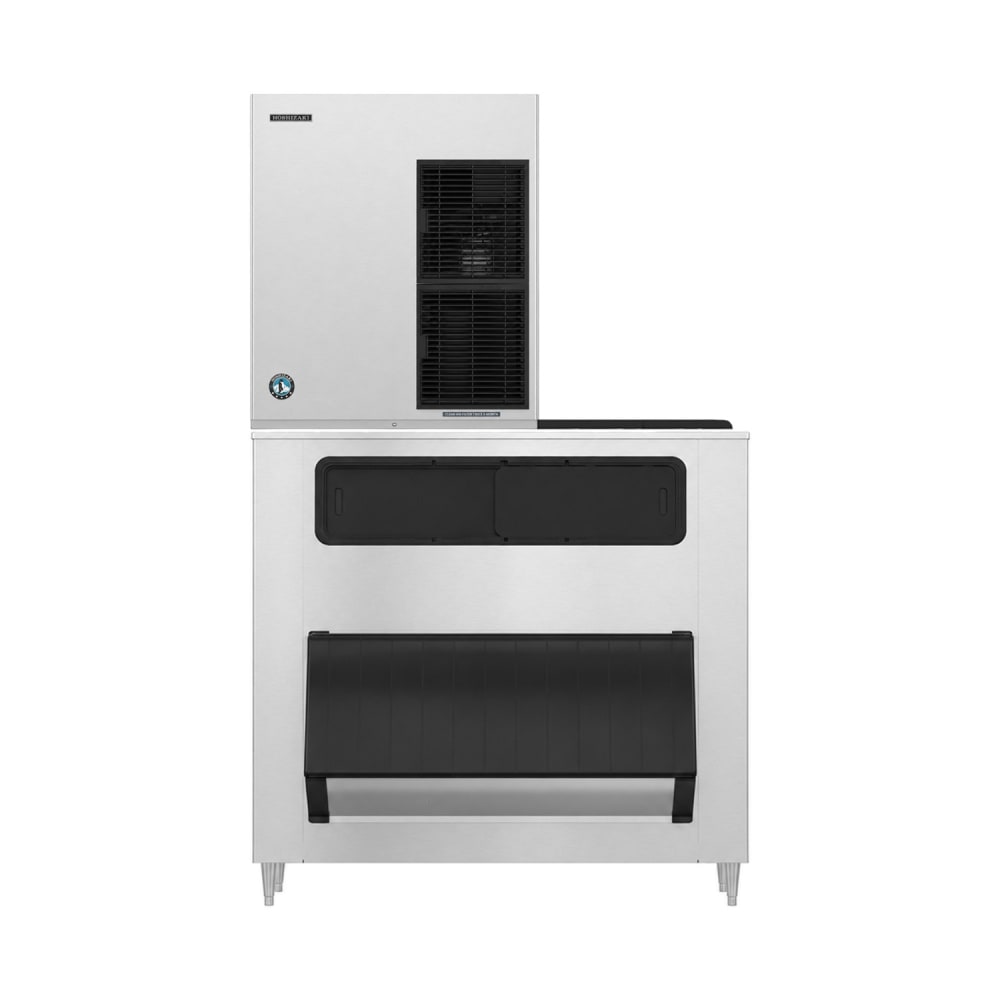

Hoshizaki F-1002MWJ/B-1150SS 955 lb Flake Ice Machine w/ Bin - 1148 lb Storage, Water Cooled, 115v

The Hoshizaki F-1002MWJ/B-1150SS flake ice machine with bin features a durable stainless steel exterior that resists scratching and rusting. To inhibit harmful bacterial growth, the bin and included scoop are protected with antimicrobial H-Guard Plus®. Depending on ambient conditions, this unit can produce 955 pounds of flake ice with a storage capacity of 1,148 pounds.

To maintain ice quality and freshness, the Hoshizaki F-1002MWJ/B-1150SS ice maker and bin combo has an Advanced CleanCycle24™ feature that removes sediment every hour with a 2-second flush cycle. The bin is designed with foamed-in-place polyurethane insulation to retain cold air and maintain proper temperatures. Enabling operators to clearly monitor fill level, the bin features top windows, and the infrared bin sensor stops ice production if the bin gets too full to prevent overflowing.

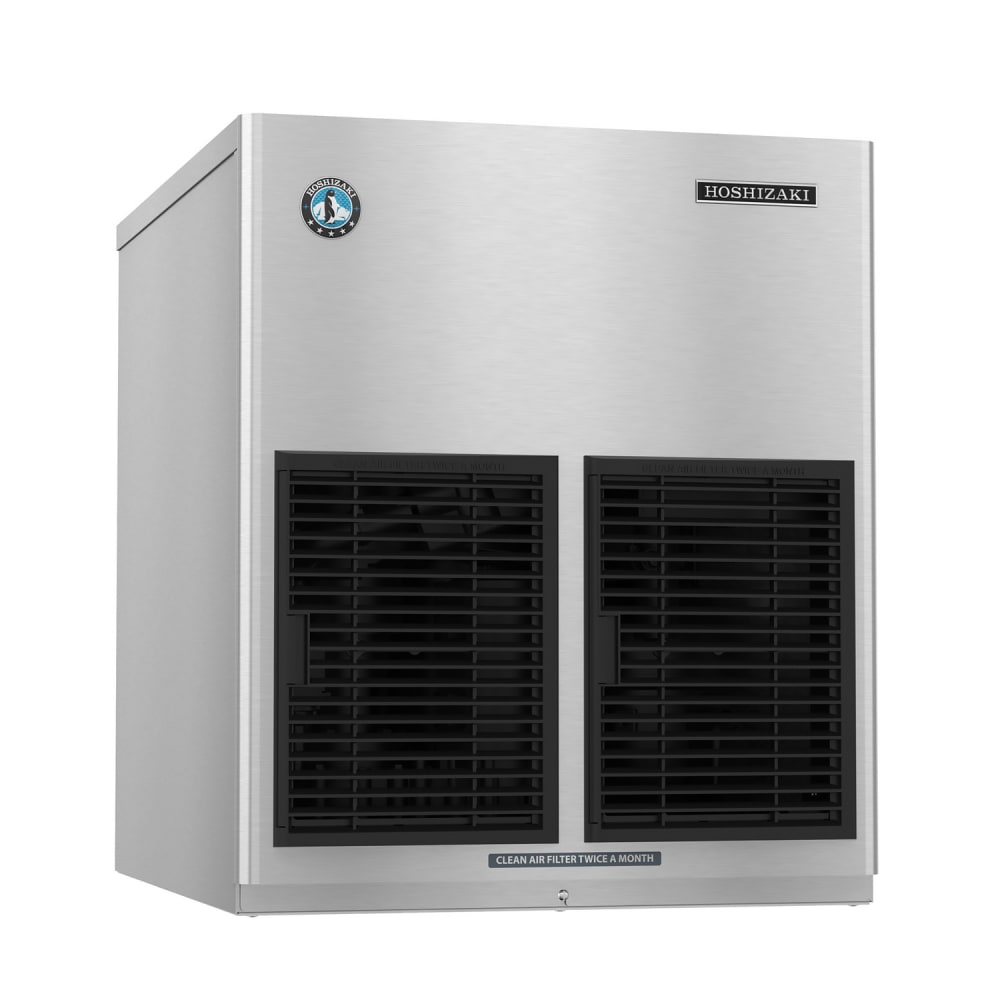

Ice Machine Details

• Part of the Slim-Line series
• 955-lb. daily ice production
• 833-lb. daily AHRI-certified ice production
• Self-contained, water-cooled refrigeration system
• Flake ice size: 1-in. length
• Durable stainless steel exterior
• Advanced CleanCycle24 feature initiates a 2-sec. flush cycle every hr. to remove sediment for fresh ice
• Protected with H-Guard Plus antimicrobial agent
• Infrared bin sensor monitors ice production to prevent overflowing
• Uses R404A refrigerant
• Ideal ambient temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 8,200-BTU heat transfer capacity

Product Features

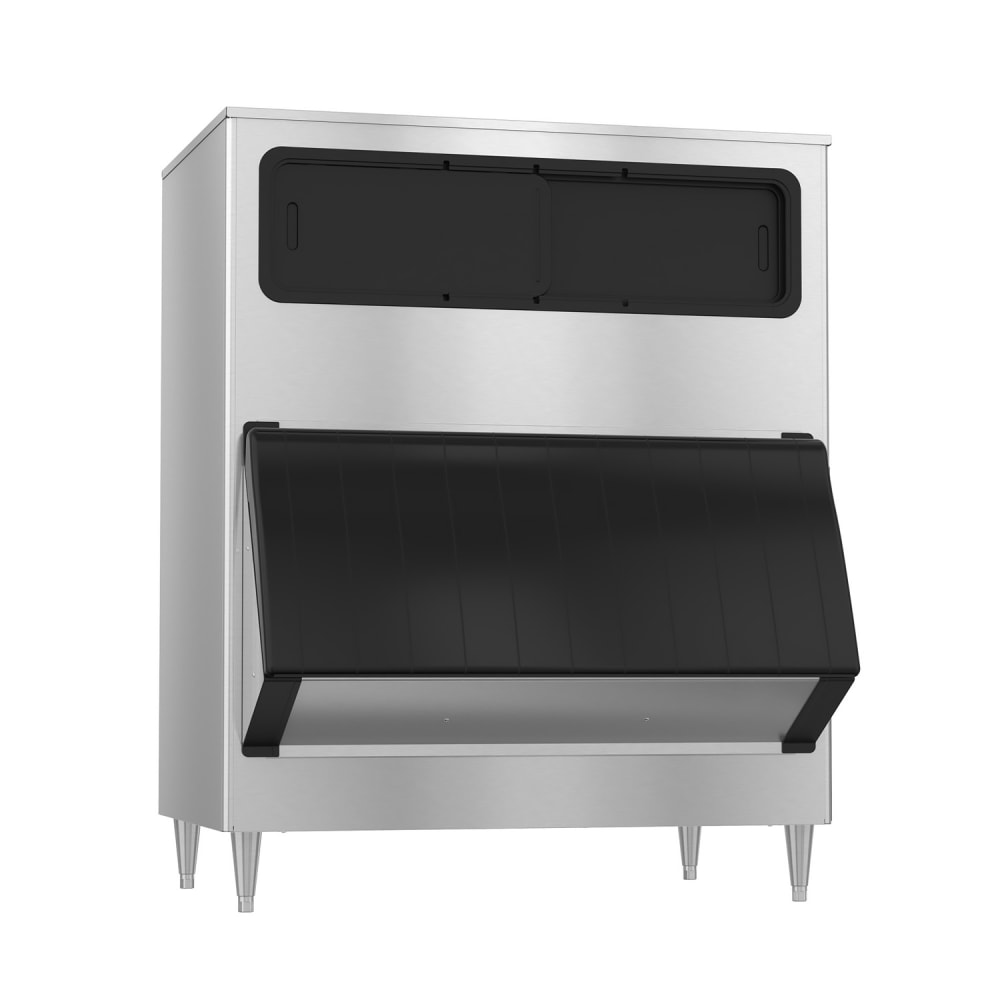

Ice Bin Details

• 1,148-lb. ice storage capacity
• Hinged bottom door
• Top windows provide visibility
• Stainless steel exterior resists denting and rusting
• Foamed-in-place polyurethane insulation retains cold air
• Polyethylene interior liner
• 6-in. adjustable stainless steel legs
• Sealed door gasket reduces risk of contamination from airborne bacteria
• Included ice scoop holds 82 oz. of ice
• Scoop and bin protected with H-Guard Plus antimicrobial agent

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 27³⁄₈ in. D x 26 in. H
  • 13.7 A, 3.57 kW
  • 115 V/60 Hz/1 ph
• Ice Bin
  • 48 in. W x 41 in. D x 60³⁄₁₆ in. H

From The Manufacturer

Ice Maker with Bin, Flake-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 955 lb/24 hours at 70°/50° (833 lb AHRI certified at 90°/70°), stainless steel finish, Advanced CleanCycle24™, infrared bin sensor, R-404A refrigerant, 115v/60/1-ph, 13.7 amps, NSF, UL; Ice Bin: 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted Ice Maker with Bin, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki F-1002MWJ/B-1150SS Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Certifications
