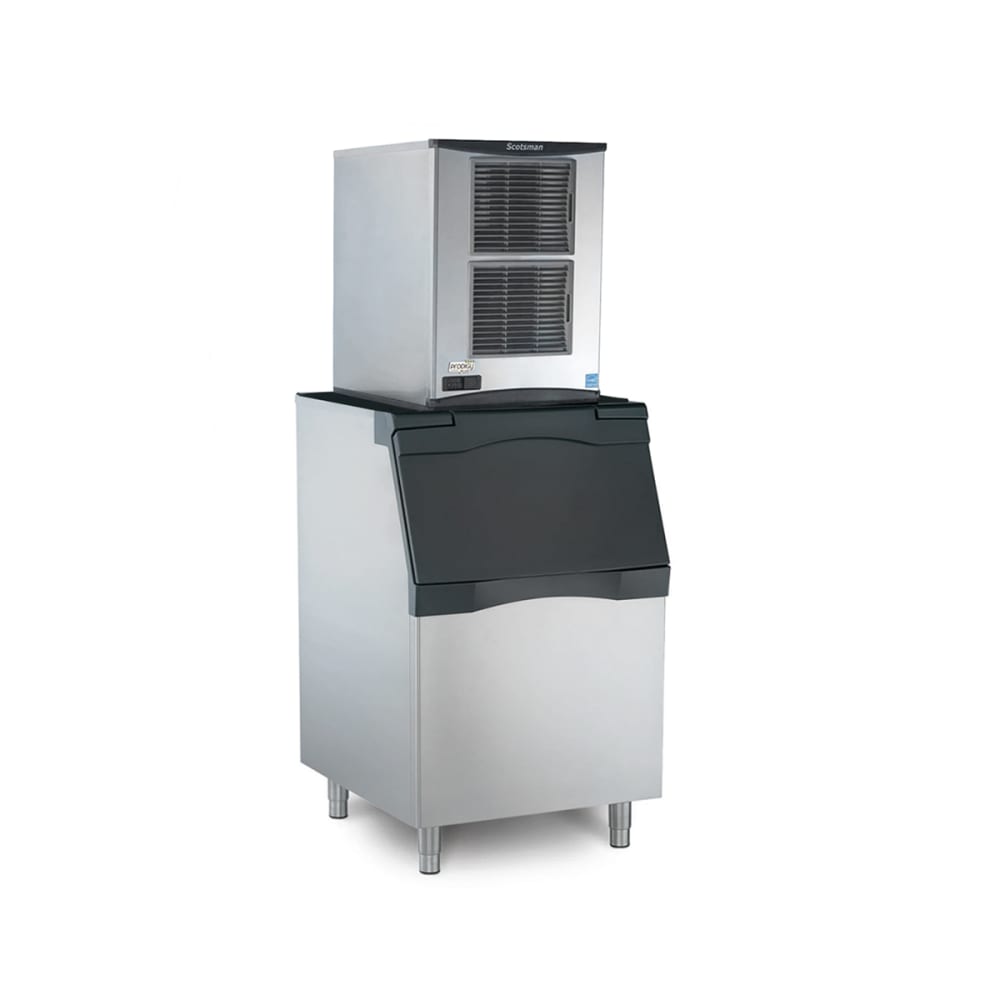

Scotsman NS0922A-32/B530S/KBT27 956 lb Prodigy Plus® Nugget Ice Machine w/ Bin - 536 lb Storage, Air Cooled, Softer Nugget, 208-230v

In ideal conditions, the Scotsman NS0922A-32/B530S/KBT27 ice maker with bin can produce 956 pounds of ice each day. If temperatures are too high, however, it makes closer to 784 pounds daily, 536 pounds of which can be stored in the bin for later use. This unit's stainless steel finish provides durability as are the auger and evaporator, helping them resist rust and corrosion. A unit-specific QR code can be scanned to reveal important information, such as warranty history and service manuals.

The Scotsman NS0922A-32/B530S/KBT27 nugget ice machine with bin can be cleaned at the touch of a button. To ensure ice doesn't melt while stored, the bin is insulated with polyurethane. The ice maker has AgION® antimicrobial that slows microbial growth to prevent rapid germ spread. To retrieve ice, this unit comes with a scoop and the door opens from the front for interior access to the bin.

Ice Machine Details

• Part of the Prodigy Plus® series
• 956-lb. maximum daily ice production
• 784-lb. AHRI-certified daily ice production
• Makes Original Chewable Ice®

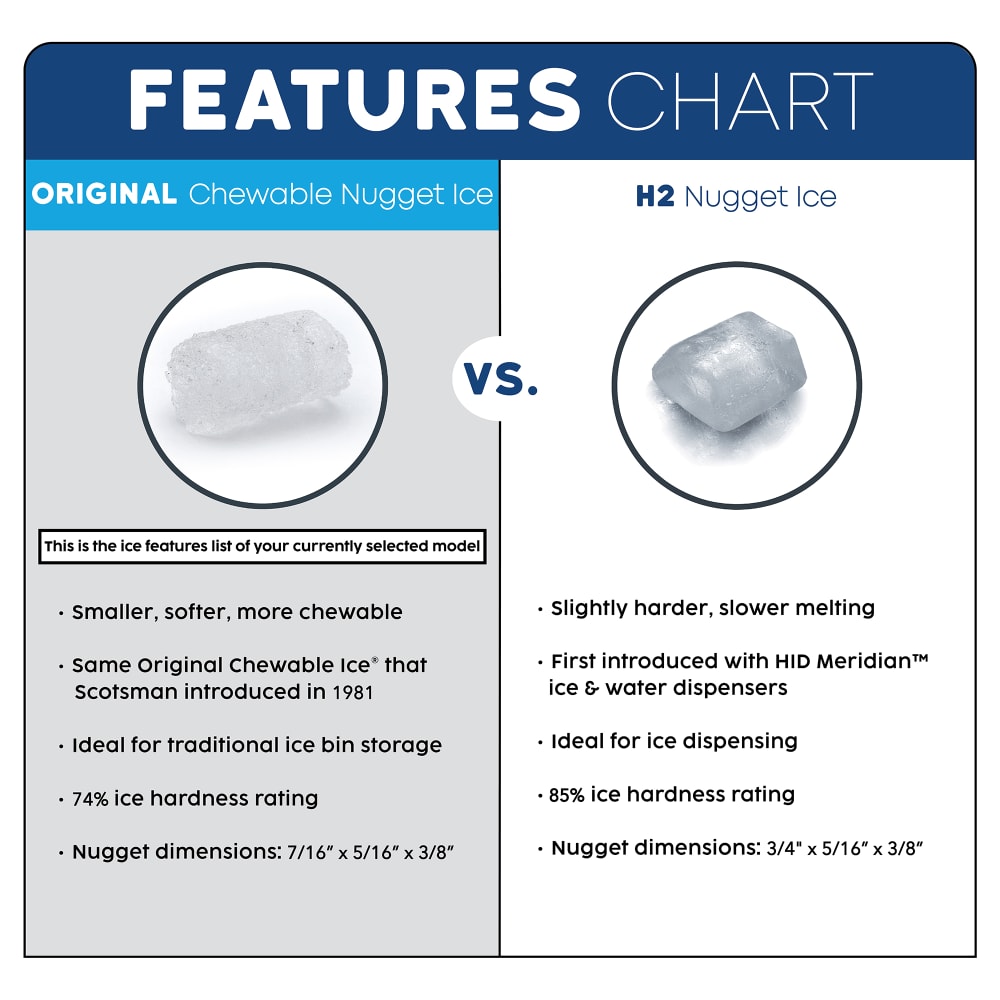

• Ice dimensions: ⁷⁄₁₆ in. x ⁵⁄₁₆ in. x ³⁄₈ in.
• Self-contained condenser cools with R404A refrigerant
• Air cooled
• Warranty information provided when QR code is scanned
• Corrosion-resistant stainless steel auger, evaporator, and finish
• Single-touch cleaning
• AgION antimicrobial inhibits microbe formation
• Bearings are sealed and maintenance free
• AutoAlert™ indicating lights
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 10,500-BTU heat transfer capacity

Ice Bin Details

• 536-lb. application capacity
• Insulated with polyurethane
• Constructed with a metallic exterior finish
• Interior lined with polyethylene
• Sanitary ice scoop with a built-in holder
• Top-hinged door opens from the front
• Baffle can be removed for cleaning
• 6-in. legs
• KBT27 top kit

Dimensions & Utilities

• Ice maker: 22⁹/₁₀ in. W x 24 in. D x 27 in. H
• Ice bin: 30 in. W x 34 in. D x 50 in. H
• 11.9 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Scotsman NS0922A-32/B530S/KBT27 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 956 lb/24 hours at 70°/50° (784 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 11.9 amps, NSF, cULus, ENERGY STAR®, engineered and assembled in USA

Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30" width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6" legs, NSF, engineered and assembled in USA; (KBT27) Bin Top, for use with all 22" cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NS0922A-32/B530S/KBT27 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
