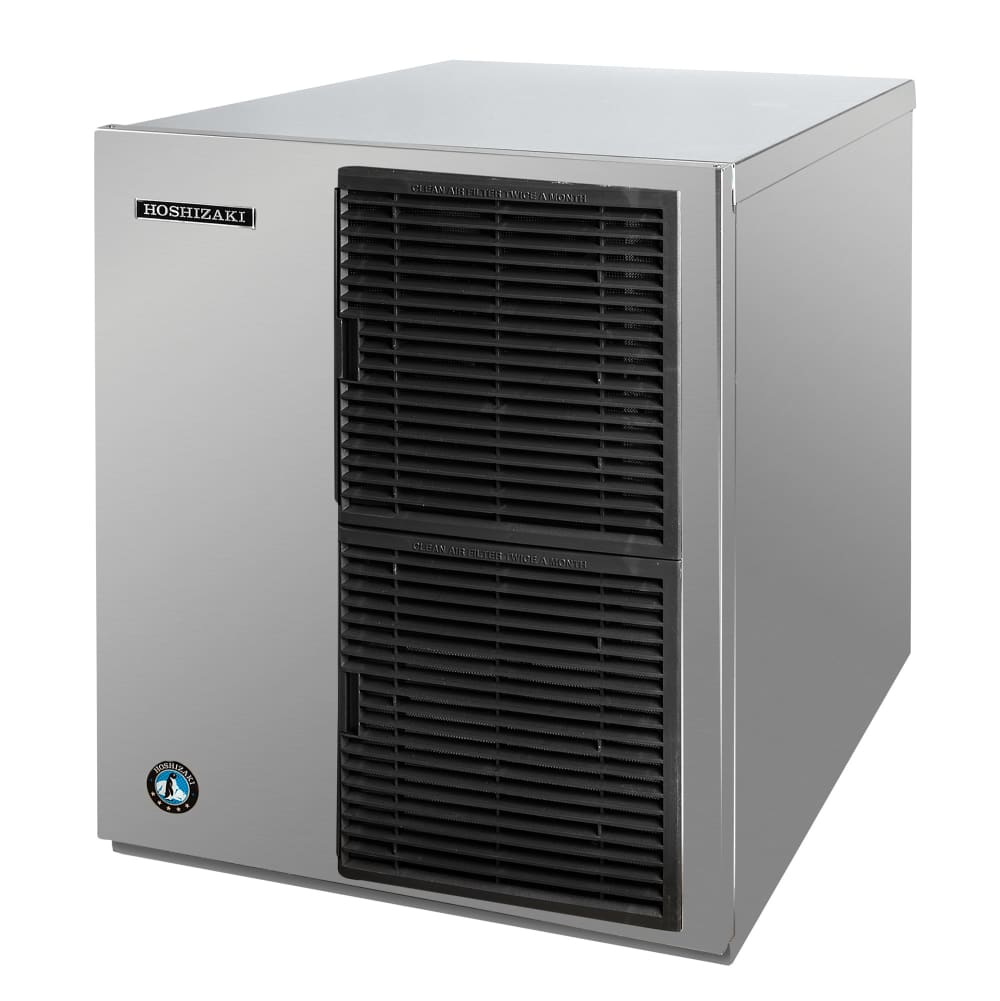

Hoshizaki KM-322MAK 22" Crescent Cube Ice Machine Head - 489 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,515.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Hoshizaki KM-322MAK Description
Under the right conditions, the Hoshizaki KM-322MAK ice machine head can produce 489 pounds of ice each day, efficiently creating cubes on each side of the evaporator as water runs over it. Each cube has a crescent shape that is harder and melts more slowly than other types of ice. The air-cooled condensing unit uses fans to blow cool air over the condensing coils as refrigerant runs through them, removing heat to form cubes
Unlike many other units, the Hoshizaki KM-322MAK ice maker has a stainless steel evaporator that lasts longer than standard nickel-plated components. A cleaning cycle and H-GUARD Plus lower the chances of mold and slime growth. If a system issue arises, an alert system uses beeping patterns to notify the operator, saving time with diagnostics and service work.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 489-lb. daily ice production capacity
- 393-lb. AHRI-certified daily ice production capacity
- Air-cooled condenser
- Air filters are removable

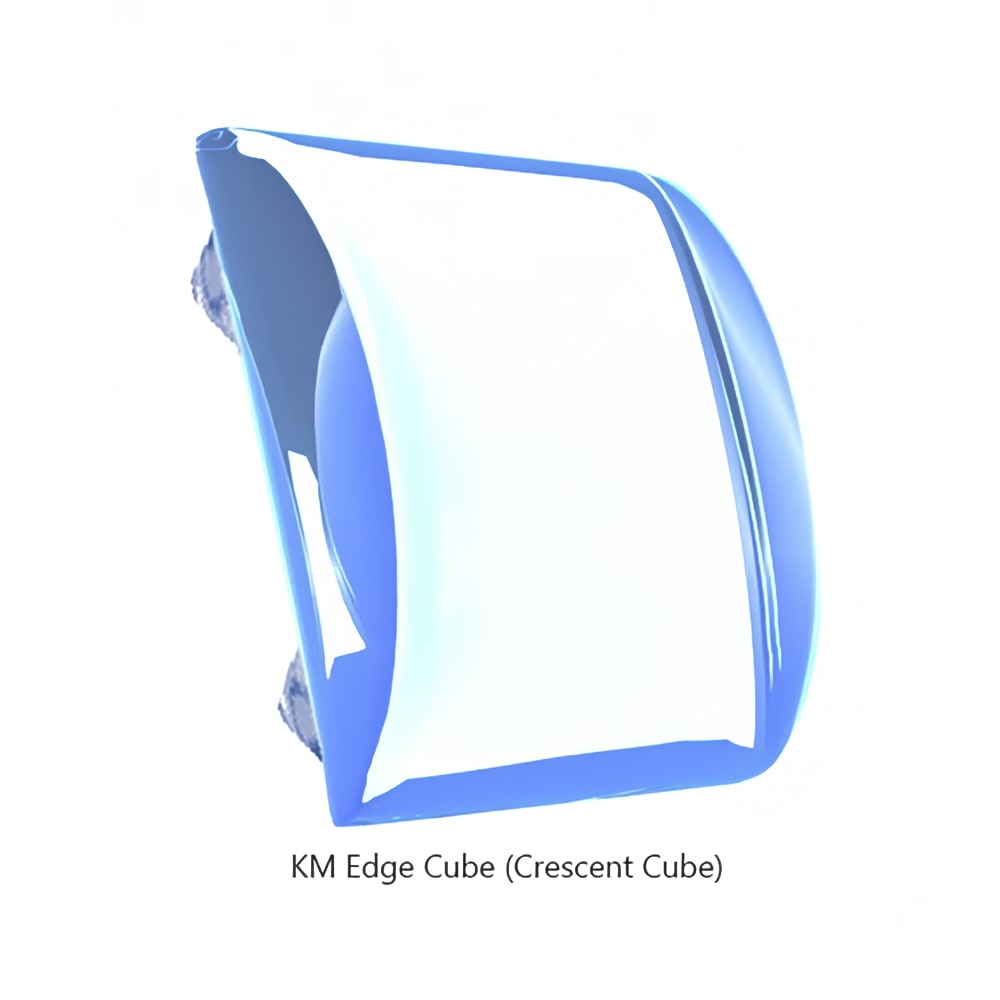

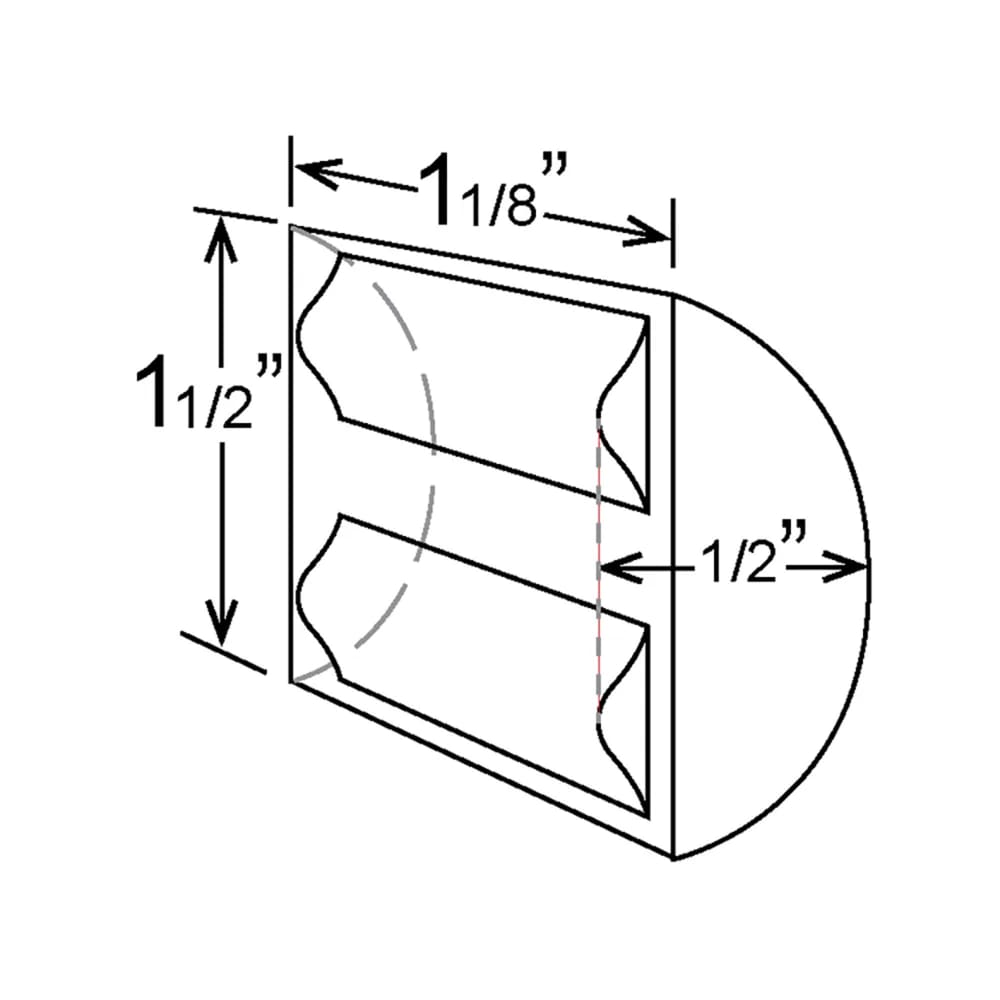

- Crescent-cube ice size: 1.125 in. x 1.5 in. x 0.5 in.
- Snap-in parts can be removed for cleaning
- Self-diagnostic system monitors conditions and adjusts accordingly
- CycleSaver™ design efficiently uses both sides of the evaporator
- Stainless steel evaporator supports heavy use
- Plastic louvers
- H-GUARD Plus antimicrobial agent slows bacteria growth
- EverCheck™ alert system notifies users of problems
- Uses R290 refrigerant
- Cleaning cycle
- 5,700 BTU
- Ice bin sold separately
- Ambient air temperature: 45-100 degrees F
- Incoming water temperature: 45-90 degrees F
- Incoming water pressure: 10-133 PSIG
- Clearances: 6 in. on both sides, 6 in. at the rear, and 6 in. above
- Water supply needs copper water tubing with a minimum 0.25-in. inner dia.
- Drain needs a hard pipe with a minimum 0.75-in. inner dia.
- 22 in. W x 27.375 in. D x 28 in. H
- 9.05 A, 5.42 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-322MAK within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki KM-322MAK Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 489 |
| Also Known As | KM-350MAJ |
| Compressor Type | Air Cooled |
| Depth (in) | 27.38 |
| Height (in) | 28 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KM EDGE X |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 22 |
| Weight | 145.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hoshizaki KM-322MAK Hoshizaki KM-322MAK 22" Crescent Cube Ice Machine Head - 489 lb/24 hr, Air Cooled, 115v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,515.00 / Each | $4,028.00 / Each | $4,028.00 / Each | $3,957.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 489 | 436 | 463 | 362 |
| Ice Type | Crescent Cube | Half Cube | Full Cube | Full Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 22 | 22 |
| Rating | Best | Best | Best | Best |
| Voltage | 115 | 115 | 115 | 115 |
| Series | KM EDGE X | Indigo NXT™ | Indigo NXT™ | Prodigy ELITE® |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 489 lbs. of ice per 24 hours.
It produces crescent-shaped ice that melts slowly.
Yes. A cleaning cycle and removable parts support cleaning.
An EverCheck™ alert system notifies operators of issues.
It requires 6-in. clearance on all sides.
Yes, it requires a compatible ice bin or dispenser.
It uses an air-cooled condenser with internal fans.
The panels remove easily for service and internal access.
