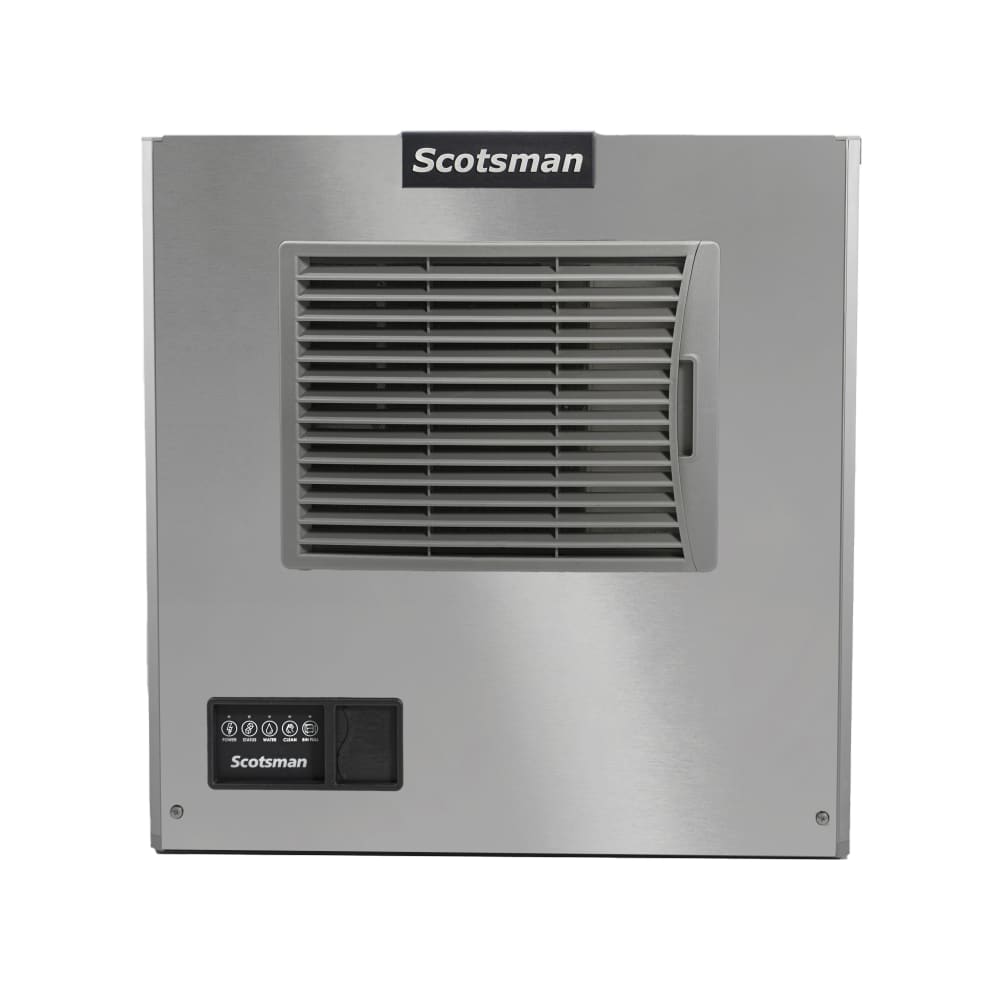

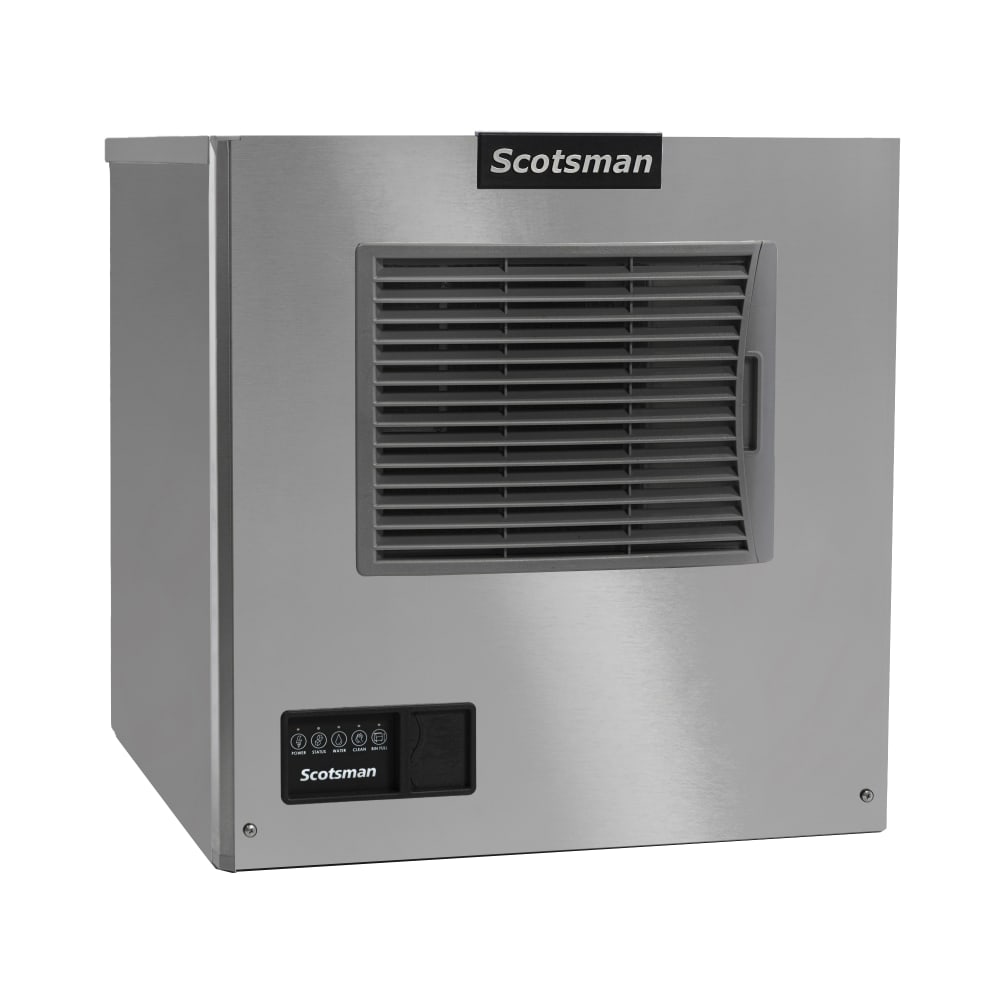

Scotsman MC0522MAX-1 22" Prodigy ELITE® Full Cube Ice Machine Head w/ Filter - 464 lb/24 hr, Air Cooled, 115v/1ph
Typically ships in 9 - 13 Business Days
Retail Price: $10,142.00
$4,158.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Selected Voltage: 115V, 1 Phase
| 115V, 1 Phase |
| 208-230V, 1 Phase |
Scotsman MC0522MAX-1 Description
Producing medium cubes of ice, the Scotsman MC0522MAX-1/AP1-P Prodigy ELITE® ice maker has a maximum production rate of 464 pounds in ideal environmental conditions. To defend against microbial growth, it’s treated with AgION™ protection, while its WaterSense adjustable purge controls removes scale buildup to keep the unit running smoothly. Simplifying installation and maintenance, this unit features a self-contained condenser, and its self-aligning front panel provides access to key components.
An air-cooled unit, the Scotsman MC0522MAX-1/AP1-P ice machine head operates with R290 refrigerant. Operational updates are provided with AutoAlert™ indicating lights, and ice is guided through the unit using a Harvest Assist feature. Operators can use the Scotsman ICELINQ® mobile app to connect to the ice maker’s dashboard and settings and walk through a step-by-step intuitive cleaning process. For durability and corrosion resistance, it features a stainless steel finish, and overall, this unit measures 22 inches wide by 24 inches deep by 23 inches high. The ice machine comes with the AP1-P water filter.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Prodigy ELITE series
- 464-lb. maximum daily ice production
- Produces medium cube ice
- Individual ice cube dimensions: 7⁄8 in. x 7⁄8 in. 7⁄8 in.

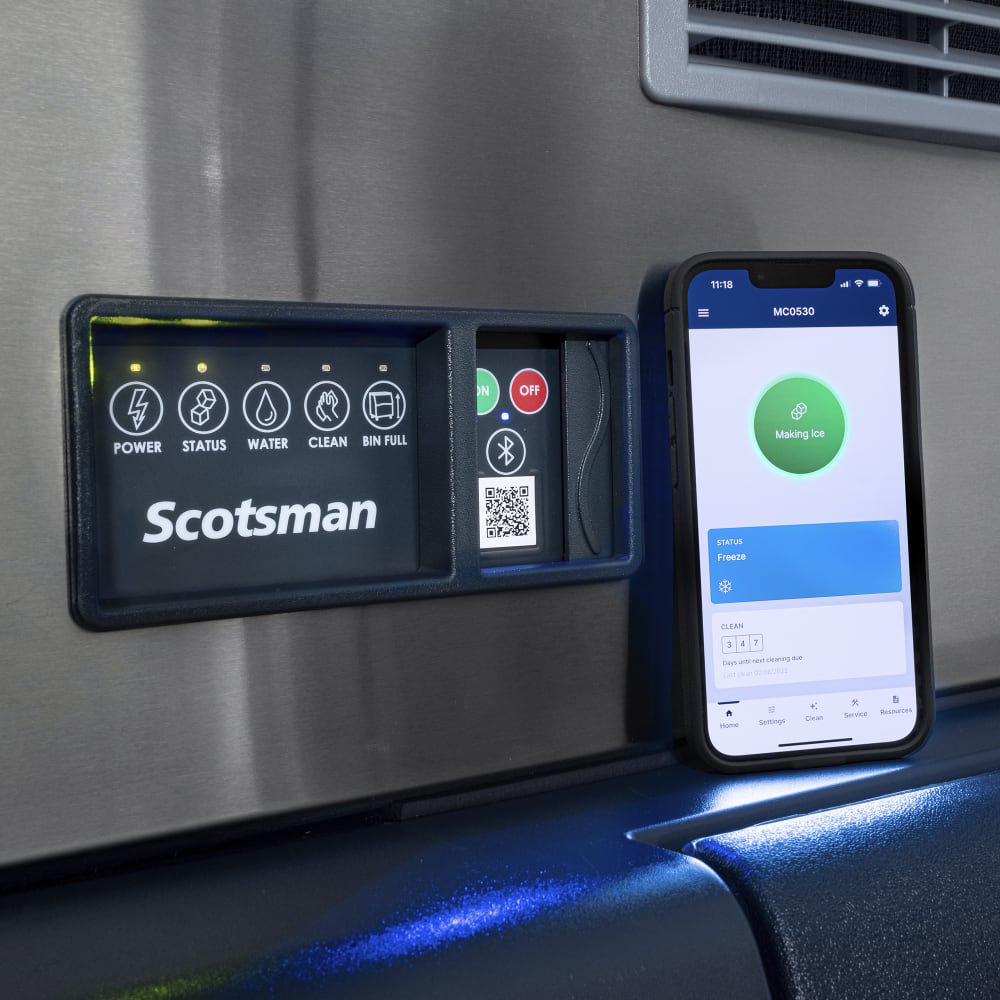

- Connects to mobile app via bluetooth
- Compatible with ICELINQ mobile application
- App provides diagnostics report and enables settings adjustments and guided cleaning instructions
- Corrosion-resistant stainless steel finish

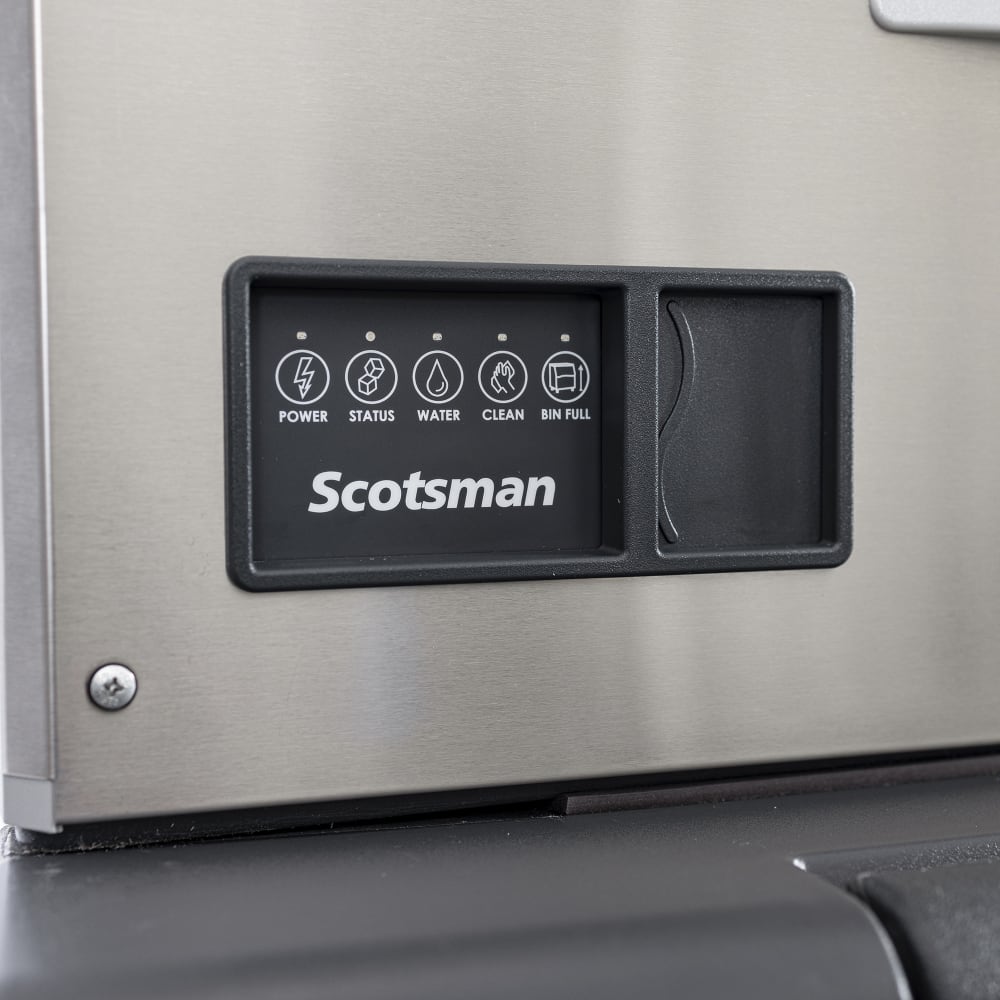

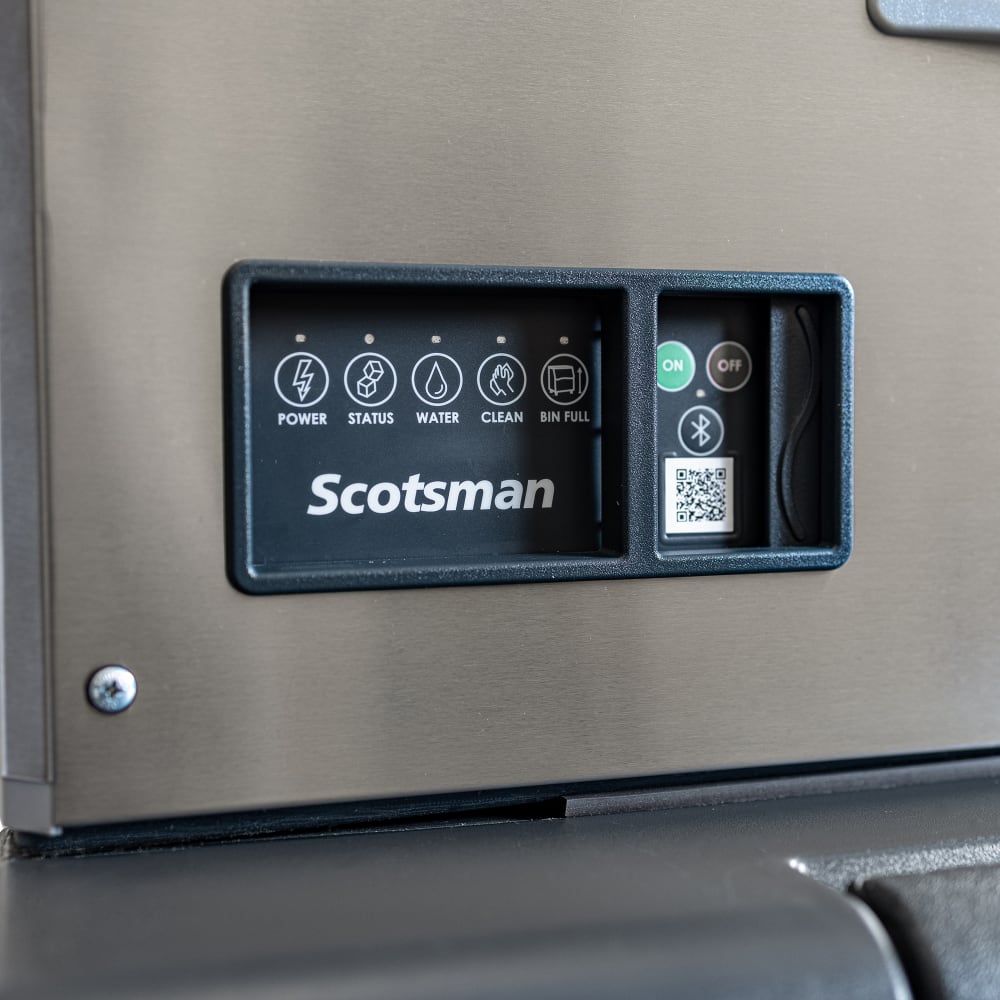

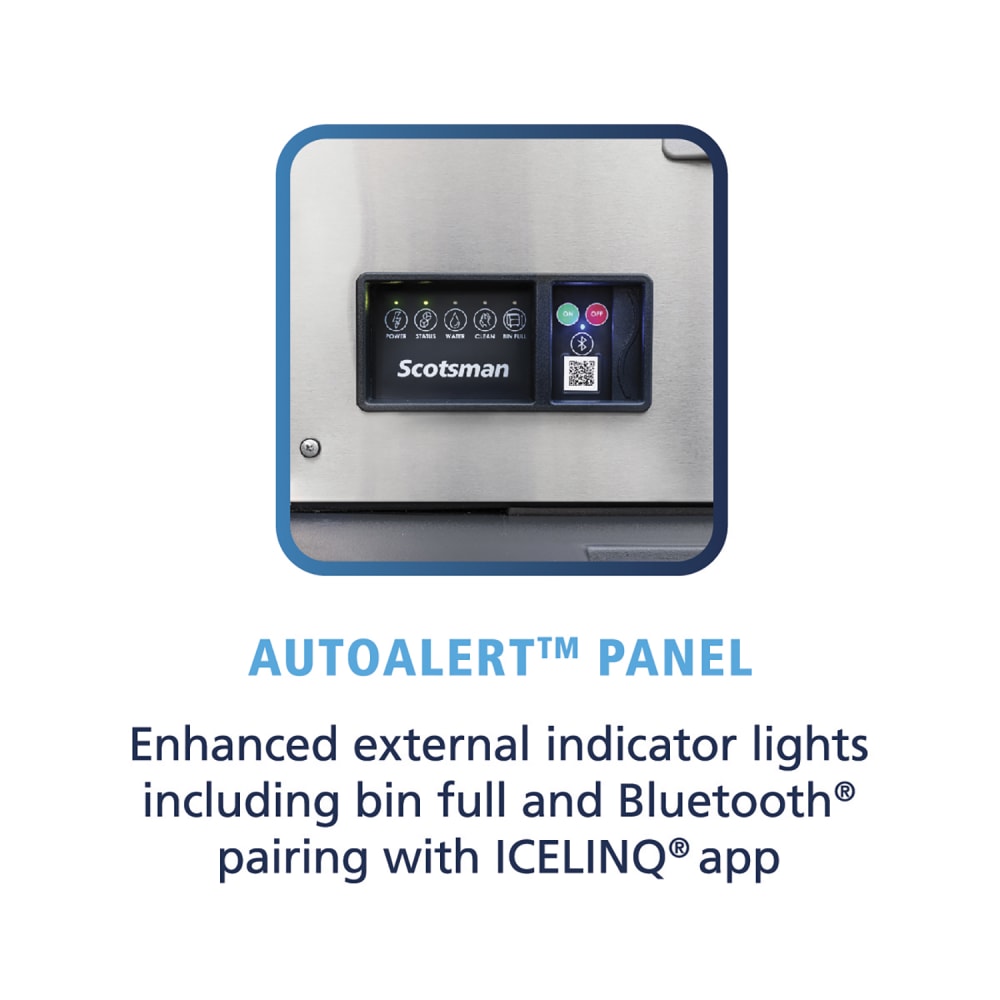

- AutoAlert indicating lights update users of operational status

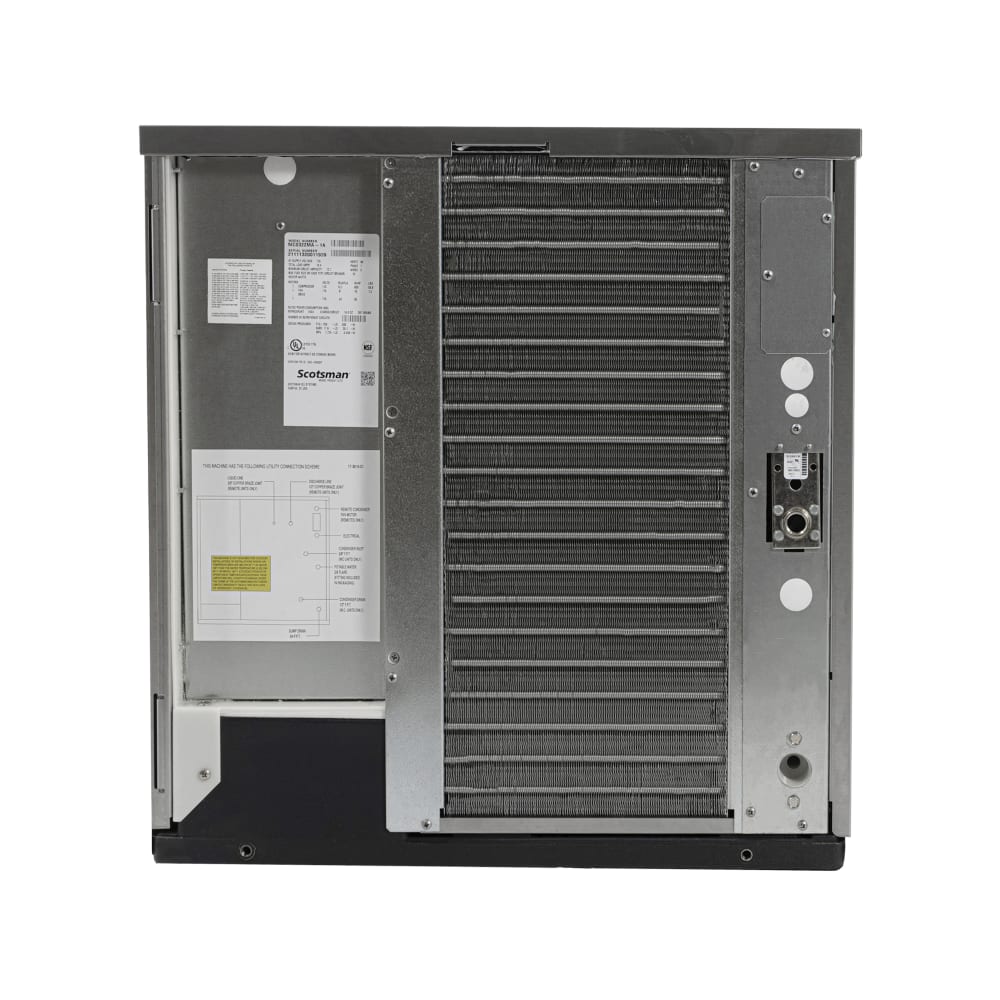

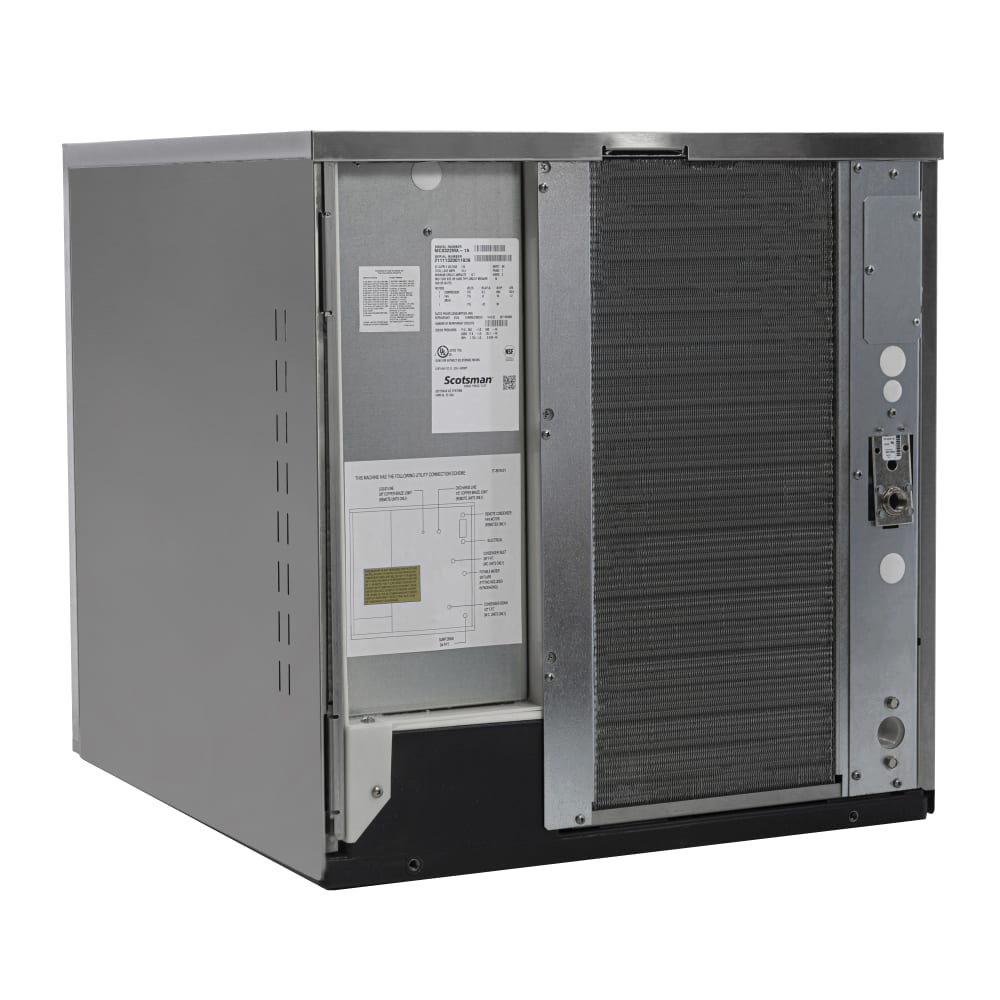

- Self-contained condenser
- Air cooled
- 1-touch cleaning

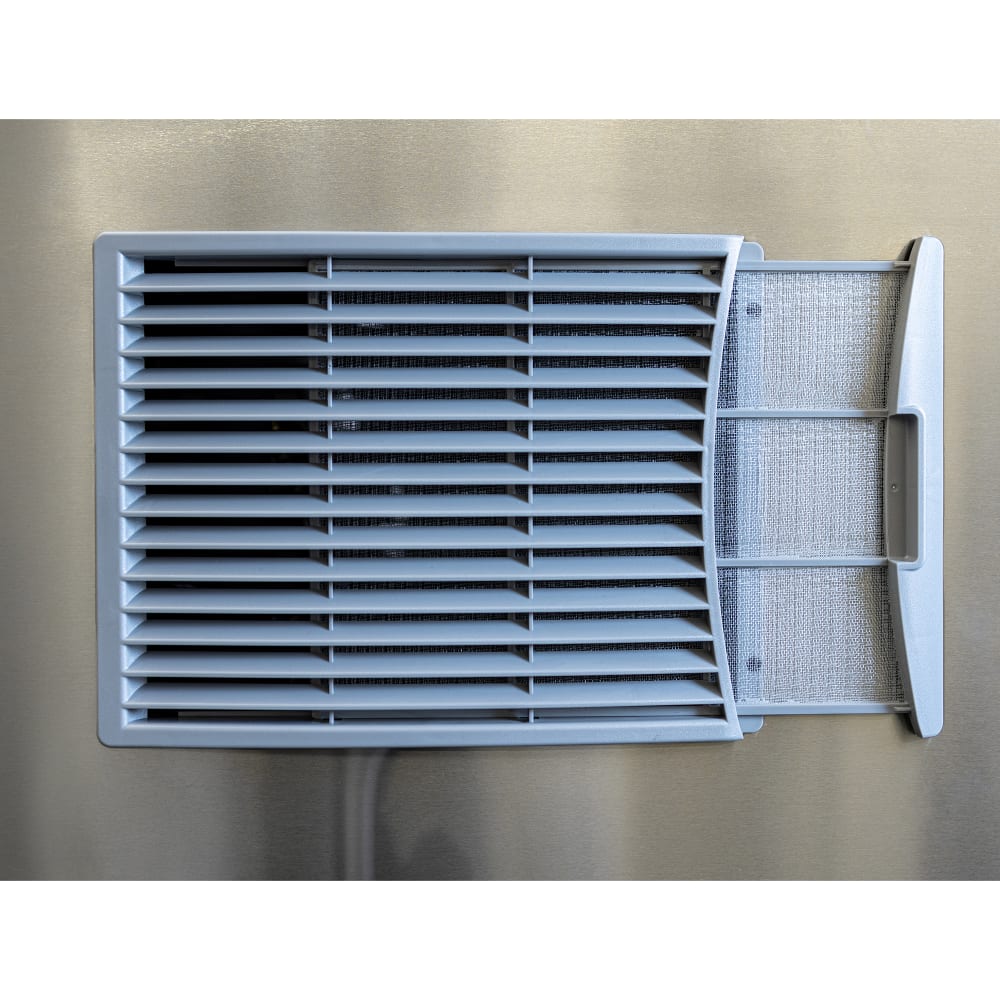

- Front air filter
- Self-aligning front panel ensures component access
- WaterSense adjustable purge control removes scale buildup
- AgION protection inhibits microbial growth
- Harvest assist helps guide ice through unit
- Unit-specific QR code
- Cools with R290 refrigerant
- AP1-P water filter included
- Operating ambient temperature range: 50-100 degrees F
- Operating water temperature range: 40-000 degrees F
- Operating incoming water pressure: 20-80 PSIG
- 7,900-BTU transfer capacity
- 22 in. W x 24 in. D x 23 in. H
- 13.5 A, 5.94 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522MAX-1 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 464 lb/24 hours at 70°/50° (342 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 13.5 amps, cULus, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522MAX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 464 |
| Also Known As | MC0522MA-1 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Ice Type | Full Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 160.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman MC0522MAX-1 Scotsman MC0522MAX-1 22" Prodigy ELITE® Full Cube Ice Machine Head w/ Filter - 464 lb/24 hr, Air Cooled, 115v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,158.00 / Each | $4,302.00 / Each | $4,302.00 / Each | $3,904.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 9 - 13 Business Days | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 464 | 537 | 482 | 561 |
| Ice Type | Full Cube | Half Cube | Full Cube | Full Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 22 | 22.25 |
| Rating | Best | Best | Best | Better |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Prodigy ELITE® | Indigo NXT™ | Indigo NXT™ | Elevation Series™ |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
It measures 22 in. W x 24 in. D x 23 in. H.
It requires a 115 V, 1-ph electrical connection with a 15 A circuit.
A 3/8 in. potable water inlet and a 3/4 in. drain connection are required.
Yes, it is a modular ice machine head and must be paired with a compatible ice bin.
It produces up to 500 lbs. of ice per 24 hours under rated conditions.
This model is air cooled.
The unit produces small or medium cube ice, depending on configuration.
Yes, the external air filters are removable for cleaning and maintenance.
It can produce up to 464 lb. of ice per 24 hours.
It makes full-cube ice.
It measures 22 in. W x 24 in. D x 23 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It uses single-phase power.
It uses R290 refrigerant.
It requires a hardwired electrical connection.
Its listed certifications include AHRI, cULus Listed, ENERGY STAR, and NSF.
Its exterior is made of stainless steel.
It requires a 3/8-in. water inlet connection.
No, this ice machine head is sold without an ice bin.
It must be paired with a separately purchased ice bin or dispenser.
It must be paired with a separately purchased ice bin or dispenser.
It has a one-touch cleaning function.
Yes, it has a removable air filter.
Yes, a water filter is included.
