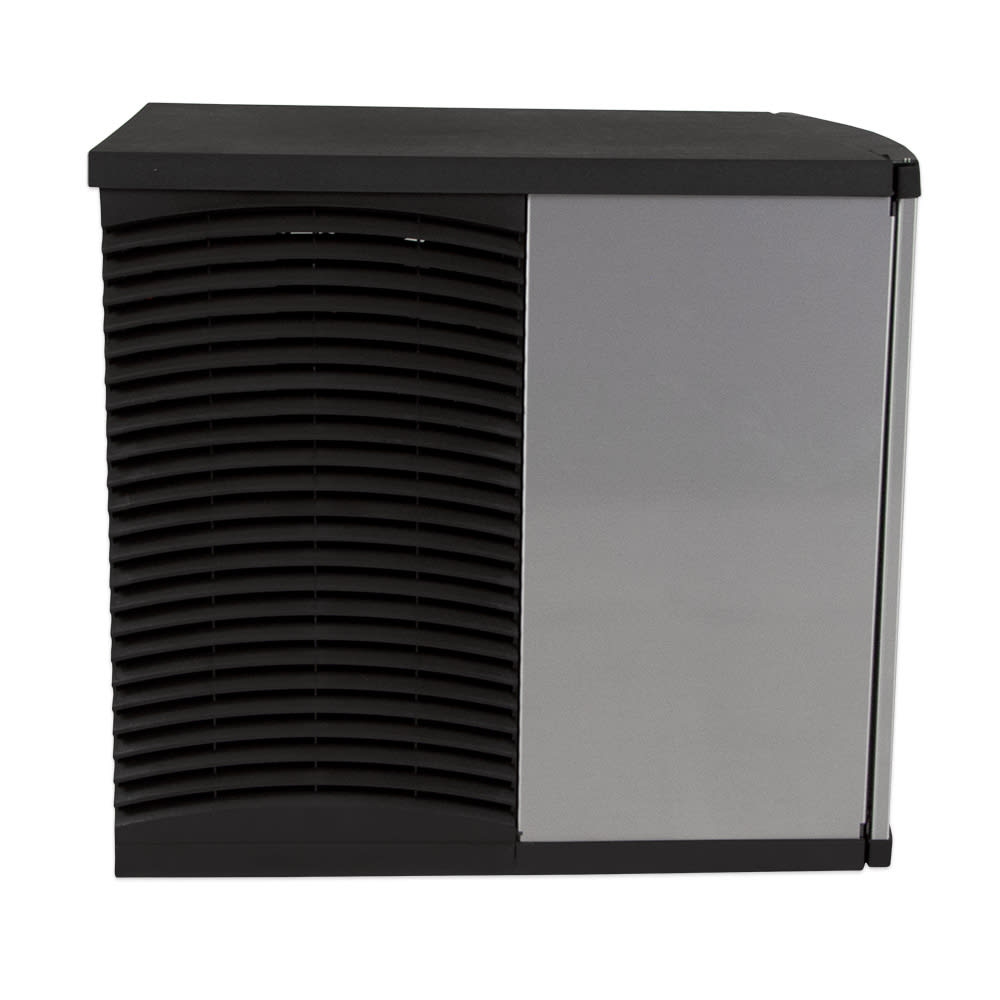

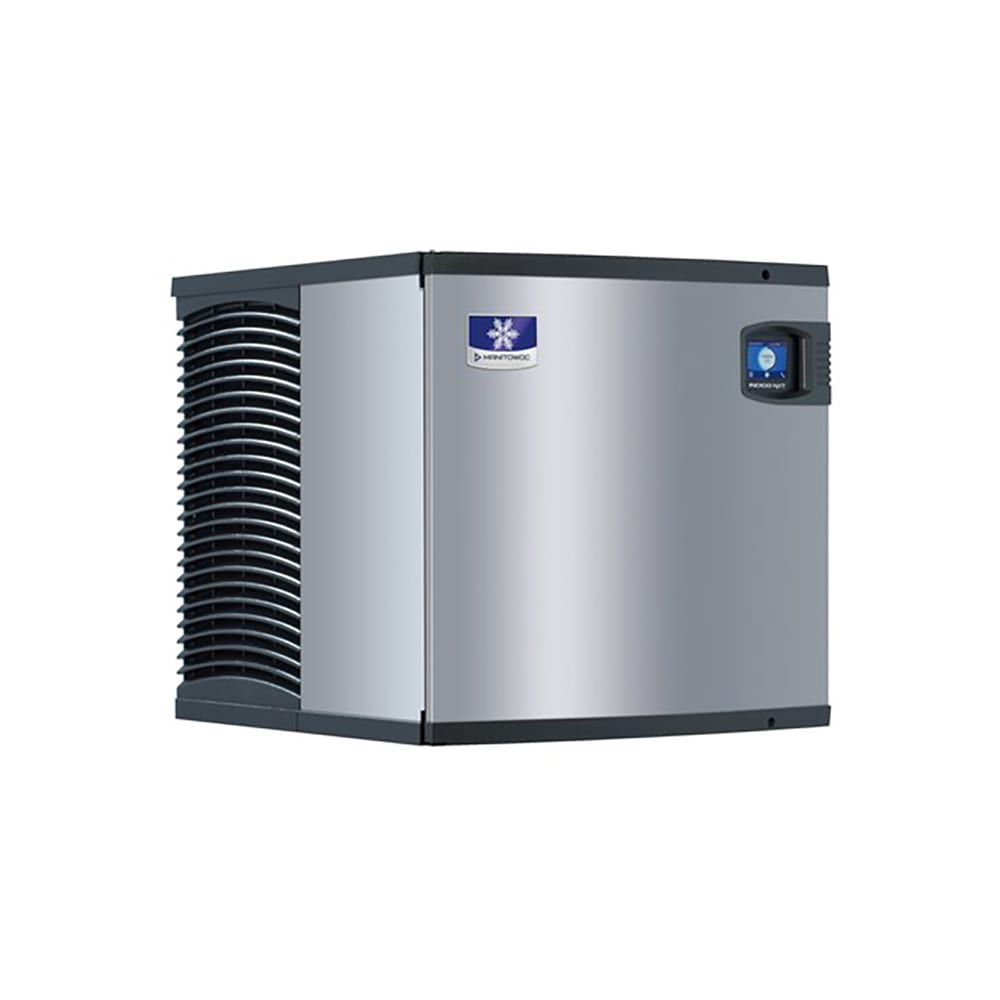

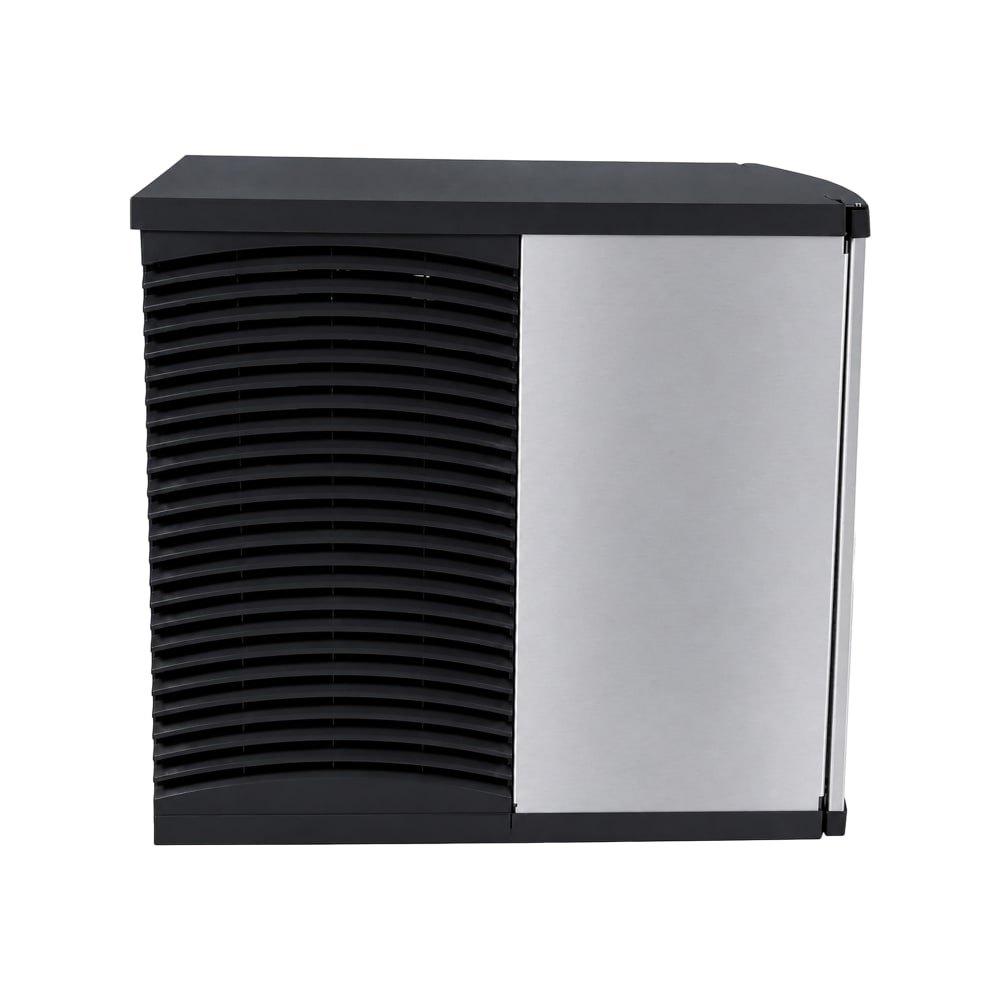

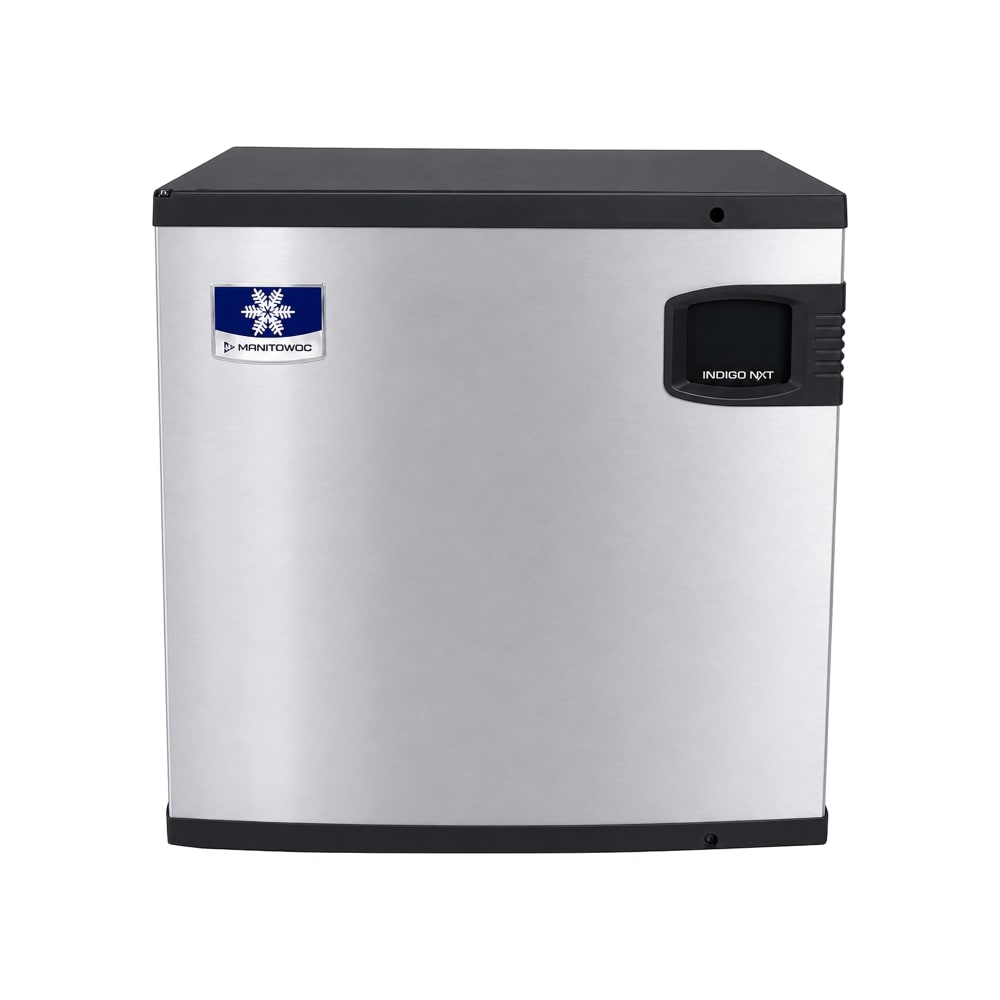

Manitowoc Ice IYP0620A 22" Indigo NXT™ Half Cube Ice Machine Head - 537 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$4,302.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Manitowoc Ice IYP0620A Description

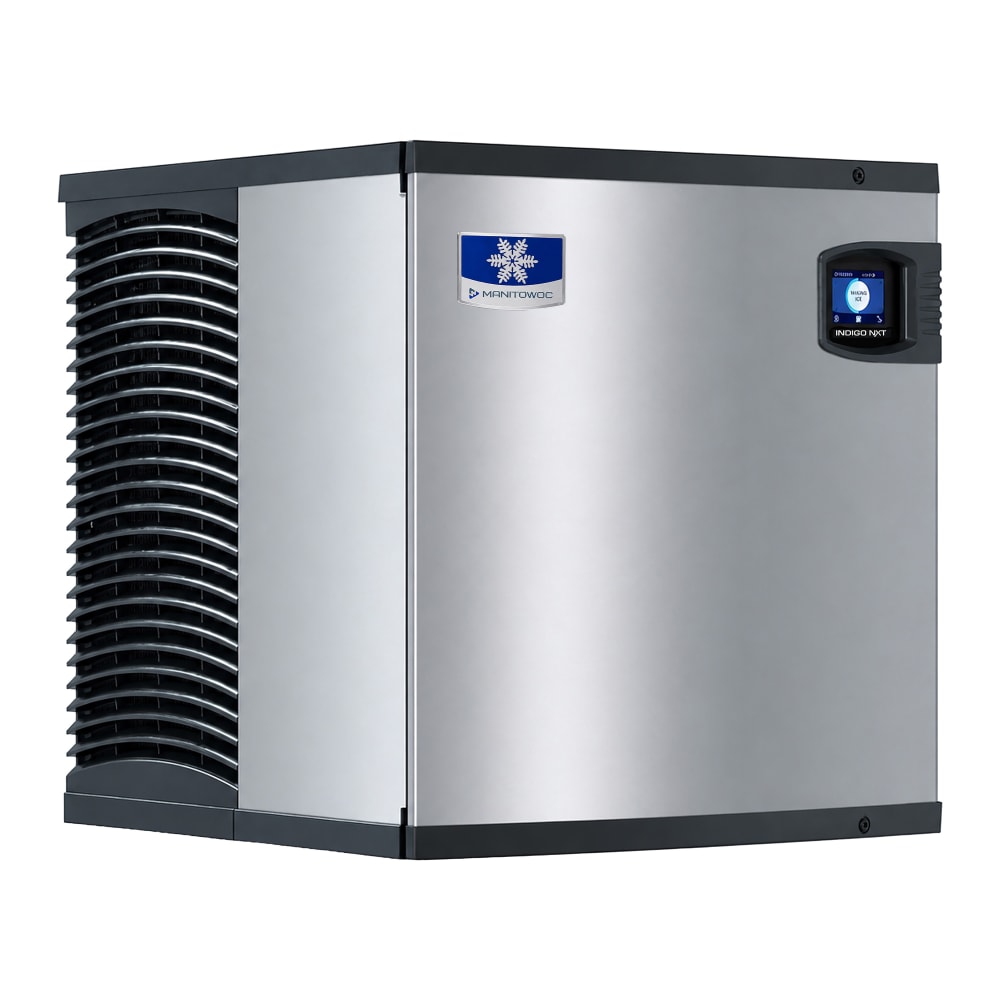

The Manitowoc Ice IYP0620A 161 Indigo NXT™ ice machine head has an easyTouch® display for programming operations such as if the unit should stop running during certain hours, setting its production quota to a daily amount, or solving problems using its troubleshooting diagnostics. In a 24-hour period, the head can generate 537 pounds of half-dice ice, which is a sufficient quantity for most small-scale restaurant operations. Compared to a water-cooled unit, this unit's air-cooled condensing system is practical and greatly reduces how much water is needed each day.

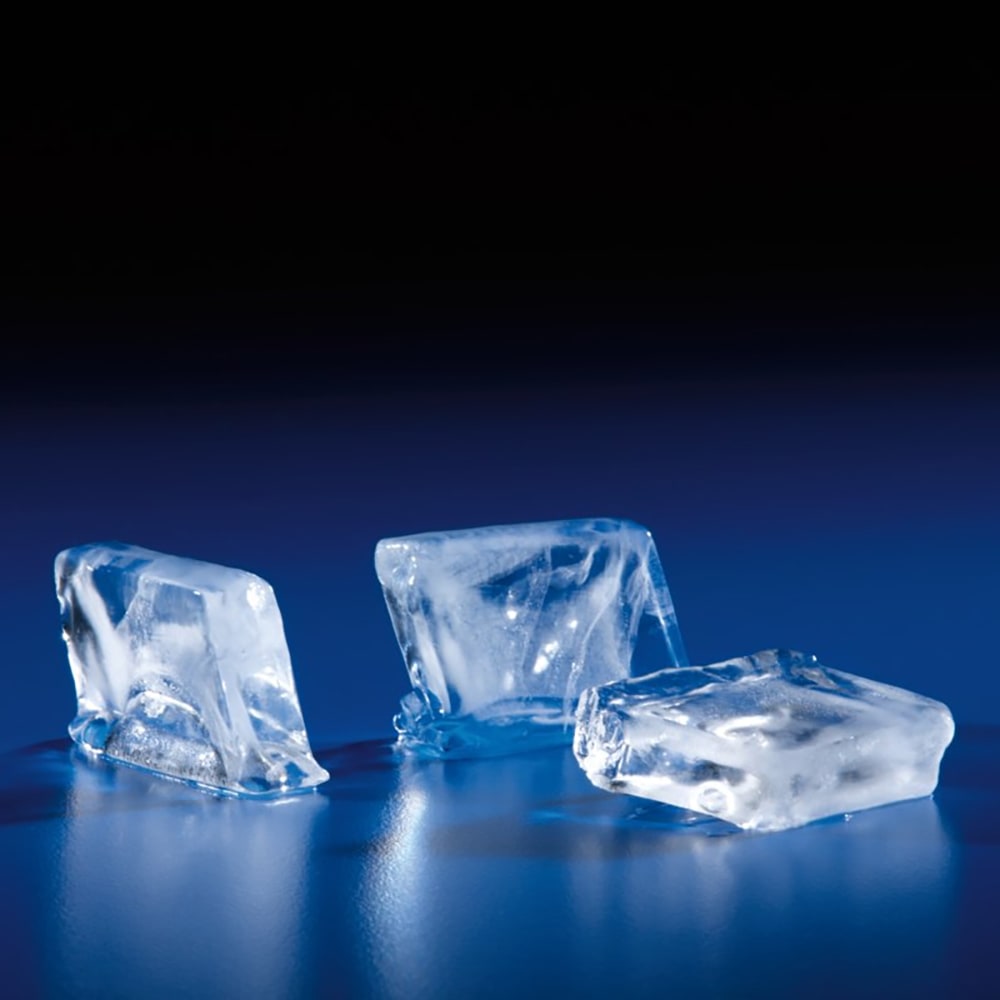

Designed to create half-size ice, this Manitowoc Ice IYP0620A 161 commercial ice maker head has an acoustical ice sensing probe that monitors the cubes' thickness, ensuring each cube is 3⁄8 inch by 1 1⁄8 inches by 7⁄8 inch. A DuraTech® clear coat exterior fights stains and provides corrosion resistance even better than stainless steel. Certain internal components are removable for maintenance and cleaning.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Indigo NXT series
- 537-lb. maximum daily ice production
- Air-cooled system

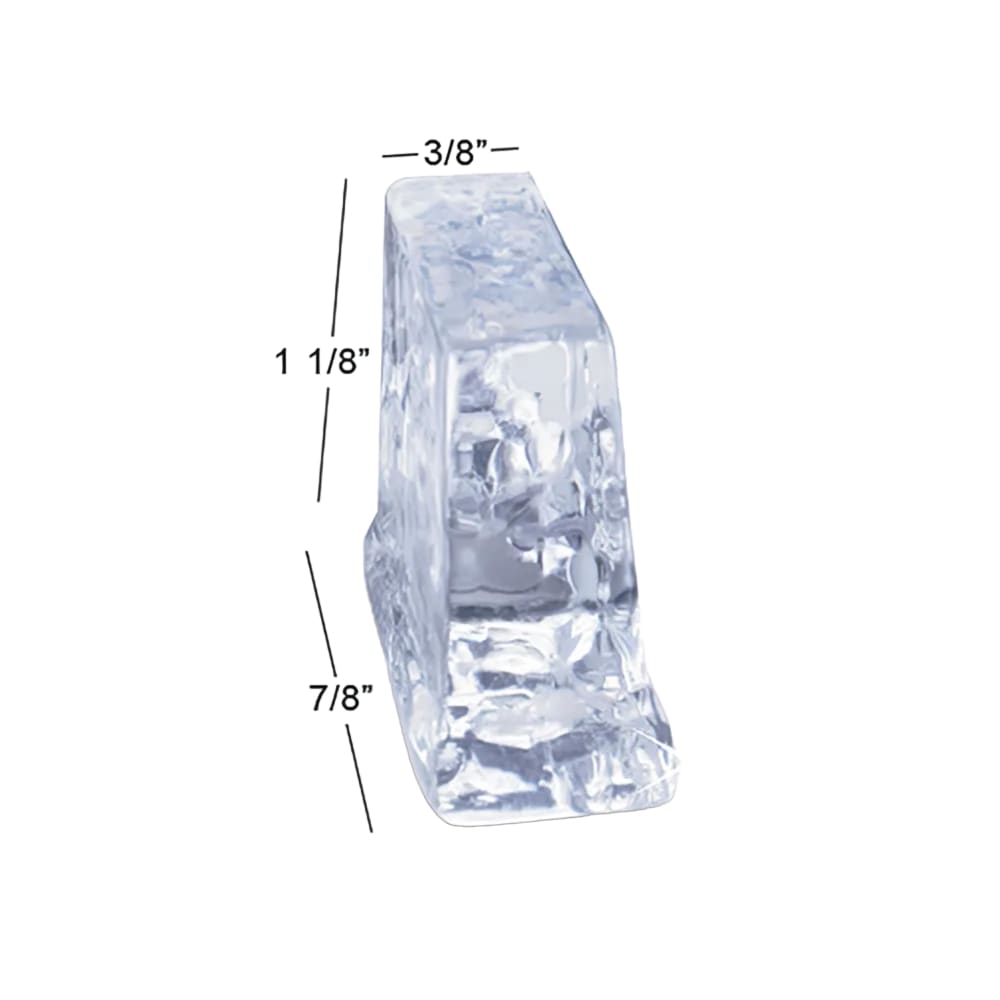

- Produces half-dice ice measuring 3⁄8 in. x 1 1⁄8 in. x 7⁄8 in.
- EasyTouch icon-based touch screen operates machine
- DuraTech exterior combats corrosion, resists dirt stains, and minimizes fingerprint smudges
- Acoustical ice sensing probe provides the correct ice cube thickness
- Water trough, distribution tube, curtain, water probe, and water pump are all removable promptly for cleaning
- Intelligent diagnostics are useful troubleshooting tools
- Ice bin sold separately
- Uses R410A refrigerant
- Ambient temperature range: 40-110 degrees F
- Incoming water temperature: 40-90 degrees F
- Incoming water pressure: 20-80 PSI
- 5,400 average BTU; 6,300 peak BTU
- 22 in. W x 24 1⁄2 in. D x 21 1⁄2 in. H
- 12.2 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0620A within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Manitowoc Ice IYP0620A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 537 |
| Also Known As | IYT0620A |
| Compressor Type | Air Cooled |
| Depth (in) | 24.5 |
| Height (in) | 21.5 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 145.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice IY0524A161
Compare to Similar Items
| Attributes |
Manitowoc Ice IYP0620A Manitowoc Ice IYP0620A 22" Indigo NXT™ Half Cube Ice Machine Head - 537 lb/24 hr, Air Cooled, 115v/1ph Current Item |
True Refrigeration TCIM-522-HA1-A True TCIM-522-HA1-A 22" Half Cube Ice Machine Head - 550 lb/24 hr, Air Cooled, 115v/1ph |
||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,302.00 / Each | $4,158.00 / Each | $4,158.00 / Each | $4,218.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 9 - 13 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 537 | 464 | 464 | 550 |
| Ice Type | Half Cube | Half Cube | Full Cube | Half Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 22 | 22 |
| Rating | Best | Best | Best | Better |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Indigo NXT™ | Prodigy ELITE® | Prodigy ELITE® | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces 537 lbs. of half-cube ice daily.
Yes, the unit requires 12-in. top and side clearance.
This ice shape suits soft drinks and blended beverages.
Yes, the trough, curtain, and pump remove for cleaning.
An air-cooled condenser lowers water usage during operation.
Yes, its easyTouch® display supports programmable production settings.
The DuraTech® coating minimizes dirt and fingerprint smudges.
It fits 22-in.-wide ice bins.
It can produce up to 537 lb. of ice per 24 hours.
It makes half-cube ice.
It measures 22 in. W x 24 1/2 in. D x 21 1/2 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It uses single-phase power.
It uses R290 refrigerant.
It requires a hardwired electrical connection.
Its listed certifications include AHRI, cULus Listed, CE, ENERGY STAR, and NSF.
Its exterior is made of stainless steel.
It requires a 3/8-in. water inlet connection.
No, this ice machine head is sold without an ice bin.
It must be paired with a separately purchased ice bin or dispenser.
It must be paired with a separately purchased ice bin or dispenser.
It has a one-touch cleaning function.
Yes, it has an alert system.
