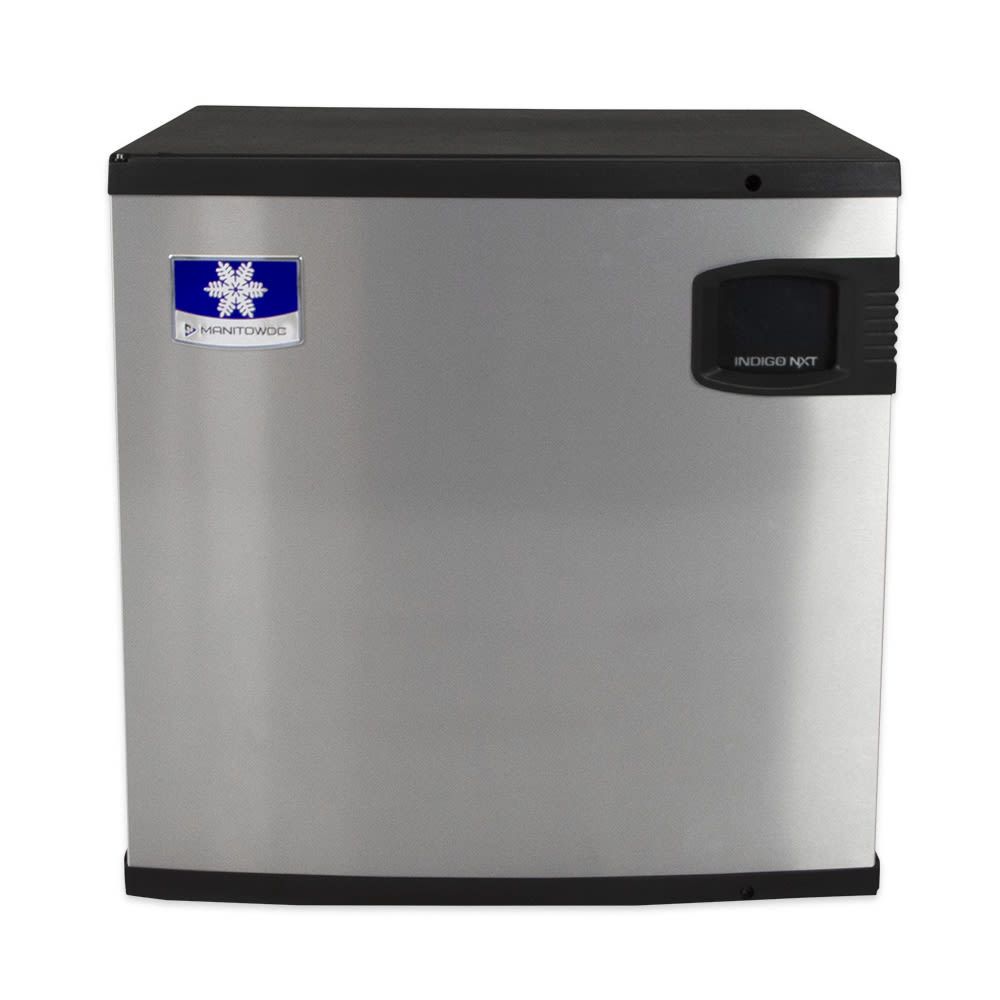

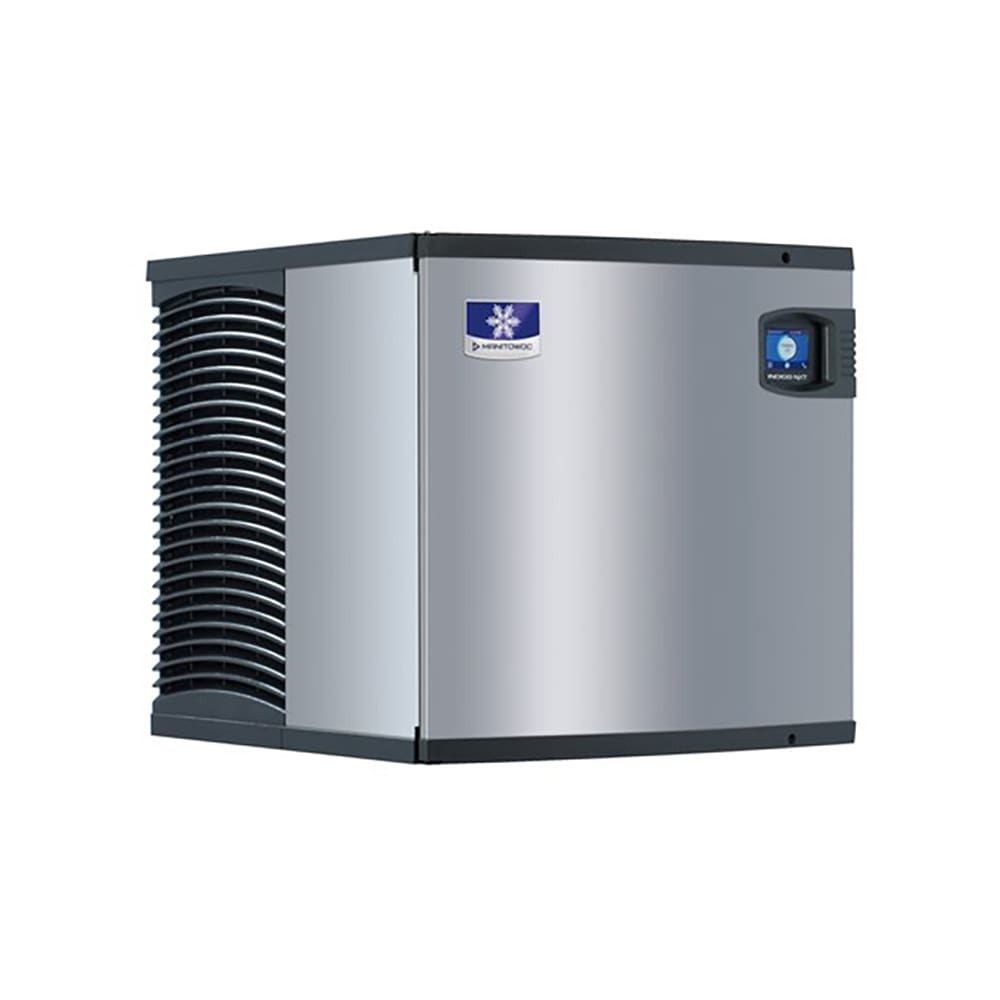

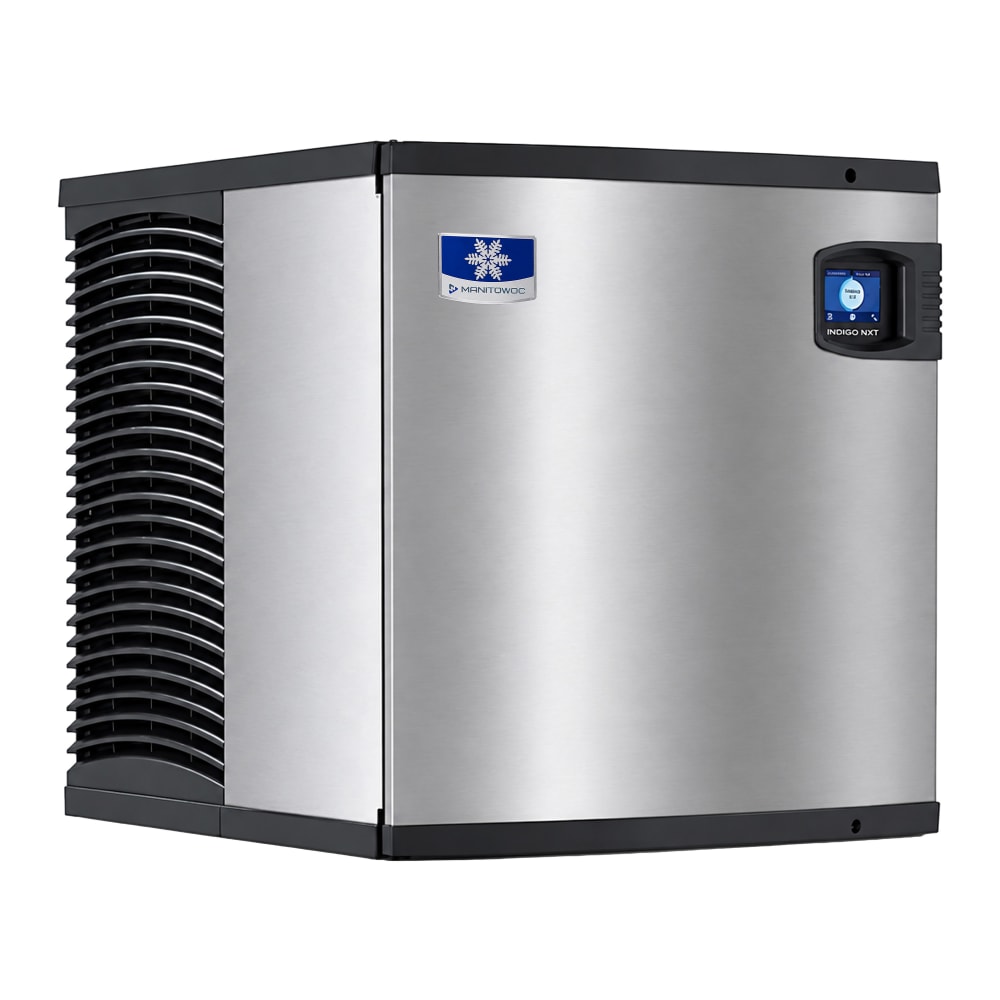

Manitowoc Ice IDT0620A 22" Indigo NXT™ Full Cube Ice Machine Head - 560 lb/24 hr, Air Cooled, 115v/1ph

The Manitowoc Ice IDT-0620A Indigo NXT™ ice machine head can deliver 560 pounds of ice when installed in optimal conditions. Ice production is programmable to fit into specific time periods or meet different application volumes. Before ice drops into a bin, its thickness is measured by an acoustical sensing probe, and the components of this machine are accessible through the front swing-out door for simple cleaning. Reducing the growth of bacteria and biofilm slime, some of these parts are made with AlphaSan® antimicrobial technology.

Featuring an easyTouch® display, users can manage operations and maintenance on the Manitowoc IDT-0620A commercial ice machine head. When maintenance issues arise, it will notify the operator through its 24-hour diagnostic system to quickly combat issues. Its exterior is made of DuraTech™, which resists corrosion in humid environments and disguises fingerprints and dirt with its clear coating. Overall, the air-cooled head is 22 inches wide by 24¹⁄₂ inches deep by 21¹⁄₂ inches high to fit securely on top of a separately sold storage bin.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series

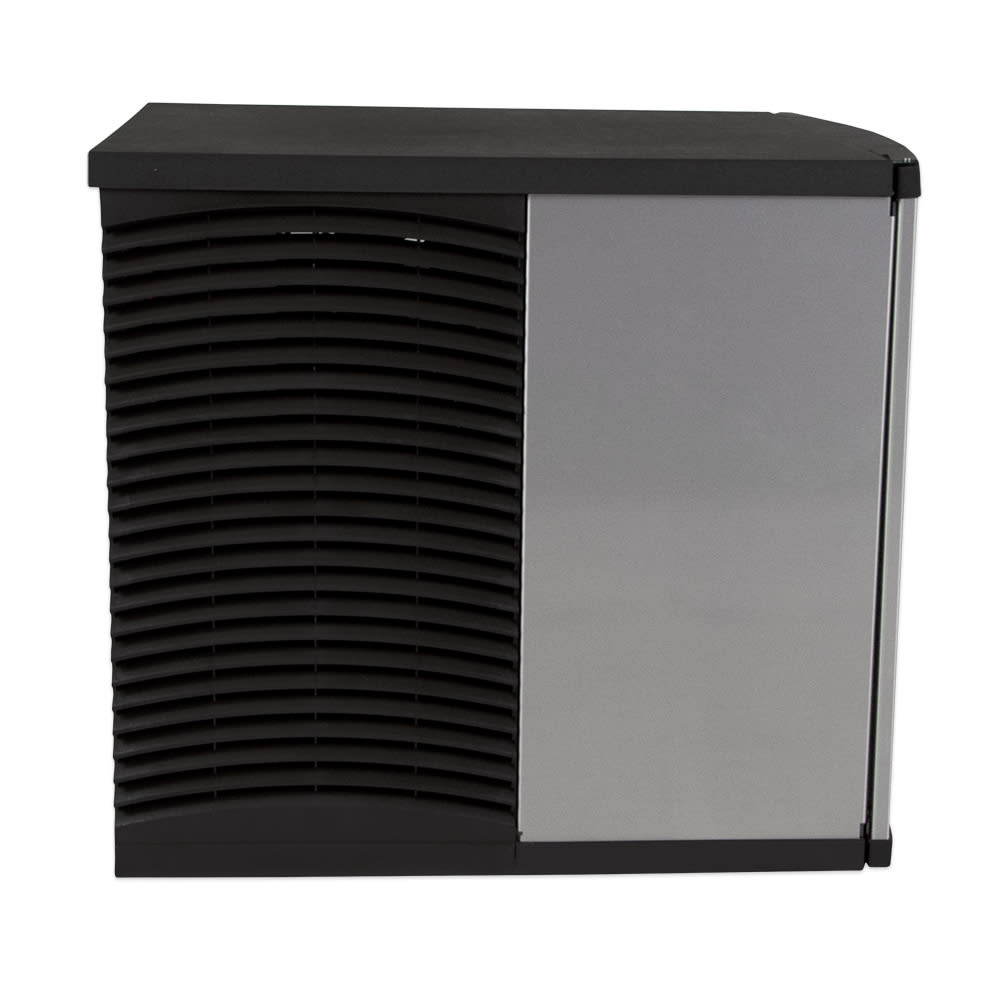

• Air-cooled condensing unit
• 560-lb. maximum daily ice production
• 450-lb. AHRI daily ice production

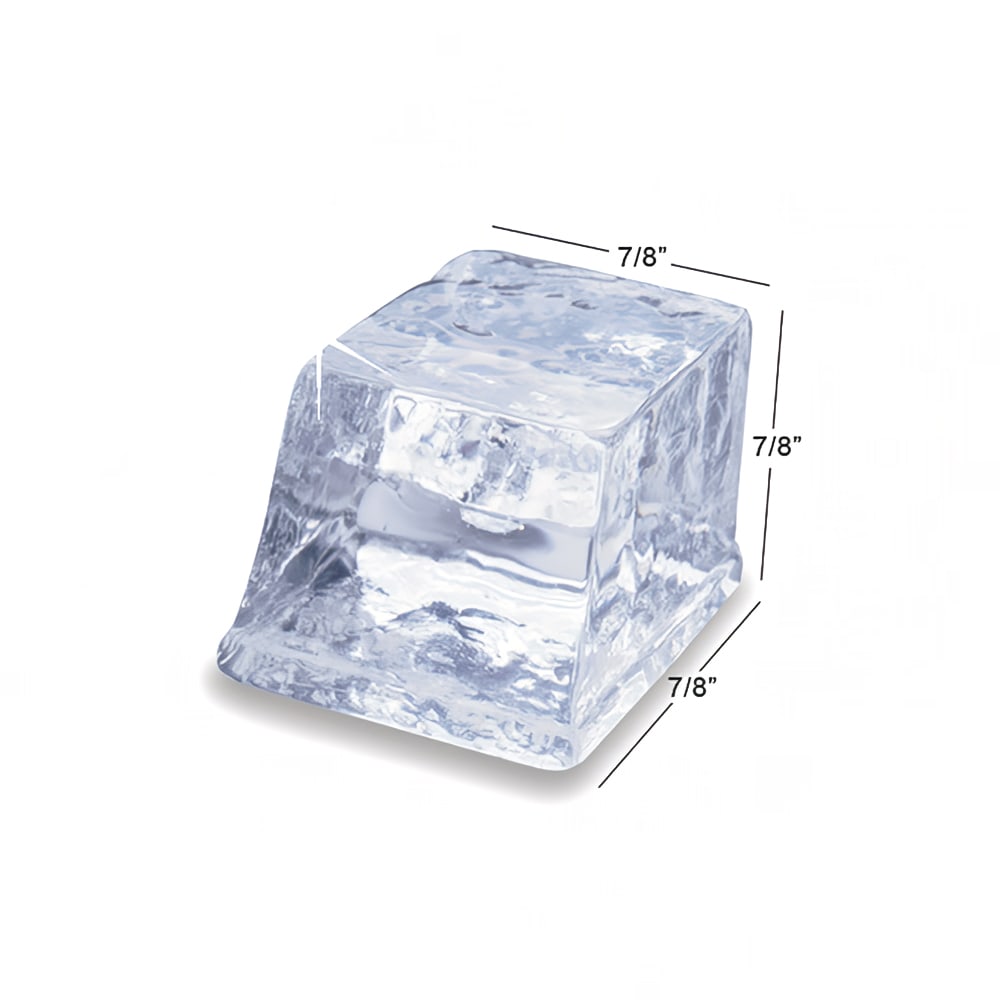

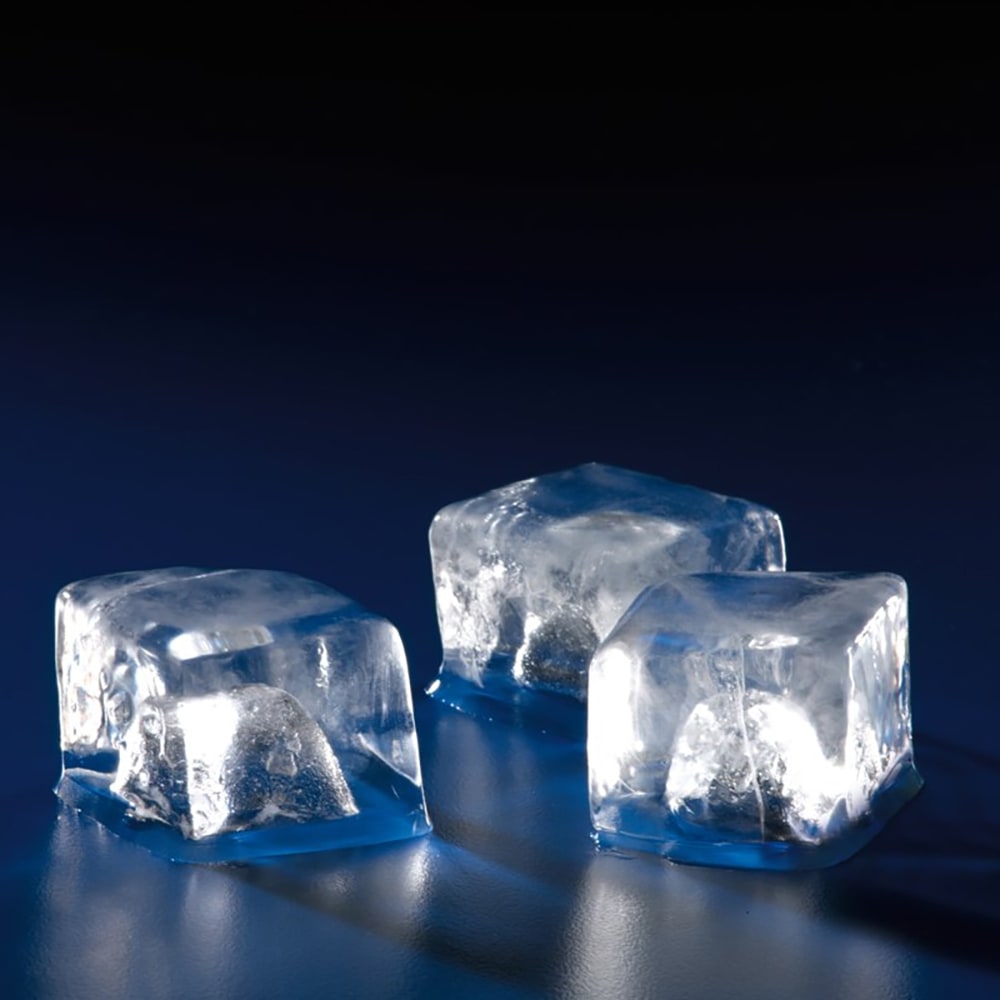

• Dice-cube size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Acoustical ice-sensing probe uses sound waves to ensure ice is only released to the bin when it has reached the correct thickness
• Ice production can be programmed based on time and daily volume
• easyTouch® display communicates operation status and maintenance information
• 24-hr. preventive maintenance and intelligent diagnostics monitor system operation
• Removable parts in food zone simplify cleanup
• Select components are made with AlphaSan antimicrobial, using silver ion technology to reduce bacterial growth and improve sanitation
• DuraTech® stainless steel finish with a clear coat resists corrosion and smudges
• Uses R410A refrigerant
• Ice bin sold separately
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 psi
• 5,400-BTU heat transfer capacity

Dimensions & Utilities

• 22 in. W x 24¹⁄₂ in. D x 21¹⁄₂ in. H
• 11.6 A, 5.18 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IDT0620A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 560 lb./24 hours at 70°/50° (450 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor
