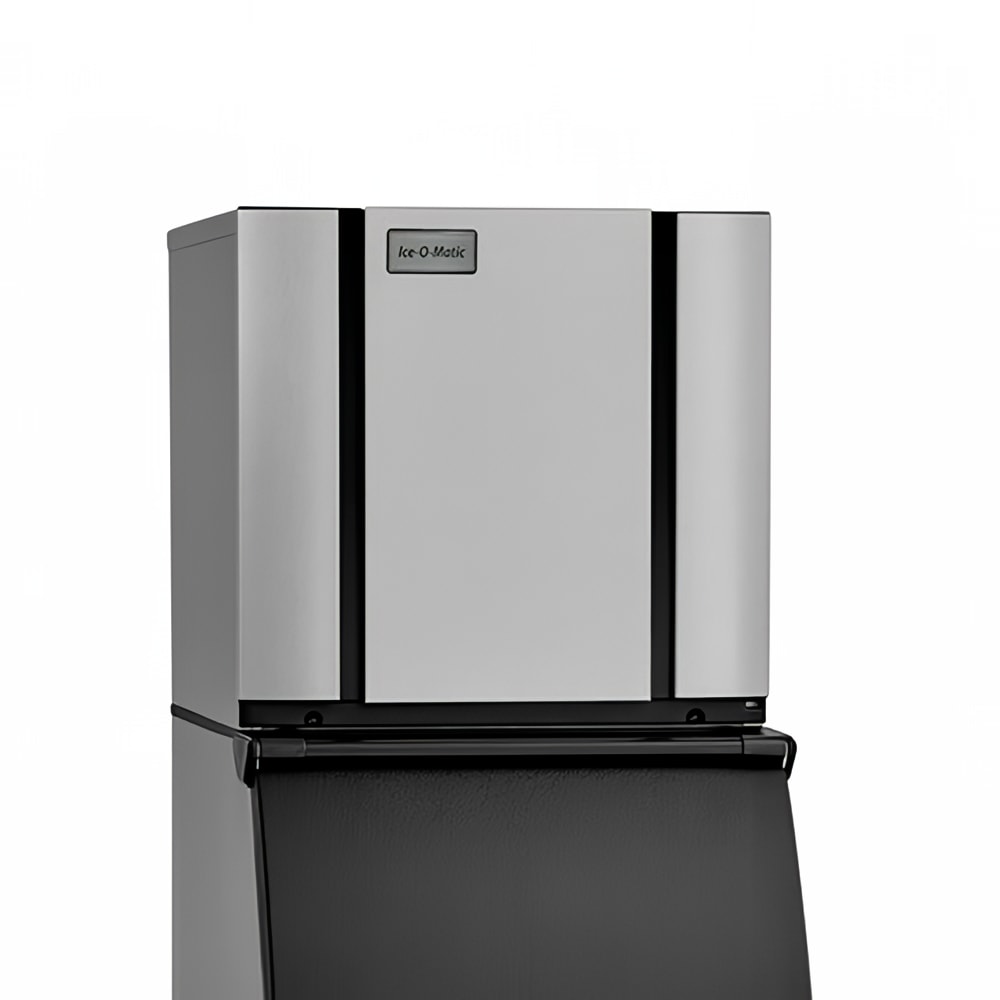

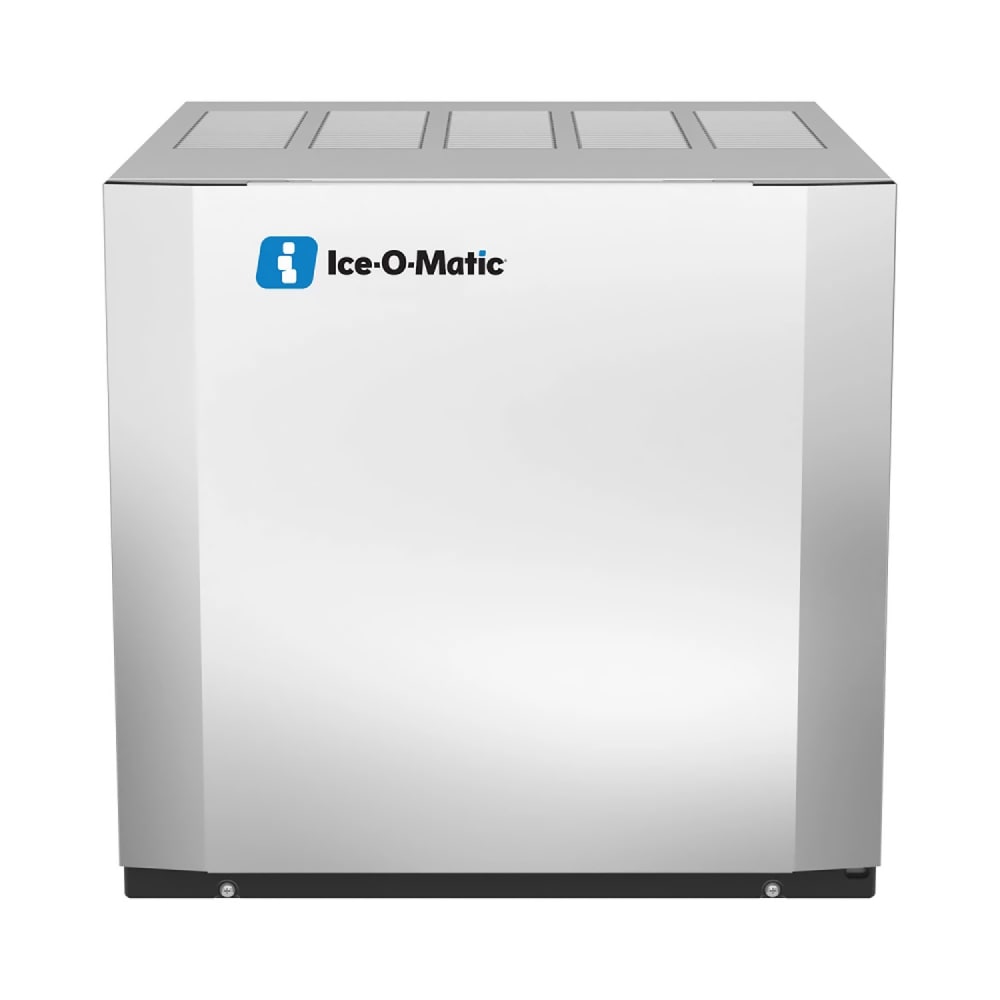

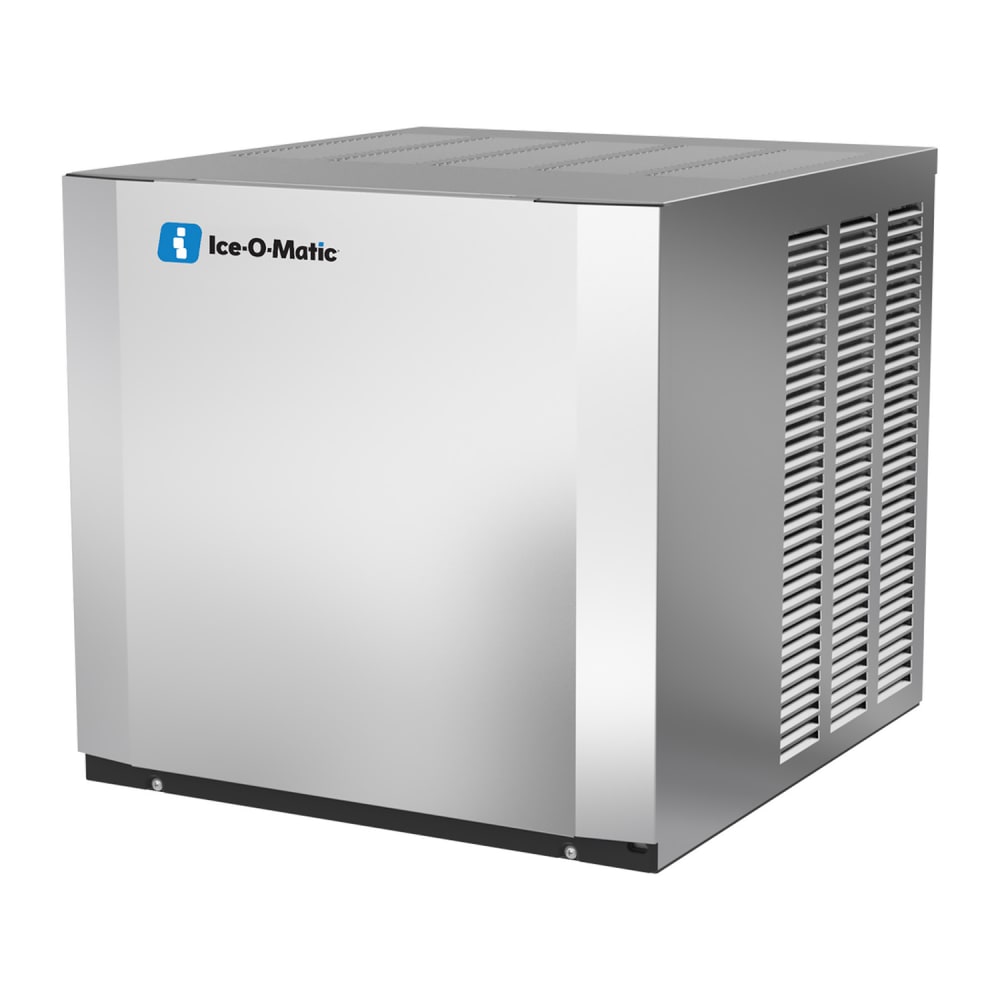

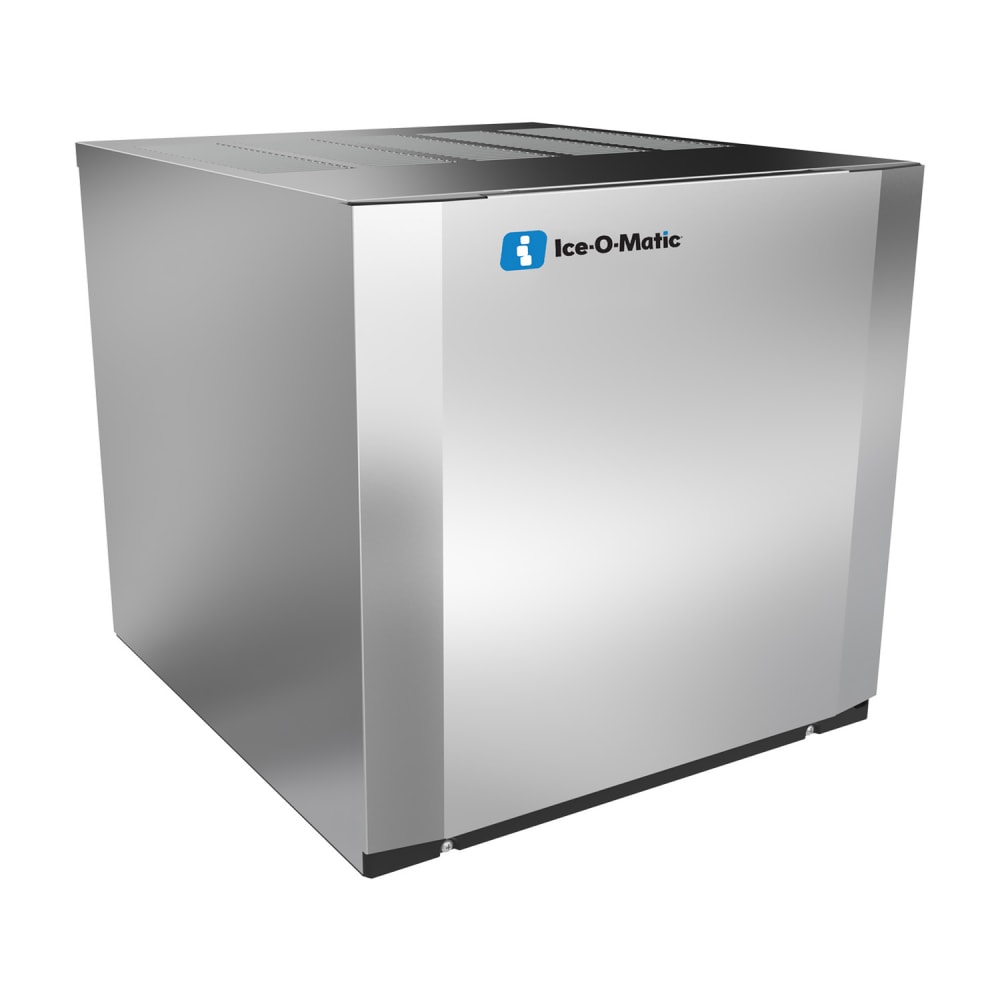

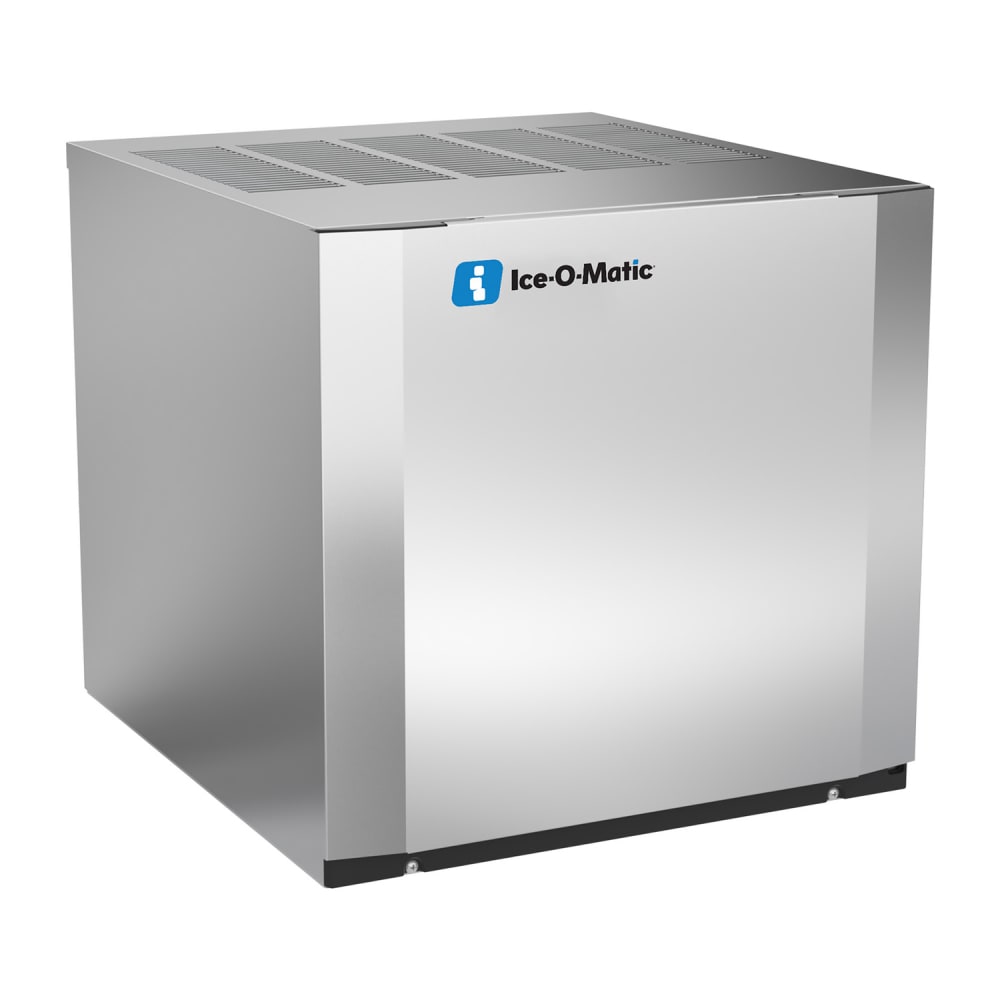

Ice-O-Matic CIM0520FA 22 1/4" Elevation Series™ Full Cube Ice Machine Head - 561 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,039.00 /Each
Selected Compressor Type: Air Cooled

Selected Ice Type: Full Cube

Ice-O-Matic CIM0520FA Description
The Ice-O-Matic CIM0520FA Elevation Series™ ice machine head produces full-cube ice, which is ideal for beverages and cocktails because it has a larger surface area than half-cube ice, but it will not cool drinks as quickly. This unit can produce 561 pounds of ice when conditions are ideal, but its average production is 432 pounds every 24 hours. The food zone—the area where water comes into contact with components—is constructed of plastic and does not have crevices where bacteria can get stuck. Many of these components are removable for cleaning.
An antimicrobial agent is built into major components to slow bacteria growth between cleanings. For straightforward operation, this unit has a digital control board that shows many diagnostics and includes one-touch controls for sanitizing and descaling. Air is discharged and taken in at the top and side, so the unit requires at least 6 inches of clearance. The Ice-O-Matic CIM0520FA ice maker is sold separately from its bins.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- 561-lb. ice production capacity
- 432-lb. AHRI-certified ice production capacity
- Uses BPA-free plastic

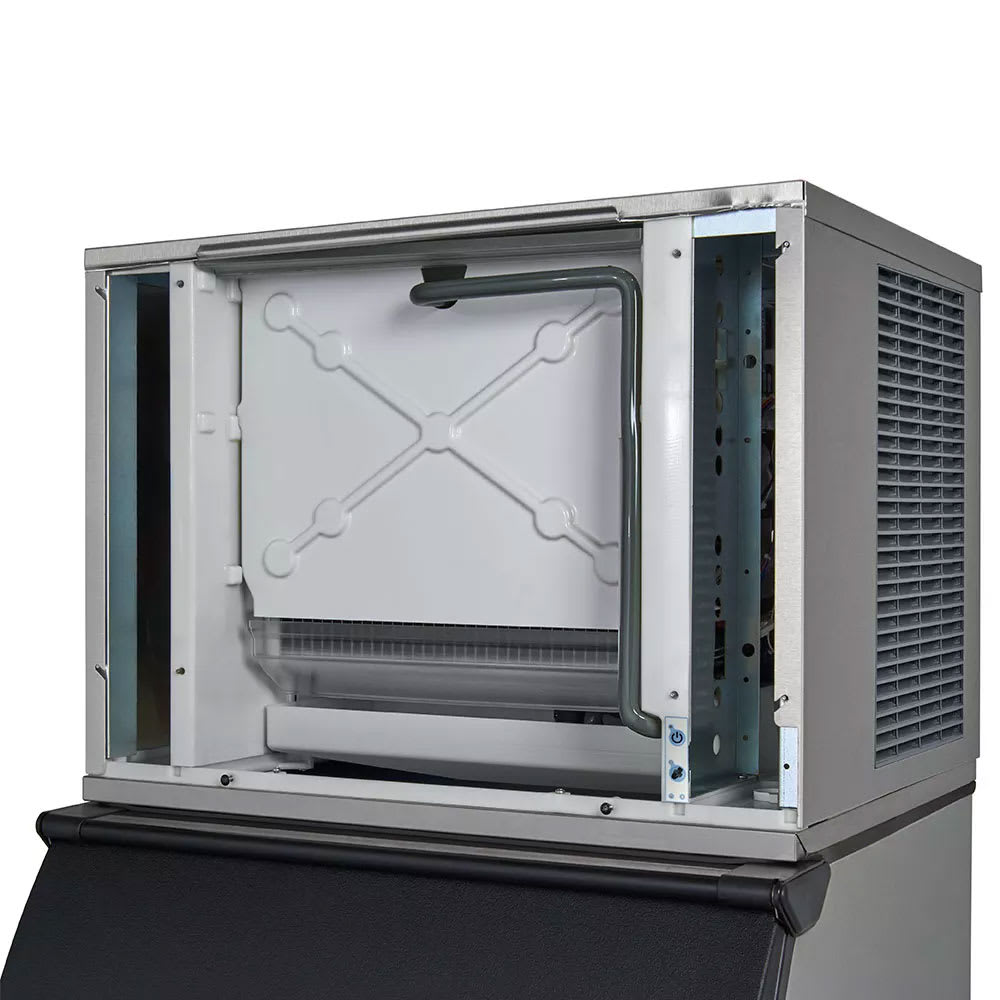

- Food zone is constructed of plastic, eliminating cracks and crevices that harbor bacteria
- Agion® is built into major components to slow bacteria growth

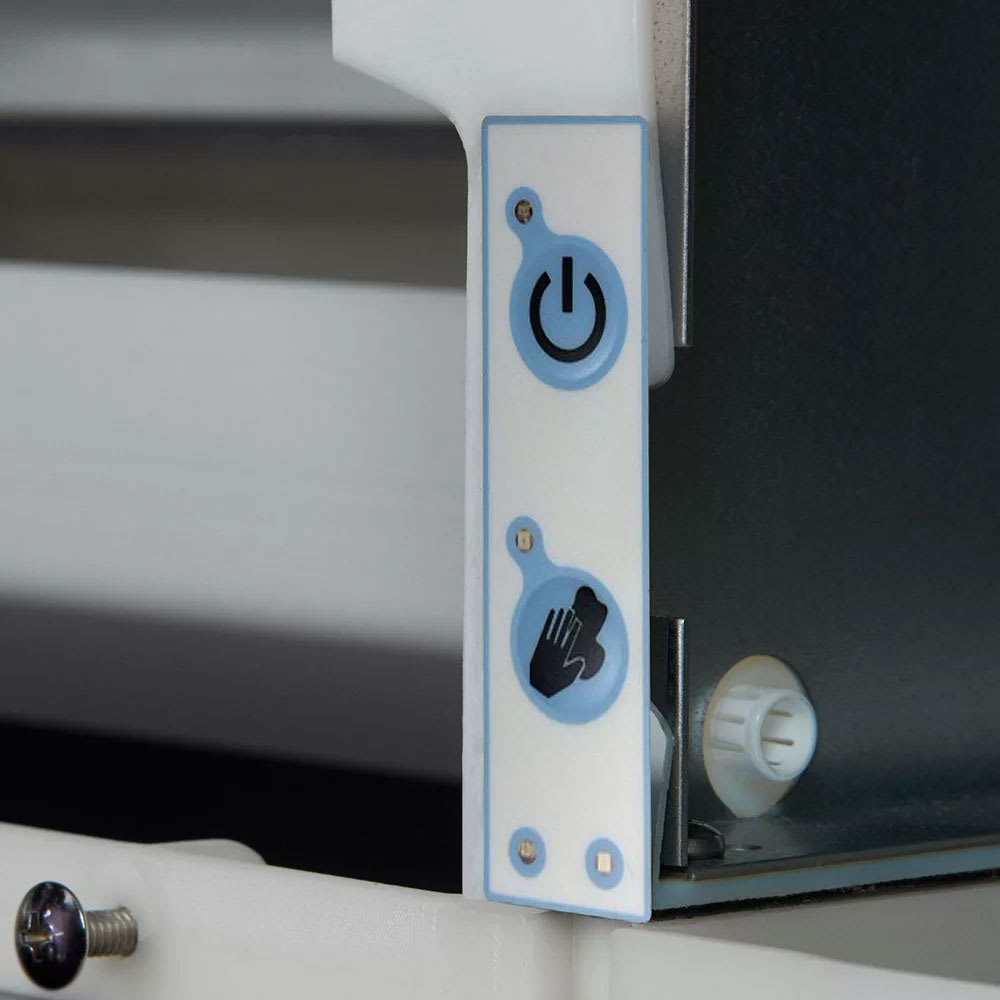

- One-touch controls for sanitizing and descaling

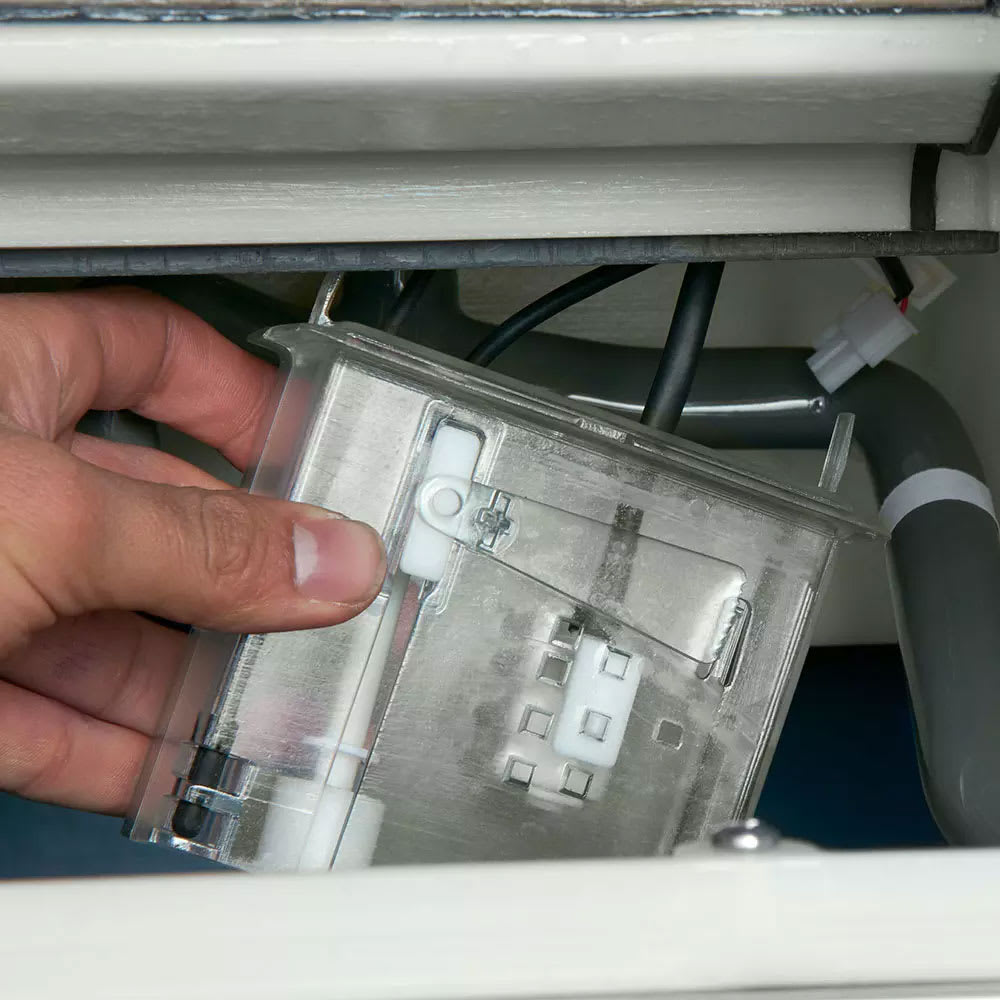

- Components come out and are dishwasher safe
- Discharges air from the side and top of the unit
- Smart Harness™ control board uses digital diagnostics
- Requires 6-in. clearance for air intake and exhaust
- Full-cube ice size: 7/8 in. x 7/8 in. x 7/8 in.

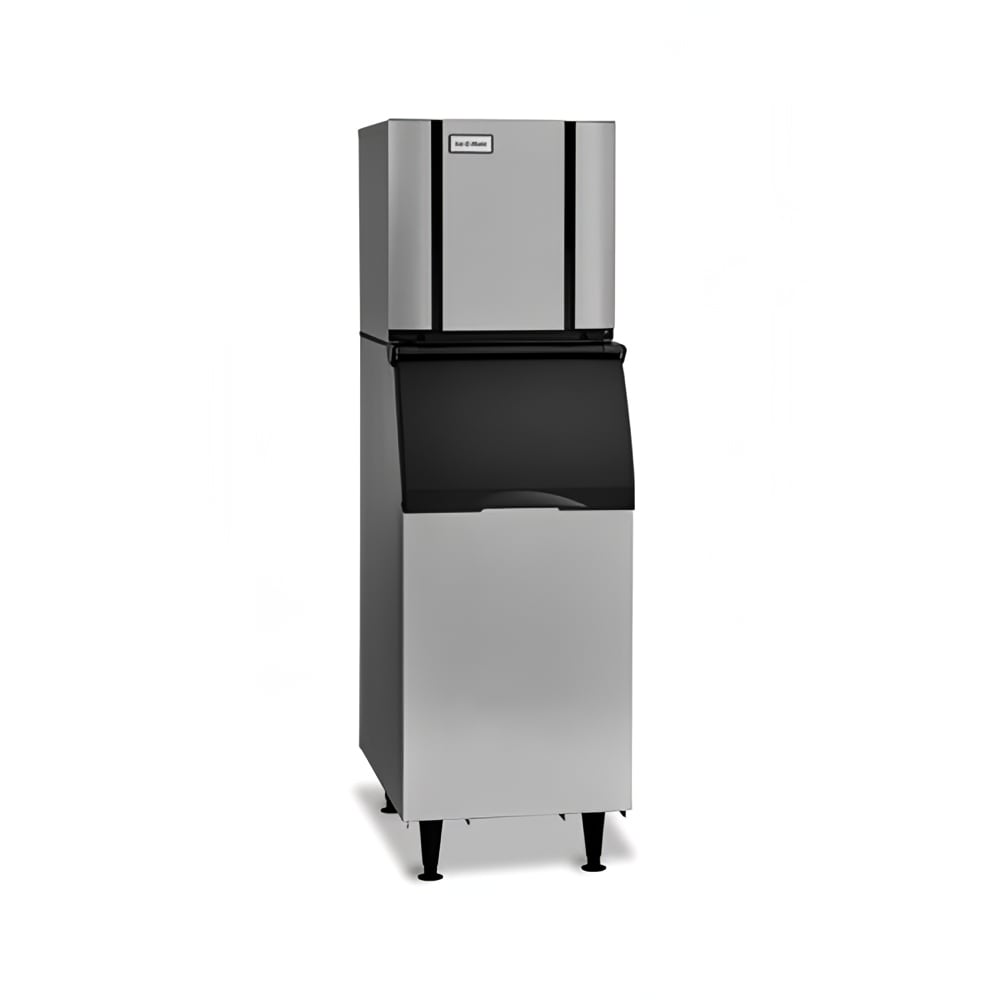

- Can be coupled with the B42PS ice bin without a mounting kit (bin sold separately
- Ambient air temperature range: 50-100 degrees F
- Incoming water temperature range: 40-100 degrees F
- Incoming water pressure range: 20-80 PSIG
- Part of the Elevation series
Dimensions & Utilities
- 221/4 in. W x 241/4 in. D x 211/4 in. H
- 5.87 kW, 17.8 A
- 115 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM0520FA within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22 1/4"W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.

Hardwired
Product does not come with plug and must be hardwired to operate

BPA Free
Contains no chemical Bisphenol A (BPA)

Ice-O-Matic CIM0520FA Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Ice-O-Matic |
24 Hr. Production (lb) | 561 |
Compressor Type | Air Cooled |
Depth (in) | 24.25 |
Height (in) | 21.25 |
Ice Type | Full Cube |
Voltage | 115 |
Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
Width (in) | 22.25 |
Series | Elevation Series™ |
Phase | 1 |
Rating | Better |
Product | Ice Machine Heads |
Product Type | Ice Makers & Bins |
Certifications | ENERGY STAR |
Certifications | Hardwired |
Certifications | NSF |
Certifications | C-UL US |
Certifications | CE |
Certifications | BPA Free |
Weight | 165.00 |
