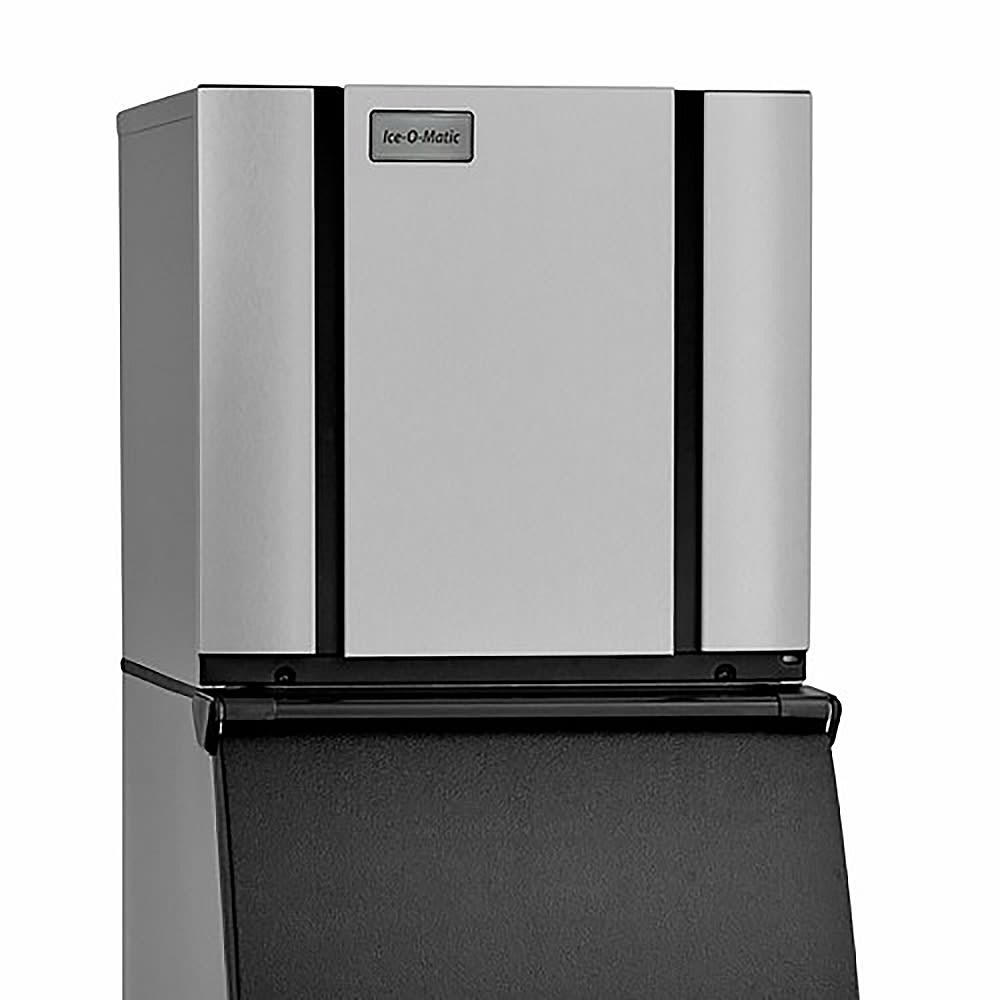

Ice-O-Matic CIM0520HA 22" Elevation Series™ Half Cube Ice Machine Head - 561 lb/24 hr, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0520HA • MPN: CIM0520HA
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $2,502.00
800-541-8683

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0520HA Description

Ice-O-Matic

The Ice-O-Matic CIM0520HA Elevation half-cube ice machine head has an air-cooled, self-contained refrigeration system that produces 561 pounds of ice daily. Hot air flows from the side and top of the unit, enabling flexible installation. Its Smart Harness™ control board provides digital diagnostics, and built-in antimicrobial agent prevents bacteria from growing. The plastic food zone removes nooks and crannies, facilitating cleanup. To keep the user informed, LED lights display the operating status and alert staff when cleaning is needed.

Product Details

  • Part of the Elevation series
  • 561-lb. daily ice production
  • 432-lb. AHRI-certified daily ice production
  • Air-cooled, self-contained refrigeration system
  • Uses R404A refrigerant
  • Blows hot air from the side and top for installation against walls and equipment
  • Smart Harness control board provides digital diagnostics and access to components
  • Built-in antimicrobial agent slows bacteria growth between cleanings

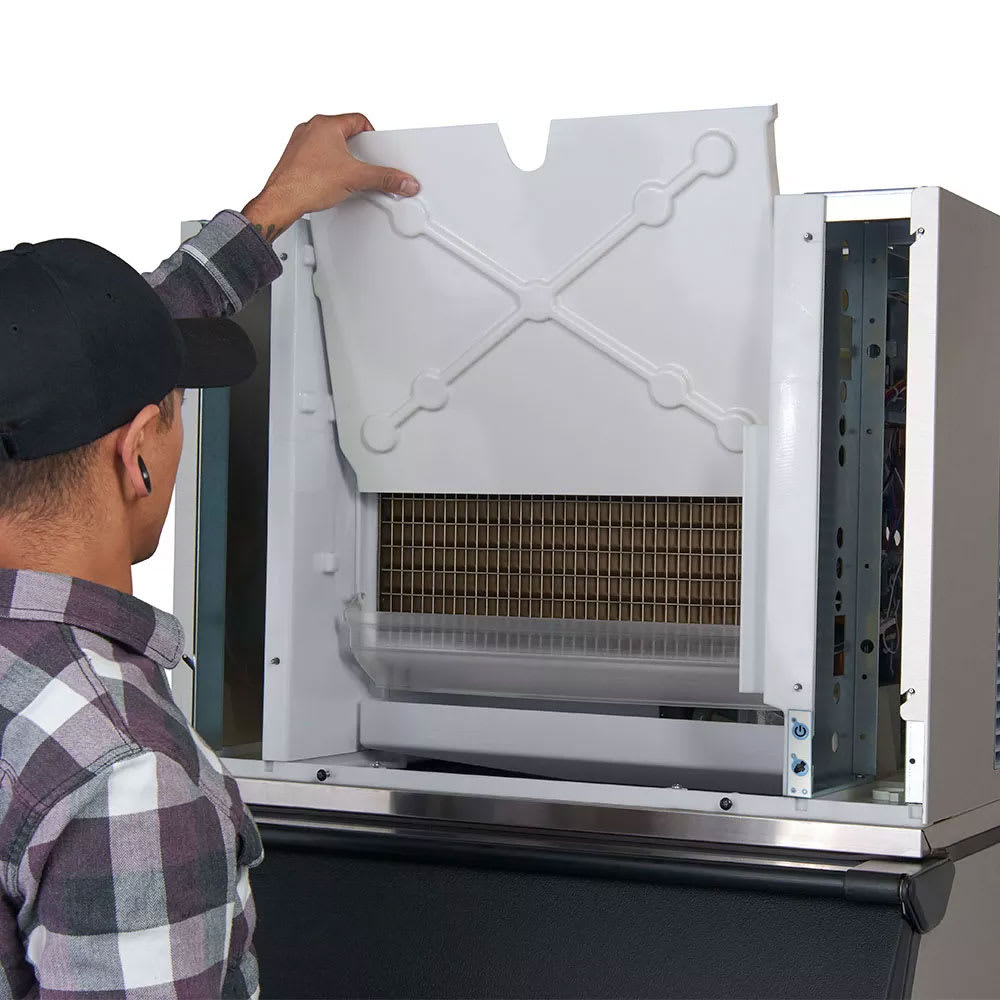

  • Plastic food zone cleans quickly
  • LED lights alert the operator when issues arise
  • Cleaning process runs with the touch of a button
  • 6,252 BTU
  • Required ambient air temperature: 50-110 degrees F
  • Required incoming water temperature: 40-110 degrees F
  • Required incoming water pressure: 20-80 PSI
  • Half-cube ice size: 38 in. x 78 in. x 78 in.
  • CE approved; cULus listed; NSF certified

Dimensions and Utilities

  • 22.25 in. W x 24.25 in. D x 21.25 in. H
  • 17.8 A, 5.87 kW
  • 115 V/60 Hz/1 ph

To learn more about ice machines, check out our ice machine buyers' guide.

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), half-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 17.8 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0520HA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production (lbs) 561
Compressor Type Air Cooled
Depth (in) 24.45
Height (in) 21.25
Ice Type Half Cube
Width (in) 22.25
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator; 5-yr. Compressor Parts
Voltage 115
Phase 1
Hertz 60
Product Ice Machine Head
Product Type Ice Makers & Bins
Series Elevation Series™
Made in USA Yes
Recommended Bins B25PP, B40PS, B42PS ,B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, CD40030, CD40130, IOD150, IOD200, IOD250
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 17.8
Width (in) Range 10-29
Production Range (per day) 100-999 lb
Special Features Agion® Antimicrobial
Special Features Dual Exhaust
Special Features Top Air Discharge
Weight 165.00
Ice-O-Matic CIM0520HA Certifications
  • UL
  • NSF
