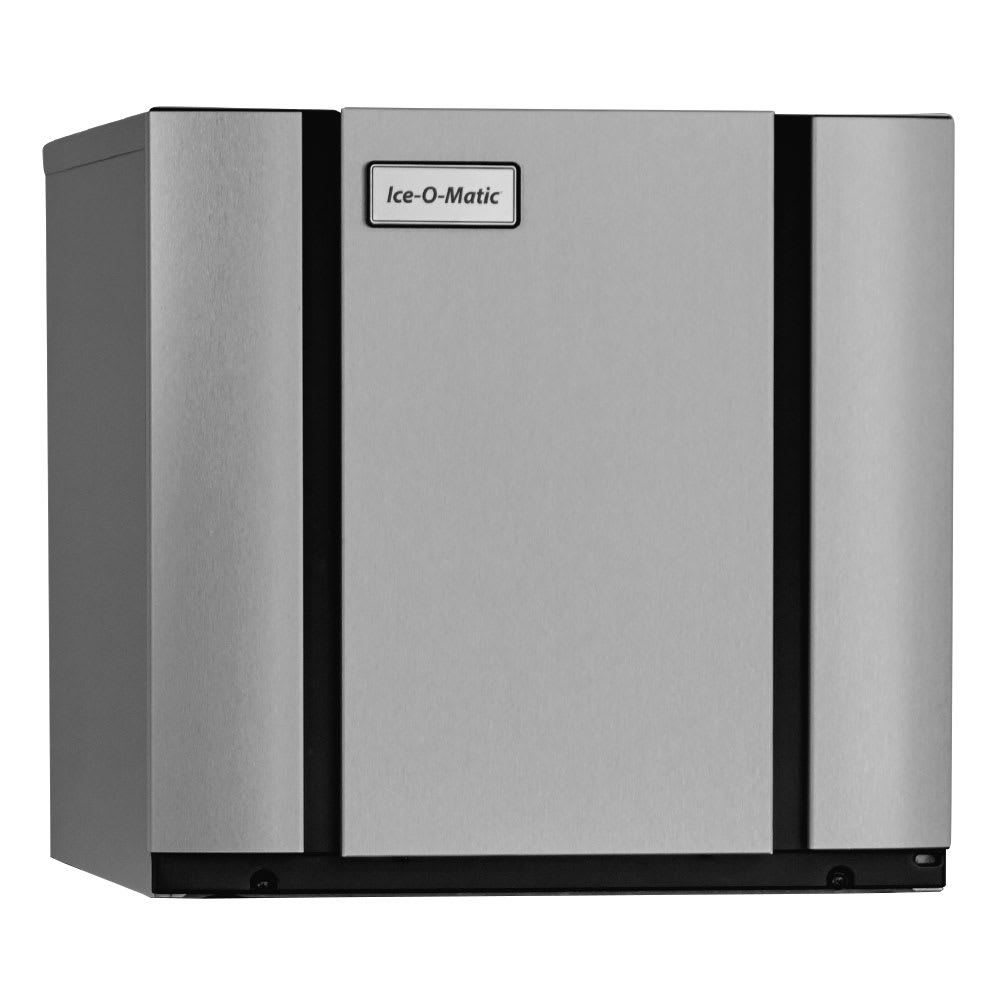

Ice-O-Matic CIM0520HW 22 1/4" Elevation Series™ Half Cube Ice Machine Head - 586 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 2 - 3 weeks
$4,272.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0520HW Description
The Ice-O-Matic CIM0520HW half-cube ice machine head is part of the Elevation Series™. This water-cooled piece of equipment is optimal for establishments with a self-contained water system, and its condenser is enclosed within the unit. The machine pumps cool water through its condenser coils, which require a consistent source of cool, potable water. Operations that invest in this unit should have a water-circulating chiller system that users can tie the machine into.
Because the condenser is self-contained, the Ice-O-Matic modular cube ice maker doesn't require additional coolant lines. This piece of equipment measures 22.25 inches wide by 24.25 inches deep by 21.25 inches high. In 24 hours, it can produce 586 pounds of ice at air temperatures of 50 to 70 degrees Fahrenheit or 533 pounds at 70- to 90-degree-Fahrenheit ambient air. The machine is equipped with PURE ICE® protection to inhibit the spread of bacteria.
- Maximum production capacity: 586 lbs. of ice per 24 hours
- AHRI production capacity: 533 lbs. of ice per 24 hours
- Produces half-cube ice
- Constructed with recyclable parts and BPA-free plastic
- Plastic foodzone simplifies cleaning
- PURE ICE antimicrobial protection inhibits bacterial spread
- Smart LED light alerts user when cleaning is required
- 1-touch controls facilitate descaling and sanitation
- Snap-out, warewasher-safe components streamline cleaning
- Universal Smart Harness™ control board simplifies servicing
- Equipped with digital diagnostics
- Universal components and common configuration facilitate maintenance
- Heat displacement: 6,252 BTU
- Overall: 22.25 in. W x 24.5 in. D x 21.25 in. H
- 17.4 A, 4.7 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0520HW within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 22 1/4"W, approximately 586 lb production/24 hours at 70°/50° (533 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0520HW Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 586 |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22.25 |
| Weight | 165.00 |
- Ice-O-Matic ICE0520HW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0520HW Ice-O-Matic CIM0520HW 22 1/4" Elevation Series™ Half Cube Ice Machine Head - 586 lb/24 hr, Water Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,272.00 / Each | $4,595.00 / Each | $4,098.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 586 | 592 | 480 |
| Ice Type | Half Cube | Crescent Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 22.25 | 30 | 22 |
| Rating | Better | Best | Best |
| Voltage | 115 | 115 | 115 |
| Series | Elevation Series™ | KM EDGE X | Prodigy ELITE® |
| Refrigerant | R404A | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
