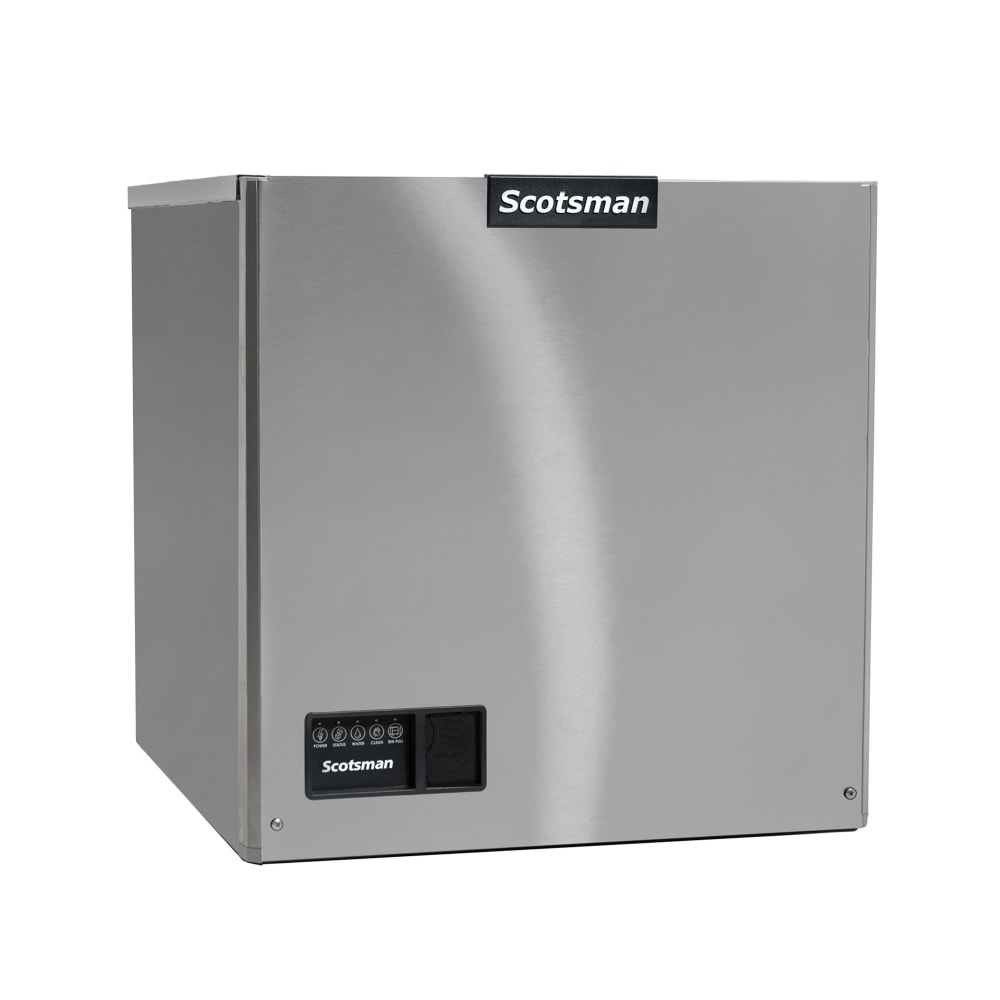

Scotsman MC0522SW-1 22" Prodigy ELITE® Half Cube Ice Machine Head - 480 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $9,997.00
$4,098.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Selected Voltage: 115V, 1 Phase
| 115V, 1 Phase |
| 208-230V, 1 Phase |
Scotsman MC0522SW-1 Description
To show the unit's current status, the Scotsman MC0522SW-1 ice machine head has AutoAlert™ indicating lights that provide a variety of information. To view service information, users can scan the unit-specific QR code with their phone. This unit generates as much as 480 pounds of small cube-style ice when operation conditions are perfect, and if the situation is less than ideal, it makes 409 pounds. To remove impurities from ice, this machine has WaterSense adjustable purge control.
The Scotsman MC0522SW-1 half-cube ice machine head cleans itself with the push of a button to reduce the amount of maintenance performed by employees. Its air filter is located in the front for cleaning, and the important components can be accessed via the self-aligning front panel. This ice machine can be paired with Scotsman’s ICELINQ® mobile app, providing operators with full access to the machine’s dashboard, settings, and step-by-step cleaning process. With stainless steel finish, this unit is durable and corrosion resistant.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Prodigy ELITE® series
- 480-lb. maximum daily ice production
- 409-lb. AHRI-certified daily ice production
- Makes small cube-style ice
- Cube size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Water cooled
- Connects to mobile app via bluetooth

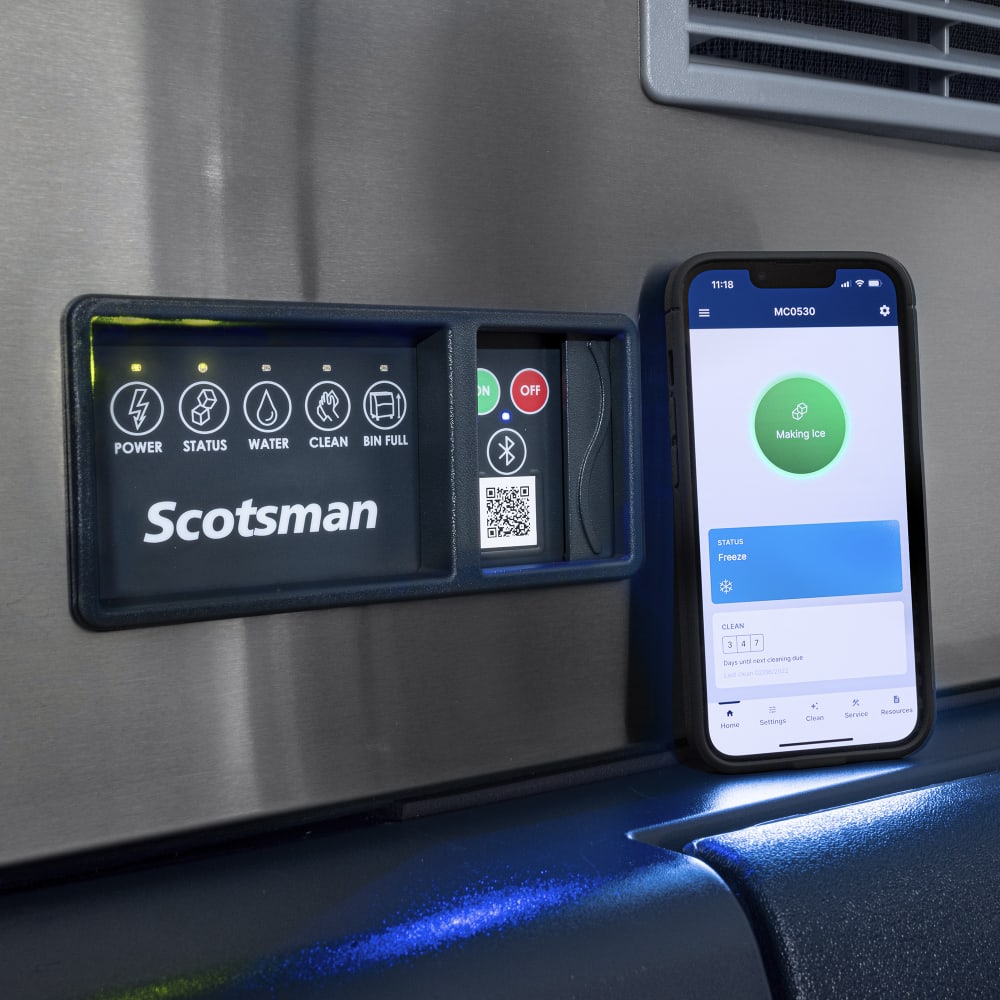

- Compatible with ICELINQ mobile application
- Mobile app enables guided cleaning, settings adjustments, and diagnostics reports
- Stainless steel finish is corrosion resistant
- Coated with AgION™ antimicrobial
- Self-aligning front panel with front-accessed air filter
- AutoAlert indicating lights show the unit's status
- WaterSense adjustable purge control flushes impurities
- Single-touch cleaning
- Harvest assist pushes ice into bin (bin not included)

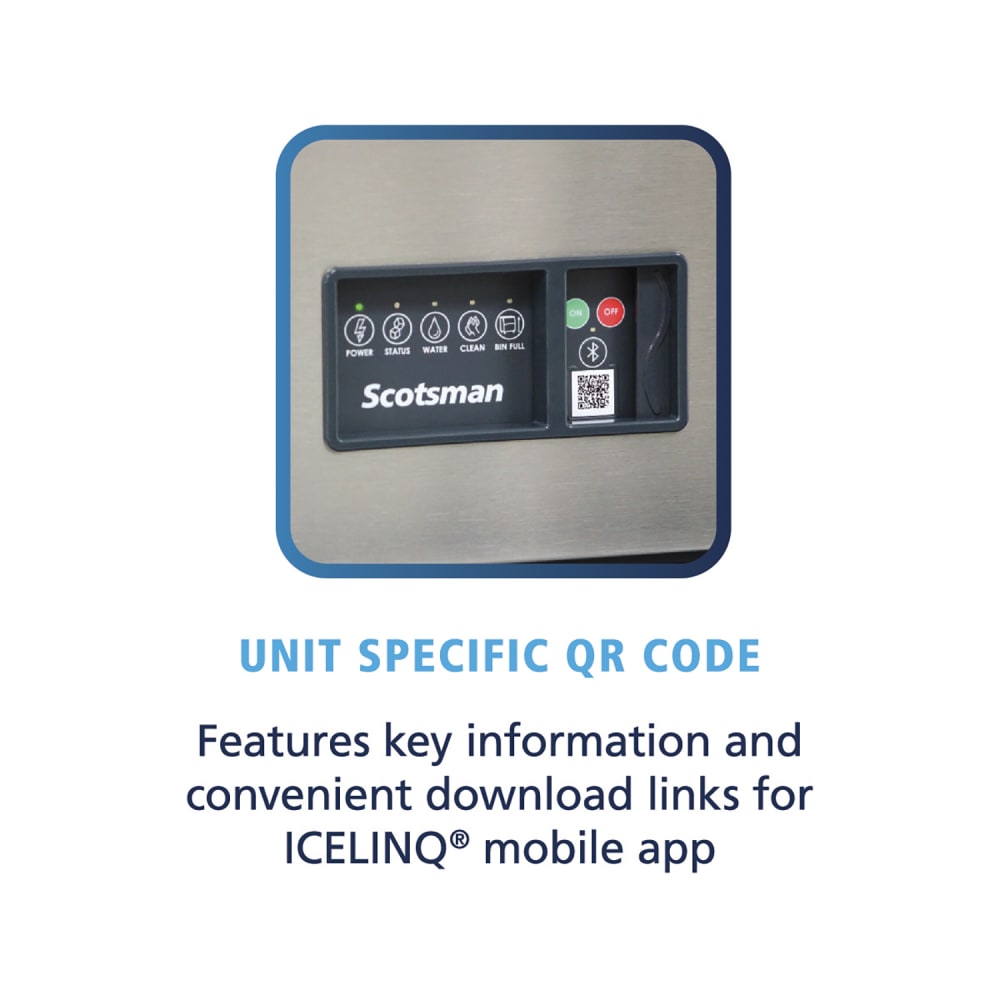

- Scannable QR code reveals unit information
- Uses R-404A refrigerant
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 7,900 BTU
- 22 in. W x 24 in. D x 23 in. H
- 11.9 A, 4.48 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522SW-1 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 480 lb/24 hours at 70°/50° (409 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 11.9 amps, cULus, NSF, engineered and assembled in USA
Watch a video about this product
Scotsman MC0522SW-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 480 |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 160.00 |
