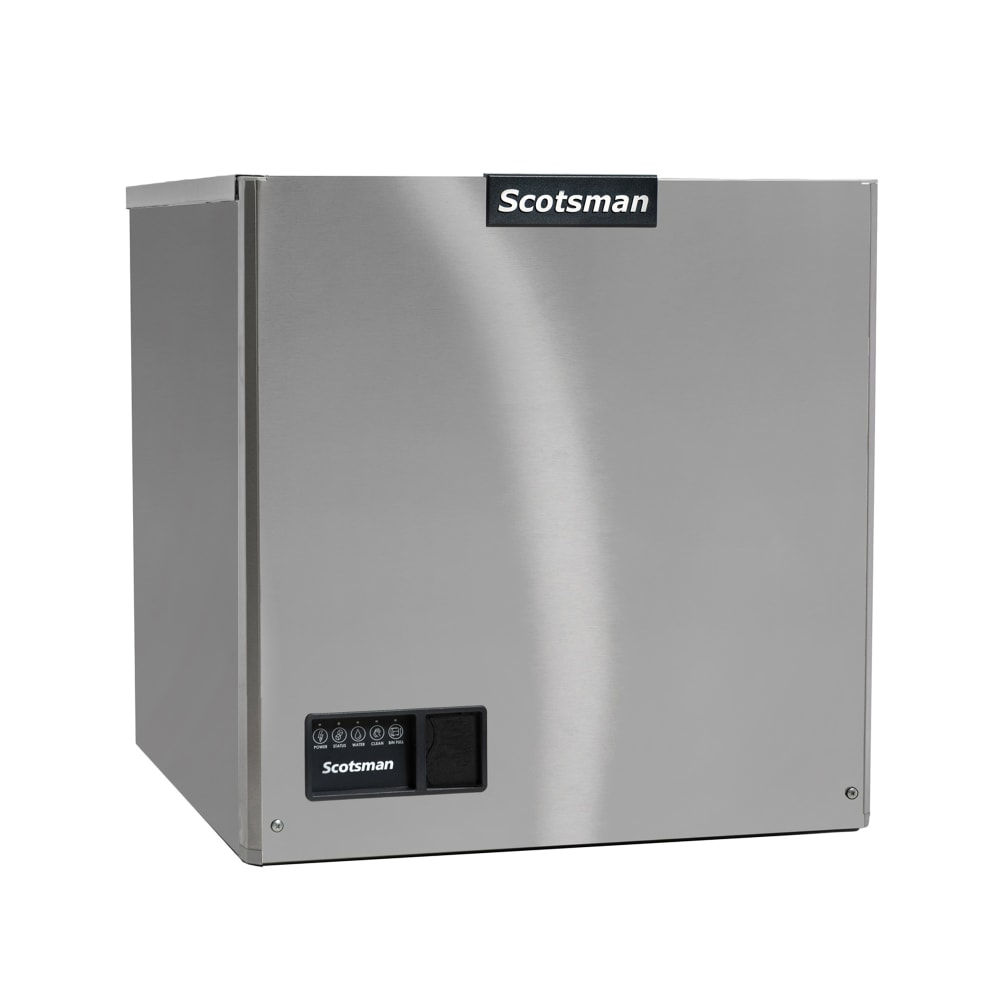

Scotsman MC0522SWX-32 22" Prodigy ELITE® Half Cube Ice Machine Head w/ Filter - 510 lb/24 hr, Water Cooled, 208-230v/1ph
Retail Price: $11,108.00
$4,270.00 /Each
Selected Compressor Type: Water Cooled
Selected Voltage: 208-230V, 1 Phase
| 208-230V, 1 Phase |
| 115V, 1 Phase |
Scotsman MC0522SWX-32 Description
The Scotsman MC0522SWX-32/AP1-P ice machine head self-cleans at the push of a button. All the important components are accessed from the front to streamline use, and AutoAlert™ lights indicate the unit's current operating status. Scotsman’s ICELINQ® mobile app connects the operator to the machine dashboard status and controls as well as a step-by-step guided cleaning process. Because the unit is coated with AgION™ antimicrobial, the growth of bacteria is slowed, ensuring minimal germ spread when it's used by multiple people. Ice is kept fresh and tasty with WaterSense controls, which are adjustable to remove debris.
To view service information and warranty history, users can scan the unique QR code on the Scotsman MC0522SWX-32/AP1-P half-cube ice maker head. Using R290 refrigerant, this water-cooled unit produces a maximum of 510 pounds of ice daily. When attached to a bin or dispenser, ice is led through the machine with harvest assist. This unit includes the AP1-P water filter.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Prodigy ELITE® series
- 510-lb. maximum daily ice production
- Makes small cube-style ice
- Cube size: 7⁄8 in. x 7⁄8 in. x 3⁄8 in.
- Water cooled

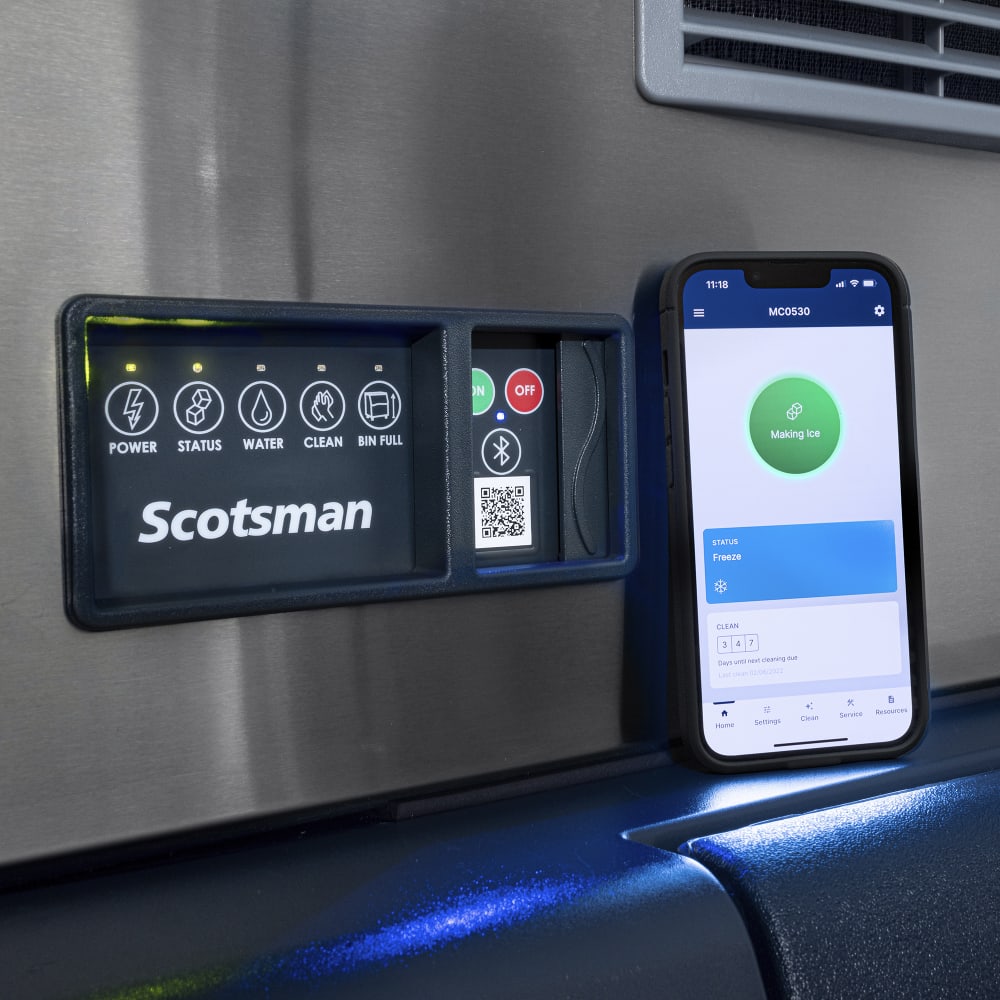

- Connects to mobile app via bluetooth
- ICELINQ mobile app available
- Settings adjustments, diagnostics reports, and guided cleaning instructions available through app
- WaterSense adjustable controls remove debris from ice
- Time saved with 1-touch cleaning
- Harvest assist leads ice into the bin (bin not included)

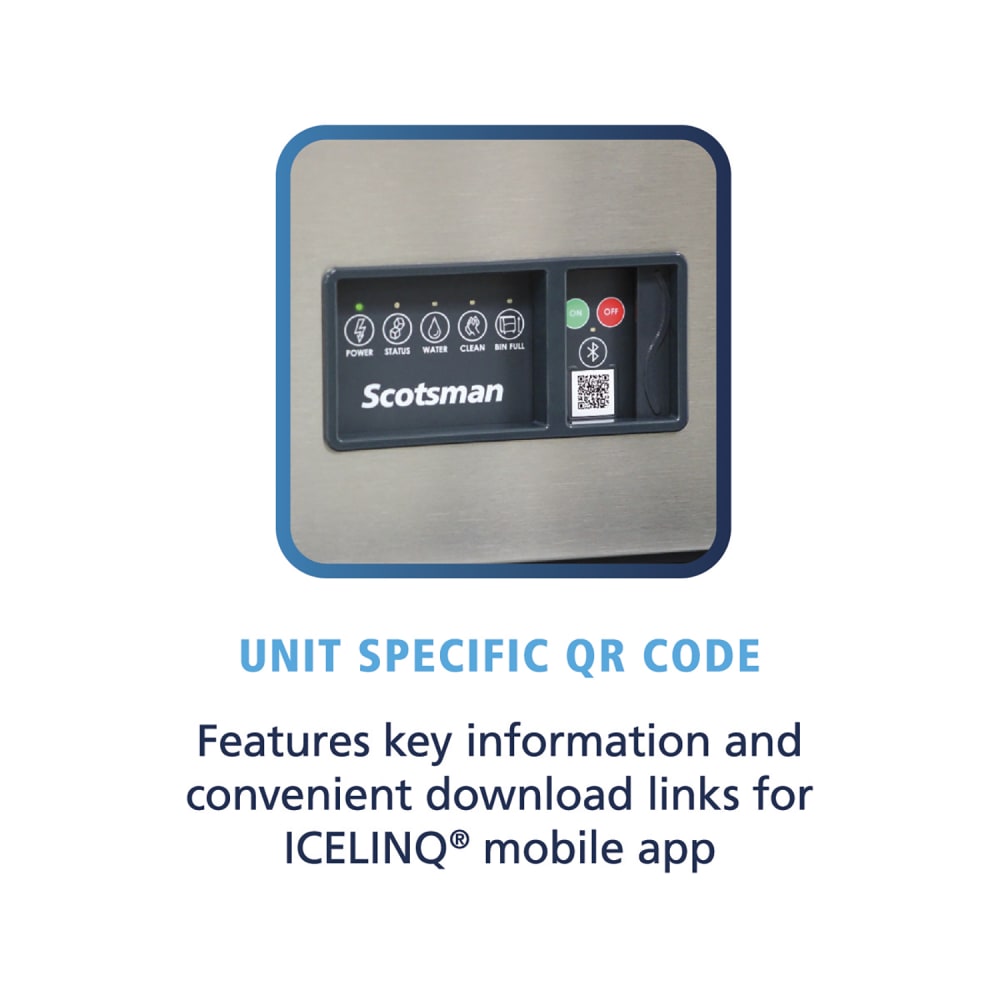

- Scannable QR code displays warranty information
- Stainless steel finish is resilient
- AgION antimicrobial reduces the spread of germs
- Air filter on self-aligning front panel
- AutoAlert lights indicate the unit's status
- R290 refrigerant is used to cool the unit
- AP1-P water filter included
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 7,900 BTU
- 22 in. W x 24 in. D x 23 in. H
- 5.6 A, 4.48 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522SWX-32 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 510 lb/24 hours at 70°/50° (352 lb AHRI certified at 90°/70°), small cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 208-230v/60/1-ph, cULus, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522SWX-32 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 510 |
| Also Known As | MC0522SW-32 |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Ice Type | Half Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 160.00 |
