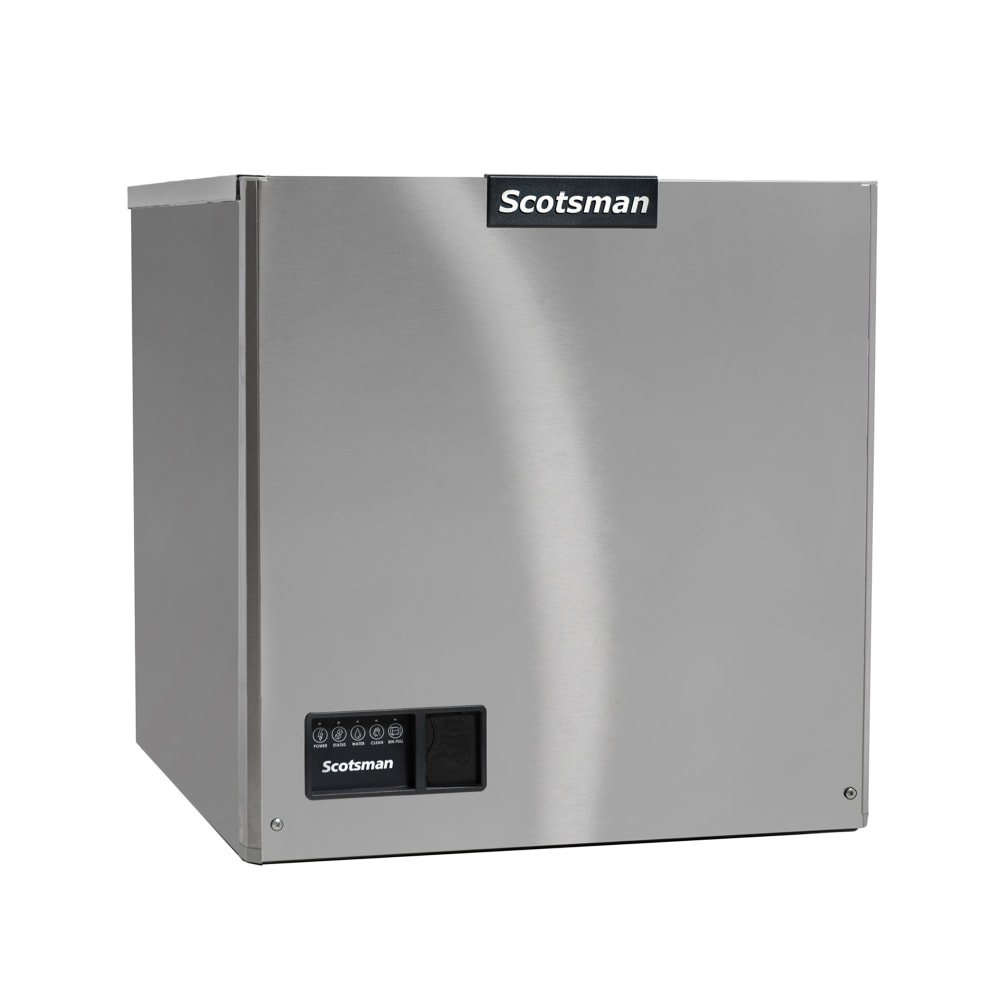

Scotsman MC0522MWX-1 22" Prodigy ELITE® Full Cube Ice Machine Head w/ Filter - 510 lb/24 hr, Water Cooled, 115v/1ph
Retail Price: $10,292.00
$4,219.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Scotsman MC0522MWX-1 Description
The Scotsman MC0522MWX-1/AP1-P ice machine head measures 22 inches wide by 24 inches deep by 23 inches tall, and it's part of the Prodigy ELITE® series. This unit produces 510 pounds of full-cube ice every 24 hours, and because the ice maker's a water-cooled unit, it's optimal for establishments with a self-contained water system. Meaning it doesn’t require plumbing, the ice machine's condenser is self-contained, and the unit is made of stainless steel for long-lasting performance. This unit comes with the AP1-P water filter.

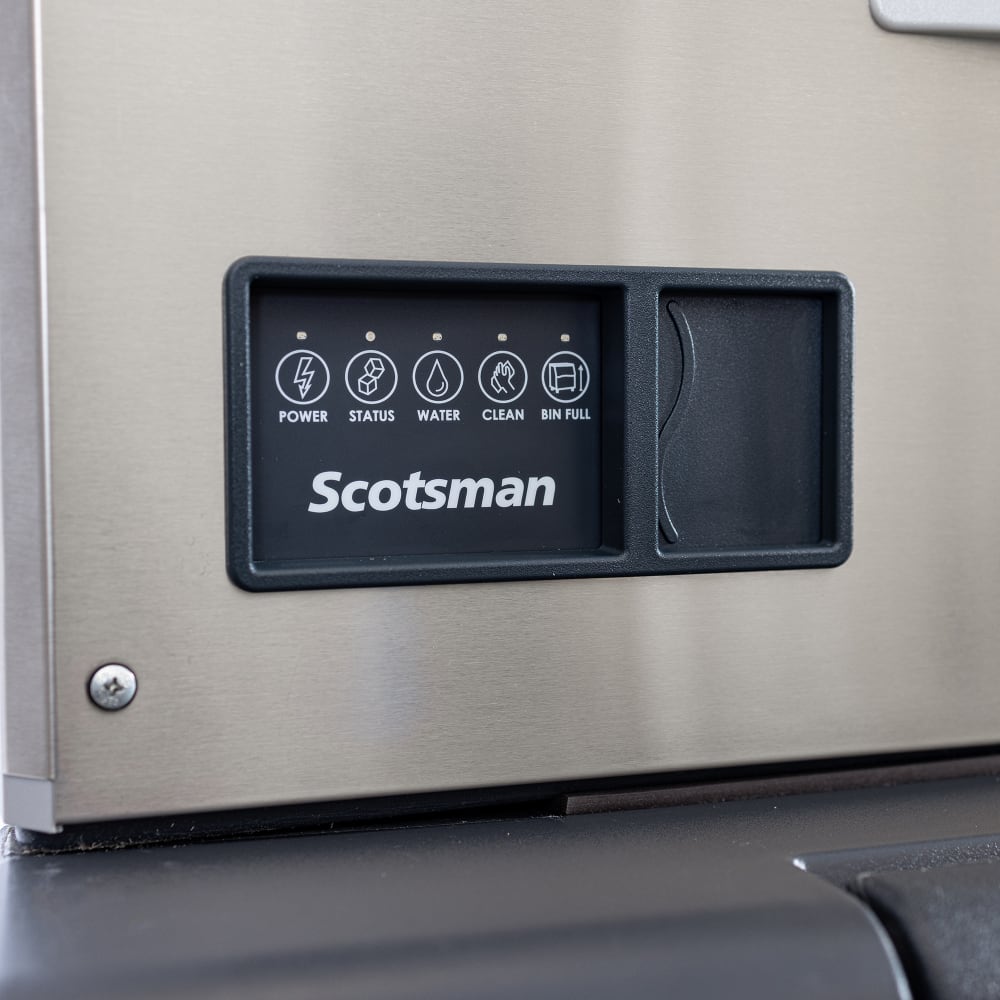

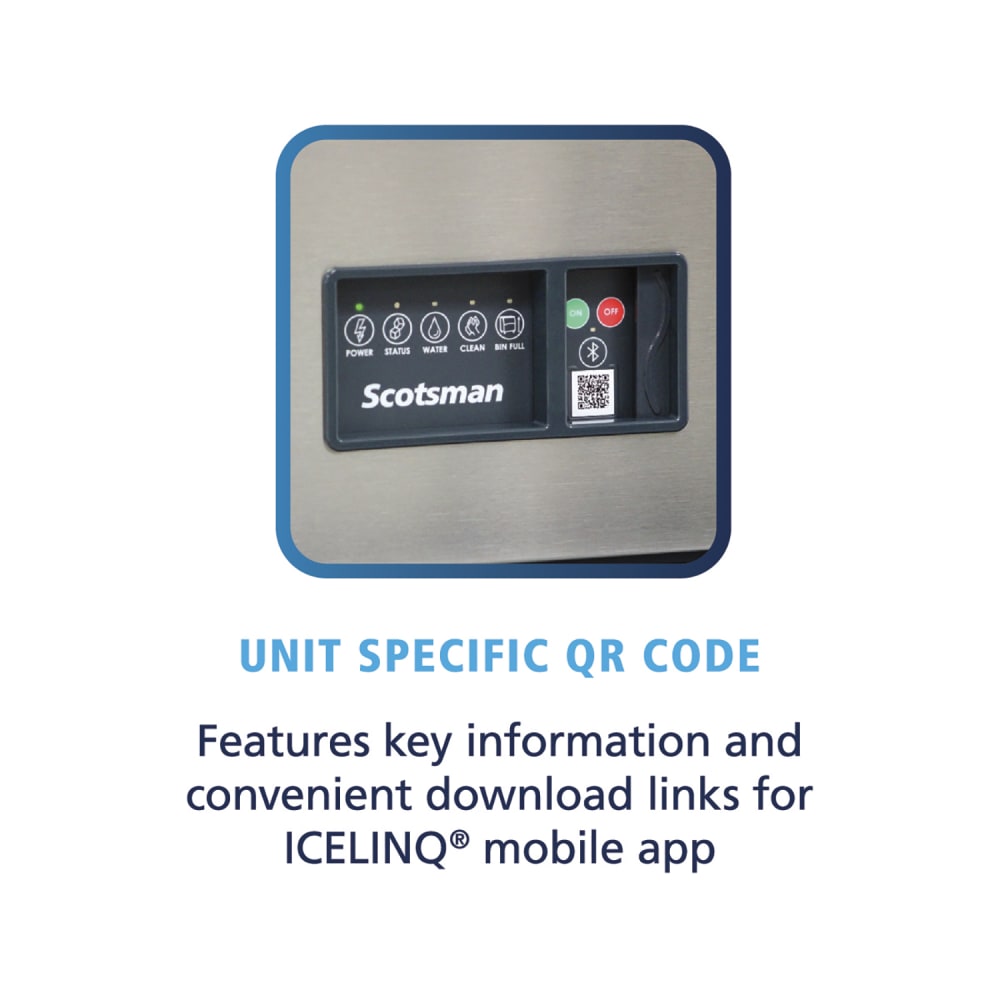

With a self-monitoring system, the Scotsman MC0522MWX-1/AP1-P ice maker head facilitates maintenance. The unit enables ice level customization and quick diagnostics, and its AutoAlert™ indicator lights enhance visibility. For convenient operation, cleaning, and servicing, operators can use Scotsman’s ICELINQ® mobile app to access the dashboard. This app also allows users to adjust settings and walk through a step-by-step guided cleaning process. This ice machine has a reduced operational footprint. Users can service its components from the front panel, and its exclusive QR code instantly connects operators to warranty history and service information.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Prodigy ELITE series
- 510-lb. maximum daily ice production
- Bluetooth connectivity
- ICELINQ mobile app compatible
- R290 hydrocarbon refrigerant
- AP1-P water filter included
- Diagnostics reports, guided cleaning, and settings adjustments through mobile app
- 1-touch cleaning saves time and reduces labor
- Front-located air filter enhances operational efficiency
- Self-aligning front panel streamlines access to key components
- WaterSense purge control cuts down scale buildup automatically
- Harvest Assist consistently pushes cubes to bin
- Smart-Board™ advanced feature provides additional diagnostic capabilities
- Antimicrobial protection guards interior between cleanings
- Water-cooled unit
- 22 in. W x 24 in. D x 23 in. H
- 11.9 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0522MWX-1 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 510 lb/24 hours at 70°/50° (352 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 11.9 amps, cULus, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0522MWX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 510 |
| Also Known As | MC0522MW-1 |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Ice Type | Full Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 160.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman MC0522MWX-1 Scotsman MC0522MWX-1 22" Prodigy ELITE® Full Cube Ice Machine Head w/ Filter - 510 lb/24 hr, Water Cooled, 115v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,219.00 / Each | $5,635.00 / Each | $4,272.00 / Each | $4,609.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| 24 Hr. Production (lb) | 510 | 647 | 550 | 528 |
| Ice Type | Full Cube | Crescent Cube | Full Cube | Full Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 22 | 22 | 22.25 | 22 |
| Rating | Best | Best | Better | Best |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Prodigy ELITE® | KM EDGE X | Elevation Series™ | Indigo NXT™ |
| Refrigerant | R290 (Hydrocarbon) | R404A | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It can produce up to 510 lb. of ice per 24 hours.
It makes full-cube ice.
It measures 22 in. W x 24 in. D x 23 in. H.
It uses a water-cooled condensing system.
It requires 115 V electrical service.
It uses single-phase power.
It uses R290 refrigerant.
It requires a hardwired electrical connection.
Its listed certifications include AHRI, cULus Listed, and NSF.
Its exterior is made of stainless steel.
It requires a 3/8-in. water inlet connection.
No, this ice machine head is sold without an ice bin.
It must be paired with a separately purchased ice bin or dispenser.
It must be paired with a separately purchased ice bin or dispenser.
It has a one-touch cleaning function.
Yes, a water filter is included.
