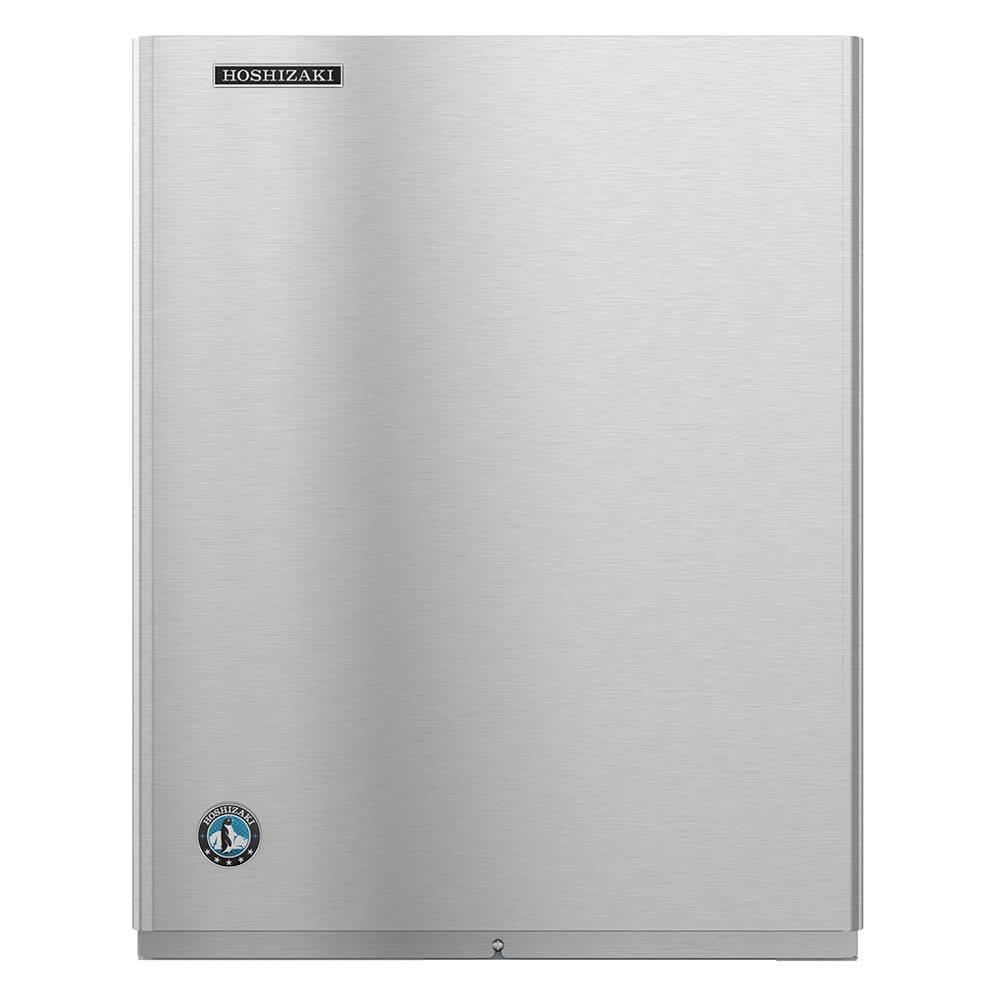

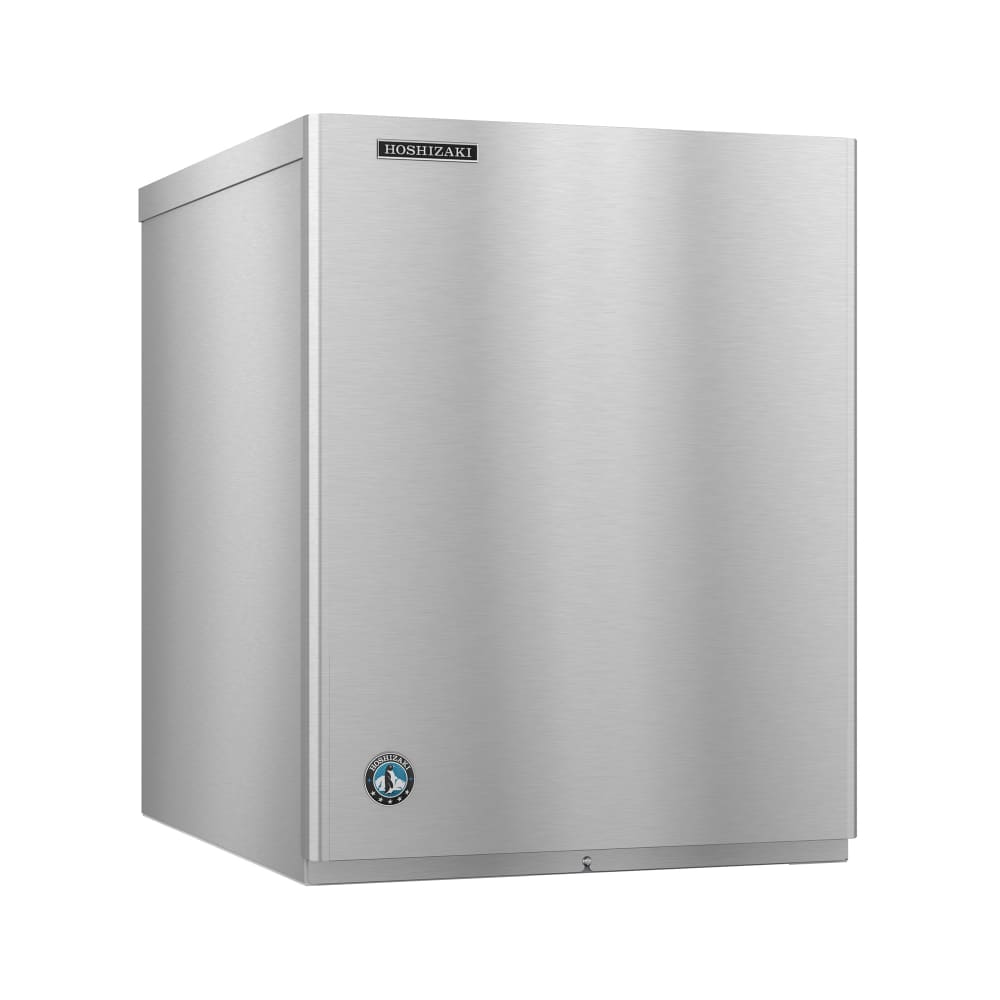

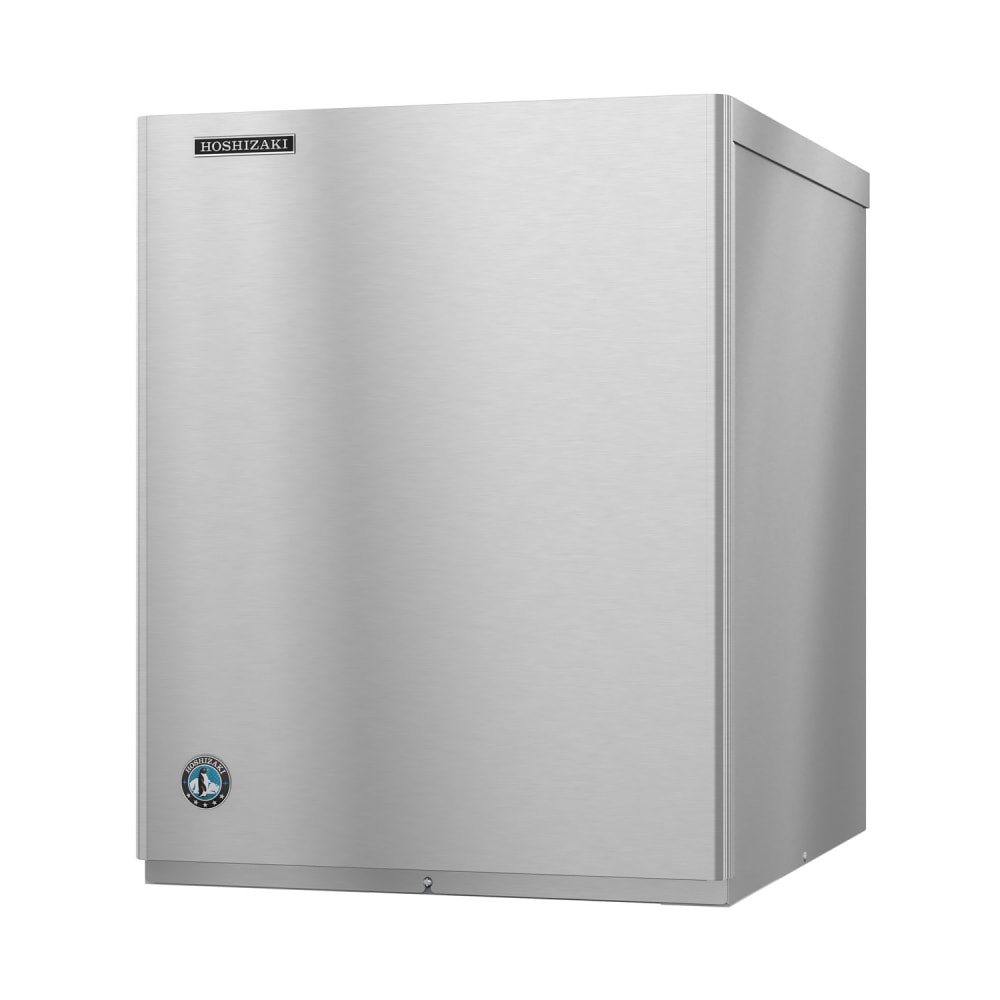

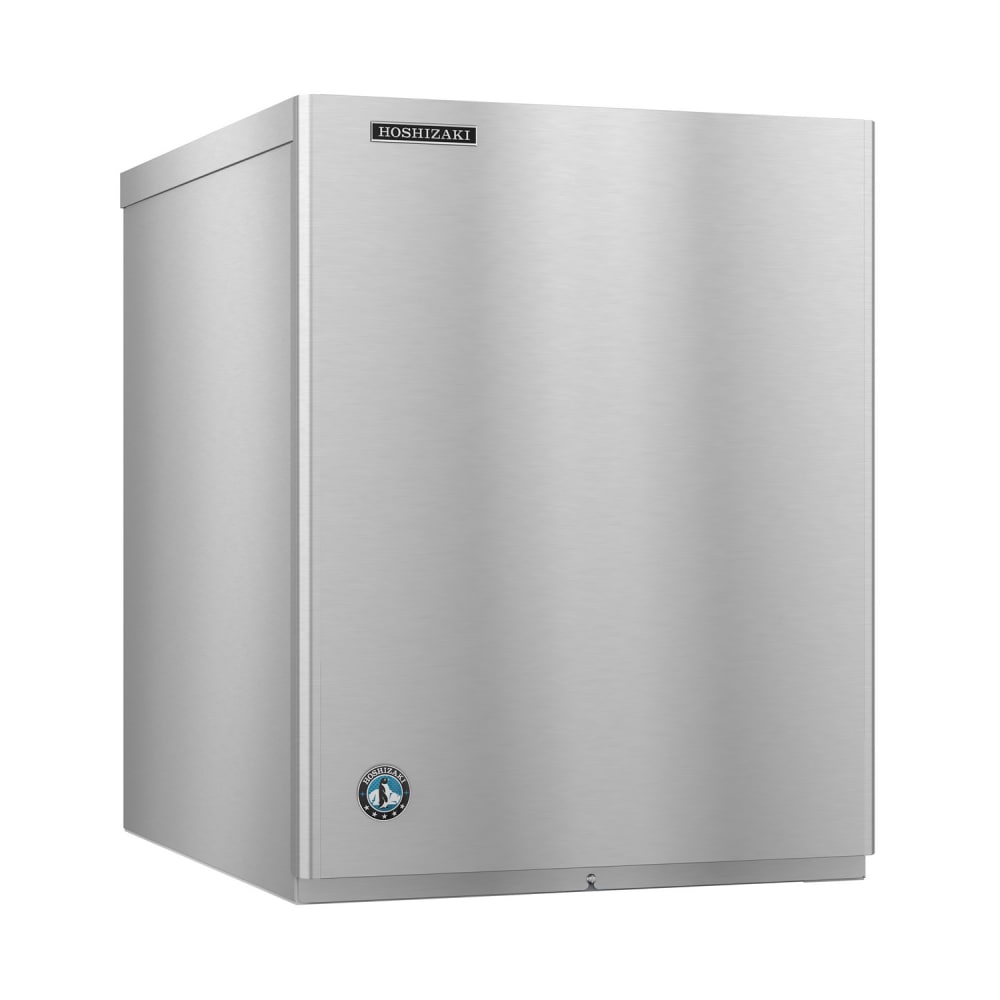

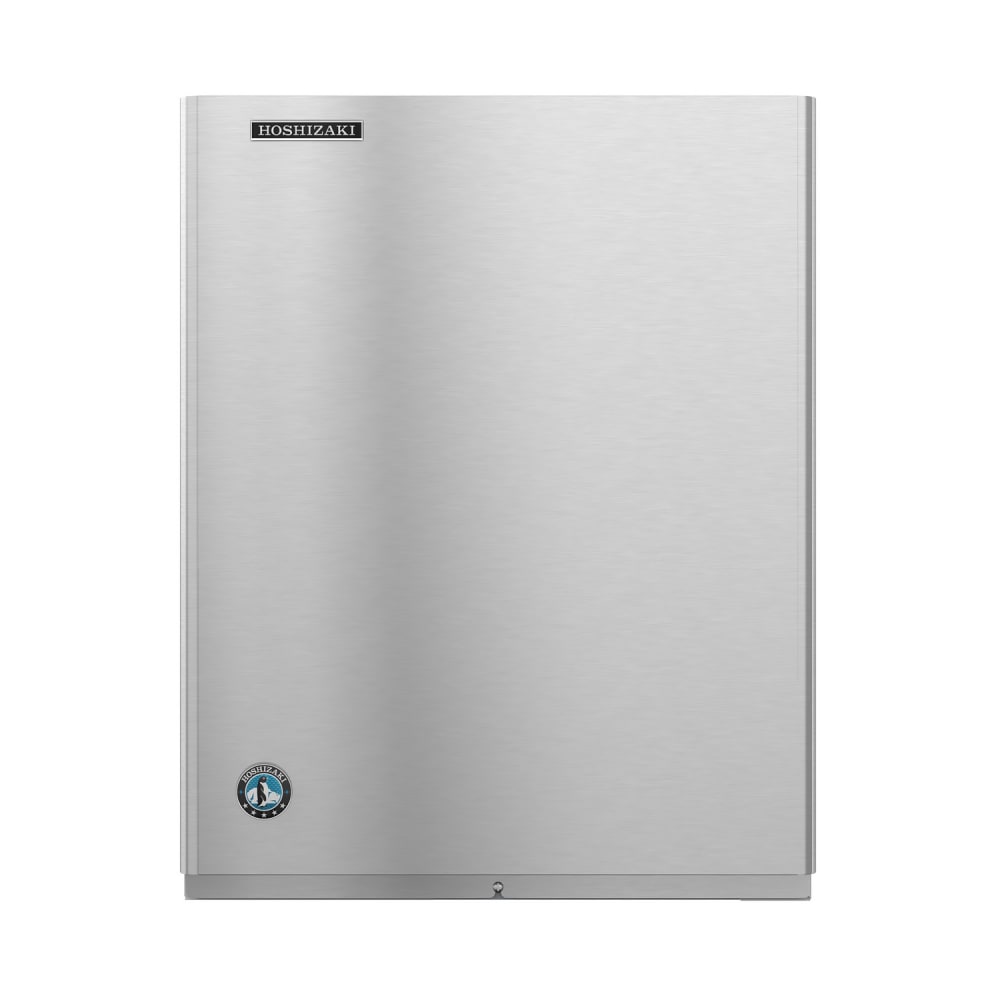

Hoshizaki KM-660MWJ 22" Crescent Cube Ice Machine Head - 647 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Free Shipping Item
$5,015.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 05-01-2025 to save before the price increases!
Hoshizaki KM-660MWJ Description
The Hoshizaki KM-660MWJ crescent cube ice machine head is water cooled, so it resists hot ambient temperatures more effectively than an air-cooled system. It can produce 669 pounds of crescent ice each day and features a factory-installed ultrasonic bin control that automatically stops the production of ice when the bin is full. Because of its narrow profile, this ice machine head doesn't take up much space; it's a good size for smaller operations, such as corner stores and food courts.
The Hoshizaki KM-660MWJ ice machine head is built to streamline cleaning and maintenance of the machine, reducing operator labor and prolonging the life of the unit. Self-diagnostic features optimize production, while an EverCheck™ system monitors performance and alerts operators if issues arise. The simple design of the machine has less parts than previous models and features a snap-in construction that enables users to clean it in just one hour—encouraging daily cleaning.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- 669-lb. maximum daily ice production
- 668-lb. AHRI-certified daily ice production
- Water-cooled system
- Produces crescent cube ice
- CycleSaver™ design
- Self-monitoring EverCheck alert system indicates when service is needed
- Self-diagnostic programming tweaks settings to optimize performance
- H-Guard Plus® antimicrobial agent is applied to components
- Double-sided stainless steel evaporator resists corrosion
- Removable panels provide fast access to internal components
- 1-hr. cleaning process
- Snap-fit parts
- Crescent cube size: 11⁄8 in. W x 1⁄2 in. D x 11⁄2 in. H
- Recommended ambient air temperature: 45-100 degrees F
- Recommended incoming water temperature: 45-90 degrees F
- Recommended incoming water pressure: 10-113 PSI
- R404A refrigerant
- 8,900-BTU heat transfer capacity
- Required clearance: 6 in. at rear, sides, and top
Dimensions & Utilities
- 22 in. W x 273⁄8 in. D x 28 in. H
- Plumbing inlet minimum requirements: 1⁄4-in. nominal ID copper water tubing
- Drain line minimum requirements: 3⁄4-in. nominal ID hard pipe
- 12.35 A, 4.28 kW
- 115 V/60 Hz/1 ph
Product Features
*Free shipping on Hoshizaki KM-660MWJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 647 lb/24 hours at 70°/50° (630 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 12.35 amps, NSF, UL
*Image may not depict product color, inclusions or accessories.
3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
Watch a video about this product
Hoshizaki KM-660MWJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 647 |
| Compressor Type | Water Cooled |
| Depth (in) | 27.38 |
| Height (in) | 28 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE X |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Width (in) | 22 |
| Weight | 150.00 |
Important Prop 65 information for California residents.
Replacement for the Following Item
- Hoshizaki KM650MWJ
Equivalent Items
Hoshizaki KM-660MWJ Accessories
Previous
Next
Other Products From This Line
Previous
Next
Related Categories
Previous
Next
Compare to Similar Items
| Attributes |
Current Item: Hoshizaki KM-660MWJ 22" Crescent Cube Ice Machine Head - 647 lb/24 hr, Water Cooled, 115v/1ph |
Ice-O-Matic CIM0530HW 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 586 lb/24 hr, Water Cooled, 115v/1ph |
Ice-O-Matic CIM0530FW 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 586 lb/24 hr, Water Cooled, 115v/1ph |

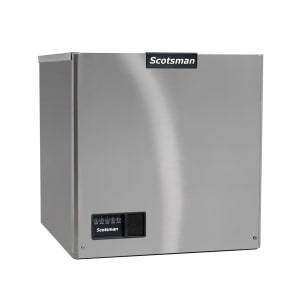

Scotsman MC0522MW-1 22" Prodigy ELITE® Full Cube Ice Machine Head - 480 lb/24 hr, Water Cooled, 115v/1ph |
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $5,015.00 | $4,268.00 | $4,268.00 | $3,867.00 |
| Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 2 - 3 weeks | Typically ships in 2 - 3 weeks | |
| 24 Hr. Production (lb) | 647 | 586 | 586 | 480 |
| Ice Type | Crescent Cube | Half Cube | Full Cube | Full Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 22 | 30.25 | 30.25 | 22 |
| Rating | Best | Better | Better | Best |
| Voltage | 115 | 115 | 115 | 115 |
| Series | KM EDGE X | Elevation Series™ | Elevation Series™ | Prodigy ELITE® |
| Refrigerant | R404A | R404A | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
