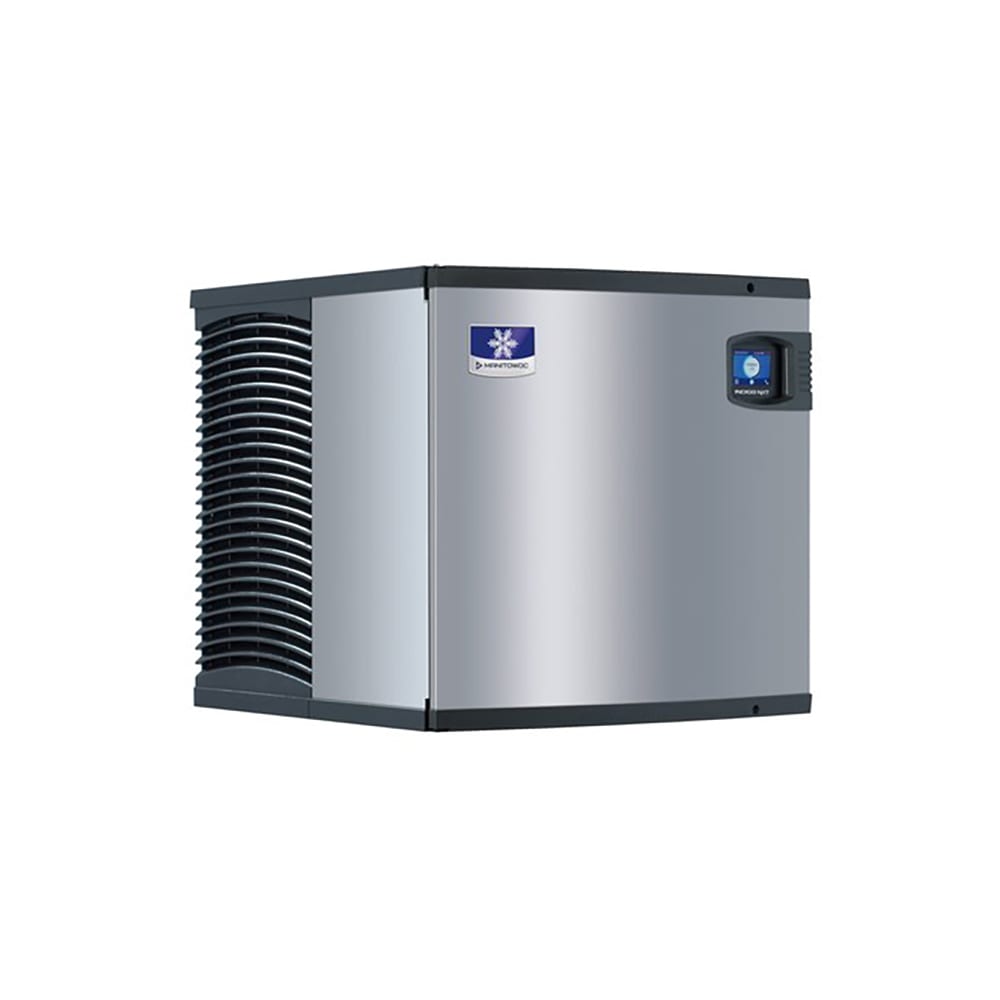

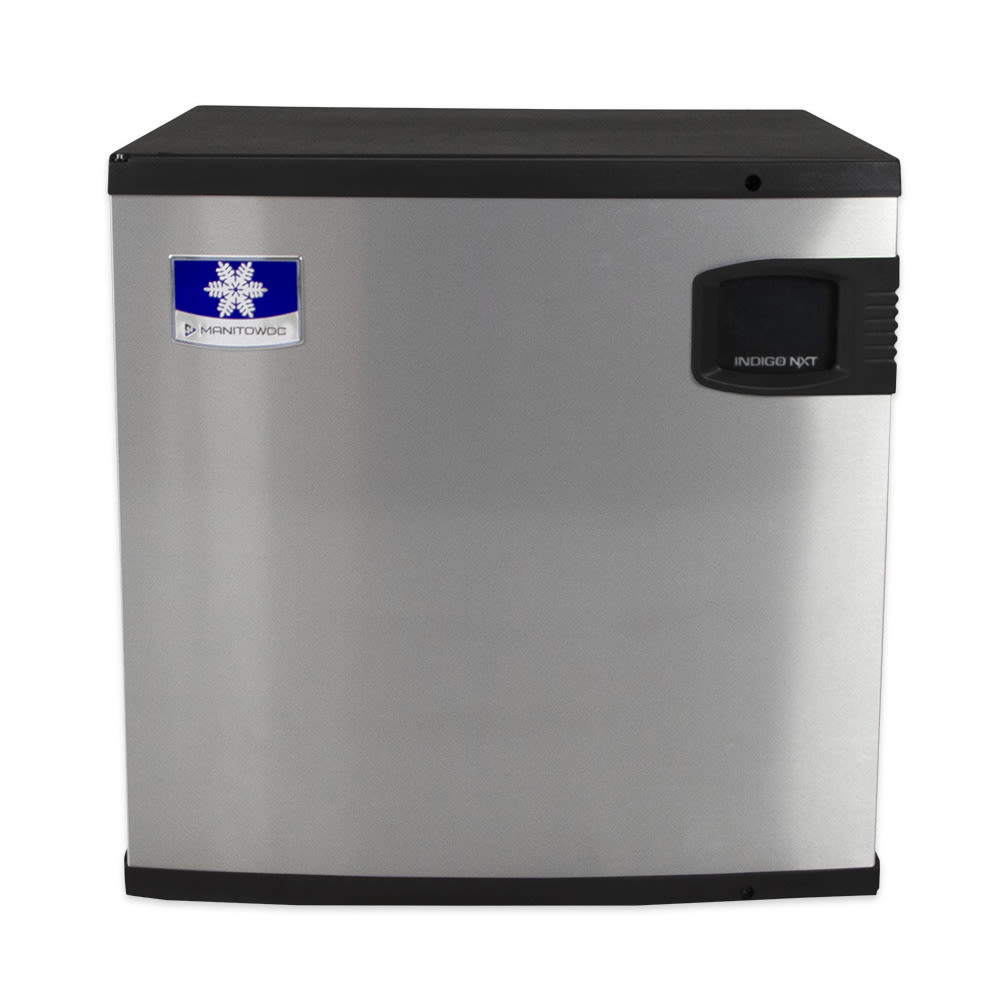

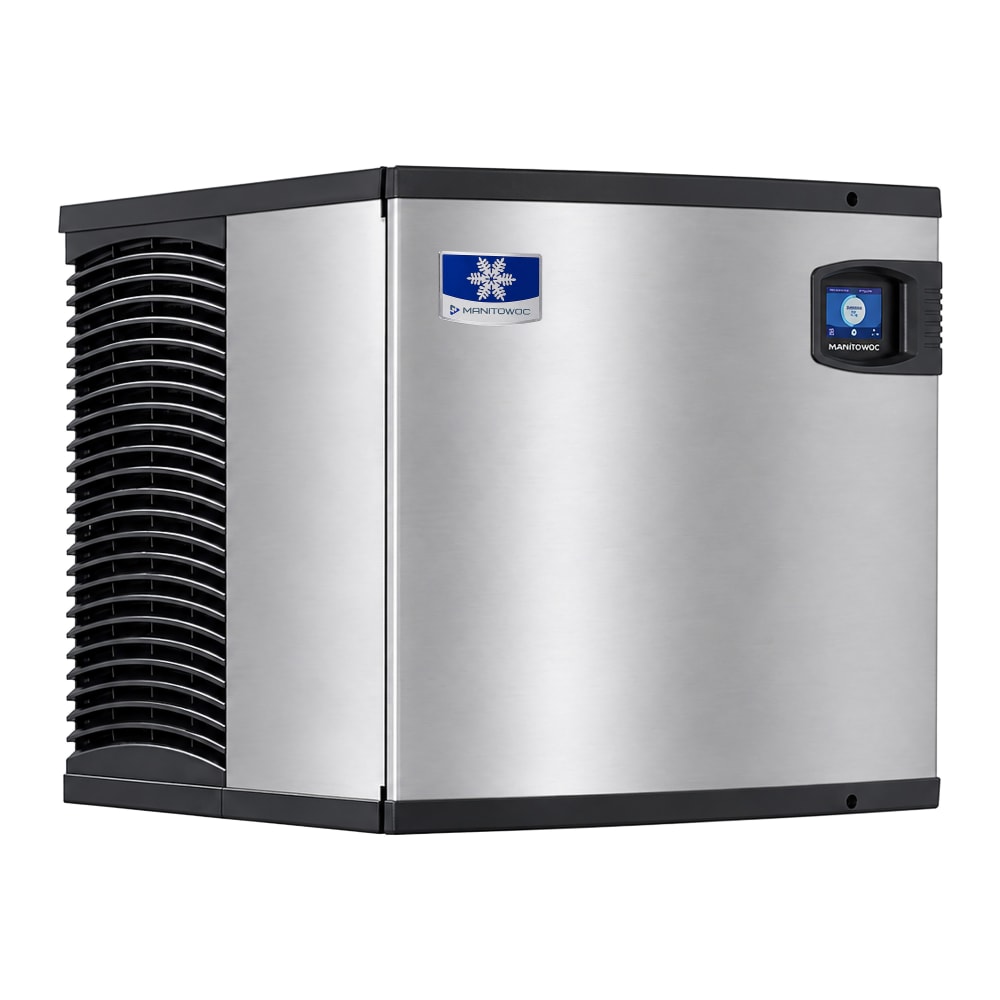

Manitowoc Ice IDT0620W 22" Indigo NXT™ Full Cube Ice Machine Head - 530 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 1 - 3 Business Days
$4,609.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Manitowoc Ice IDT0620W Description
A DuraTech® coating on the exterior of the Manitowoc IDT0620W Indigo NXT™ ice machine head resists marks left by dirt and fingerprints. The front door to the food zone swings out for access that eases cleanup and maintenance. Certain parts are removable so they can be cleaned without issue. An antimicrobial agent is built into components that touch water to slow the growth of bacteria, and this ice maker is able to produce as much as 530 pounds of dice-shaped ice every 24 hours.
This Manitowoc IDT0620W commercial ice machine head is water cooled and designed to fit on top of an ice storage bin with its 22-inch-wide by 24 1⁄2-inch-deep by 21 1⁄2-inch-high structure. Users can keep tabs on operations and maintenance with the easyTouch® display that is located on the front of the unit. It highlights intelligent diagnostics, such as preventative maintenance and diagnostic feedback. Pristine ice production is ensured by the acoustical ice-sensing probe, which helps detect ice thickness by using sound to gauge the weight of the cube prior to dispensing. Active sense technology assures ice will be produced in all environmental conditions.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Water-cooled motor
- 530-lb. maximum daily ice production
- 450-lb. AHRI certified daily ice production

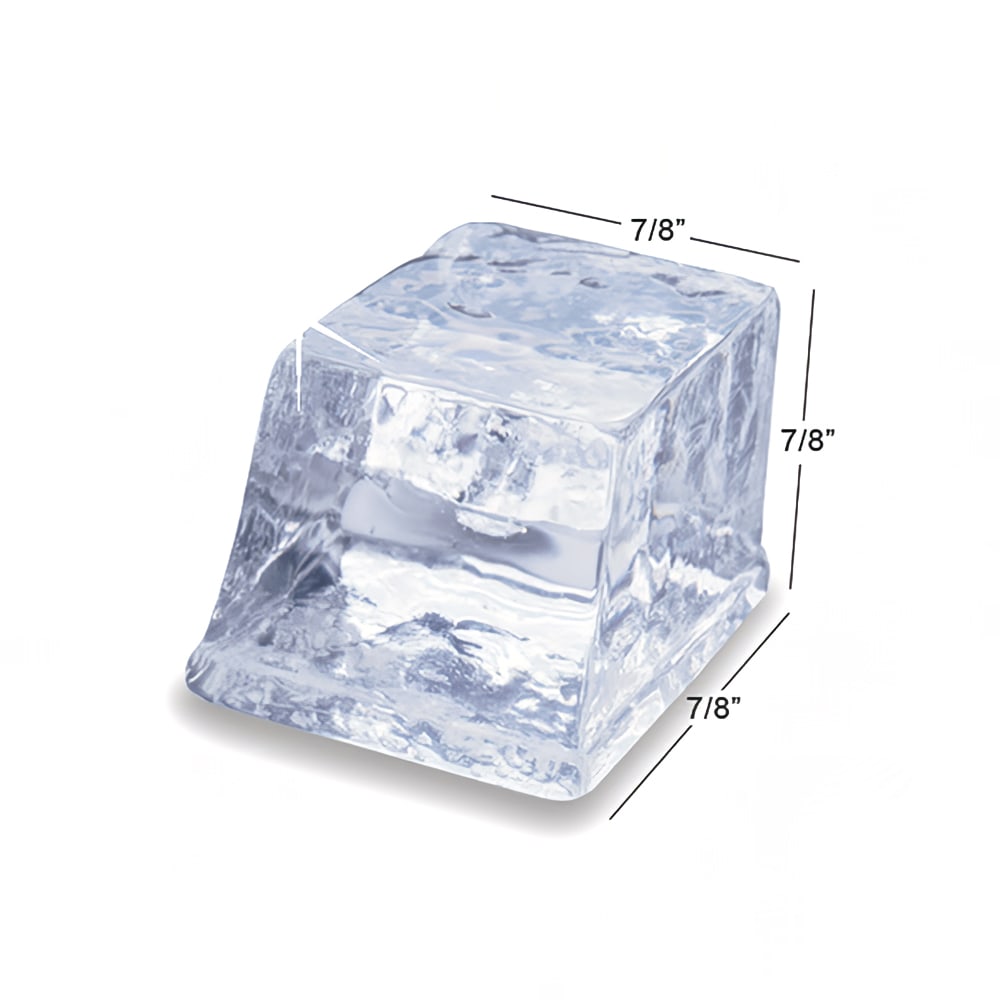

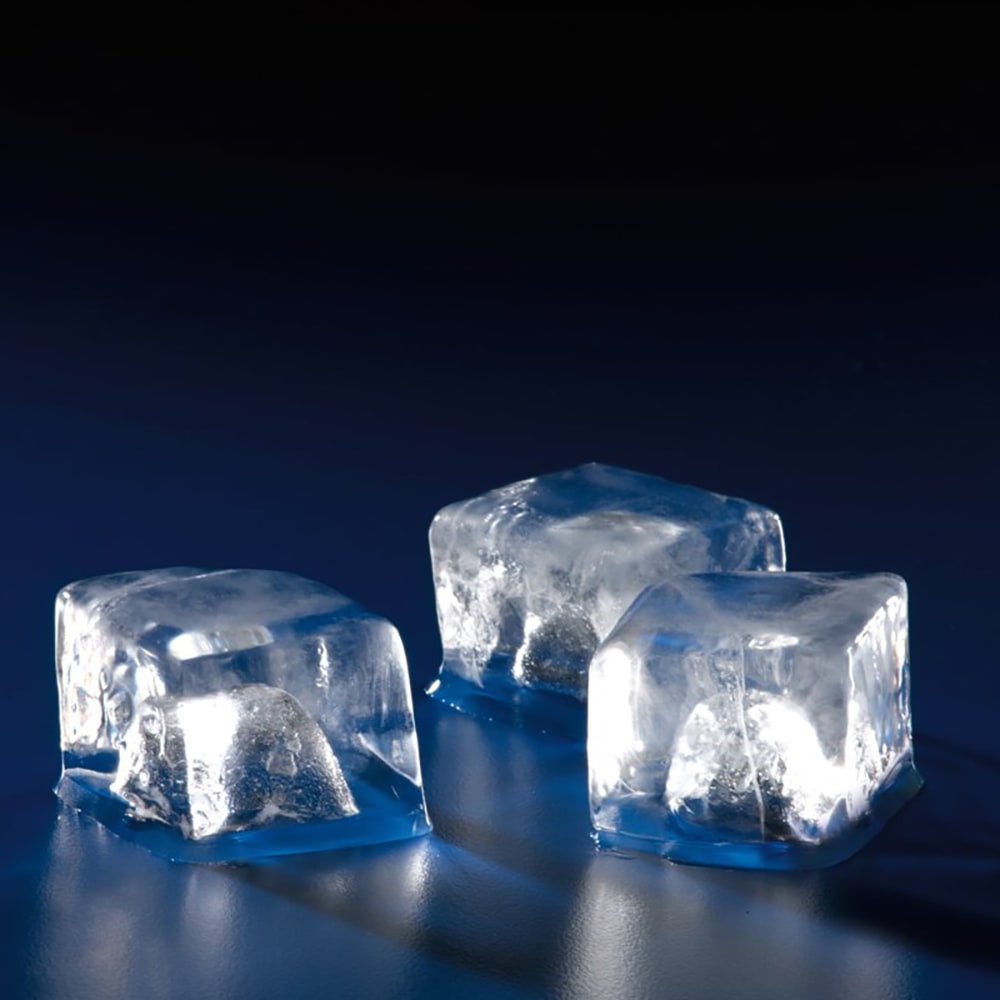

- Dice-cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Diagnostics provide 24-hr. preventive maintenance and feedback
- Acoustical ice-sensing probe ensures ice thickness is correct before releasing it
- Manage the unit through the touchscreen easyTouch® display
- Programmable ice production
- Hinged front door swings out for accessibility
- Removable water trough, distribution tube, curtain, and sensing probes simplify cleanup
- Internal components that contact water are made with AlphaSan® antimicrobial to slow bacterial growth
- DuraTech stainless steel with a clear-coat exterior prevents corrosion and resists dirt
- Uses R410A refrigerant
- Ideal incoming air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 psi
- 5,400-BTU heat transfer capacity
- 22 in. W x 24 1⁄2 in. D x 21 1⁄2 in. H
- 11.6 A, 4.13 kW
- 115 V/60 Hz/1 ph
- Note: a bin is required for operation and plug and cord are not included
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDT0620W within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 530 lb./24 hours at 70°/50° (450 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE
Manitowoc Ice IDT0620W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 530 |
| Compressor Type | Water Cooled |
| Depth (in) | 24.5 |
| Height (in) | 21.5 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R410A |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 140.00 |
Important Prop 65 information for California residents.
