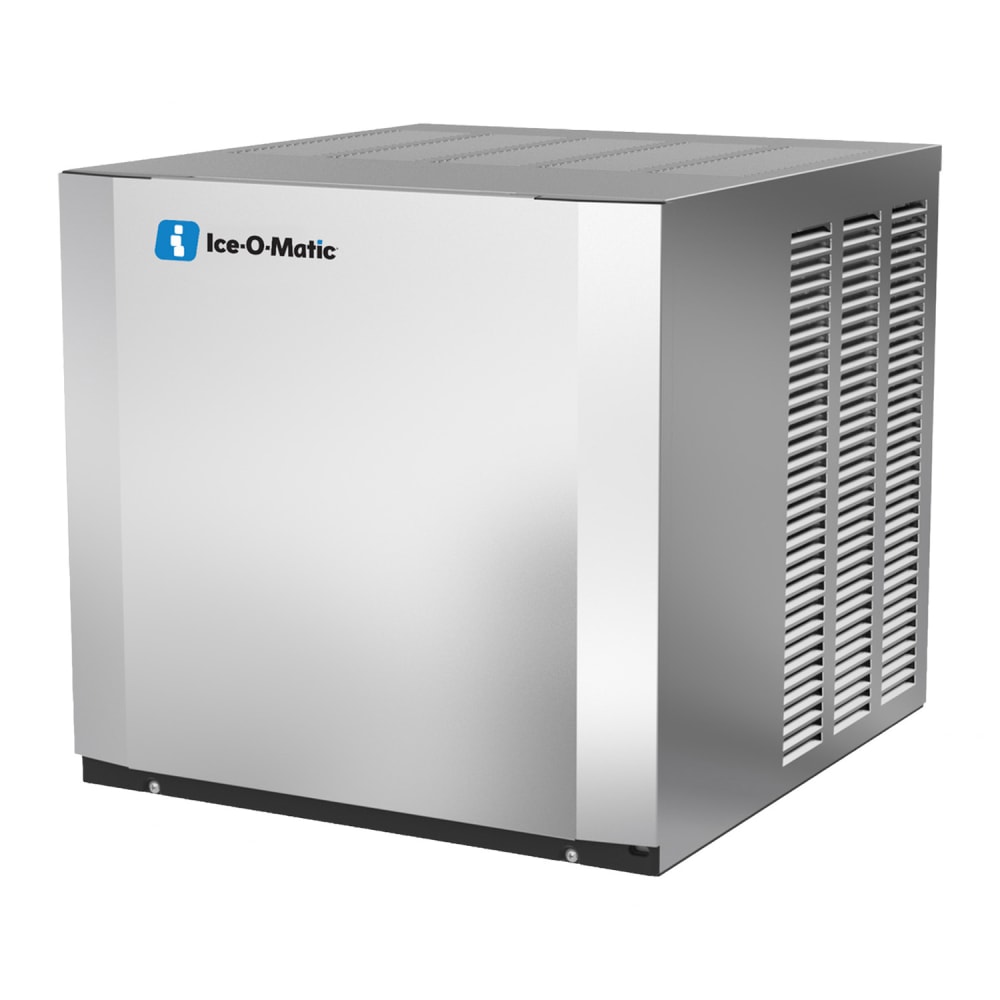

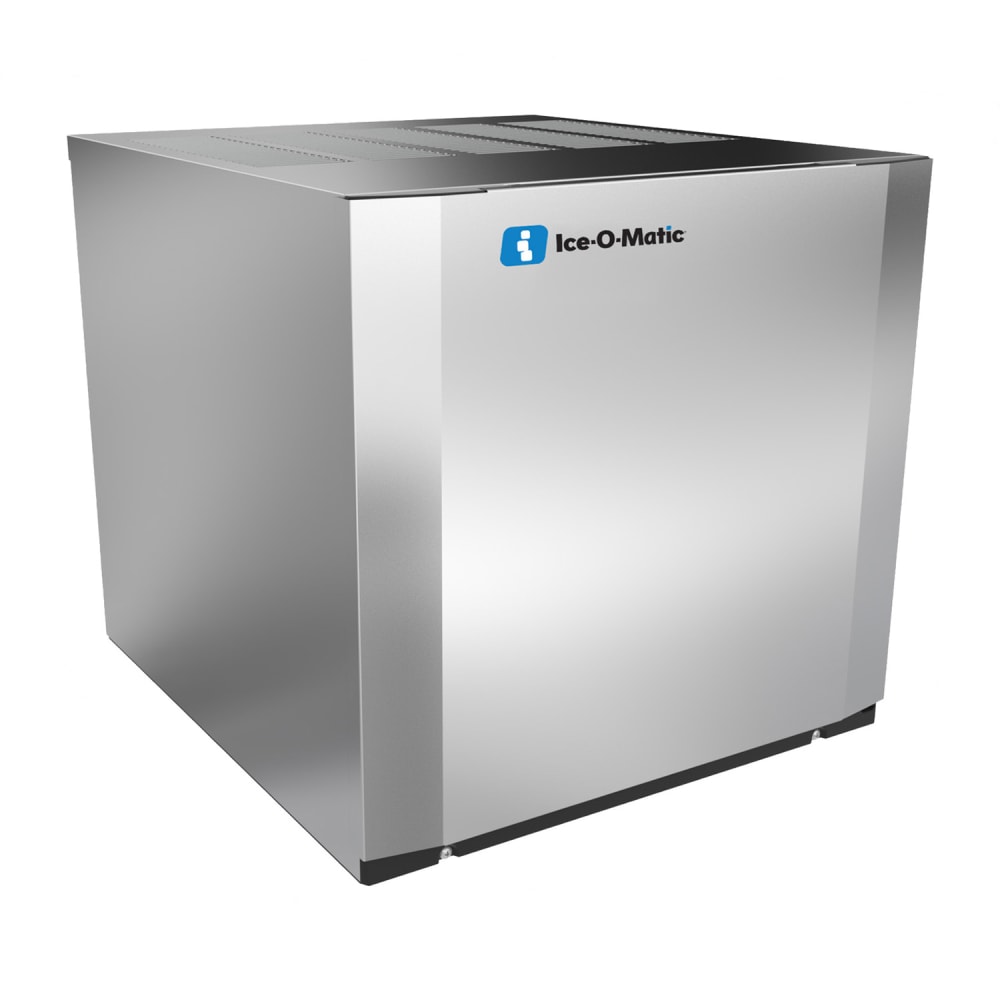

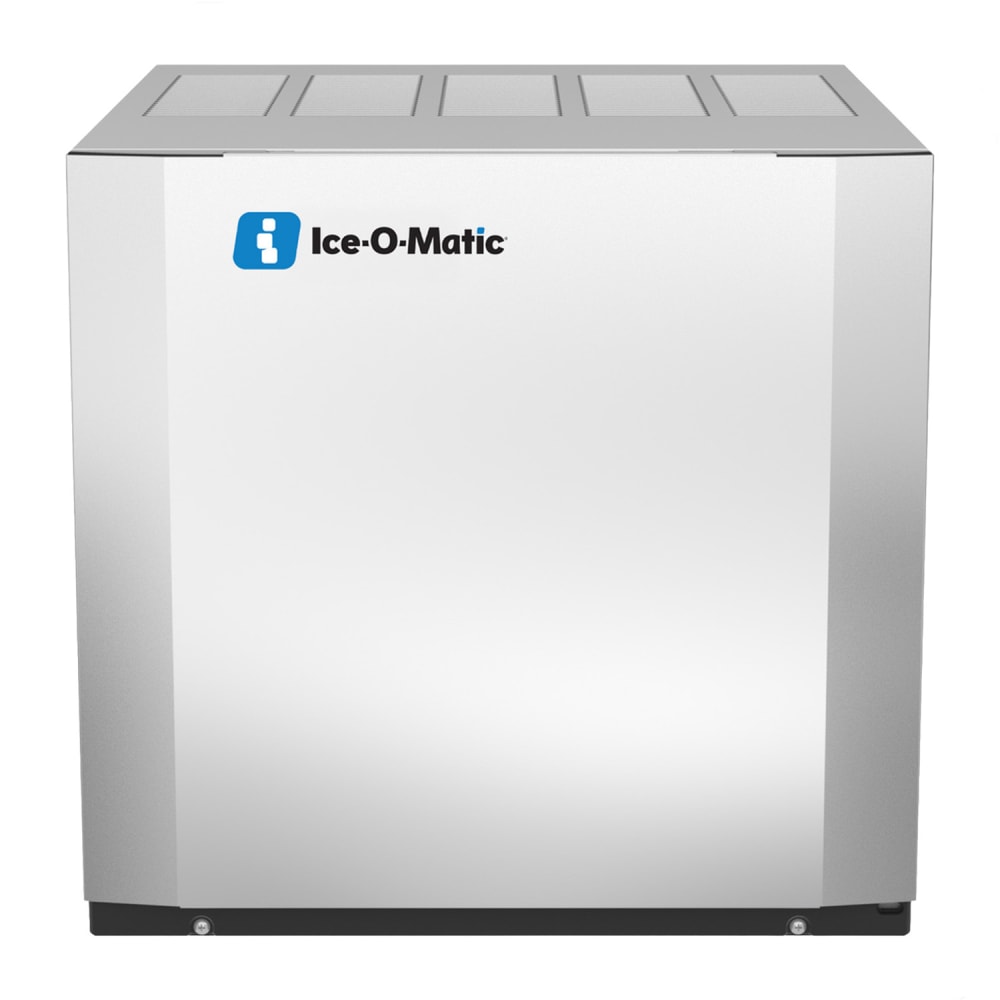

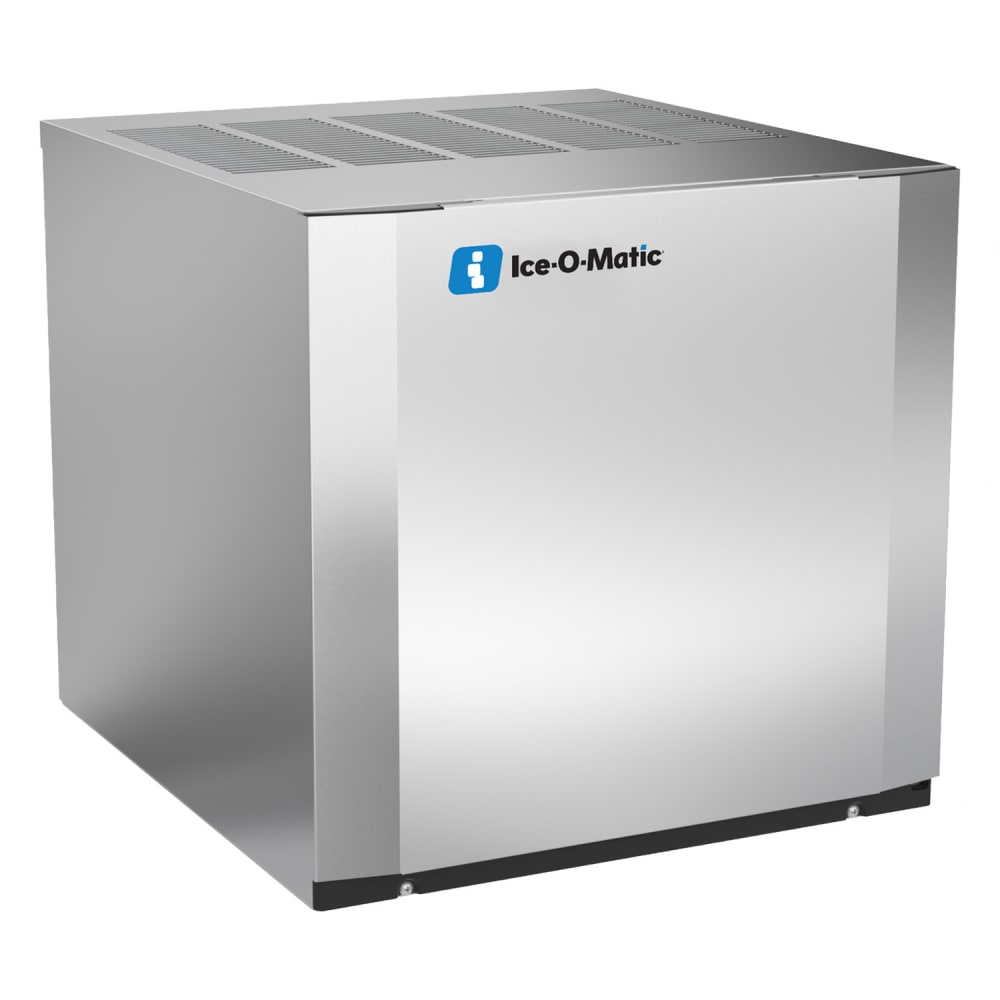

Ice-O-Matic CIM0320FA 22 1/4" Elevation Series™ Full Cube Ice Machine Head - 313 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,789.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Ice-O-Matic CIM0320FA Description
The Ice-O-Matic CIM0320FA Elevation Series™ ice machine head can make 313 pounds of ice in 24 hours, but this amount will be affected by ambient air and incoming water temperatures. This unit uses air to cool refrigerant in the condensing coils as it flows away from the evaporator so it can freeze water and form cubes. It makes full-cube ice, which measures 7⁄8 inch by 7⁄8 inch by 7⁄8 inch; these cubes are perfect for drinks in bars and restaurants since they melt slowly.

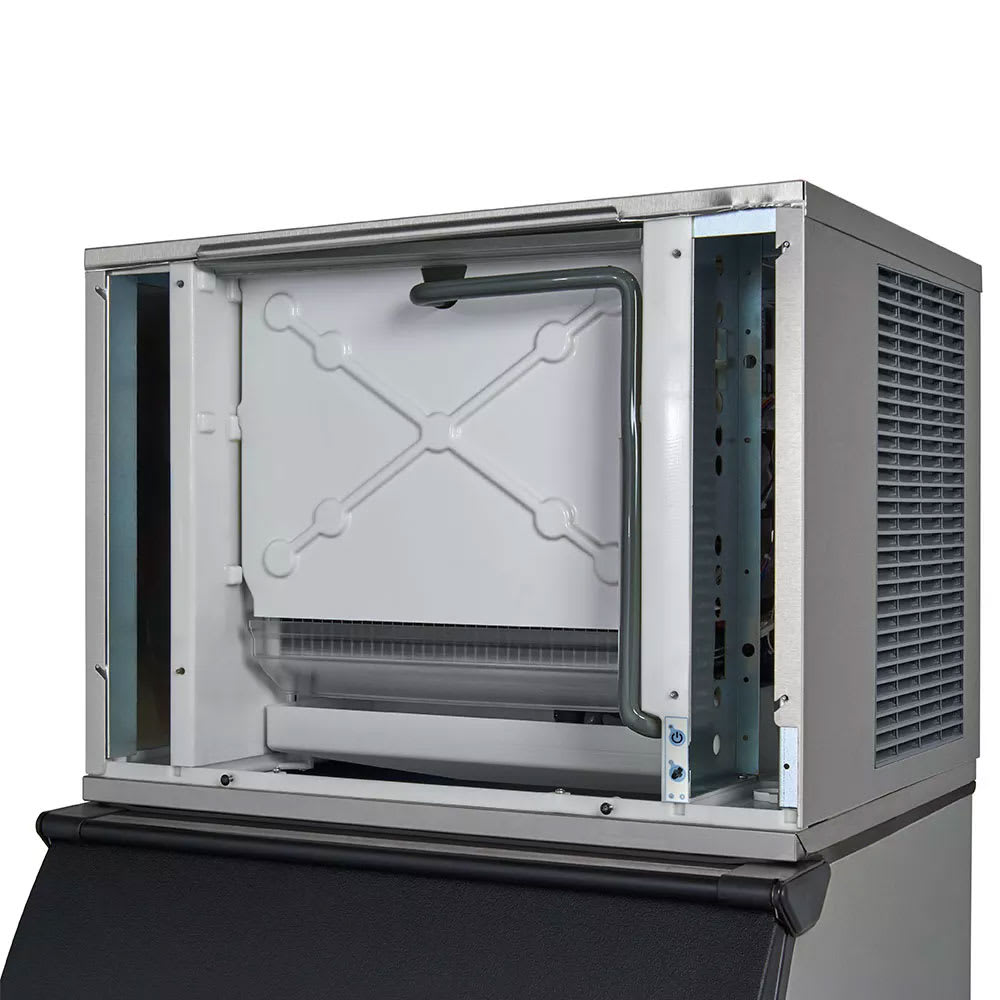

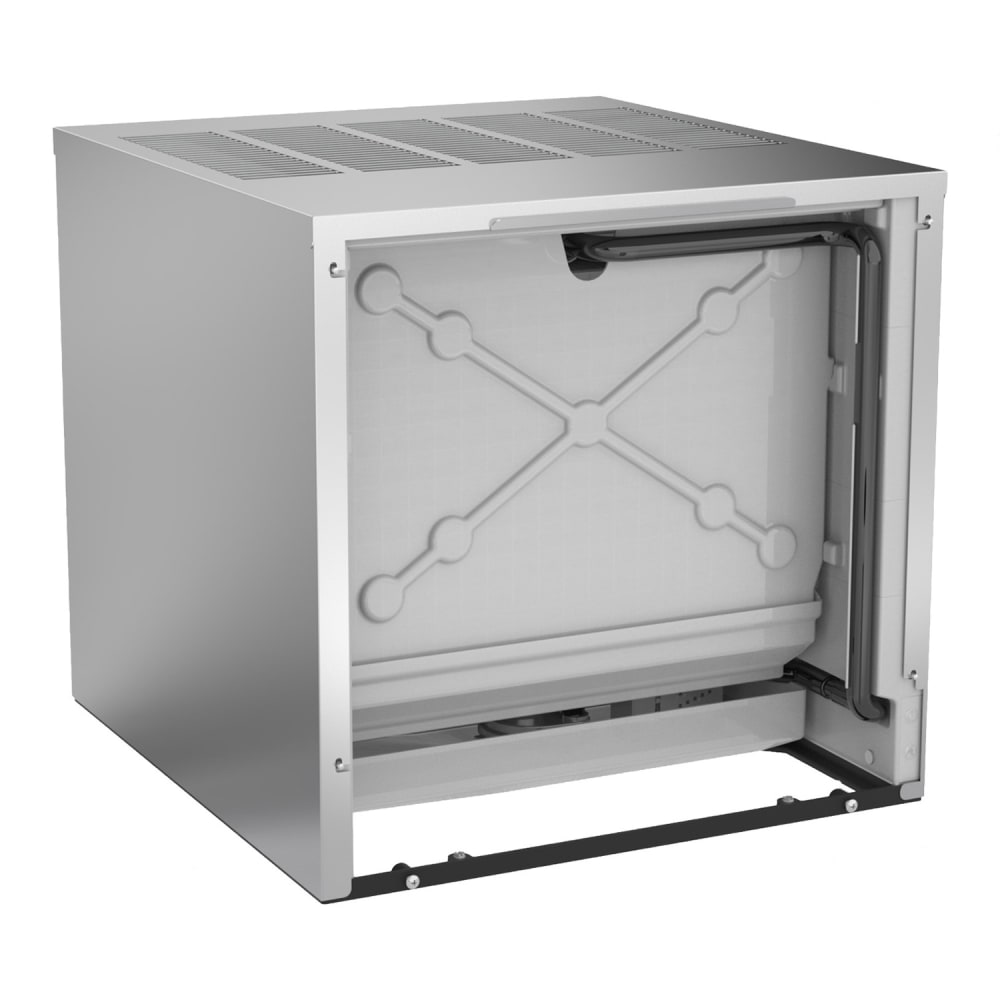

The food zone—the area that houses all the components that contact water and ice—is made of plastic without small cracks and crevices, so it is simple to wipe clean. Antimicrobial protection on the components slows bacteria and scale growth. An LED indicator light illuminates when cleaning is required, and the Ice-O-Matic CIM0320FA ice maker has a one-touch cleaning and sanitizing feature. The BPA-free food zone components snap in and out, which enables them to be removed for cleaning in a dishwasher.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 313-lb. maximum daily production
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air-cooled condenser

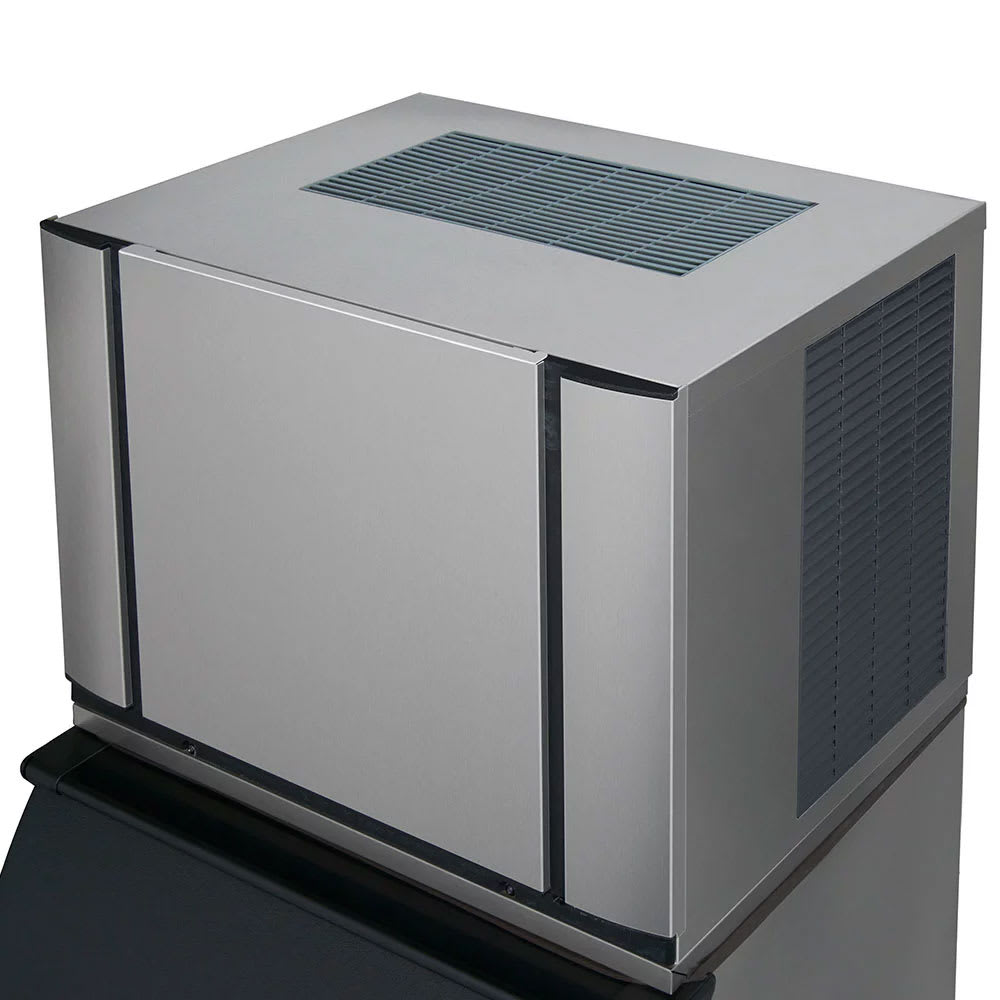

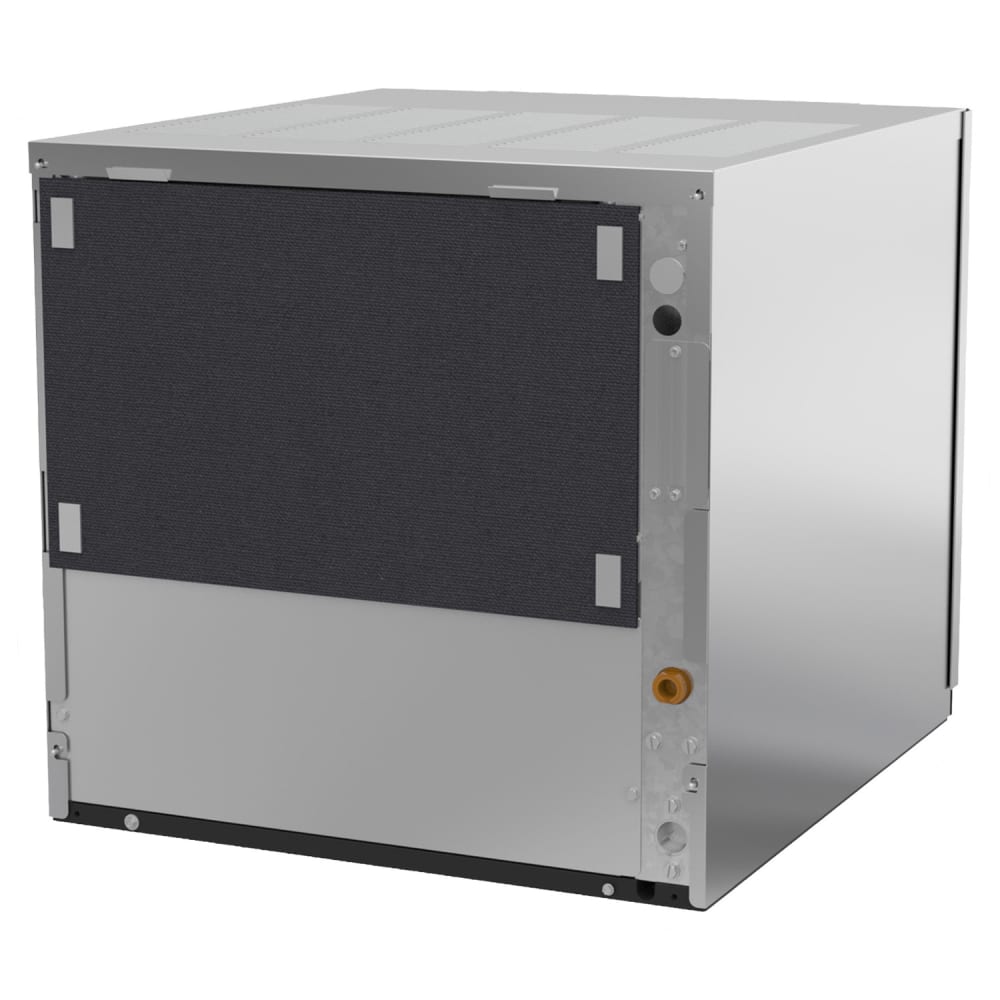

- Air discharges from the side and top to increase installation flexibility without obstructing exhaust
- Smart Harness™ control board provides digital diagnostics to simplify servicing
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
- Part of the Elevation Series
- Ice bin or dispenser is sold separately
- Plastic food zone does not have hard-to-clean cracks or crevices
- Agion® antimicrobial protection slows mold, scale, and bacteria

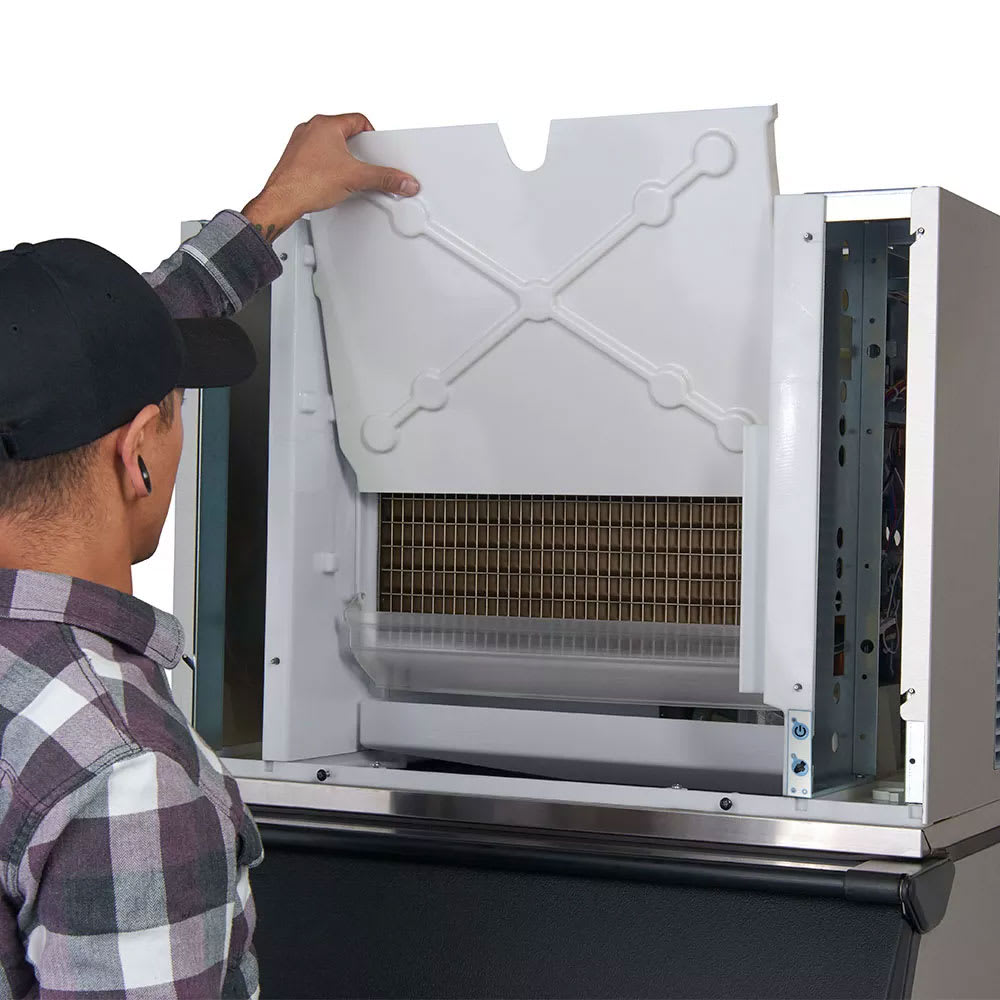

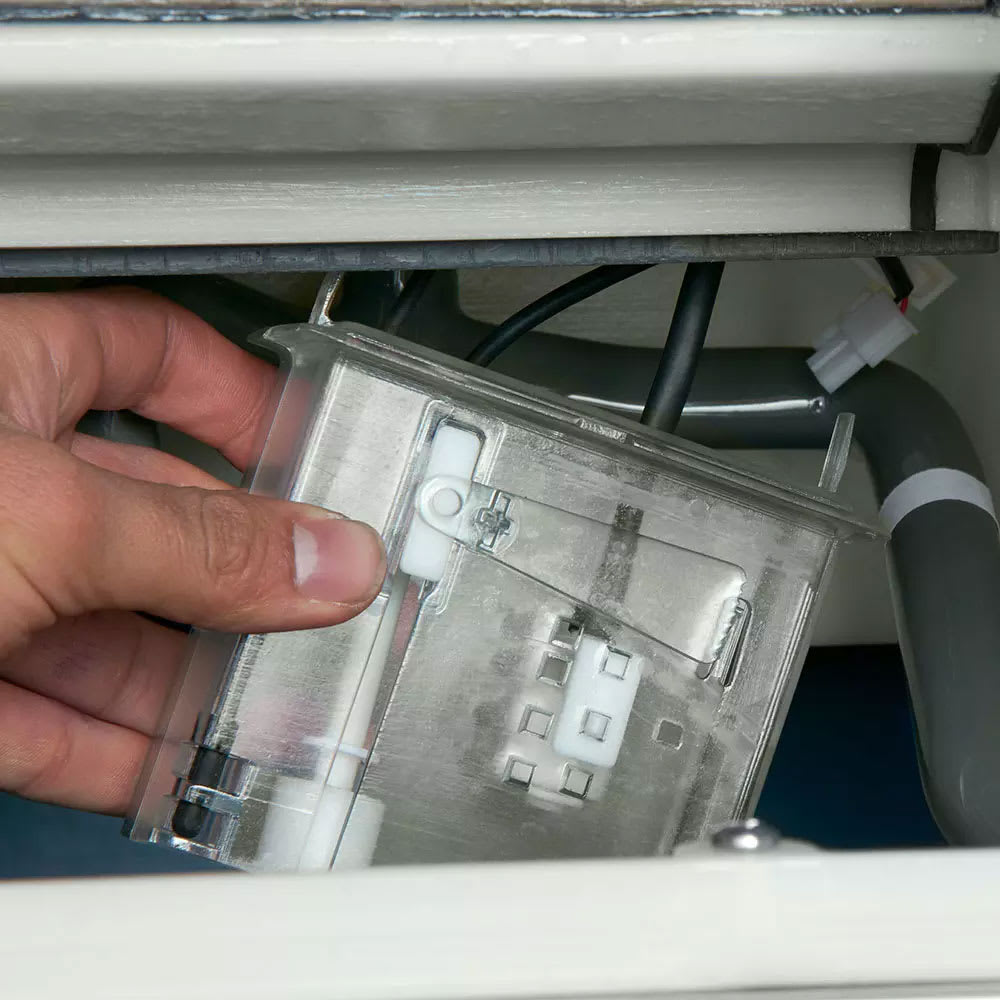

- BPA-free, dishwasher-safe components conveniently snap in and out
- LED indicator light illuminates when cleaning is required

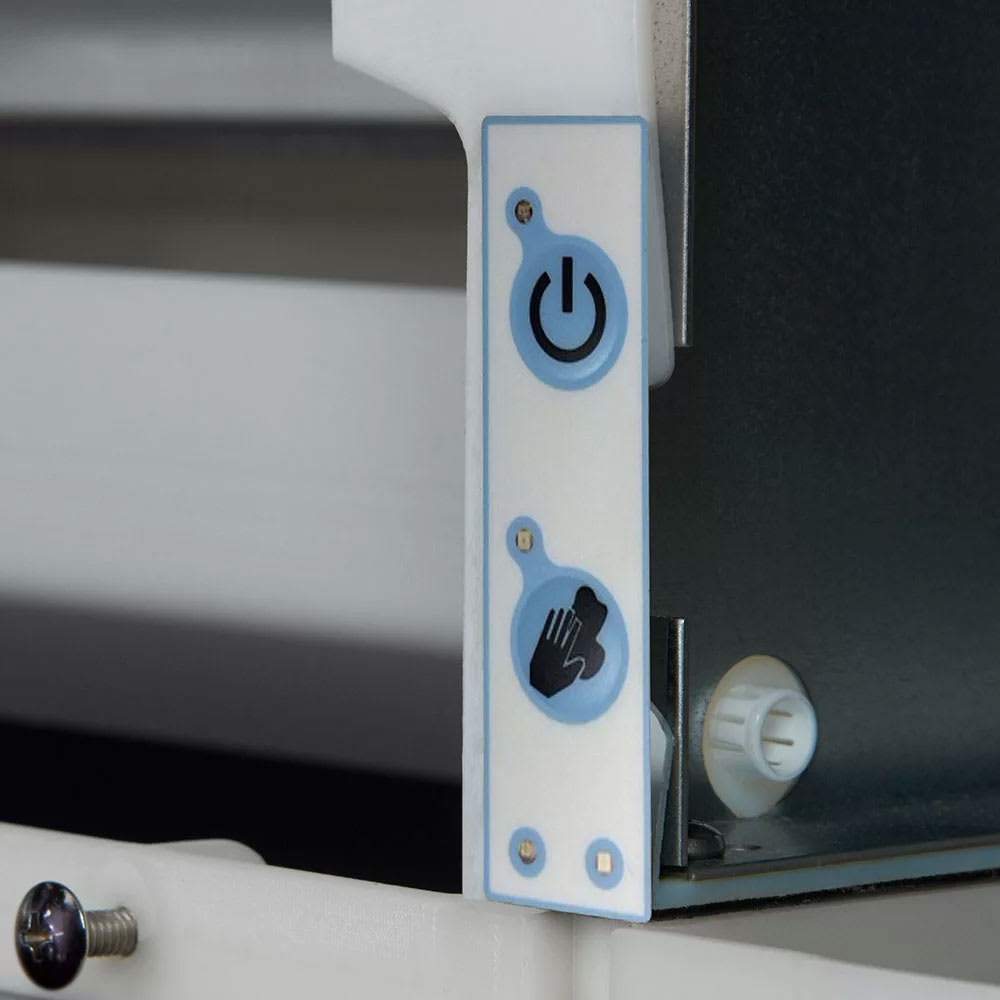

- 1-touch cleaning and sanitizing control
- 22.25 in. W x 24.25 in. D x 21.25 in. H
- 11 A, 6.69 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0320FA within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22 1/4"W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Watch a video about this product
Ice-O-Matic CIM0320FA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 313 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22.25 |
| Weight | 150.00 |
