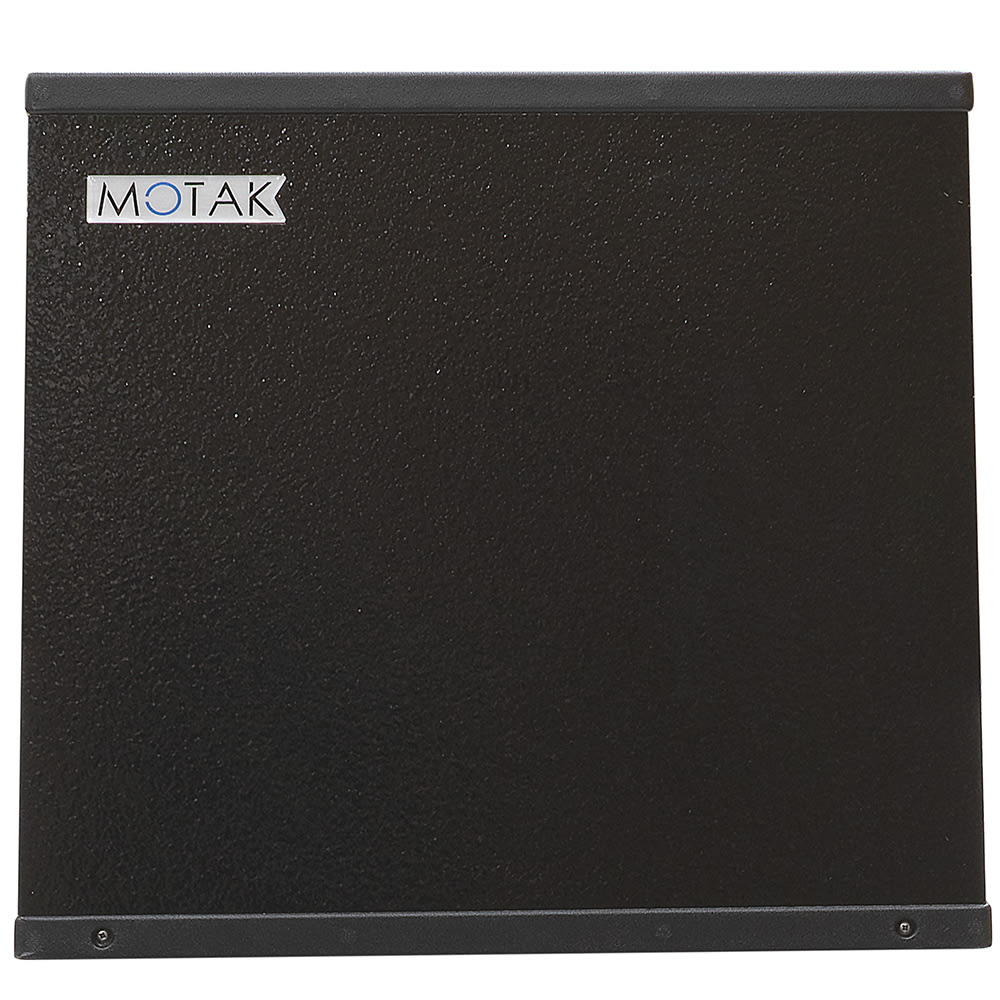

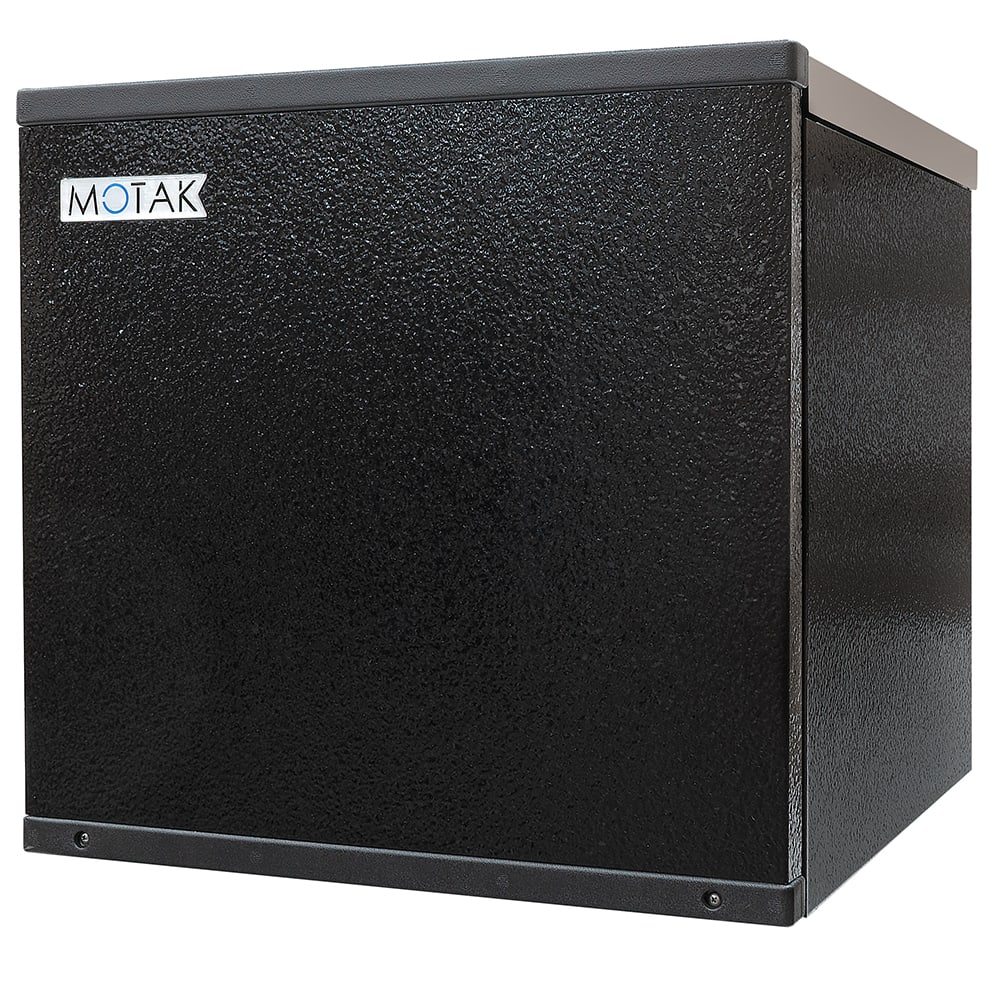

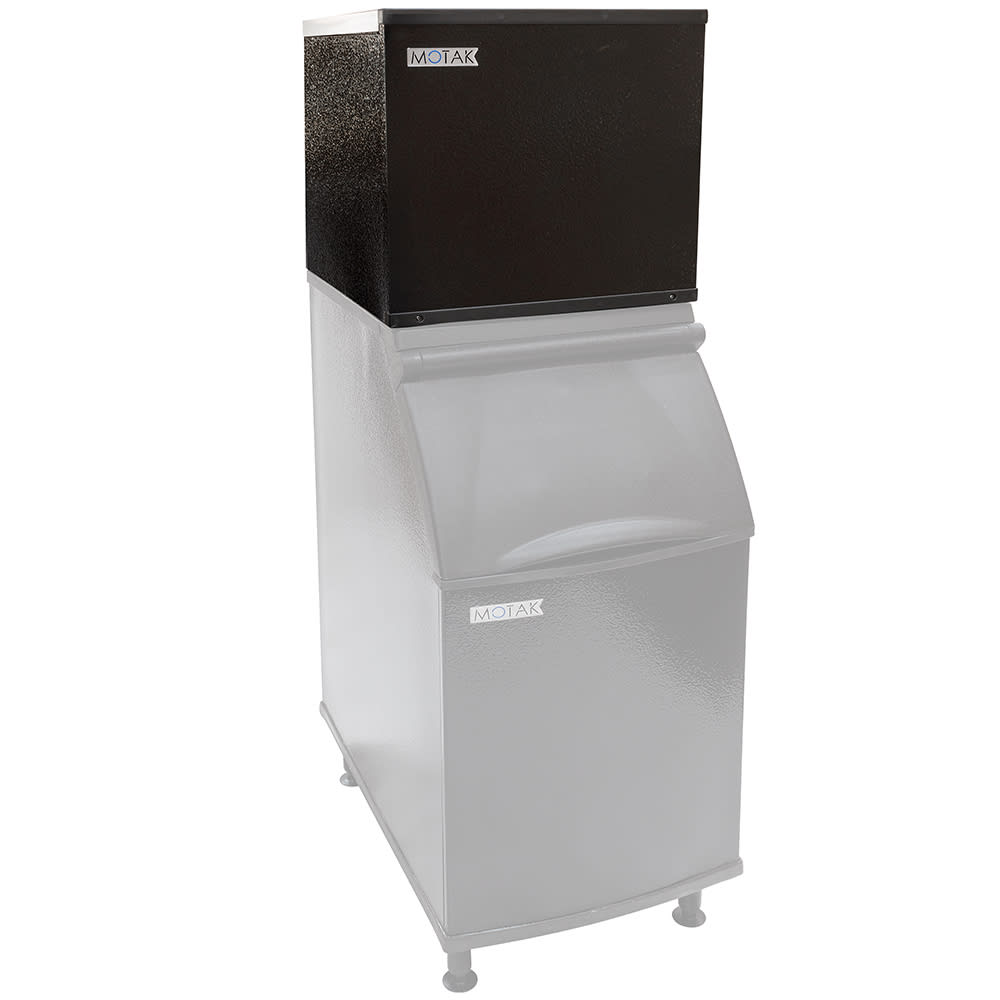

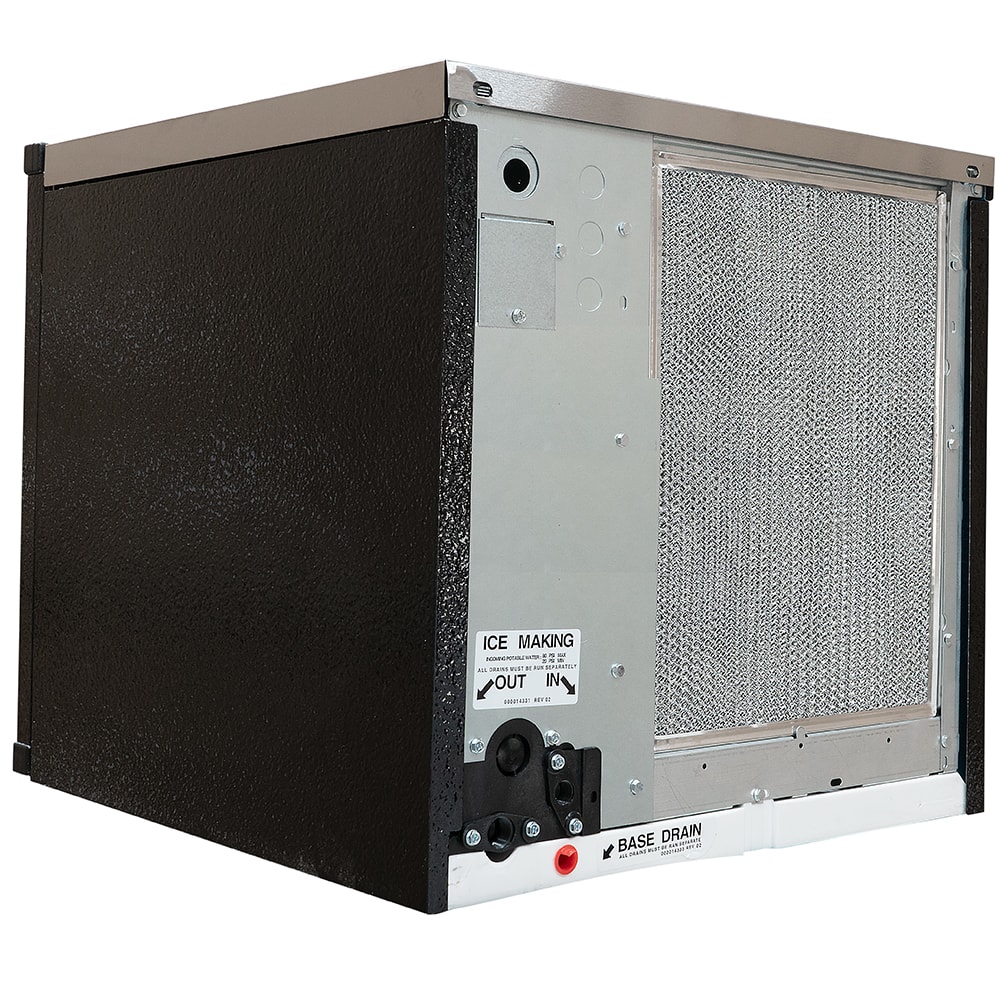

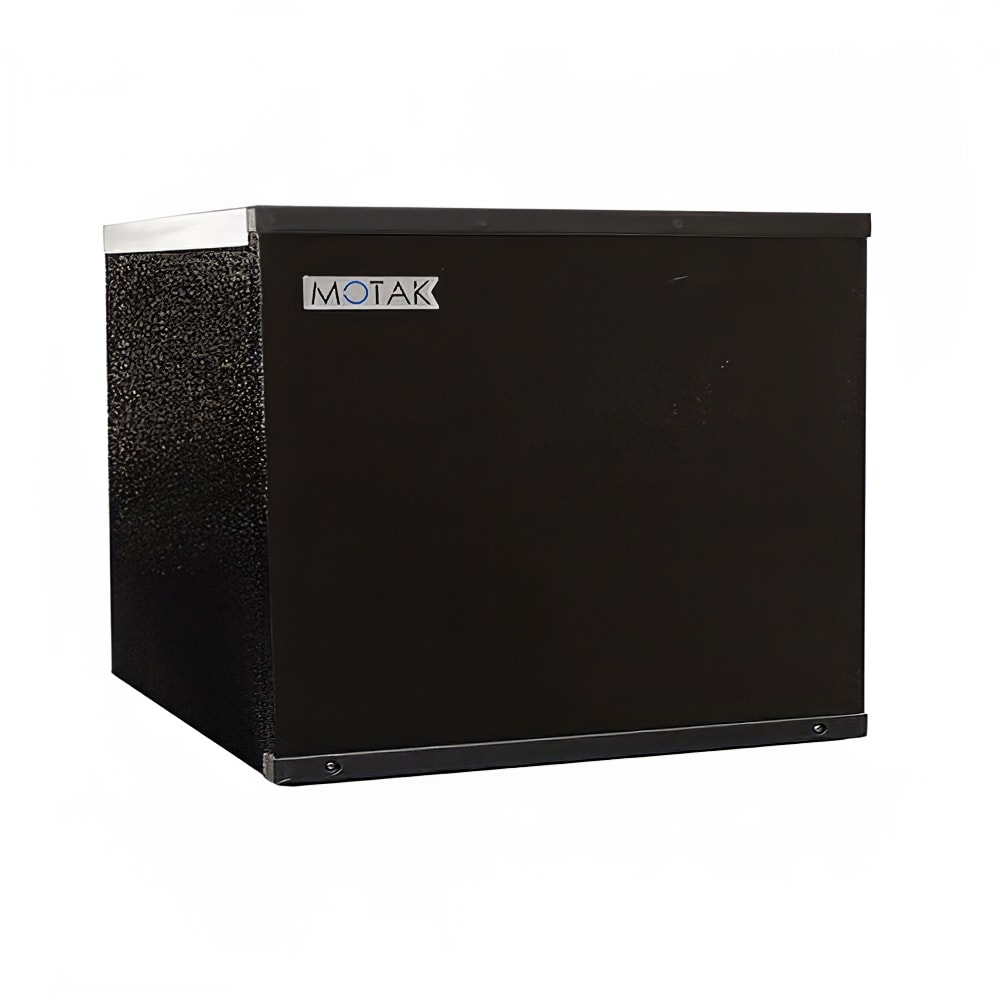

MoTak PKM0425FA-161 22" Full Cube Ice Machine Head - 425 lb/24 hr, Air Cooled, 115v/1ph

Ideal for convenience stores, bars, hotels, and restaurants, the MoTak PKM0425FA-161 ice cube machine produces full-size ice cubes for sodas, alcohol, bagged or dispensed ice, and more. In a 24-hour cycle, it produces as much as 425 pounds of ice in perfected air and water temperatures—70 degrees Fahrenheit and 50 degrees Fahrenheit respectively—and produces 335 pounds in 90-degree-Fahrenheit air temperature and 70-degree-Fahrenheit water temperature. Per 100 pounds, the machine uses roughly 20 gallons of water.

At 22 inches wide by 24¹/₂ inches deep by 21¹/₂ inches high, the MoTak PKM0425FA-161 ice cube machine can be added into kitchens or customer service areas. Its black exterior won’t smudge after repeated contact, maintaining a solid appearance. Cleaning is streamlined with a removable water shield, distribution tube, pump floats, and trough, while the food zone is accessible to ensure sanitation so ice retains a crisp, clean taste over time.

Product Details

• Maximum daily ice production: 425 lbs.
• Produces full-size ice cubes
• Individual ice cube dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air cooled through back and top
• Uses R410a refrigerant

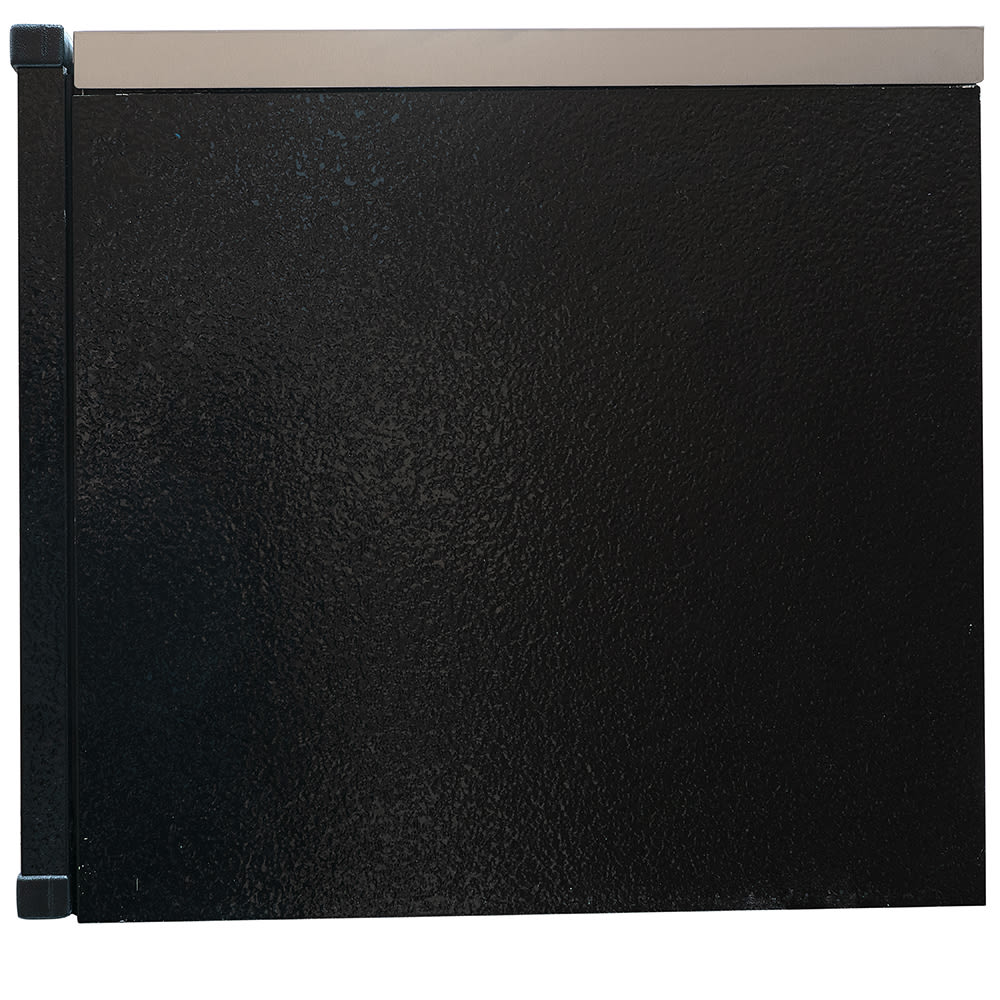

• Black exterior resists smudges and fingerprints
• Removable water shield, distribution tube, pump floats, and trough
• Accessible food zone
• Operating air temperature: 70-90 degrees F
• Operating water temperature: 50-70 degrees F
• Water usage per 100 lbs. of ice: 20 gal.

Product Features

Dimensions & Utilities

• 22 in. W x 24¹/₂ in. D x 21¹/₂ in. H
• 11.3-20 A, 6.20 kW
• 115 V/60 Hz/1 ph

*Free shipping on MoTak PKM0425FA-161 within the 48 contiguous states.

From The Manufacturer

MoTak Ice Cube Machine, cube style, air cooled, self-contained condenser, 22"W, production capacity up to 425 lb/24 hours at 70°/50° (335 lbs at 90°/70°), full-size cube, black exterior, R410A refrigerant, 115v/60/1-ph, 20.0 amps, NSF, cULus

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

MoTak PKM0425FA-161 Specifications

A KaTom house brand, MoTak offers an economy line of commercial appliances including refrigeration, cooking equipment, and ice machines. MoTak—sold exclusively by KaTom—offers products designed for budget-conscious operations and sourced from factories used by well-known equipment manufacturers.

Documents

Spec Sheet

Service Manual

Parts Breakdown

Manual
