Scotsman MC0322MAX-1 22" Prodigy ELITE® Full Cube Ice Machine Head w/ Filter - 362 lb/24 hr, Air Cooled, 115v/1ph
Typically ships in 1 - 3 Business Days
Retail Price: $9,653.00
$3,957.00 /Each
Selected Voltage: 115V, 1 Phase
| 115V, 1 Phase |
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Scotsman MC0322MAX-1 Description
Depending on ambient air and incoming water temperatures, the Scotsman MC0322MAX-1/AP1-P Prodigy ELITE® ice machine head can produce as much as 362 pounds of medium-cube ice daily. This head-only model has a one-touch cleaning feature that saves time and reduces labor costs. Between cleanings, a WaterSense purge control system minimizes scale buildup, and antimicrobial protection slows bacterial formation. By scanning the QR code, users can access valuable service information and detailed warranty history.
The Scotsman MC0322MAX-1/AP1-P ice machine head has an air-cooled condensing unit that uses R290 refrigerant, and its air filter is located on the front for convenient removal. To reduce the time needed for production cycles, the Harvest Assist feature moves the cubes into a bin, which must be purchased separately. As this unit can be paired with the ICELINQ® mobile app, operators can easily access its machine dashboard, control the machine, and walk through the cleaning process. This unit includes the AP1-P water filter.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Prodigy ELITE series
- 362-lb. daily ice production capacity
- Medium-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air-cooled condensing unit uses R290 refrigerant
- 1-touch cleaning feature saves time and labor costs
- Can be connected to mobile app through bluetooth for guided cleaning and troubleshooting
- WaterSense purge control system reduces scale buildup between cleanings
- Antimicrobial protects against bacteria

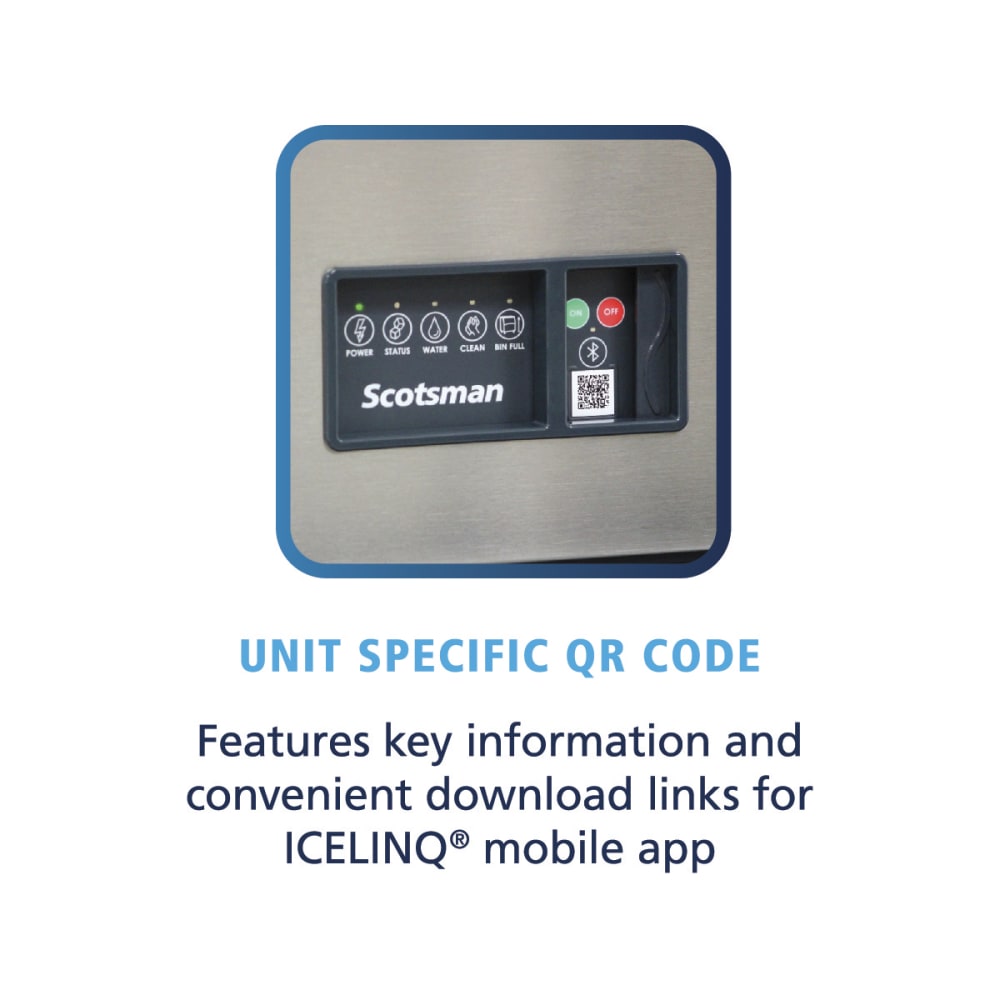

- QR code connects users to service information and warranty history

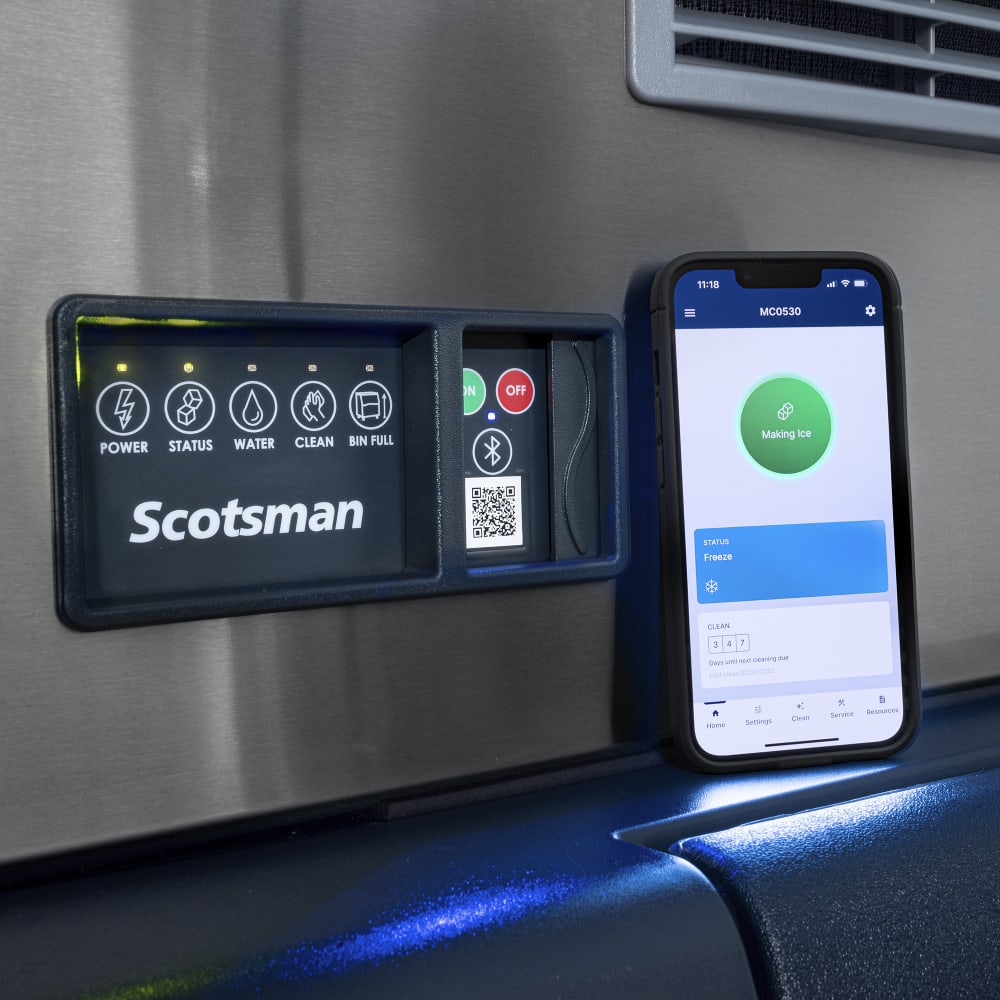

- ICELINQ mobile app compatible

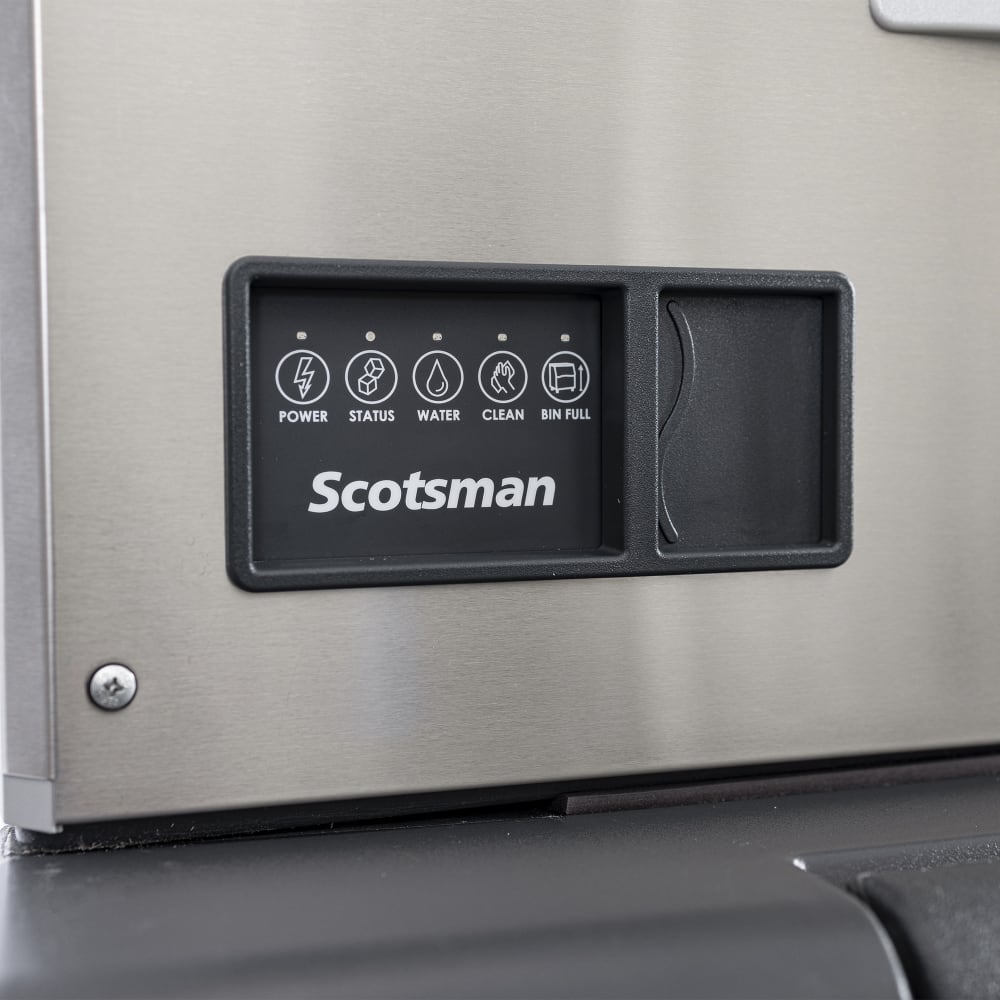

- AutoAlert™ indicator lights provide visibility

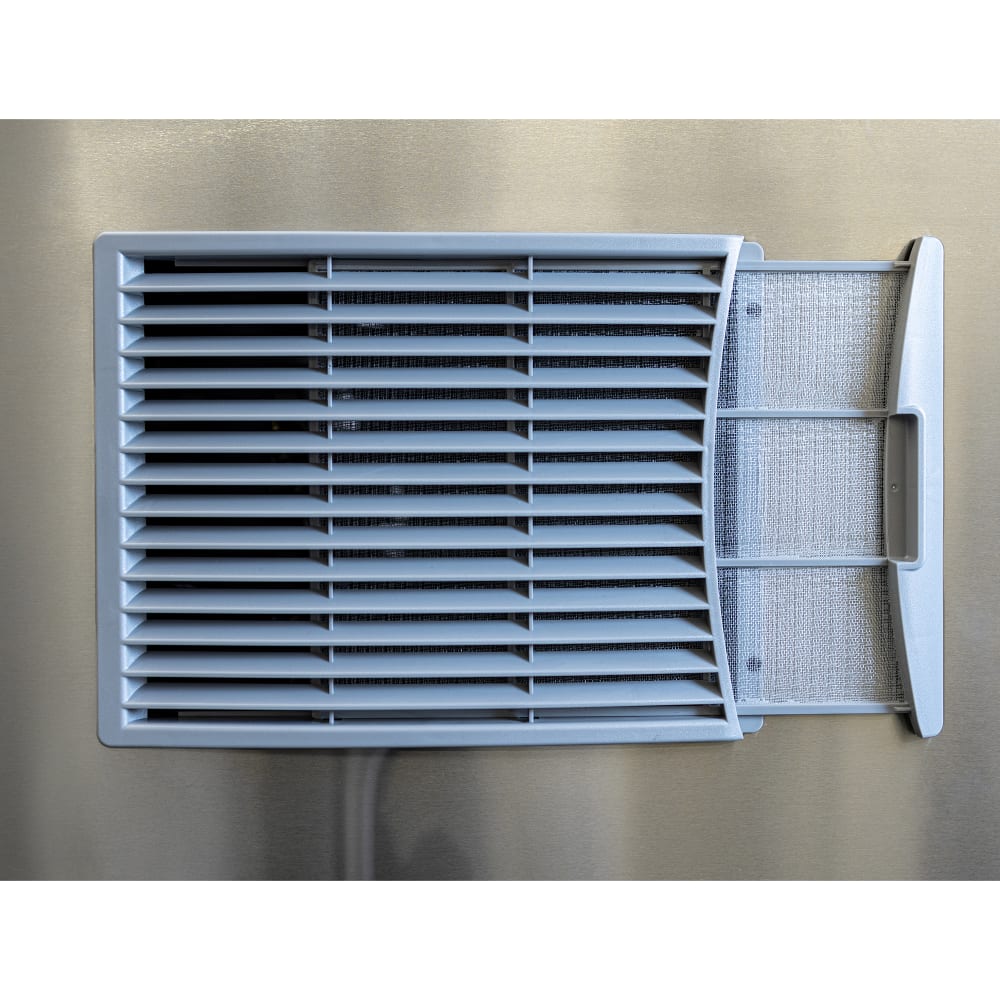

- Front-located air filter
- Harvest Assist moves ice into the bin, reducing time for production cycles
- Can pair with the B322S ice bin to store ice (bin is not included)
- Ambient air temperature range: 50-100 degrees F
- Incoming water temperature range: 40-100 degrees F
- Incoming water pressure range: 20-80 PSIG
- 5,200 BTU per hour
- AP1-P water filter included
- 22 in. W x 24 in. D x 23 in. H
- 12.7 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman MC0322MAX-1 within the 48 contiguous states.
From The Manufacturer
Prodigy ELITE® Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 362 lb/24 hours at 70°/50° (248 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, 12.7 amps, cULus, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman MC0322MAX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 362 |
| Also Known As | MC0322MA-1 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Ice Type | Full Cube |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy ELITE® |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | Inline Water Filter Included |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 155.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Scotsman MC0322MAX-1 Scotsman MC0322MAX-1 22" Prodigy ELITE® Full Cube Ice Machine Head w/ Filter - 362 lb/24 hr, Air Cooled, 115v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,957.00 / Each | $4,028.00 / Each | $4,028.00 / Each | $2,250.51 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day |
| 24 Hr. Production (lb) | 362 | 436 | 463 | 425 |
| Ice Type | Full Cube | Half Cube | Full Cube | Half Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 22 | 22 |
| Rating | Best | Best | Best | Better |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Prodigy ELITE® | Indigo NXT™ | Indigo NXT™ | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R410A |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 1-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
Great product
Works great and was easy to install.
Thank you for your review! We're glad to hear the ice machine has been easy to install and is performing well. We appreciate you taking the time to share your experience.
This unit operates on 115 V, 60 Hz, 1 ph, and requires a 15-amp fuse or HACR circuit breaker with a minimum circuit ampacity of 10.3 A.
The machine should operate where air temperature is between 50 and 100°F, water temperature between 40 and 100°F, and water pressure between 20 and 80 PSIG.
A 3/8-in. FPT connection is required for the potable water inlet, and the drain outlet uses a 3/4-in. FPT connection.
The model can produce up to 365 lbs. of ice in 24 hours when air temperature is 70°F and water temperature is 50°F.
It produces cube ice, available in small (7/8-in. x 7/8-in. x 3/8-in.) or medium (7/8-in. x 7/8-in. x 7/8-in.) sizes.
This ice maker is compatible with Scotsman B330P and B530S or B530P bins when fitted with the proper bin top adapter.
The external air filter should be removed and cleaned regularly, and operators should follow the guided cleaning process through the ICELINQ app for sanitization.
Its WaterSense adaptive purge system automatically adjusts water use to maintain cleaner operation and improve efficiency.
