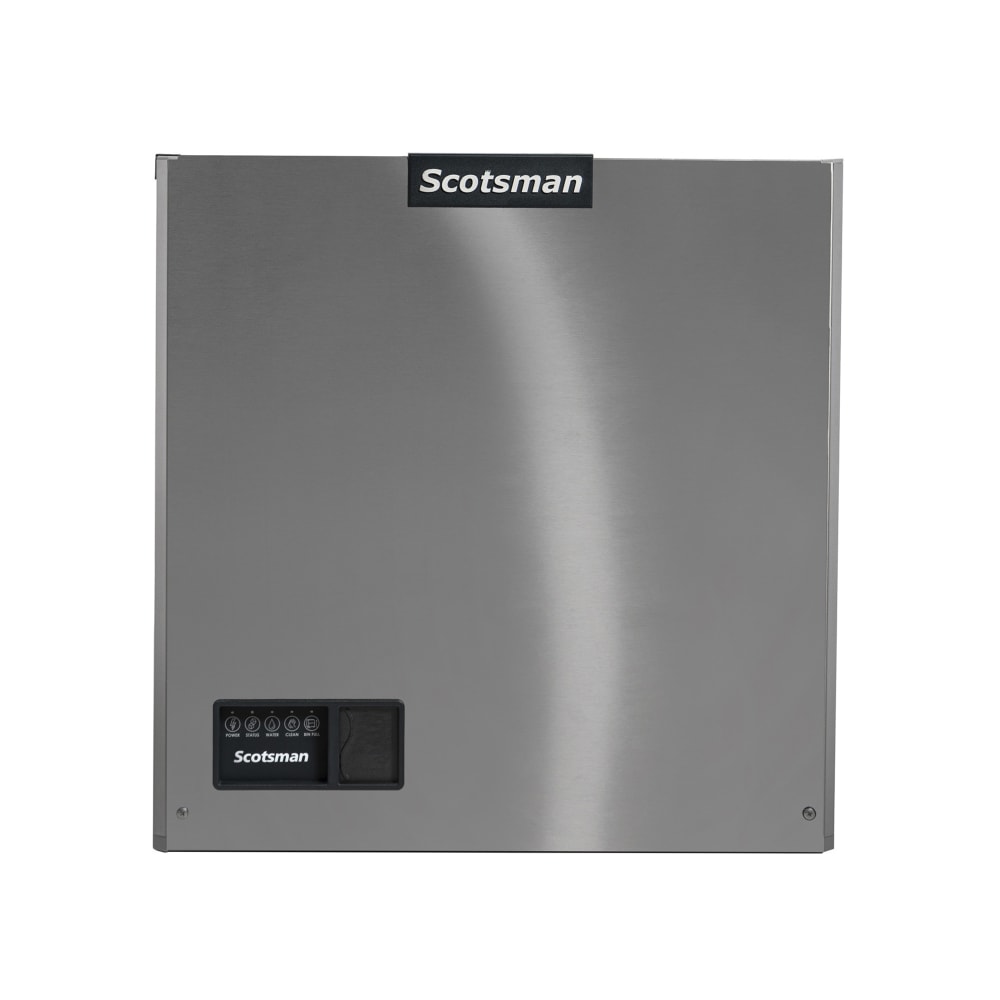

Scotsman MC0322MW-1 22" Prodigy ELITE® Full Cube Ice Machine Head - 366 lb/24 hr, Water Cooled, 115v/1ph

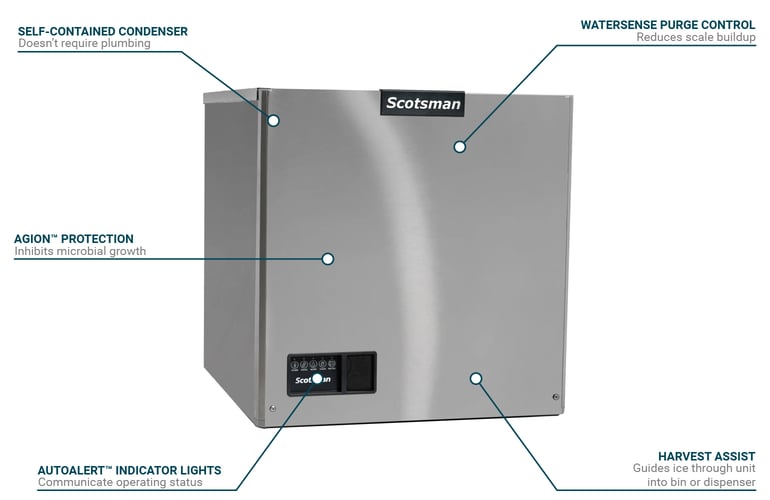

The Scotsman MC0322MW-1 Prodigy ELITE® ice machine head has a water-cooled condenser and can make 356 pounds of ice in 24 hours. Ice production is customizable through the Vari-Smart™ feature to suit most applications. Scale buildup is reduced by WaterSense purge control, and ice is efficiently moved into the bin through Harvest Assist, though bins are sold separately.

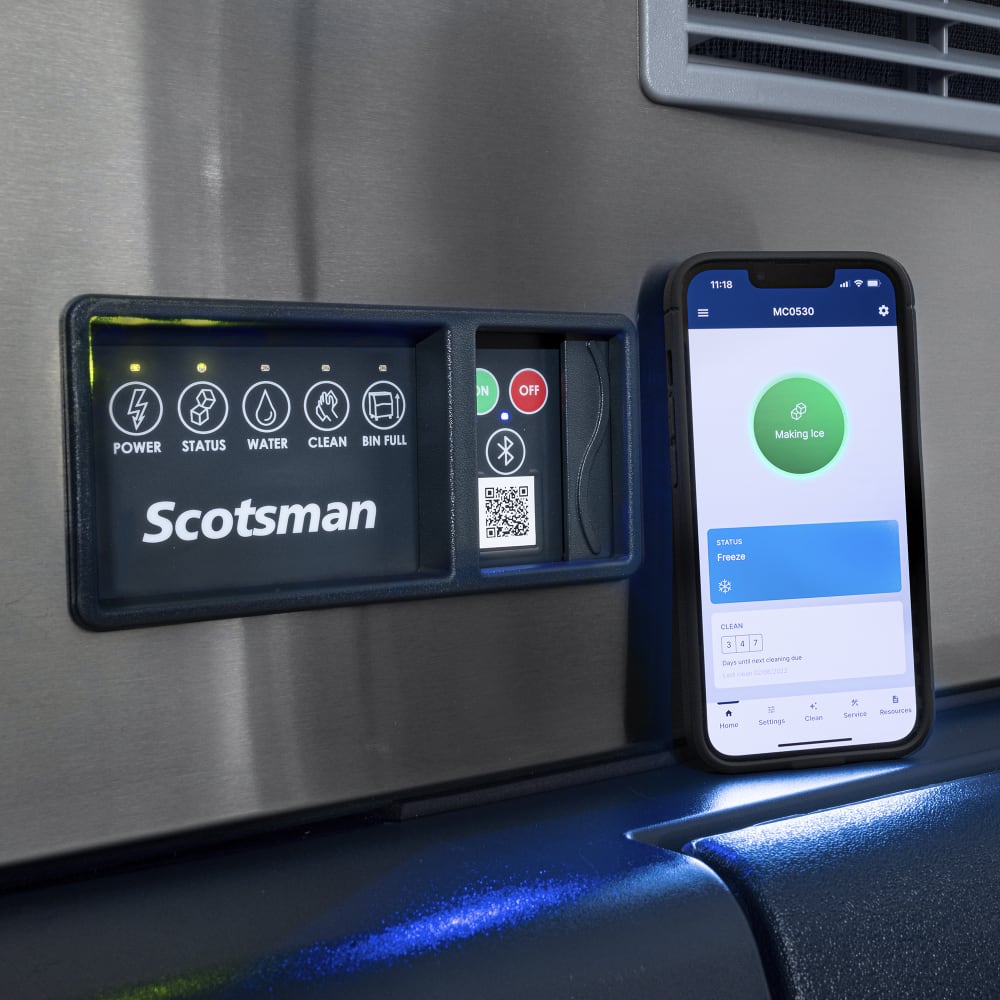

A single button starts the cleaning process to reduce labor needs. Between cleanings, internal surfaces are protected against bacteria growth by a built-in antimicrobial agent. Operators can use Scotsman’s ICELINQ® mobile app to check the ice machine dashboard, adjust the unit’s settings, and walk through a step-by-step guided cleaning process. Issues within the system are detected by the Smart-Board™ module, and AutoAlert™ indicator lights alert users of the problem. A QR code instantly connects users to service information and warranty history for their Scotsman MC0322MW-1 ice machine head, and integral components can be accessed for maintenance through the removable, self-aligning panel.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Prodigy ELITE series
• Water-cooled condenser
• 366-lb. maximum daily ice production
• Makes cube ice
• WaterSense purge control automatically lowers scale buildup
• ICELINQ mobile app compatible
• Connects to app via bluetooth for control adjustments and guided cleaning
• Harvest Assist efficiently moves ice to a bin
• Uses R404A refrigerant
• Requires ambient air temperature between 50-100 degrees F
• Requires water temperature between 40-100 degrees F
• Ice bin sold separately
• 5,200 BTU
• 11.9 A, 5.23 kW
• 115 V/60 Hz/1 ph
• Ice dimensions: ⁷/₈ in. L x ⁷/₈ in. W x ⁷/₈ in. H
• Overall dimensions: 22 in. W x 24 in. D x 23 in. H

Product Features

Easy to Clean and Service

• 1-touch cleaning reduces labor needs
• Internal surface is protected from bacteria growth between cleanings by an antimicrobial agent
• Smart-Board module diagnoses issues within the system
• AutoAlert indicator lights communicate the operating status

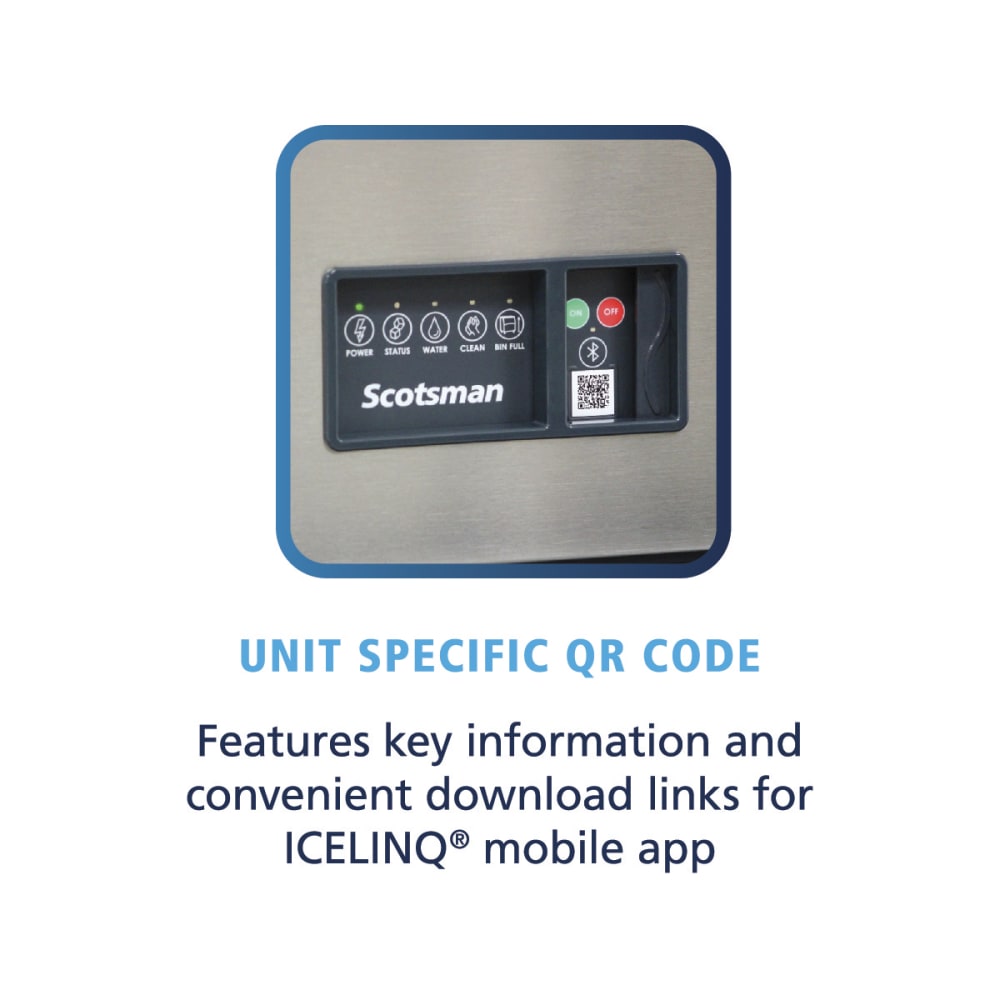

• QR code instantly provides service information and warranty history
• Removable, self-aligning front panel offers convenient access to integral components

*Free shipping on Scotsman MC0322MW-1 within the 48 contiguous states.

From The Manufacturer

Prodigy ELITE® Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 366 lb/24 hours at 70°/50° (292 lb AHRI certified at 90°/70°), medium cube size, ICELINQ® mobile app, Bluetooth® connectivity, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 11.9 amps, cULus, NSF, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman MC0322MW-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
