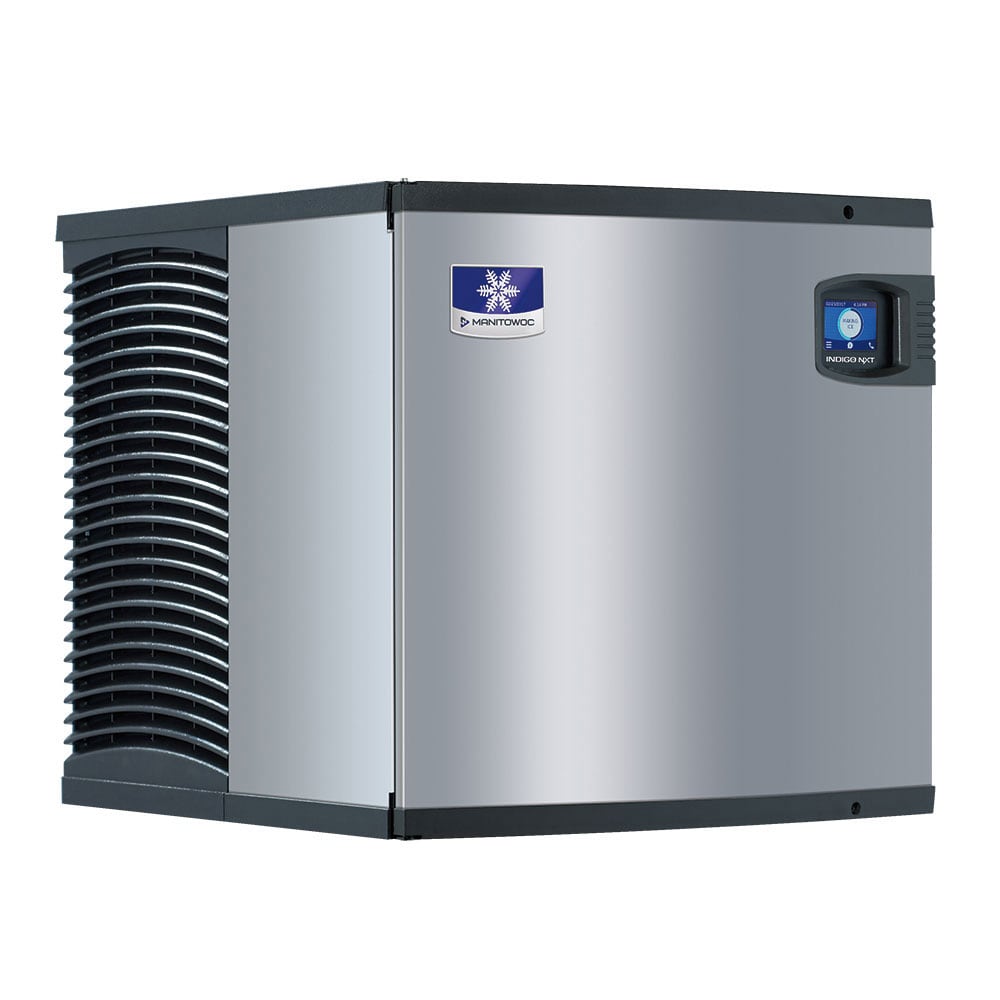

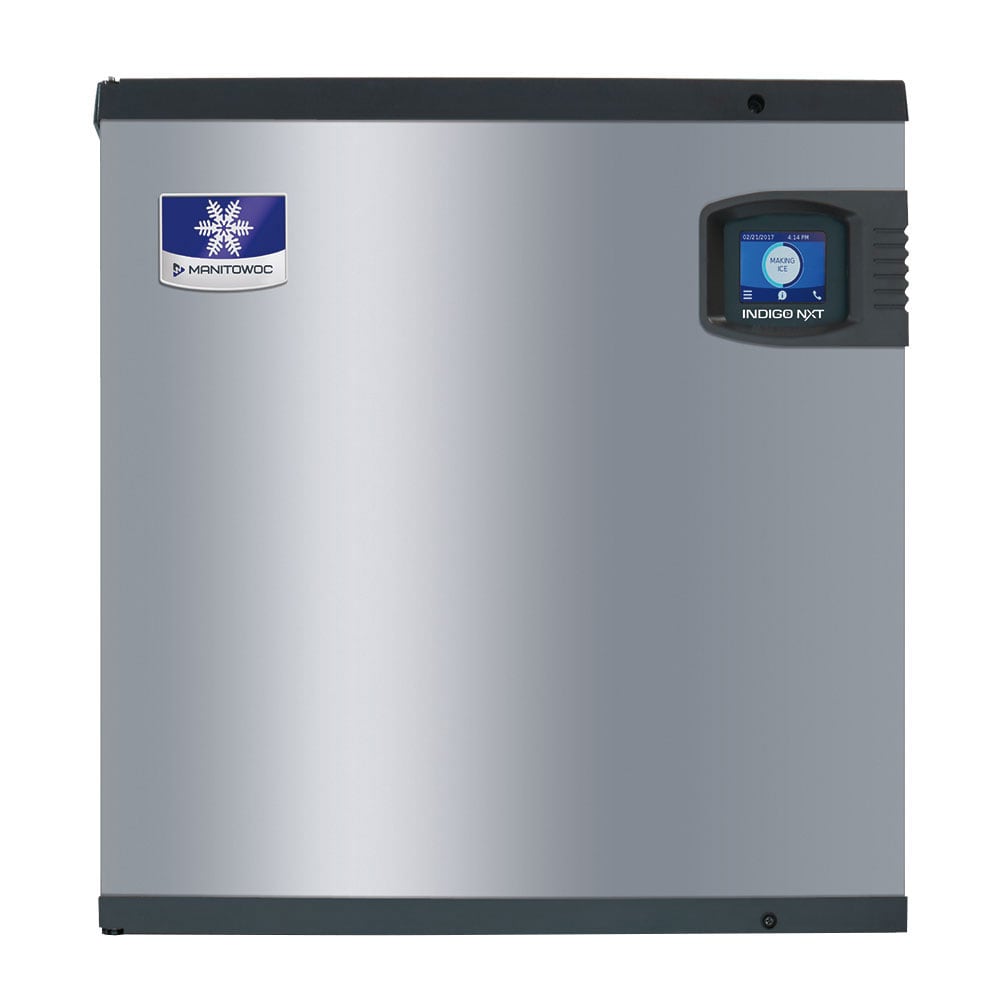

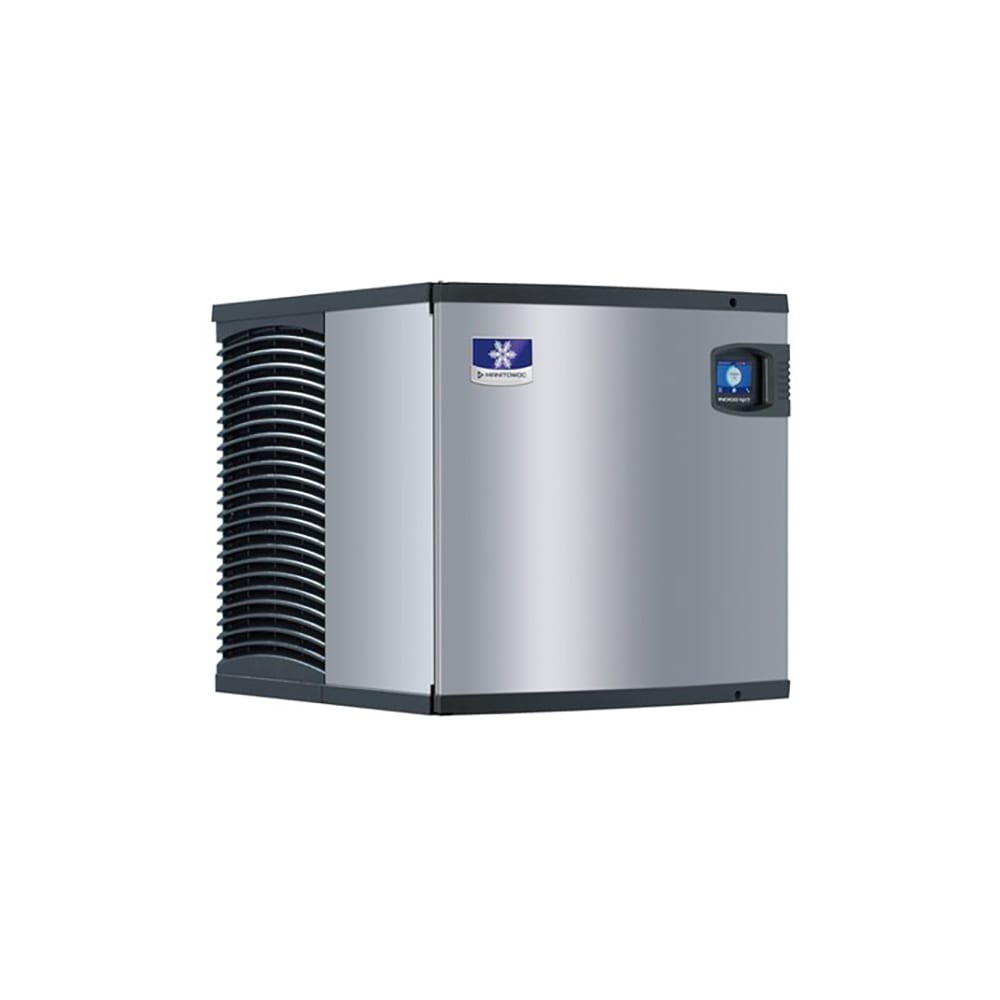

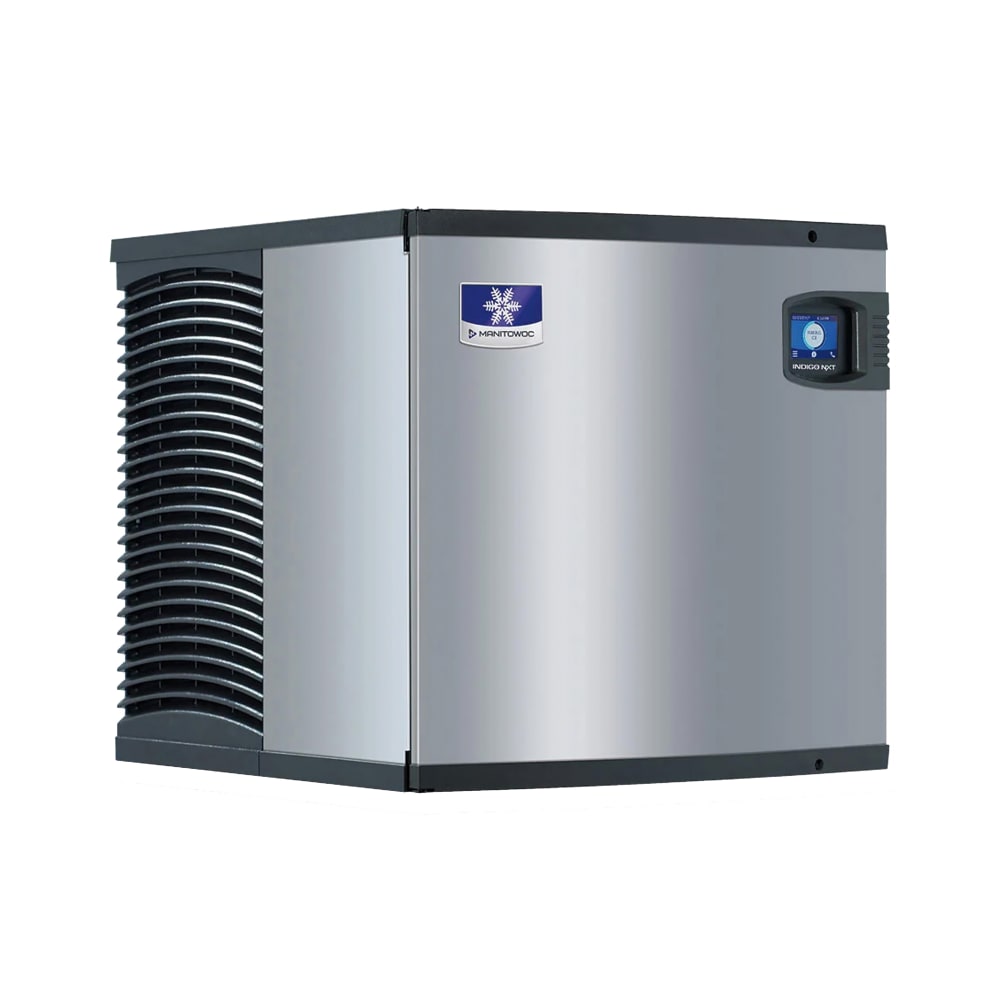

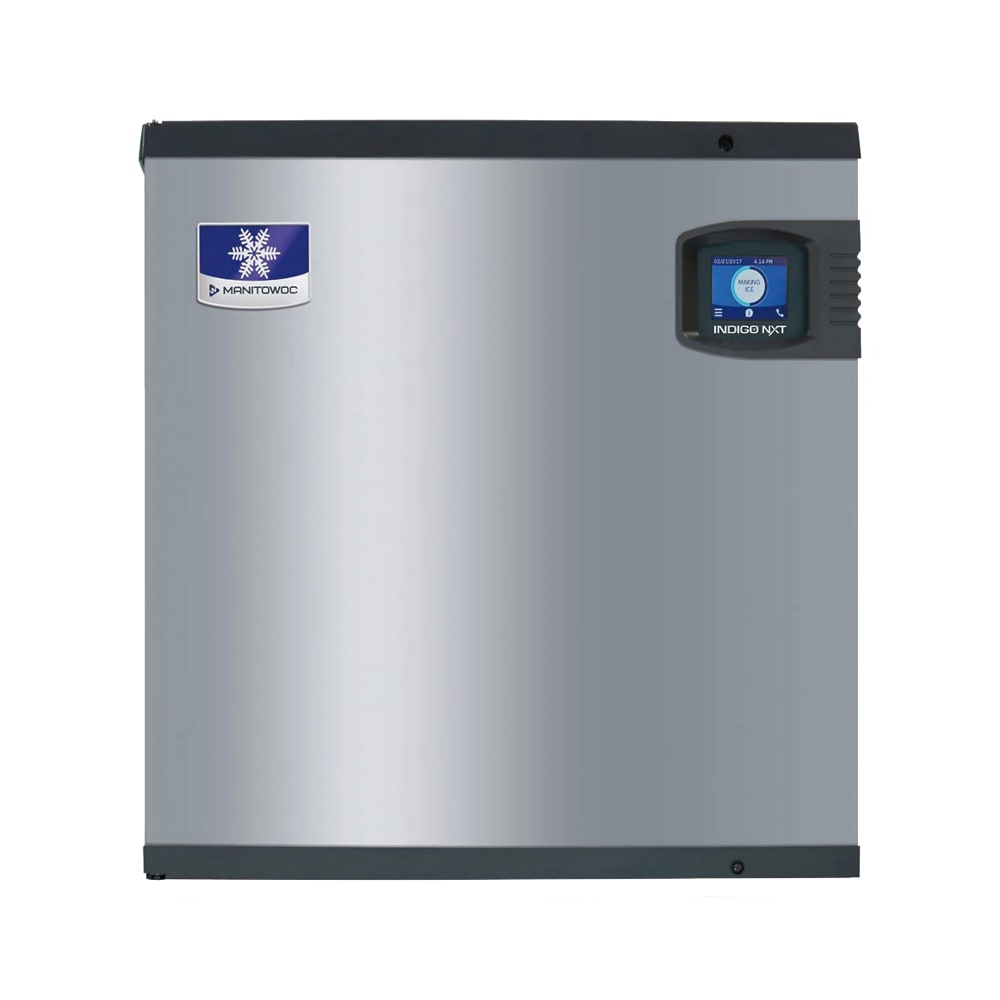

Manitowoc Ice IDP0420W 22" Indigo NXT™ Full Cube Ice Machine Head - 442 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$4,356.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Manitowoc Ice IDP0420W Description
The Manitowoc Ice IDP0420W Indigo NXT™ ice machine head can make 442 pounds of ice in a 24-hour period. Ice production can be adjusted and programmed based on volume and time, and ice thickness is measured by an acoustical sensing probe to ensure each sheet is thick enough before it drops into a bin that is sold separately. The unit has an easyTouch® display, performs 24-hour preventive maintenance, and gives daily feedback. Durable for high-volume use, it’s coated in DuraTech™ to resist corrosion and hide fingerprints and dirt.
An active sense mechanism is used in the Manitowoc IDP0420W water-cooled ice machine head to ensure ice is harvested properly despite surrounding environmental factors. Working in tandem with the acoustical sensing probe, it gauges how much ice is being produced. This machine has a 22-inch-wide by 24 1⁄2-inch-deep by 21 1⁄2-inch-high frame to securely fit on top of the bin without taking up too much kitchen space.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Indigo NXT™ series
- 442-lb. maximum daily ice production

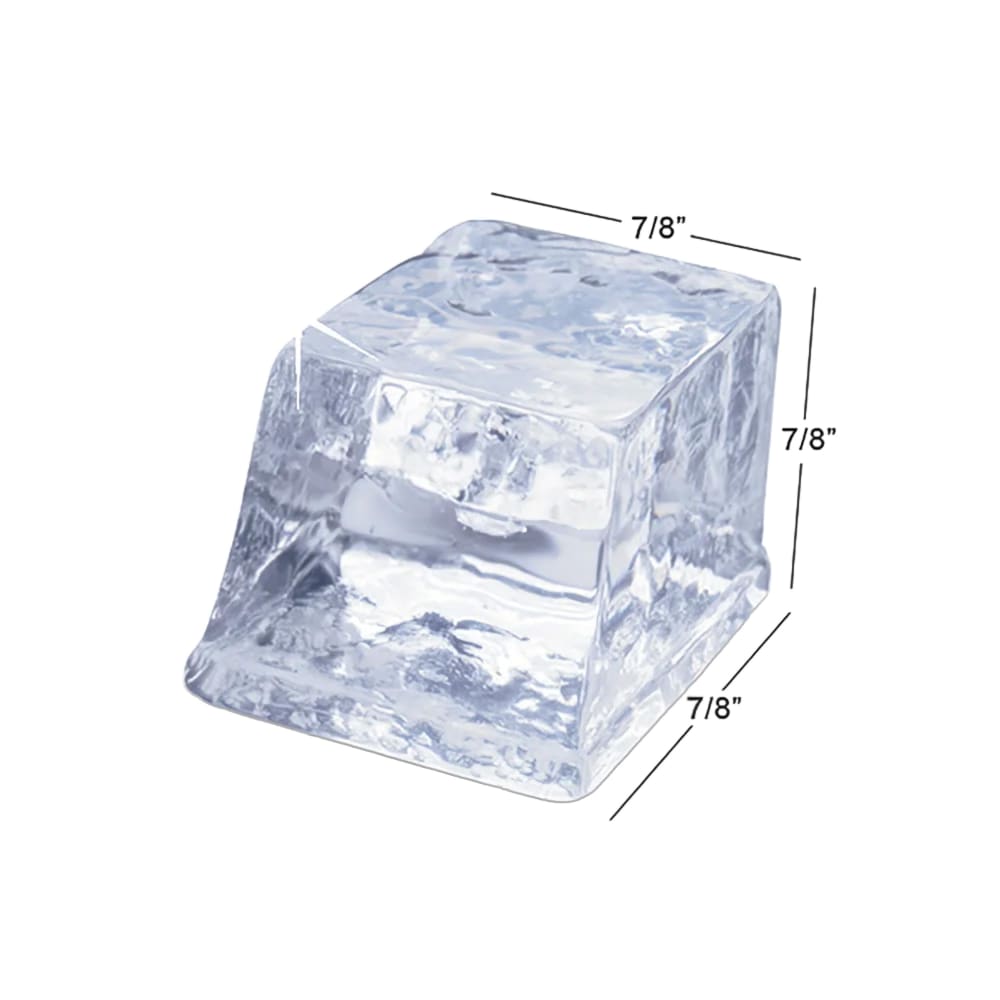

- Ice cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Water cooled
- Ice production is programmable based on volume and time of day
- Acoustical ice-sensing probe ensures consistent ice thickness

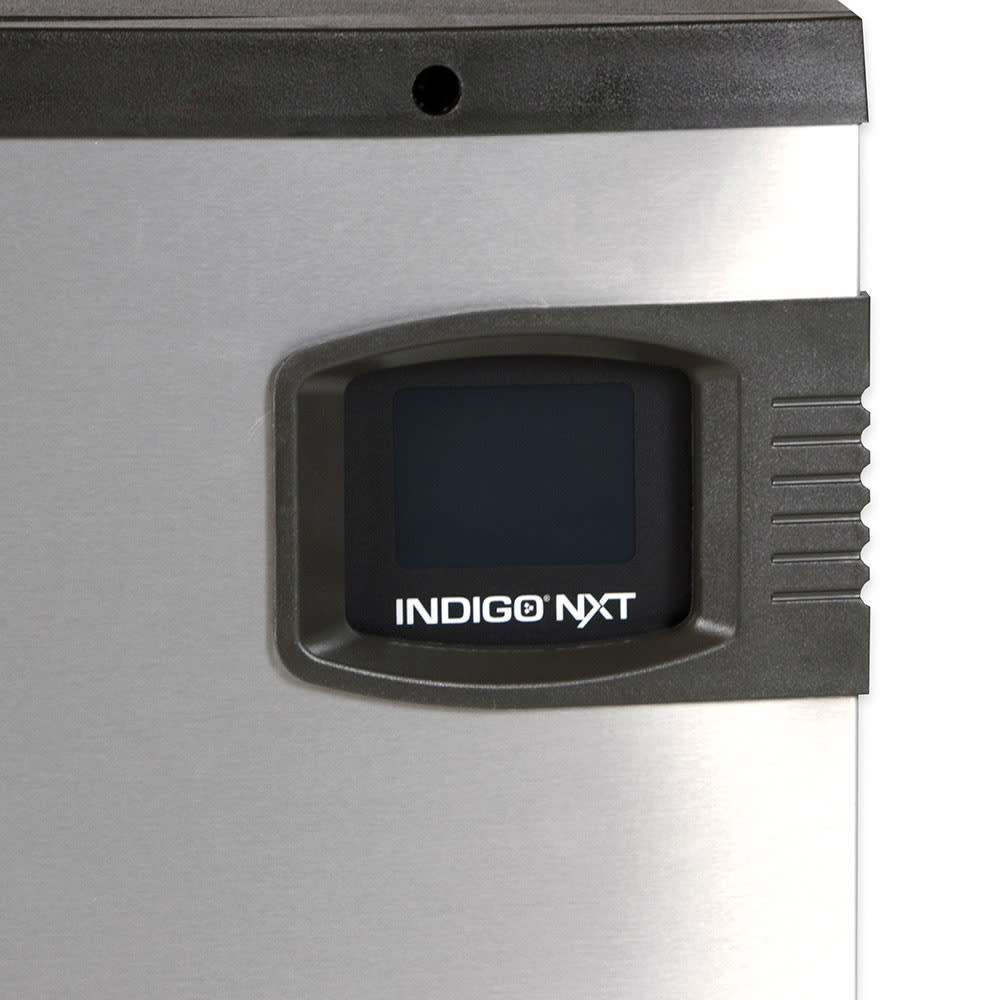

- Icon-based easyTouch display is simple to operate
- 24-hr. preventive maintenance and daily feedback
- Food zone is accessible through the front swing-out door
- Water trough, distribution tube, curtain, water probe, and water pump can be removed for cleaning
- AlphaSan® antimicrobial agent is built into some of the components to slow bacterial growth
- Clear DuraTech coating on the stainless steel exterior resists corrosion and hides fingerprints
- Uses R290 refrigerant
- Ice bin sold separately
- Ideal incoming air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 psi
- 3,800-BTU heat transfer capacity
- 22 in. W x 24 1⁄2 in. D x 21 1⁄2 in. H
- 10.6 A, 5.6kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDP0420W within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 442 lb./24 hours at 70°/50° (369 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290A refrigerant, NSF, cULus, CE
Watch a video about this product
Manitowoc Ice IDP0420W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 442 |
| Also Known As | IDT0420W |
| Compressor Type | Water Cooled |
| Depth (in) | 24.5 |
| Height (in) | 21.5 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 131.00 |
