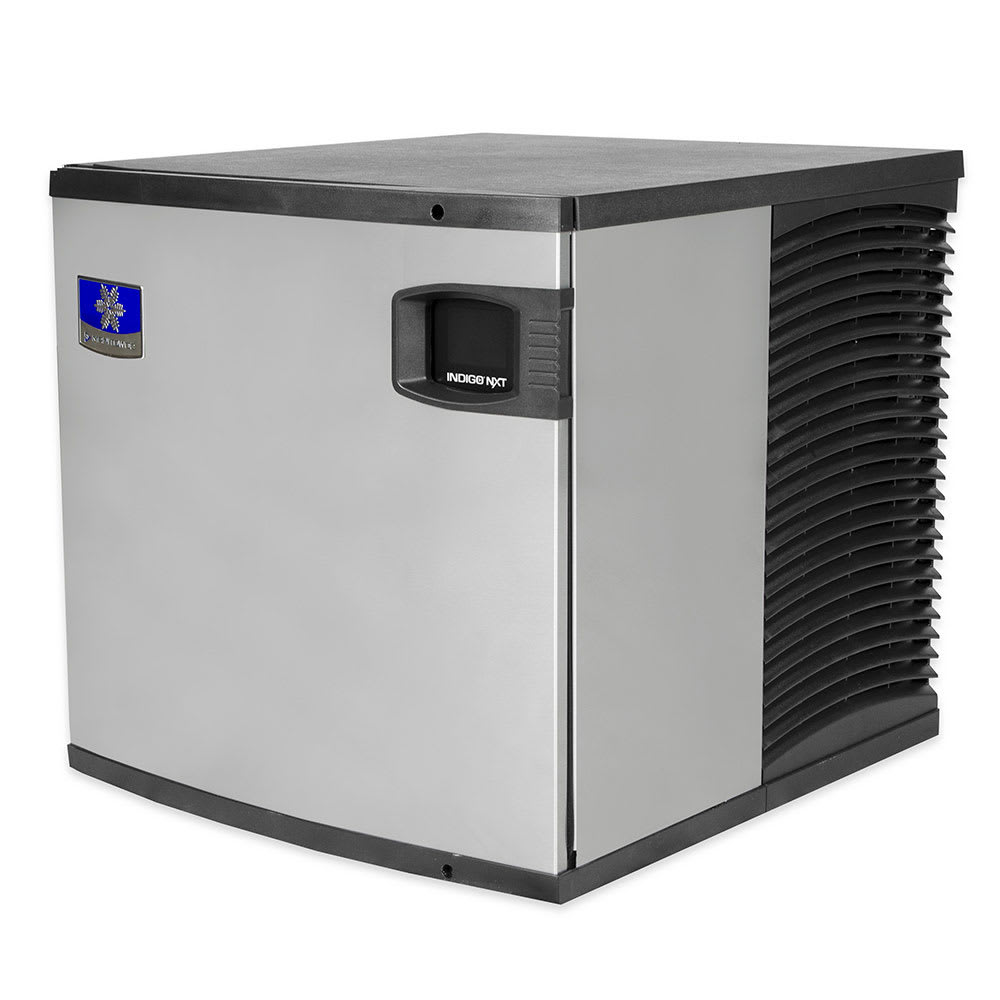

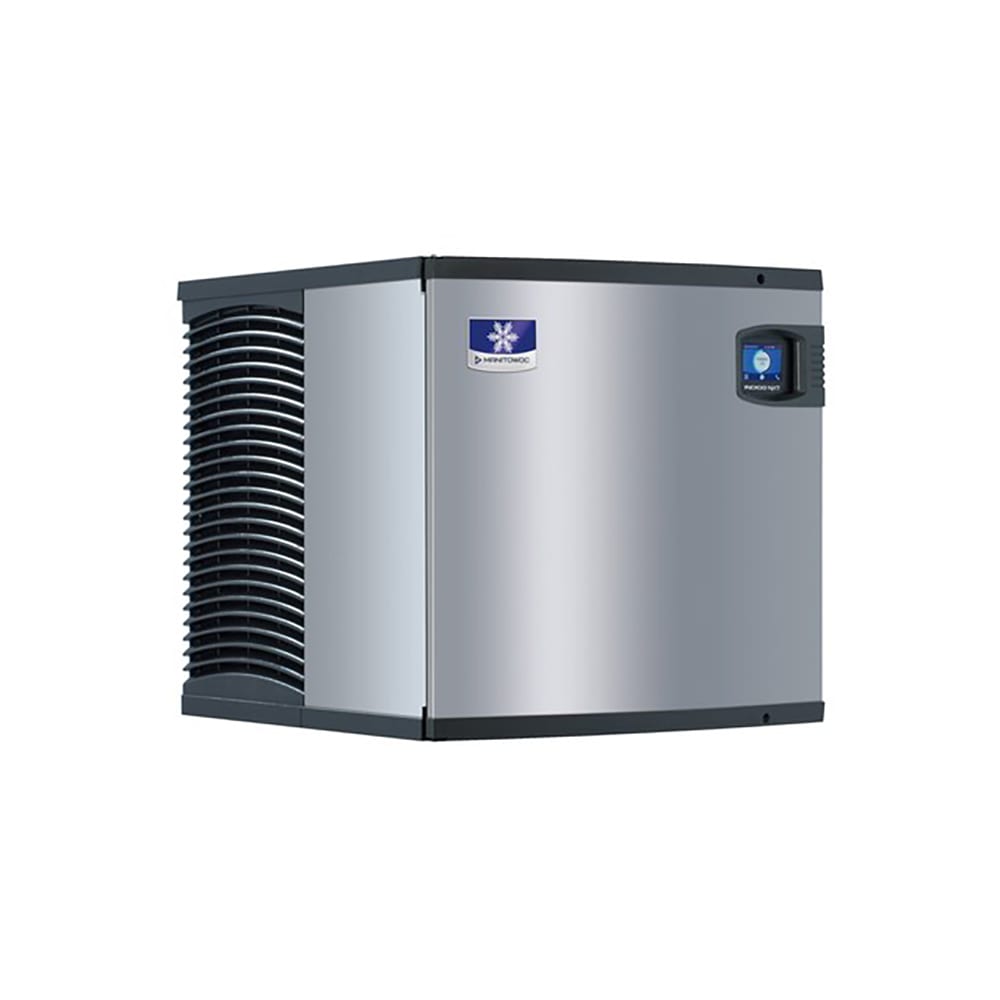

Manitowoc Ice IYP0420W 22" Indigo NXT™ Half Cube Ice Machine Head - 466 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Ships in 1 Business Day
$4,356.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled

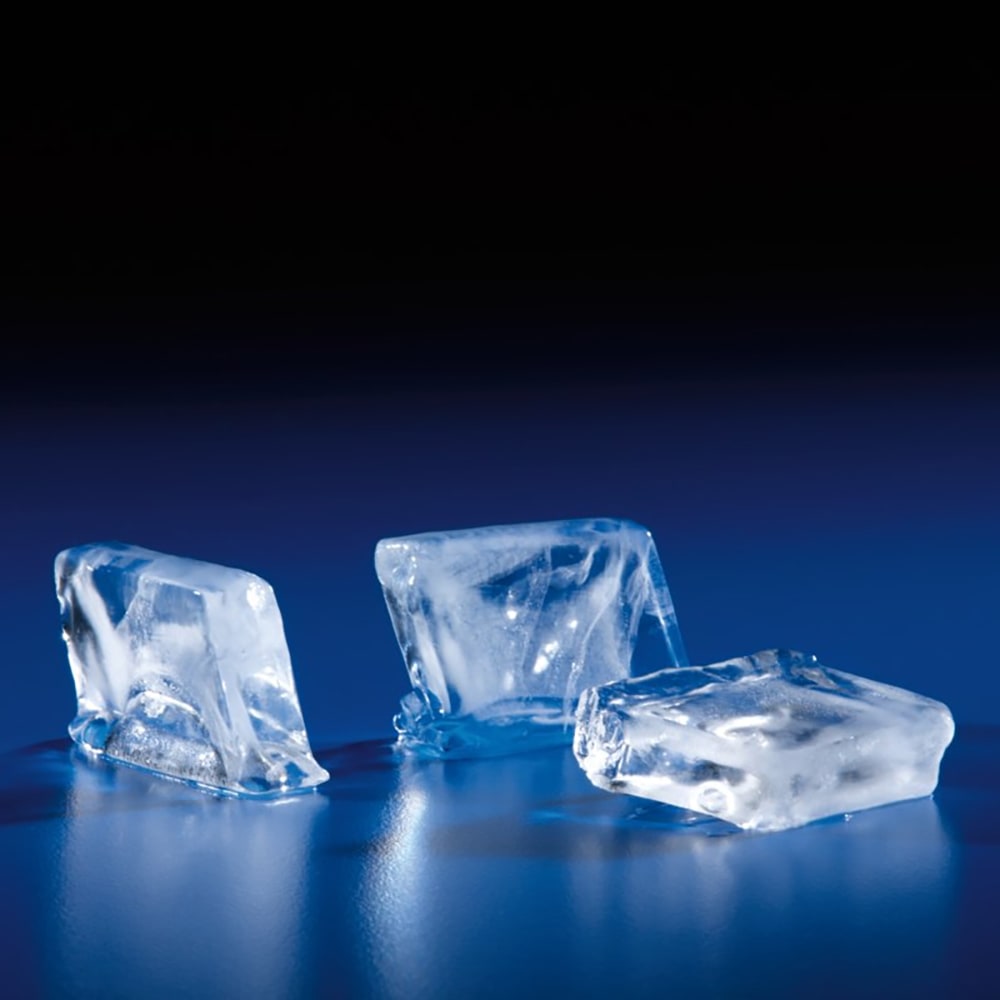

Selected Ice Type: Half Cube
Manitowoc Ice IYP0420W Description
Producing between 466 pounds of half-dice ice in a 24-hour period, the Manitowoc IYP0420W Indigo NXT™ ice machine head can be programmed to deliver ice at certain times or in specific volumes. Before ice drops into a separately sold bin, it's measured by the sensing probe to ensure each sheet is uniform. The unit performs preventive maintenance automatically and provides diagnostic feedback. Cleaning the ice maker is simple because the components in the foodzone are accessible through the front door. Some of the components are removable, and some are made with an antimicrobial agent that reduces bacterial growth. This unit has DuraTech® coating on its stainless steel exterior to fend off corrosion, fingerprints, and dirt.

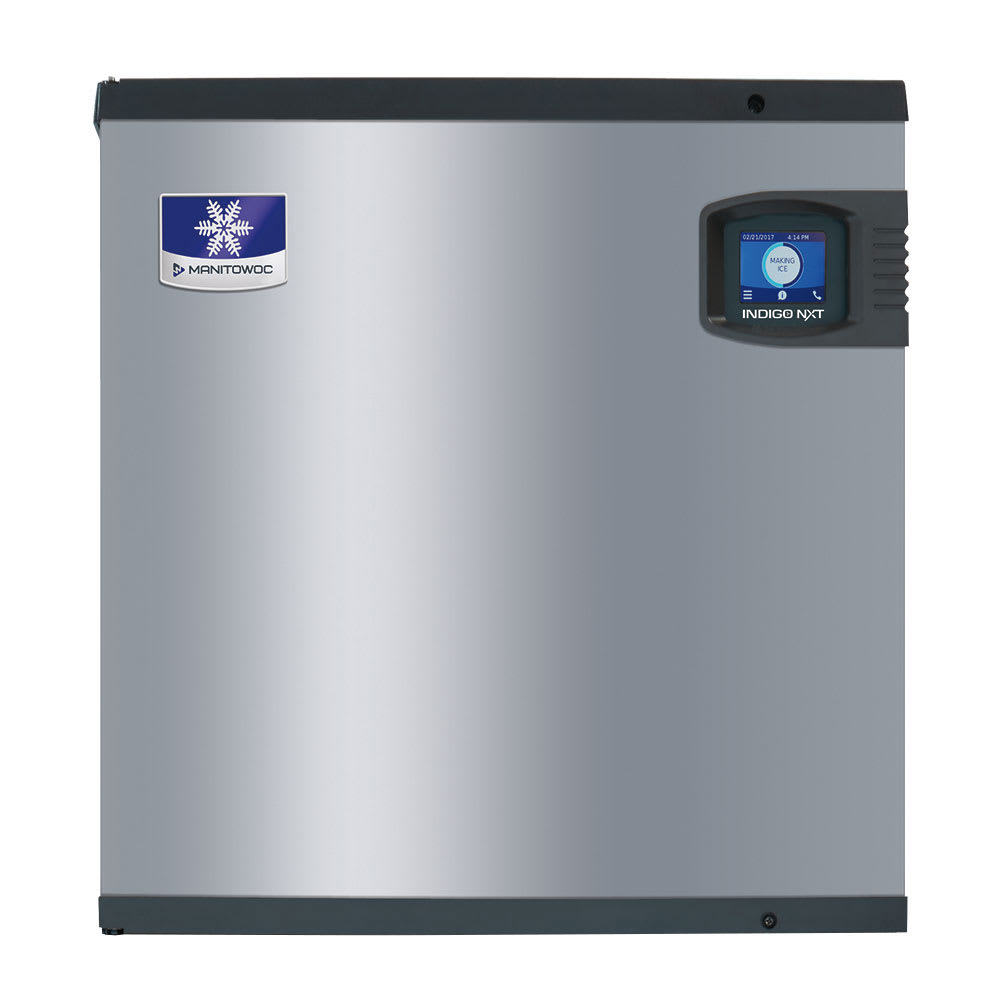

Users can monitor the Manitowoc IYP0420W ice maker head with the easyTouch® display, which provides icons on its touchscreen that users can manage, such as general operations, temperature, and production. As a water-cooled unit, it requires R290 refrigerant for best results. Overall, it has a 22-inch-wide by 24.5-inch-deep by 21.5-inch-high structure to fit on top of a D-320 or D-420 ice storage bin.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Indigo NXT series
- Maximum daily production: 466 lbs. per 24 hours
- Water-cooled condensing unit

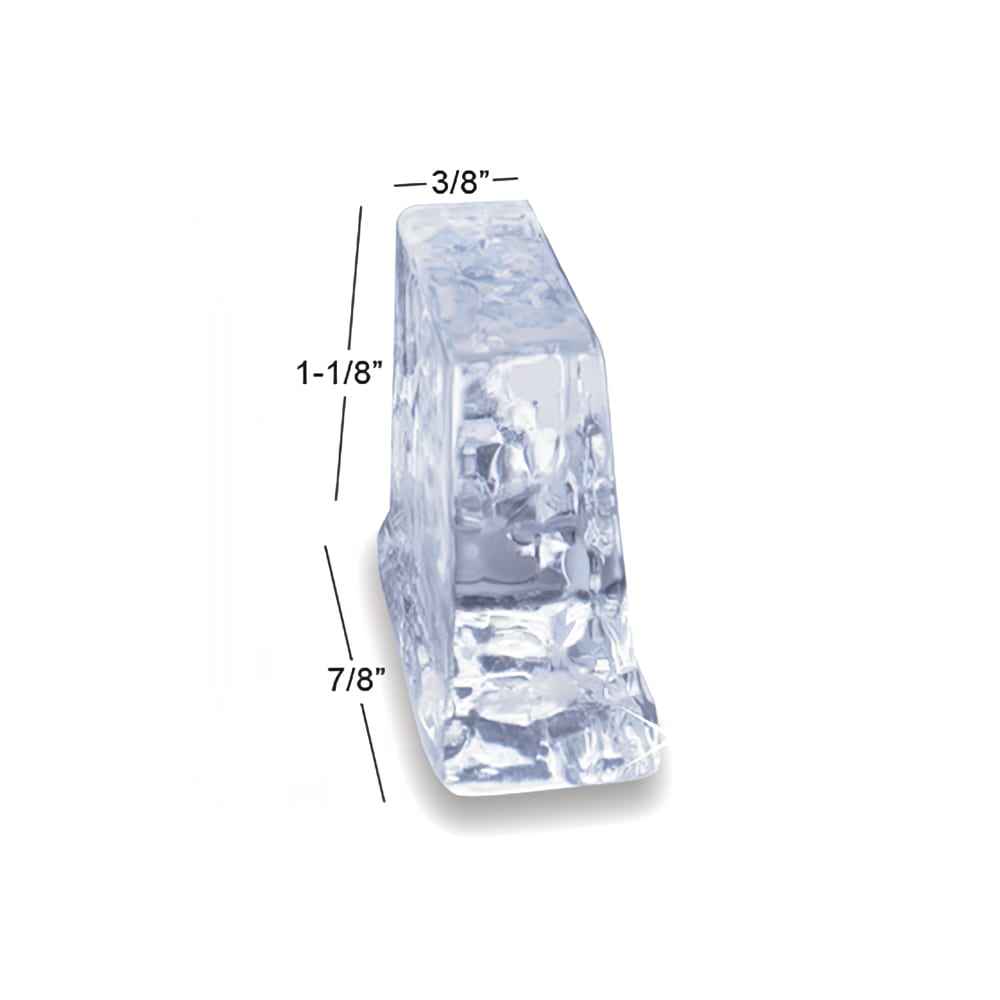

- Ice dimensions: 0.38 in. x 1.13 in. x 0.88 in.
- Programmable ice production based on volume and time of day
- Acoustical sensing probe monitors ice thickness

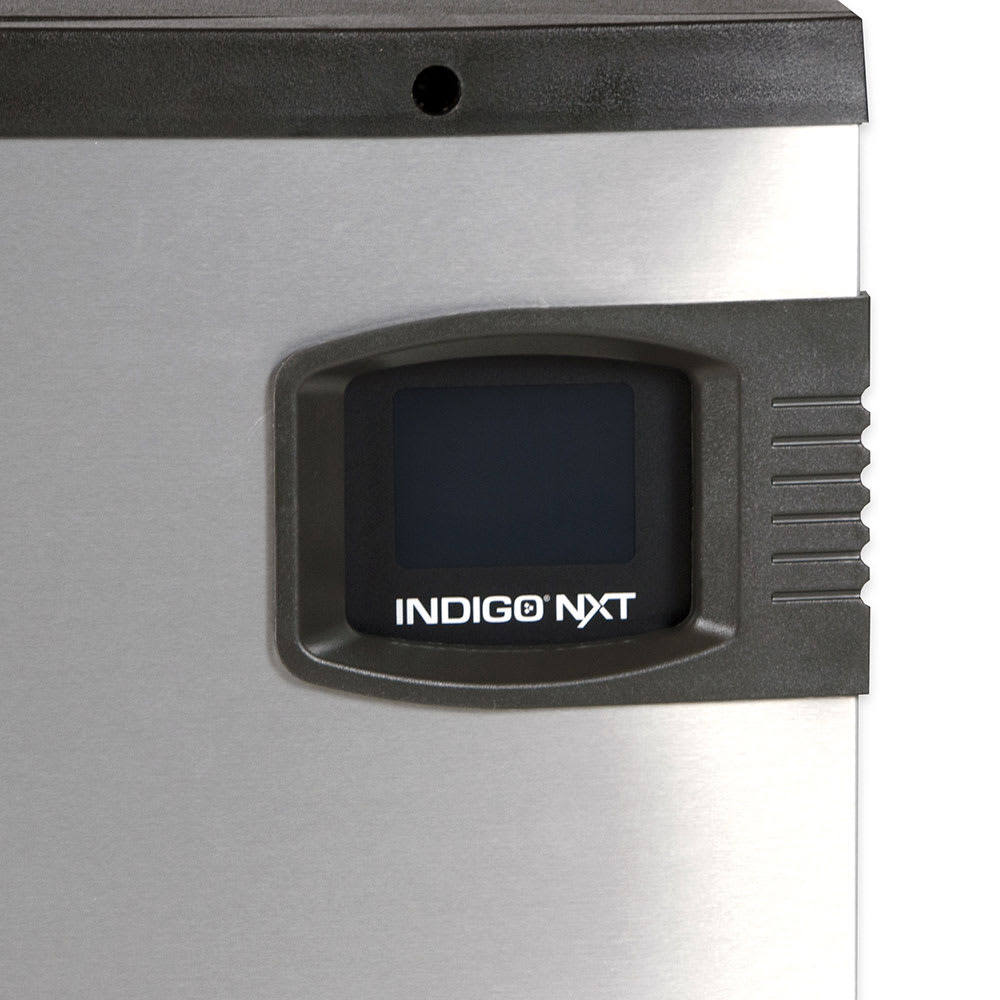

- easyTouch display
- 24-hour preventive maintenance and daily feedback
- Accessible foodzone through swing-out front door
- Water trough, curtain, distribution tube, water probe, and water pump are removable
- AlphaSan® antimicrobial agent reduces bacteria growth in some of the components
- 1-touch cleaning cycle with displayed instruction
- Automatic reminder and accessory detection
- Time and date display
- 13 language options and continuous operating status
- DuraTech coating on the stainless steel exterior
- Uses R290 refrigerant
- Ice bin is sold separately
- Ideal incoming air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSI
- 3,800-BTU heat transfer capacity
- 22 in. W x 24.5 in. D x 21.5 in. H
- 10.6 A, 4.24 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0420W within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 466 lb./24 hours at 70°/50° (416 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R290A refrigerant, NSF, cULus, CE
Watch a video about this product
Manitowoc Ice IYP0420W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 466 |
| Also Known As | IYT0420W |
| Compressor Type | Water Cooled |
| Depth (in) | 24.5 |
| Height (in) | 21.5 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 135.00 |
