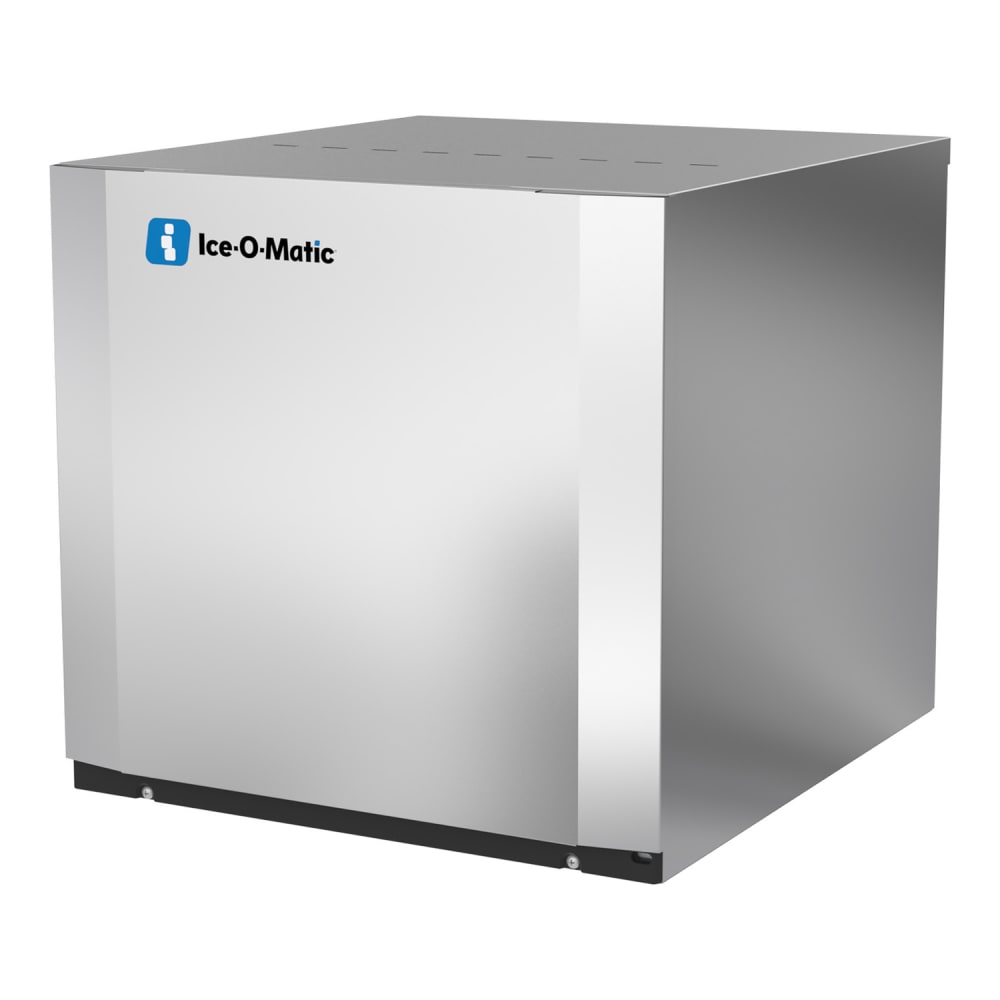

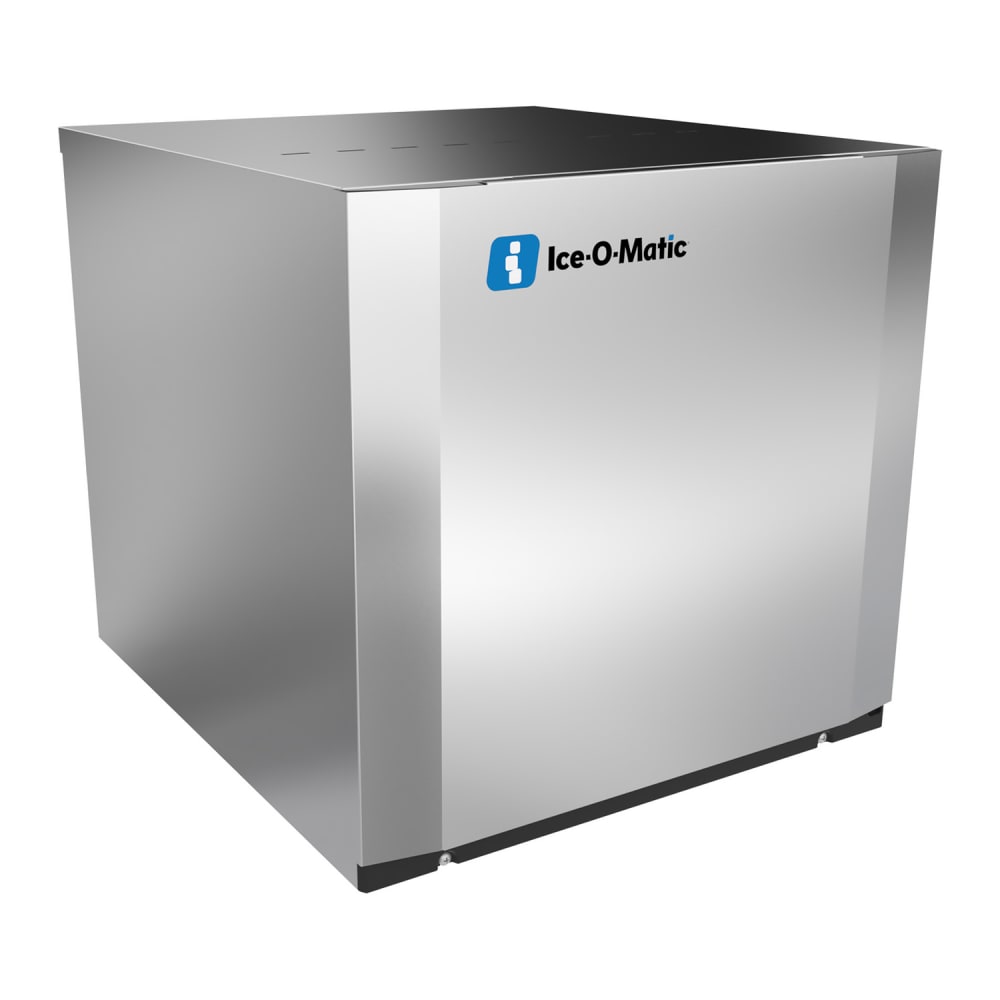

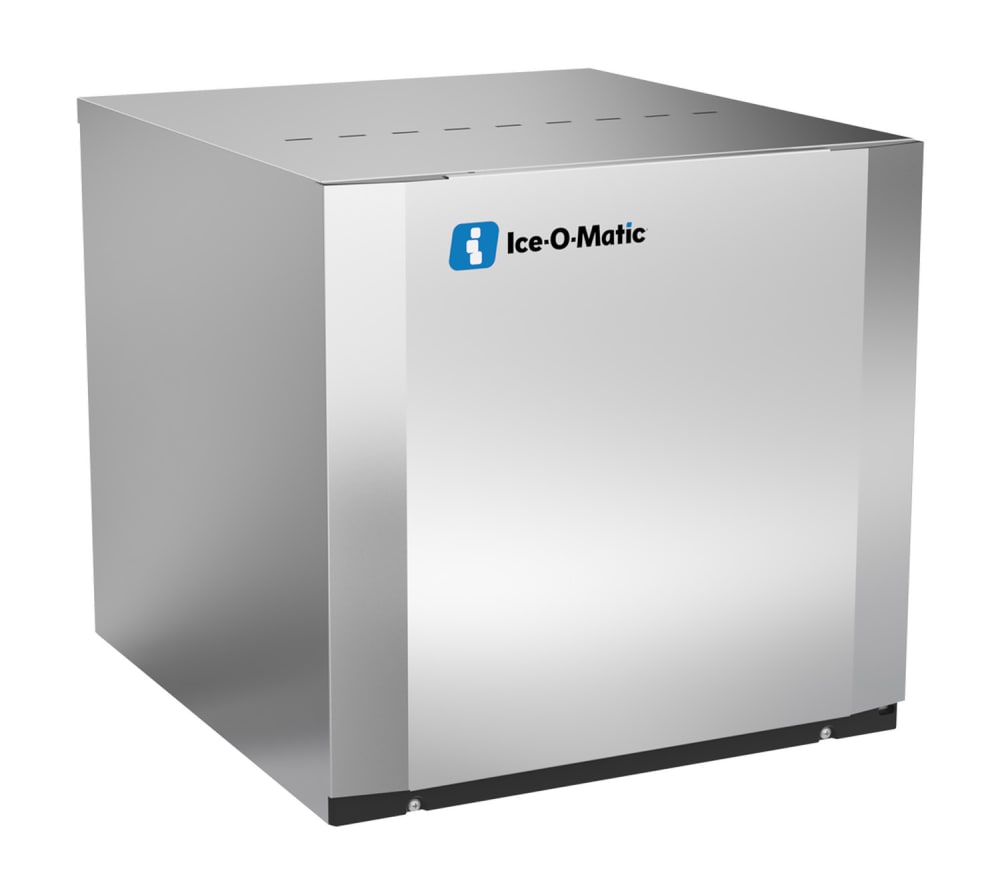

Ice-O-Matic CIM0320HW90 22 1/4" Elevation Series™ Half Cube Ice Machine Head - 320 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,979.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Ice-O-Matic CIM0320HW90 Description
The Ice-O-Matic CIM0320HW90 half-cube ice machine head is water cooled, meaning it produces ice efficiently but uses large amounts of water. The machine's dual exhaust system expands the output of hot air to reduce the danger of a vent being occluded during installation. Able to produce as much as 320 pounds of ice per 24 hours, this compact machine is useful for low- to medium-volume locations that are restricted on space.
The Ice-O-Matic CIM0320HW90 half cube ice maker head features an LED display for enhanced readability and LED status lights to notify users when cleaning is needed. The unit's control board is a universal design that streamlines access during maintenance and improves calibration ability. Inside, the unit is treated with an antimicrobial enhancement and features a plastic food zone that eliminates tight corners that could harbor bacteria.
- Part of the Elevation Series™
- Production capacity: 320 lbs./24 hours in ideal conditions
- AHRI production capacity: 274 lbs./24 hours
- Produces half-size ice cubes
- Cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Measures 22 1⁄4 in. wide to fit into narrow spaces
- Water-cooled design
- Self-contained condenser is simple to install
- Dual exhaust system operates on top and side
- Plastic food zone restricts microbial growth
- BPA-free, snap-in components are dishwasher safe to streamline cleaning
- PURE ICE® antimicrobial protection
- LED smart status display and notification lights
- Universal Smart Harness™ control board is built in
- Streamlined 1-touch controls for sanitizing and descaling
- Constructed with BPA-free plastic and recyclable components
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour
- 22 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 10.7 A, 5.15 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3⁄8-in. FPT
- Water outlet: 3⁄4-in. FPT
- Electrical connection port: 7⁄8-in. diameter
- Electrical connection junction box: 7⁄8-in. diameter
- Condenser water inlet: 3⁄8-in. diameter
- Condenser water outlet: 1⁄2-in. diameter
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0320HW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, half-size cubes, 22"W, approximately 320 lb production/24 hours at 70°/50° (270 lb at 90°/70°), LED status display, one touch sanitize & descaling controls, dishwasher safe food zone components, self-contained water-cooled condenser, R290 refrigerant, cULus
Ice-O-Matic CIM0320HW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 320 |
| Also Known As | CIM0320HW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22.25 |
| Weight | 150.00 |
- Ice-O-Matic ICE0320HW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0320HW90 Ice-O-Matic CIM0320HW90 22 1/4" Elevation Series™ Half Cube Ice Machine Head - 320 lb/24 hr, Water Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $3,979.00 / Each | $3,903.00 / Each | $3,903.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | ||
| 24 Hr. Production (lb) | 320 | 366 | 366 |
| Ice Type | Half Cube | Full Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 22.25 | 22 | 22 |
| Rating | Better | Best | Best |
| Voltage | 115 | 115 | 115 |
| Series | Elevation Series™ | Prodigy ELITE® | Prodigy ELITE® |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
