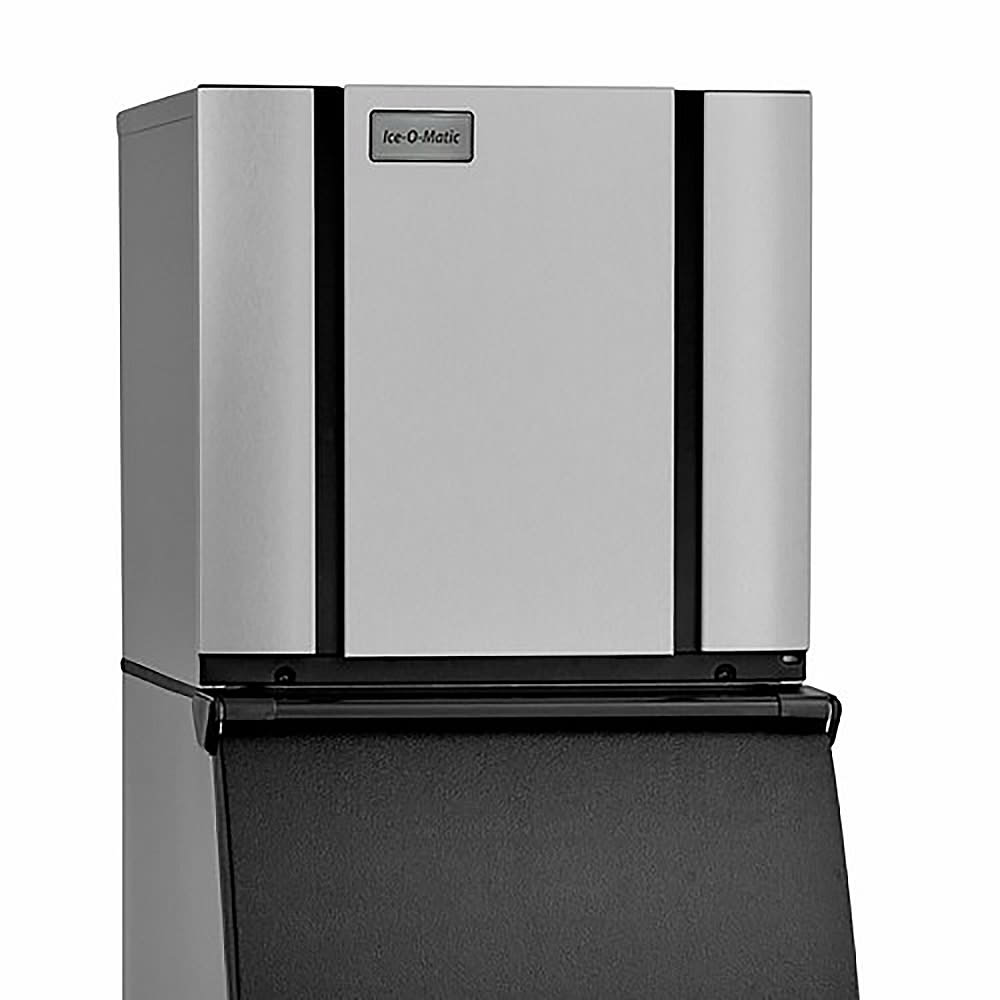

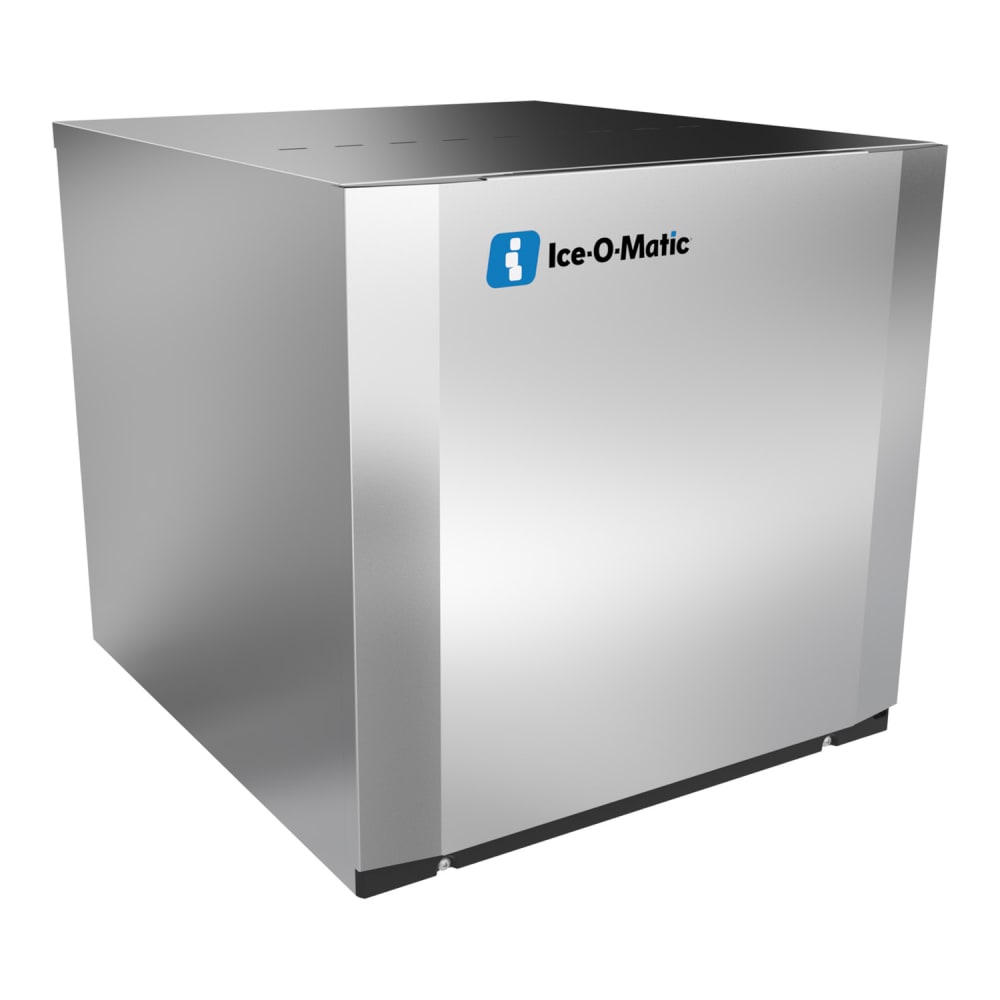

Ice-O-Matic CIM0320FW 22 1/4" Elevation Series™ Full Cube Ice Machine Head - 316 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 2 - 3 weeks
$3,979.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0320FW Description
Operated with a water-cooled condenser, the Ice-O-Matic CIM0320FW ice machine head is self-contained to streamline installation and reduce cross contamination. It makes full-size ice cubes, and when conditions are ideal, it can make 316 pounds of ice per day. Enabling users to check in on the unit, an LED display screen provides system updates throughout the day. To perform sanitization and descaling measures, operators must simply push a button.

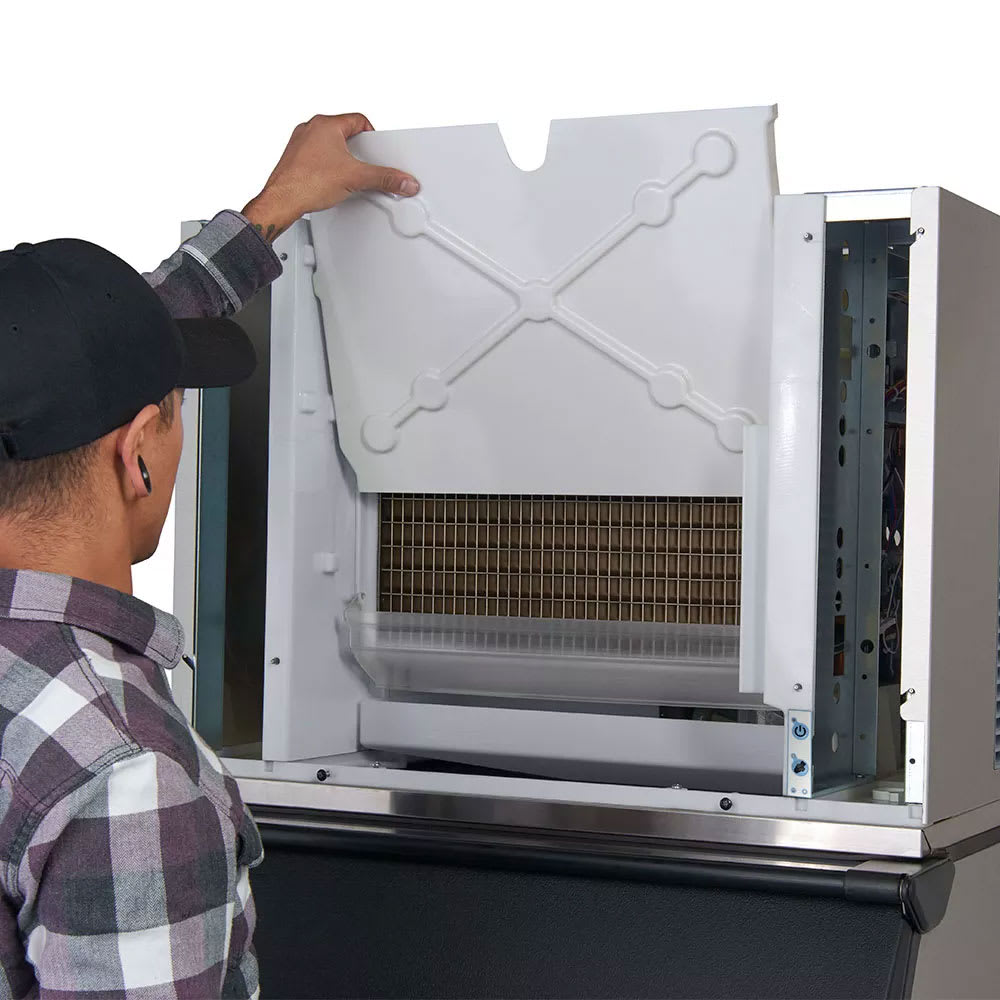

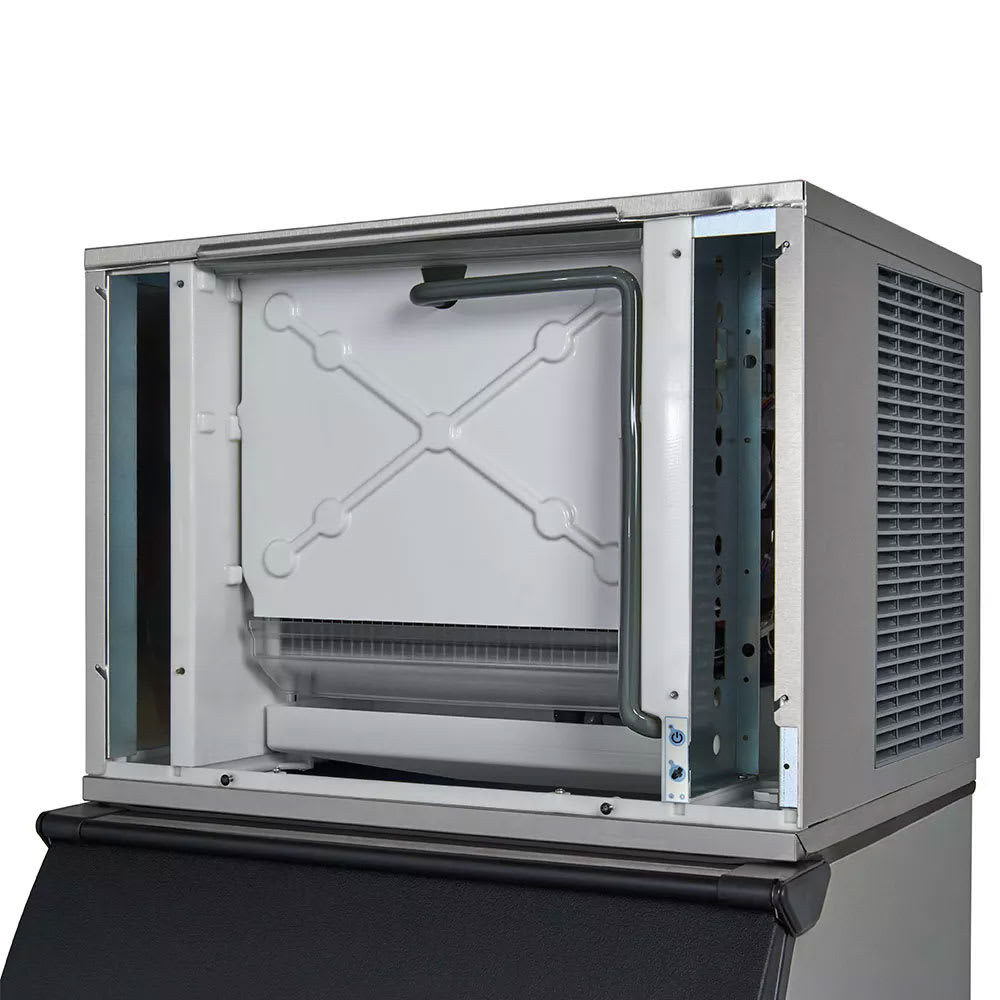

The Ice-O-Matic CIM0320FW full-cube ice machine head has snap-out components in the food zone that can be cleaned in a dishmachine. Inhibiting the growth of bacteria and reducing the amount of germs spread in a busy kitchen, the unit has a built-in PURE ICE® antimicrobial agent. It has a dual exhaust that discharges air from the top and side.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Elevation Series™
- 316-lb. maximum daily ice production
- 274-lb. daily ice production at 70-90 degrees F
- Makes full-size cubes
- Cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Water cooled
- Self-contained condenser

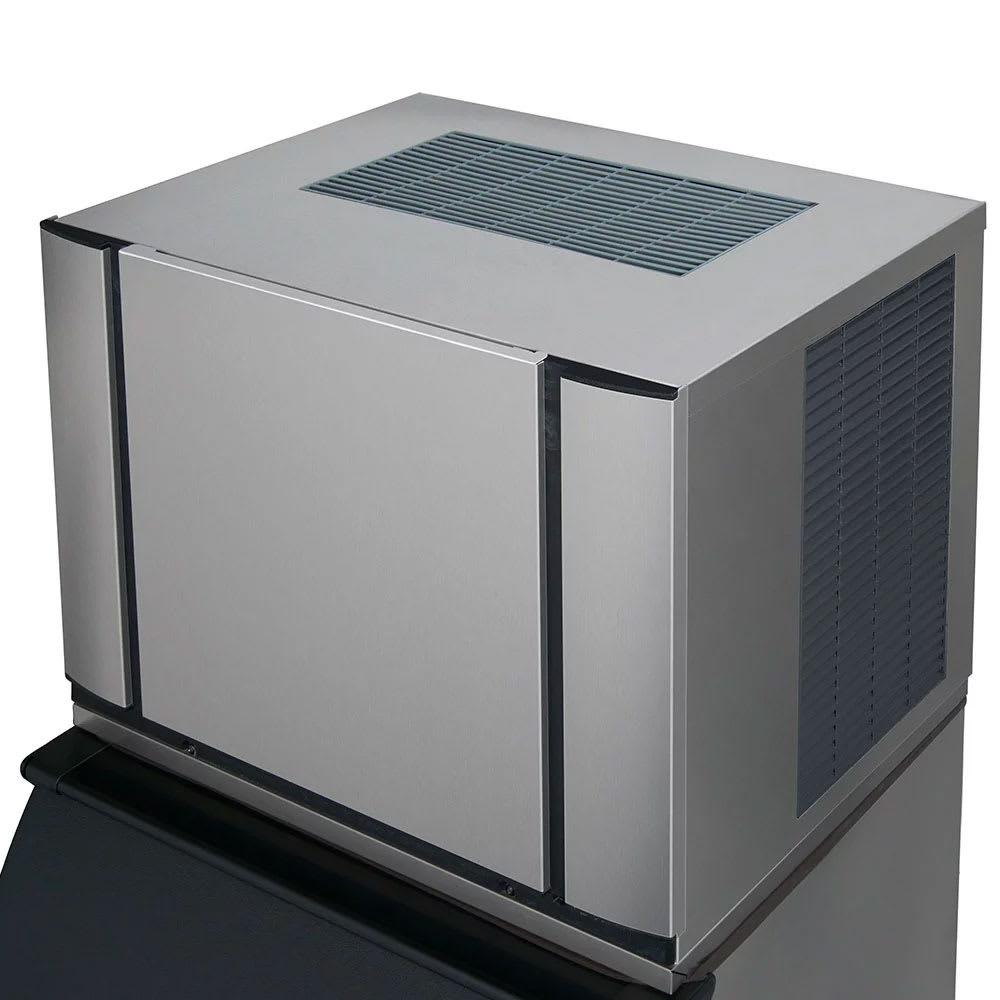

- Dual exhaust discharges from the top and side
- LED display provides status updates

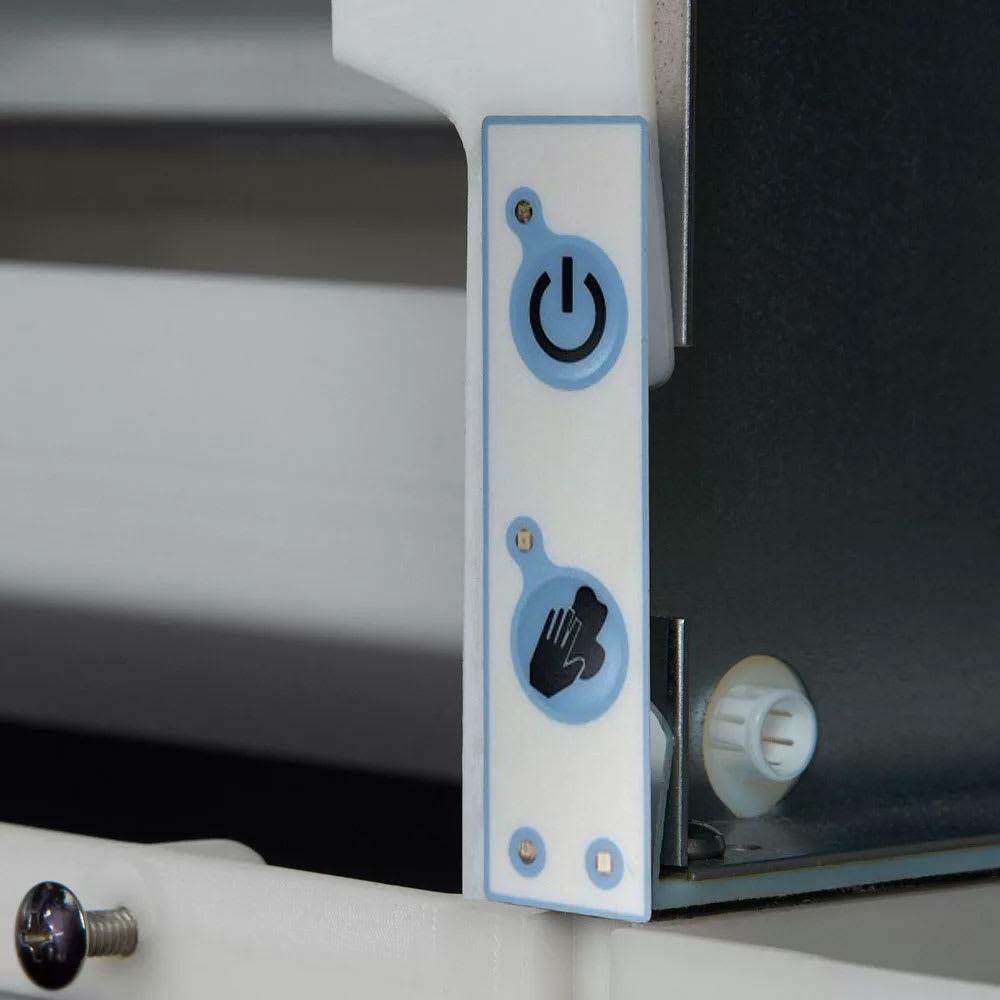

- 1 touch sanitizing and descaling
- Snap-out components are dishwasher safe
- PURE ICE antimicrobial protection built into the unit
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 22 1⁄2 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 10.7 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0320FW within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 22 1/4"W, approximately 316 lb production/24 hours at 70°/50° (274 lb at 90°/70°), full-size cubes, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0320FW Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 316 |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22.25 |
| Weight | 150.00 |
- Ice-O-Matic ICE0320FW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0320FW Ice-O-Matic CIM0320FW 22 1/4" Elevation Series™ Full Cube Ice Machine Head - 316 lb/24 hr, Water Cooled, 115v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $3,979.00 / Each | $3,903.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 316 | 366 |
| Ice Type | Full Cube | Full Cube |
| Compressor Type | Water Cooled | Water Cooled |
| Width (in) | 22.25 | 22 |
| Rating | Better | Best |
| Voltage | 115 | 115 |
| Series | Elevation Series™ | Prodigy ELITE® |
| Refrigerant | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
