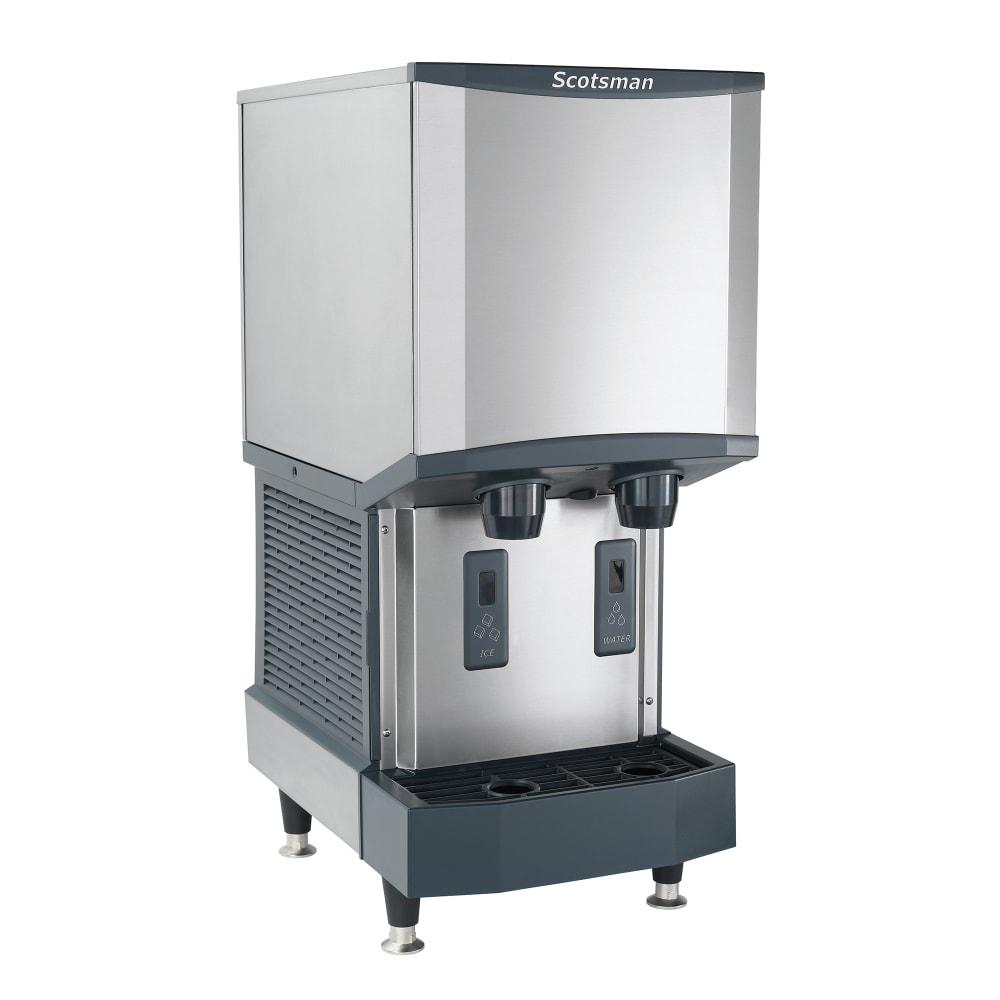

Scotsman HID312AX-1 260 lb Meridian™ Countertop Water & Nugget Ice Dispenser w/ Filter - 12 lb Storage, Touch-Free, 115v
Typically ships in 4 - 8 Business Days
Retail Price: $14,632.00
$5,999.00 /Each
Selected Dispenser Type: Sensor
| Sensor |
| Push Button |
Scotsman HID312AX-1 Description
The Scotsman HID312AX-1 Meridian™ ice and water dispenser produces up to 260 pounds of H2 nugget ice per 24 hours while storing 12 pounds of ice in an integrated bin for countertop beverage service. The unit's TouchFree® infrared dispensing provides hands-free access to ice and water, while SmoothStream™ water dispensing delivers a steady flow for filling cups. A removable bin, spouts, sink, and air filter simplify cleaning, and the included AquaPatrol™ Plus water filtration system helps improve water quality for nugget ice production.
Built with a stainless steel exterior, the Scotsman HID312AX-1 ice and water dispenser features a stainless steel evaporator and auger, sealed maintenance-free bearings, and AgION™ antimicrobial protection molded into key components to help inhibit the growth of microbes. An enlarged dispensing area and oversized sink drain accommodate a variety of serving vessels, while a recessed utility chase supports countertop installation. LED diagnostic lights, a USB software upgrade port, and a unit-specific QR code streamline service and maintenance throughout daily operation.
- Meridian series
- Produces up to 260 lbs. of H2 nugget ice per 24 hours
- 12-lb. bin storage capacity
- Stainless steel evaporator, auger, and exterior
- AgION antimicrobial protection

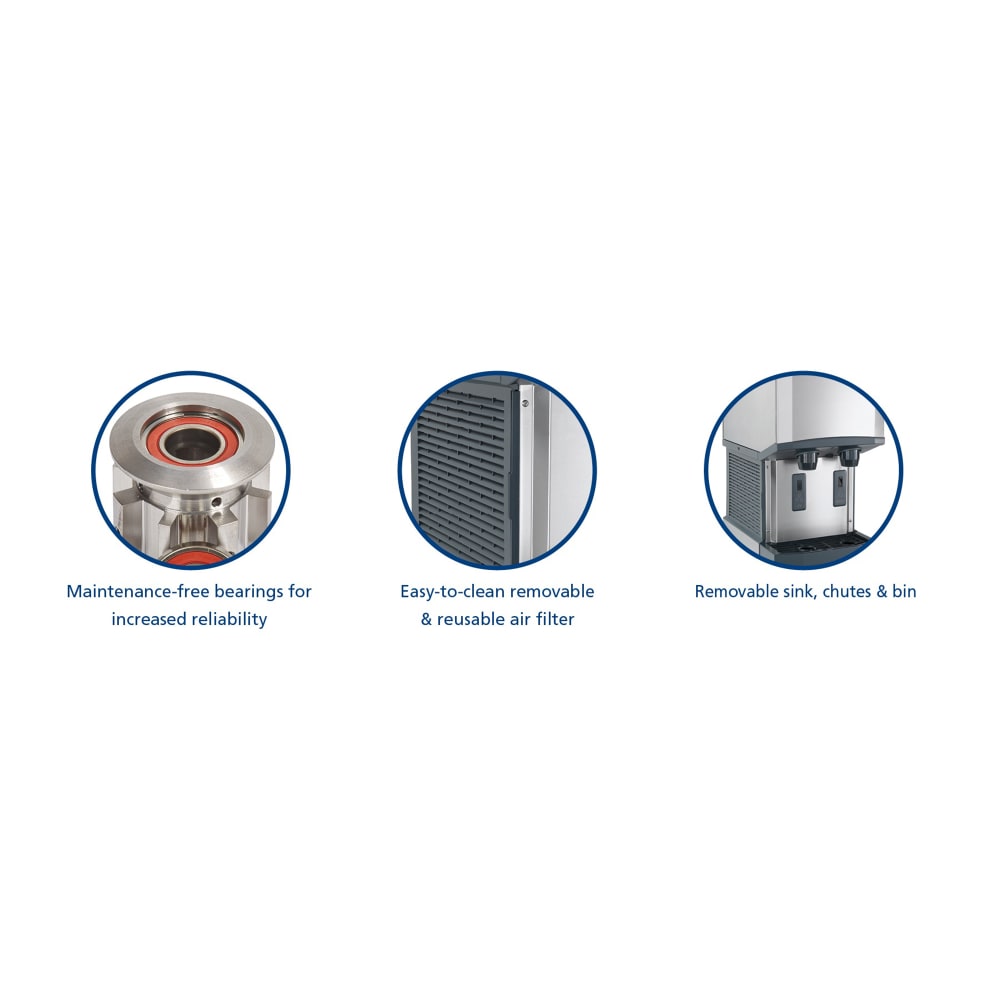

- Removable bin, spouts, sink, air filter, and grill

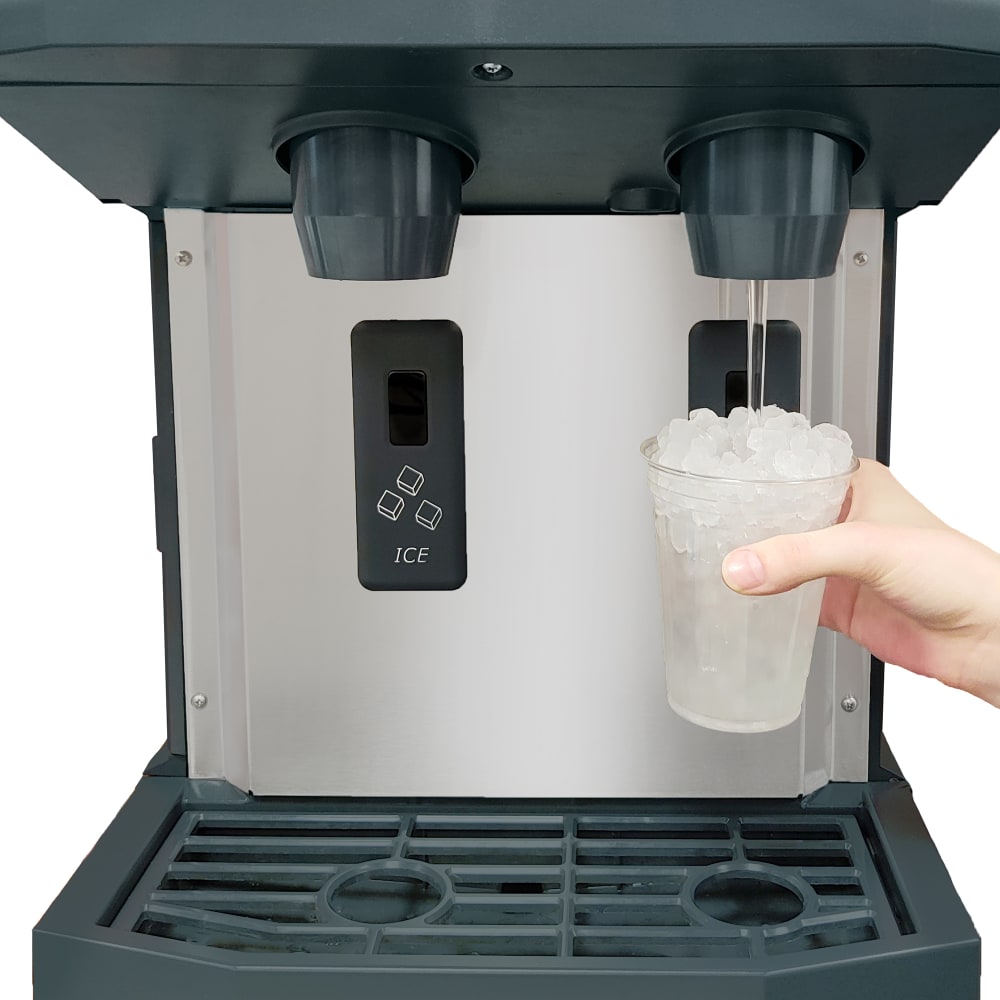

- TouchFree infrared ice and water dispensing
- SmoothStream water dispensing
- AquaPatrol Plus water filtration system included
- Enlarged 11-in. dispensing area
- Enlarged 0.8-in. sink drain
- Recessed utility chase

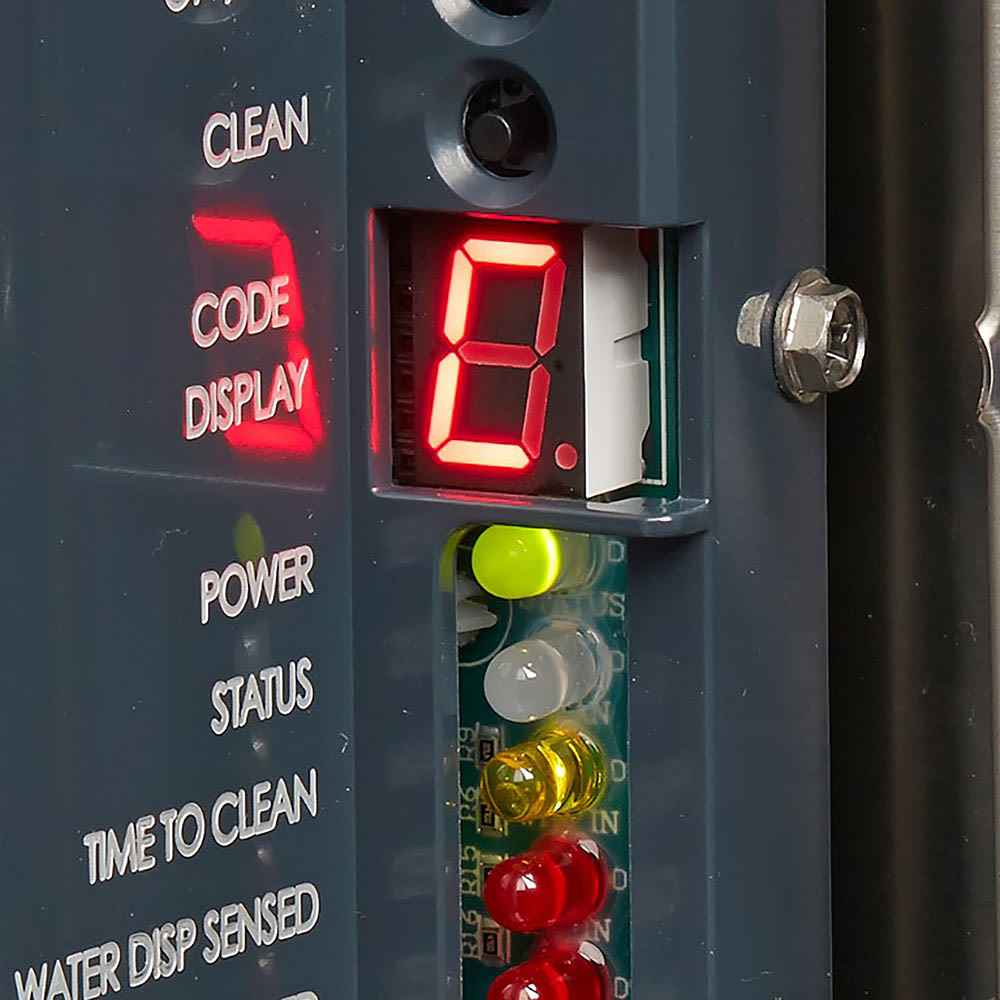

- LED diagnostic lights
- USB software upgrade port
- Air-cooled operation
- R290 hydrocarbon refrigerant
- Removable air filter
- 16 1⁄4 in. W x 24 3⁄8 in. D x 35 in. H
- 7 A
- 115 V/60 Hz/1 ph, 7 1⁄2-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman HID312AX-1 within the 48 contiguous states.
From The Manufacturer
Meridian™ Ice & Water Dispenser, Touchfree® infrared dispensing, H2 Nugget Ice, air-cooled, production capacity up to 260 lb/24 hours at 70°/50° (225 lb AHRI certified at 90°/70°), 12 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R290 refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 7.0 amps, cULus, NSF
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman HID312AX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 260 |
| Also Known As | HID312A-1 |
| Amps | 7 |
| Bin Capacity (lb) | 12 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.38 |
| Dispenser Type | Sensor |
| Dispenses | Ice & Water |
| Height (in) | 35 |
| Hertz | 60 |
| Ice Type | Nugget |
| Includes | AP1-P Filtration |
| Installation Type | Countertop |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Meridian™ |
| Serving Vessel | Cup |
| Special Features | AgION™ Antimicrobial Protection |
| Special Features | H2 Harder Nugget Ice |
| Special Features | Height Adjustable |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 16.25 |
| Weight | 183.00 |
Important Prop 65 information for California residents.
- Scotsman MDT3F12A1H
- Scotsman MDT2C12A1A
- Scotsman MDT4F12A1H
Compare to Similar Items
| Attributes |
Scotsman HID312AX-1 Scotsman HID312AX-1 260 lb Meridian™ Countertop Water & Nugget Ice Dispenser w/ Filter - 12 lb Storage, Touch-Free, 115v Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $5,999.00 / Each | $6,250.00 / Each | $6,335.00 / Each | $5,672.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 4 - 8 Business Days | IN STOCK: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day |
| Installation Type | Countertop | Countertop | Countertop | Countertop |
| Dispenses | Ice & Water | Ice & Water | Ice & Water | Ice & Water |
| Dispenser Type | Sensor | Push Button | Sensor | Lever |
| Bin Capacity (lb) | 12 | 10 | 10 | 10 |
| Ice Type | Nugget | Nugget | Nugget | Nugget |
| Serving Vessel | Cup | Cup | Cup | Cup |
| Series | Meridian™ | Opti-Serve | ||
| Operation | Self Contained | Self Contained | Self Contained | Self Contained |
| Special Features | AgION™ Antimicrobial Protection | LED Sensor Operation | Duratech™ | |
| Rating | Best | Best | Best | Best |
| Width (in) | 16.25 | 16.63 | 16.63 | 16.25 |
| 24 Hr. Production (lb) | 260 | 286 | 286 | 285 |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 2-year, 5-year Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
Sensors are too strong which allows Ice to drop everywhere.
Product provides water and ice just fine, however in an office setting you must use a wide mouthed cup or ice goes everywhere because the sensors are too sensitive. If you don't have large enough cups I would recommend the push button not the sensor.
We appreciate you pointing this out. It's good to hear the unit is producing water and ice properly, but we understand how frustrating it can be if the sensor feels overly sensitive in an office setting. Your note about using wider cups or opting for the push-button model is helpful insight for others considering this unit!
The ice is great. The IR sensor for the ice is sporadic.
The water portion of the machine is seamless. The water comes on and stays on until you remove your cup away from the sensor. The ice portion is hit or miss. I don't know if there is a bad sensor or not but it is frustrating to use the ice dispensing side of the unit.
We have excellent results with these
We have several Scotsman HID312A-1 ice machines in our hospital. We have much less repair calls than the Folletts or Manitowoc machines that we also have(but not for long)
Thank you for sharing your experience! It's great to hear these ice machines have delivered the reliability your hospital needs with fewer service calls. We appreciate your feedback and are glad they've been such a dependable choice for your team.
Junk! The auto sensor ones never work right
Should be 0 stars! Poor design idea. They installed these at my hospital and NEVER work good. The auto sensors are hard for people to trigger and cause madness! Then when it finally does dispense 1/2 the water and ice ends up on the floor! Terrible idea, everyone wants the old one back!!!!
Yes, the infrared sensor activates touch-free ice and water dispensing.
The bin, spouts, sink, grill, and air filter are removeable.
The AgION™ antimicrobial components inhibit growth of bacteria, mold, and algae.
It needs 6-in. clearance on the sides, back, and top.
It produces H2 nugget ice with soft, chewable texture.
It uses 115 V/60 Hz/1 ph with NEMA 5-15P plug.
It has an 11-in.-high dispensing space for containers.
It uses a 3⁄4-in. FPT drain connection.
No. The sealed bearings reduce routine maintenance requirements.
It produces up to 260 lb. of ice in 24 hours.
It holds 12 lb. of ice.
It dispenses nugget ice.
Yes, it dispenses both ice and water.
Yes, it has an integrated ice maker.
Ice is dispensed by a sensor.
It is designed for countertop installation.
It measures 16 1/4 in. W x 24 3/8 in. D x 35 in. H.
It requires 115 V electrical service.
It requires 7 A.
It requires 1-phase electrical service.
It requires 60 Hz electrical service.
It is designed to dispense into cups.
Its condenser is air-cooled.
Its listed certifications include AHRI, cULus Listed, and NSF.
It requires a 3/8-in. water inlet connection.
Yes, it uses sensor-operated dispensing.
Yes, it includes a water filtration system.
Yes, it has antimicrobial protection.
Yes, the dispensing height is adjustable.
It uses R290 refrigerant.
It uses a NEMA 5-15P plug.
Yes, it has removable components for cleaning.
Yes, it has a removable air filter.
Yes, it provides diagnostic feedback for maintenance and service needs.
Yes, it includes a QR code for service information.
Yes, it uses sealed, maintenance-free bearings.
It has an 11-in. dispensing area.
