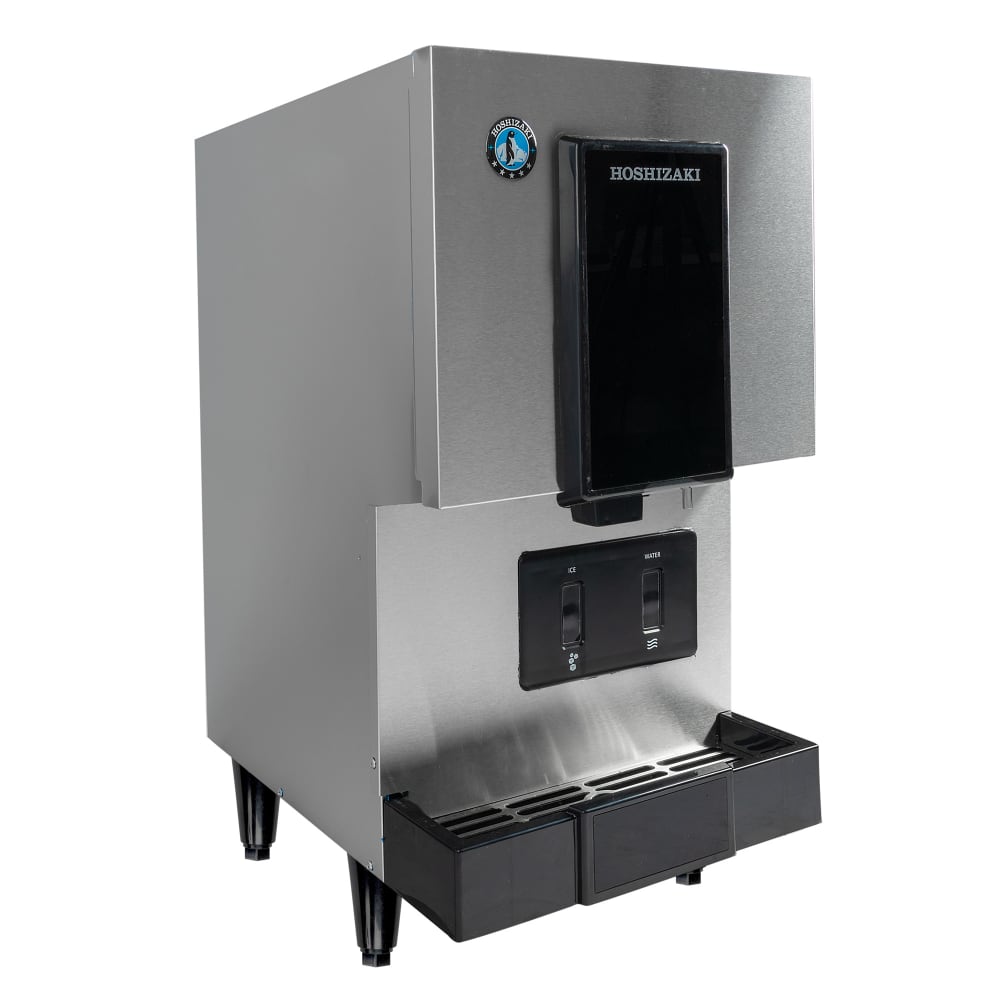

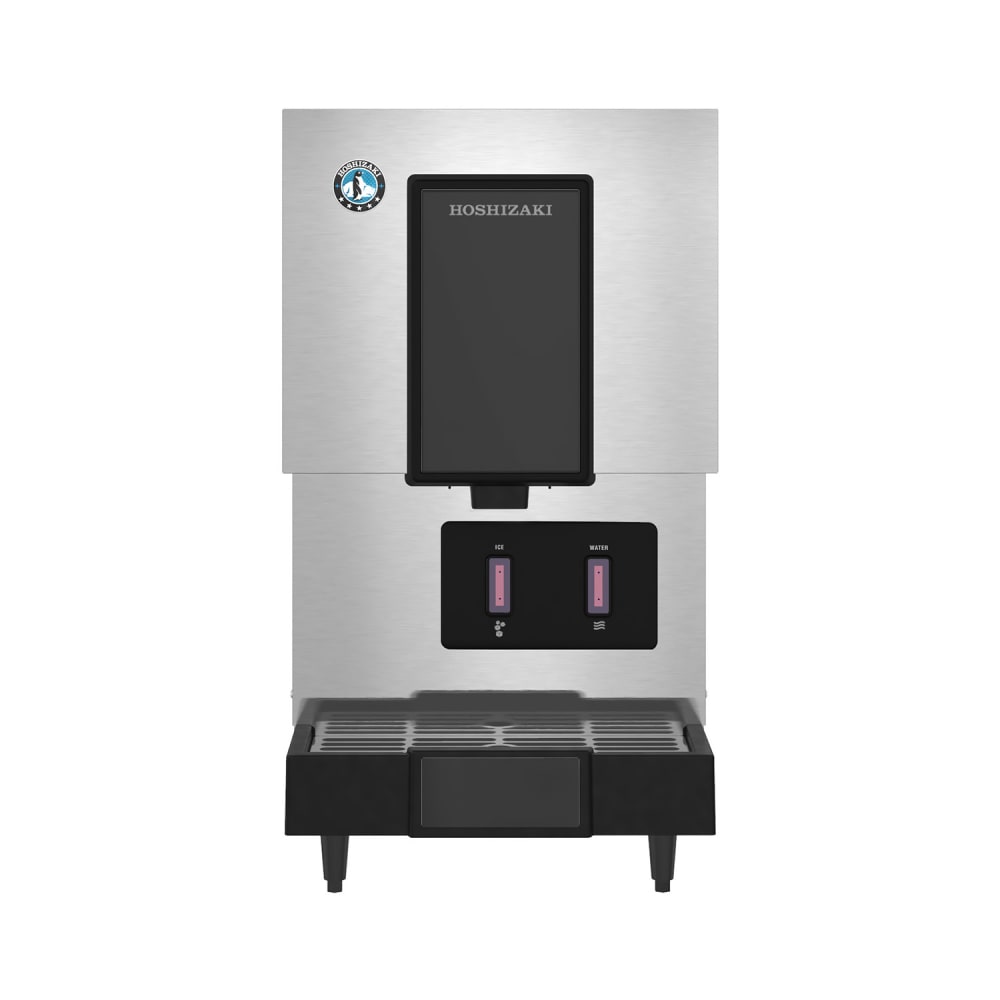

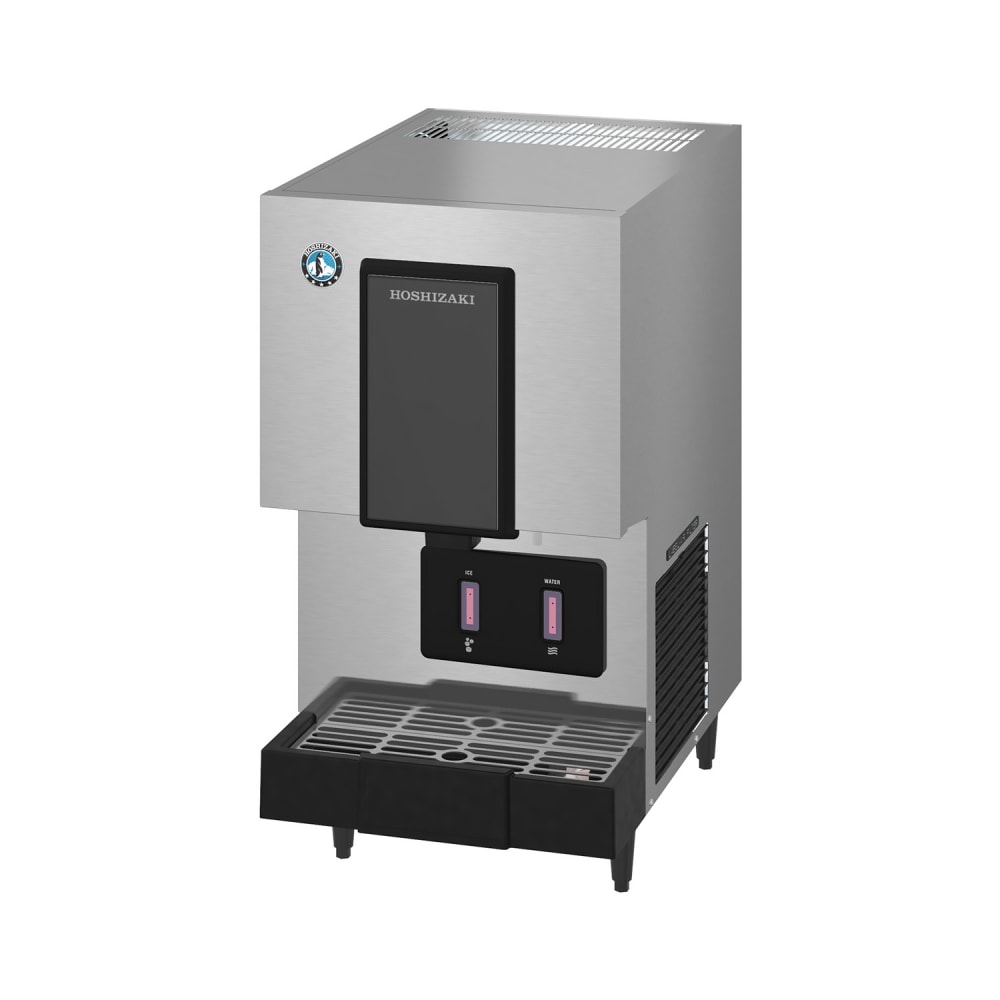

Hoshizaki DCM-271BAH-OS 257 lb Touchless Countertop Water & Nugget Ice Dispenser - 10 lb Storage, Cup Fill, 115v

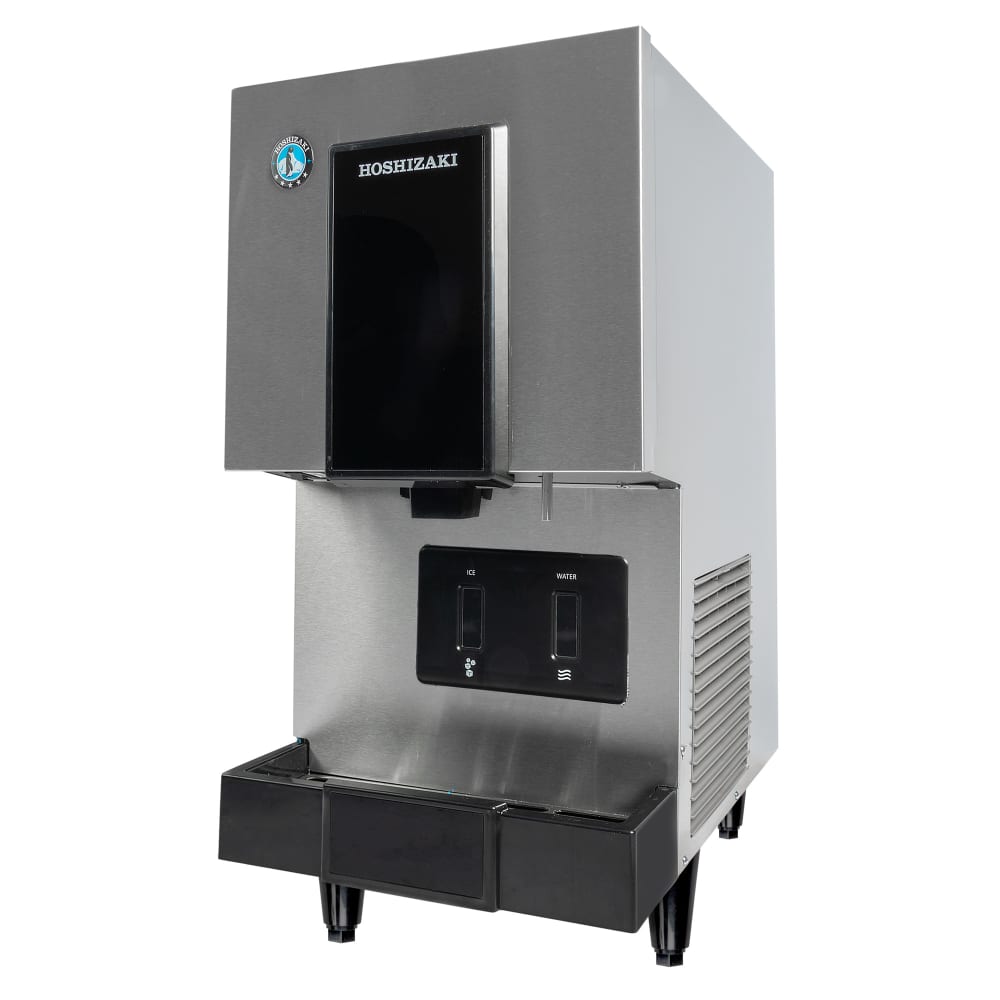

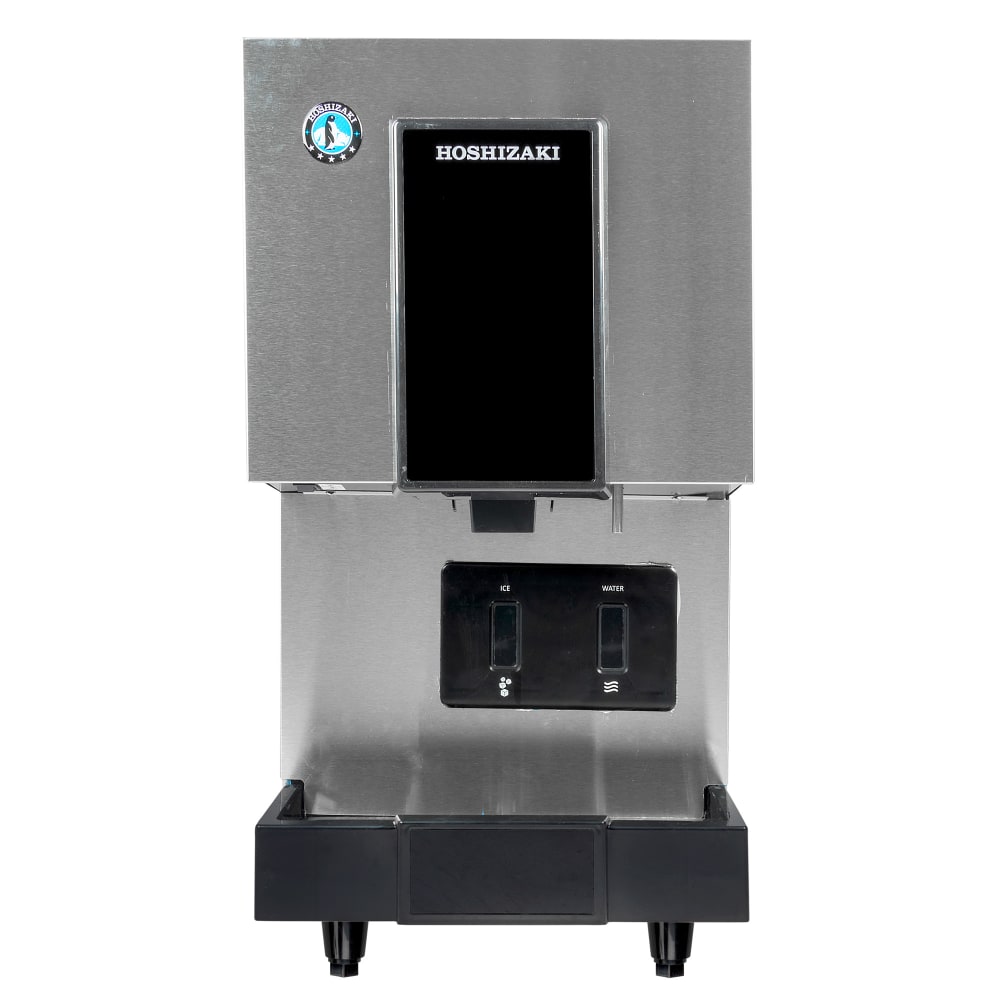

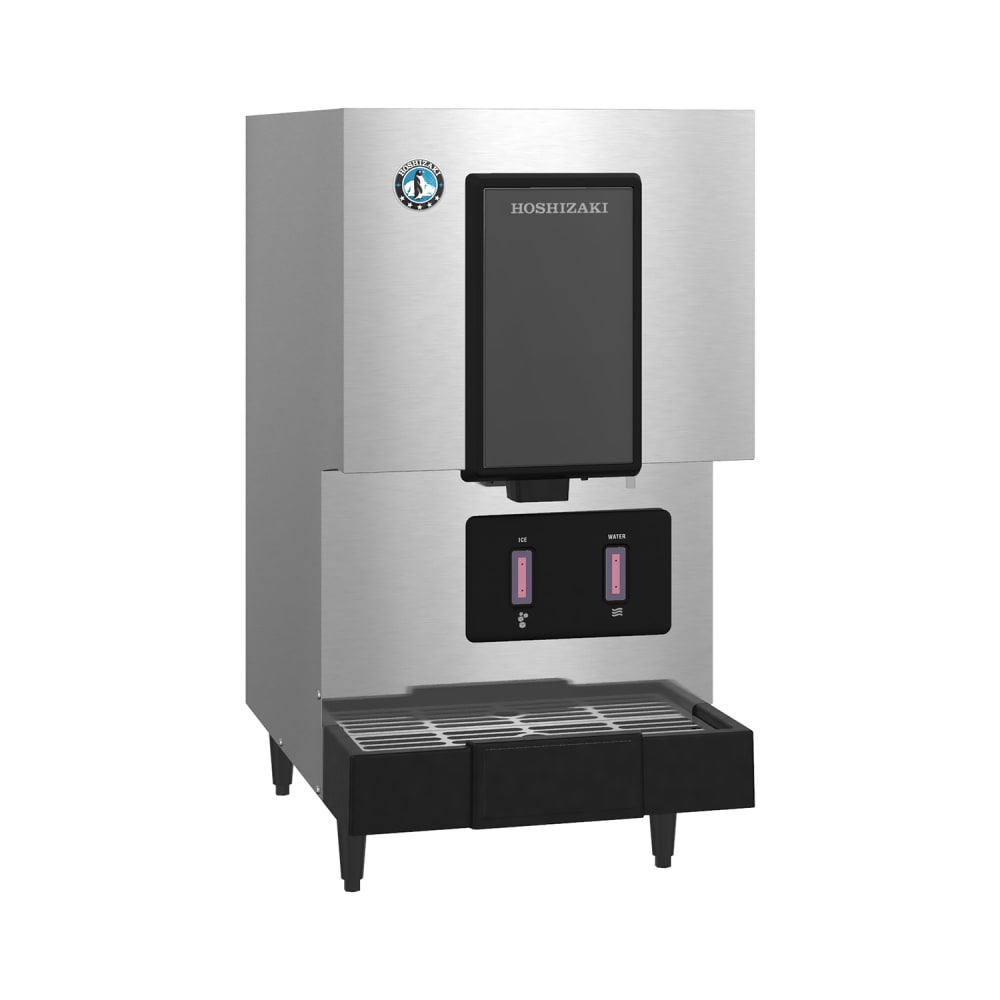

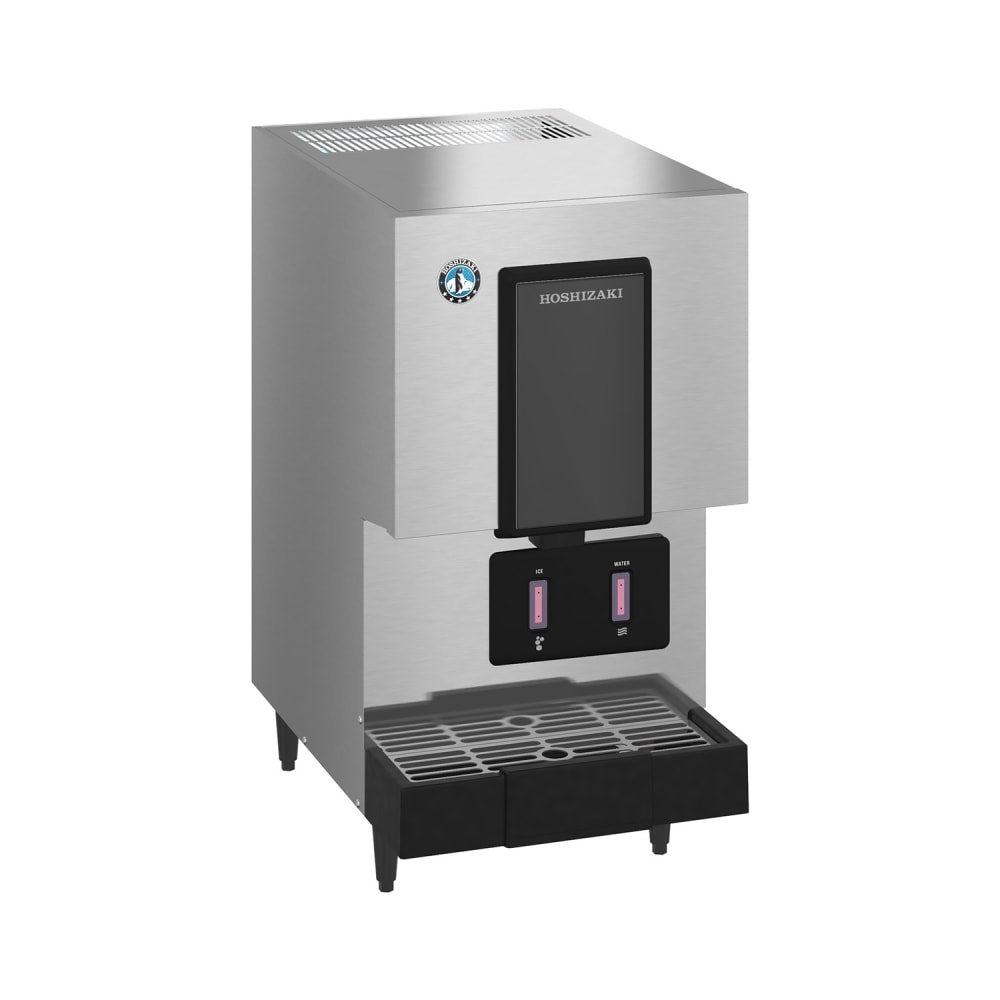

The Hoshizaki DCM-271BAH-OS touchless ice and water dispenser produces 257 pounds of Cubelet-style ice once a day; its built-in storage can hold 10 pounds of ice at one time. Because this unit features a self-contained refrigeration system, it's simple to install, and it operates with R-404A refrigerant. Designed for countertop installation, this dispenser sits on 4-inch legs.

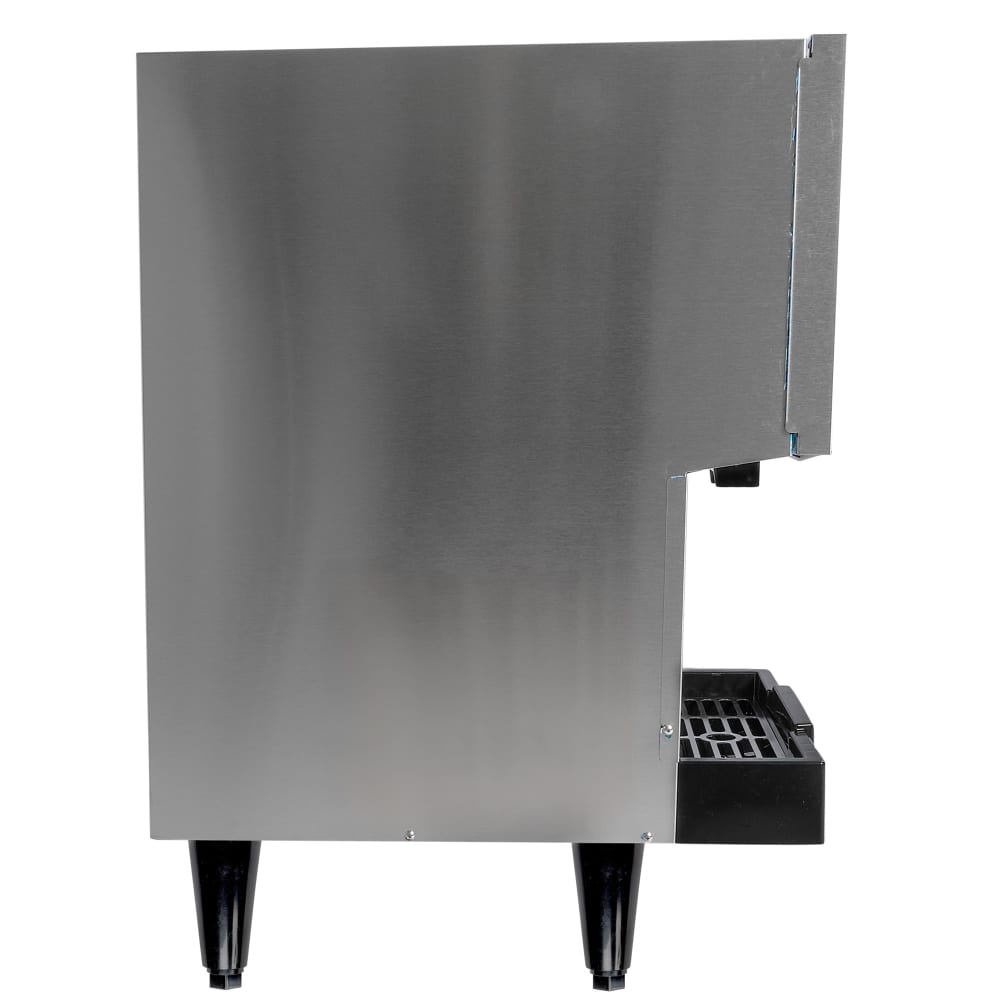

Overall, the Hoshizaki DCM-271BAH-OS touchless countertop ice and water dispenser measures 16⁵/₈ inches wide by 24¹/₄ inches deep by 31³/₄ inches high. To accommodate various drinkware, this ice machine has a 10¹/₄-inch cup clearance. It features a CleanCycle24™ design to simplify cleaning processes and is protected with an H-GUARD PLUS® antimicrobial agent to slow bacterial growth between regular cleanings. Because this unit is constructed of stainless steel, it's durable and corrosion resistant for long-term use; to maintain cleanliness during hours, it has a 2-second flush cycle.

Product Details

• Produces 257 lbs. every 24 hours
• 10-lb. built-in storage capacity
• Cubelet-style ice cubes
• Cube dimensions: ¹⁄₄ in. min L x ⁵/₈ in. max L x ³/₈ in. W x ¹⁄₂ in. H
• 10¹/₄-in. cup clearance
• Countertop model

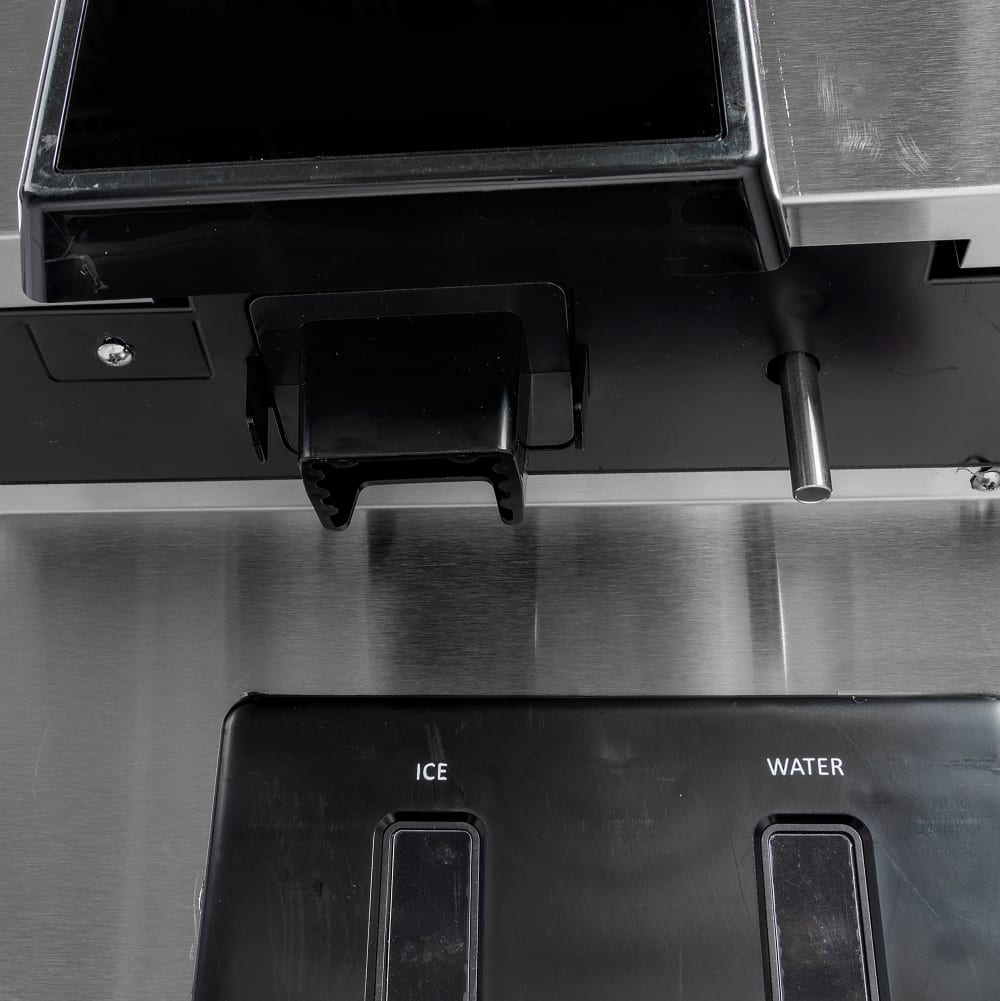

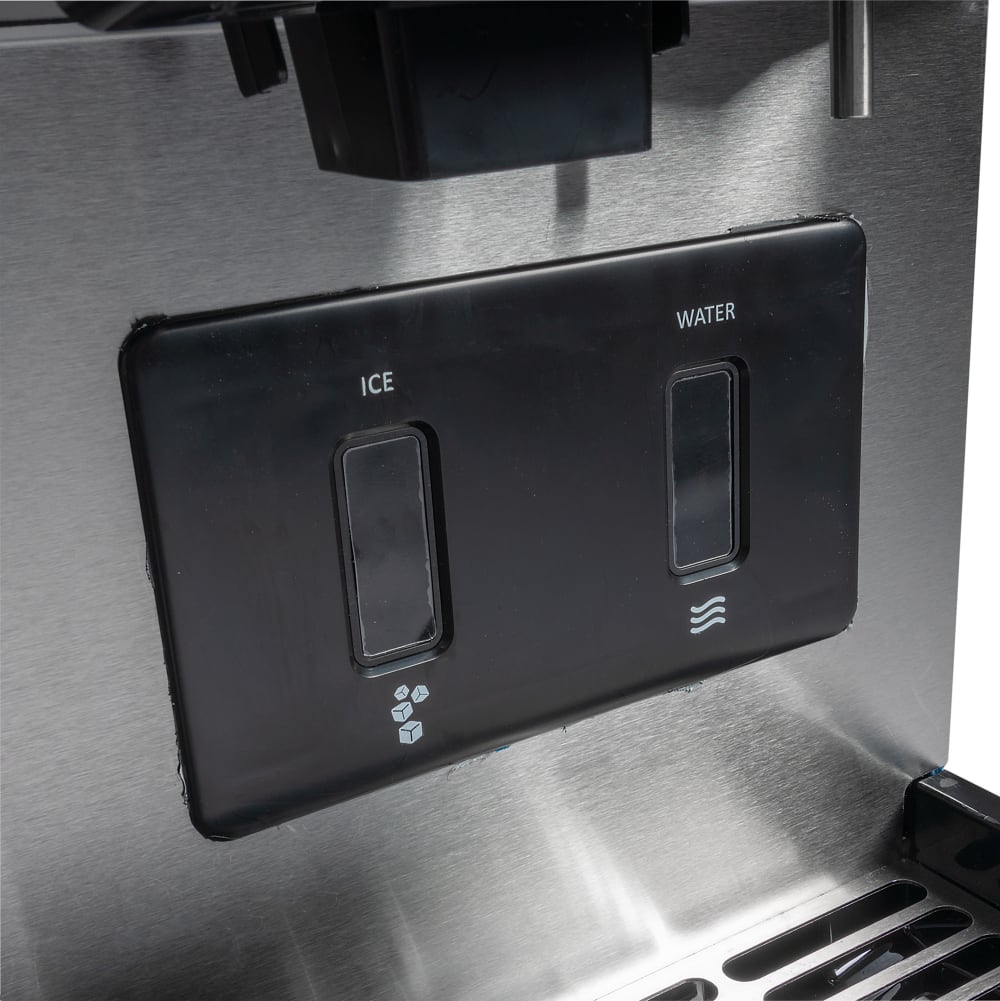

• Touchless LED sensor
• Stainless steel construction

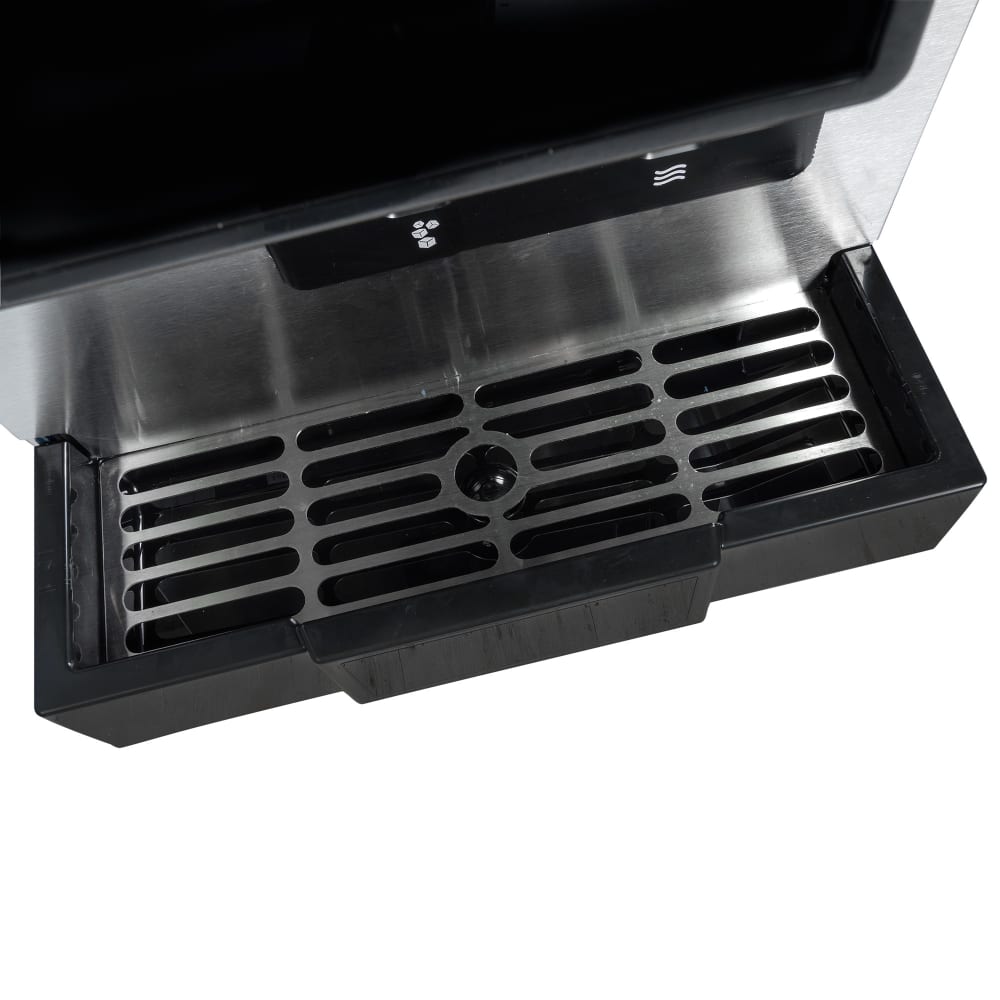

• Drain pan grate
• Removable spout
• H-GUARD Plus antimicrobial agent
• Advanced CleanCycle24™ design
• 2-second flush cycle per hour

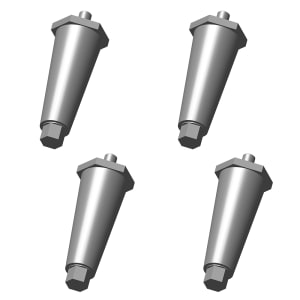

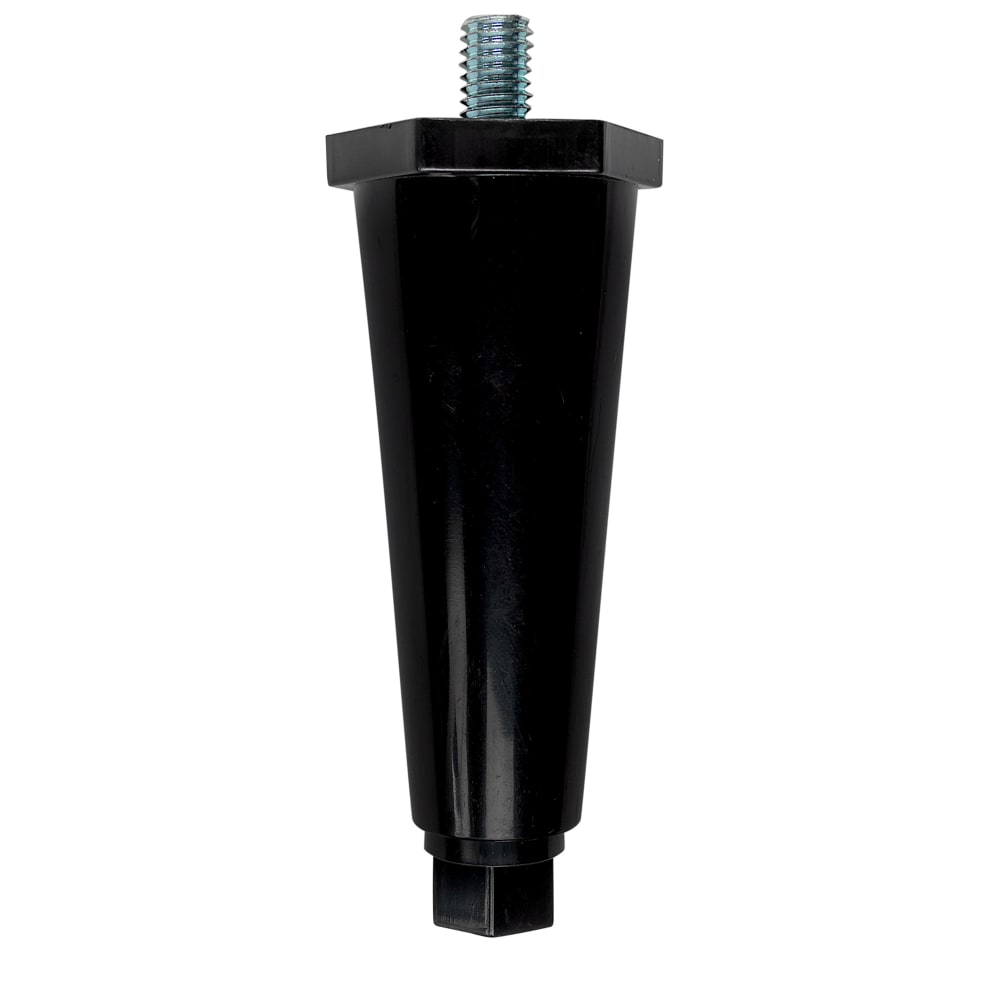

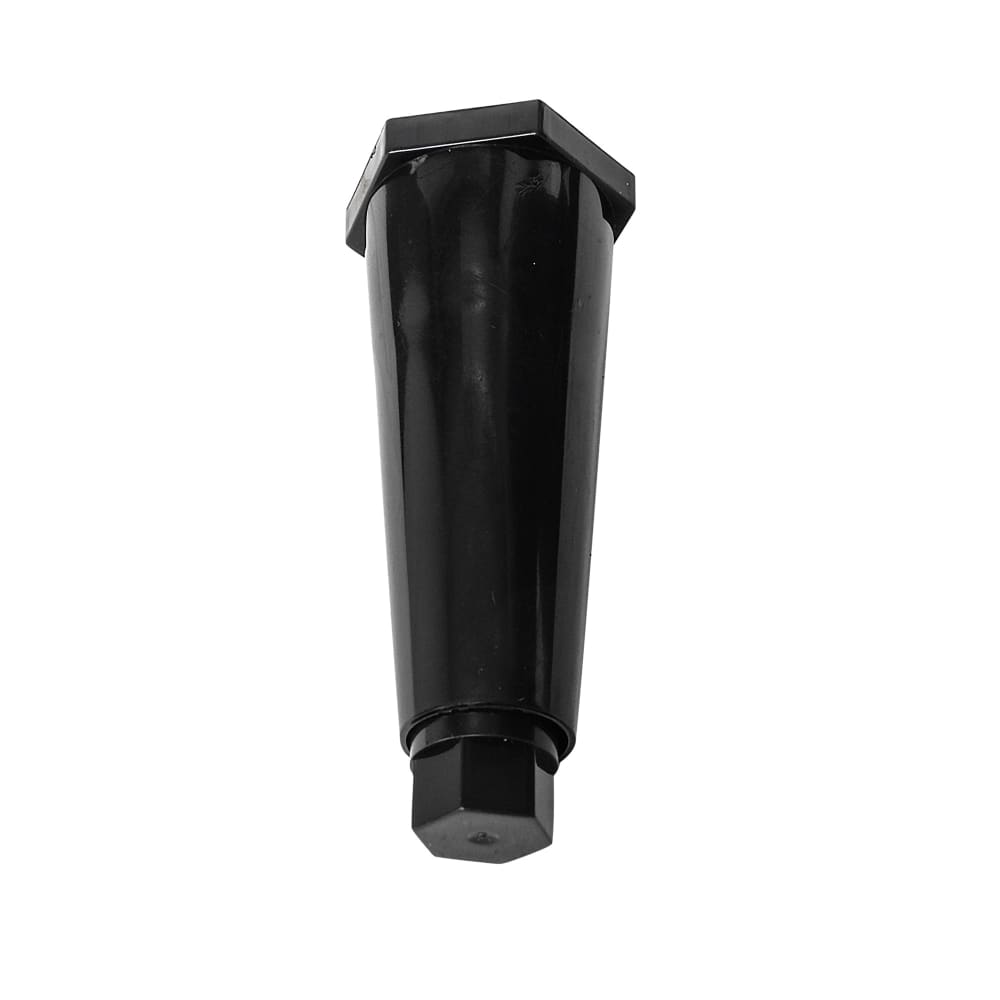

• 4-in. legs

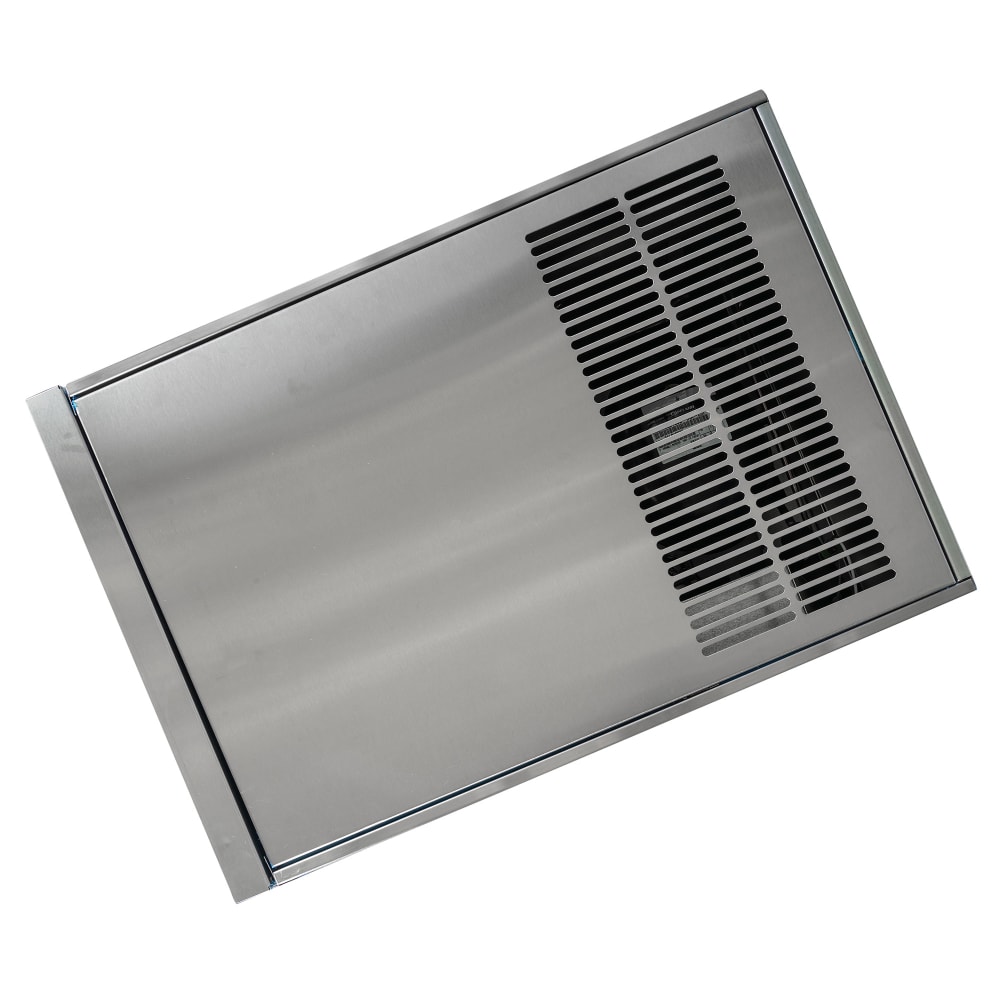

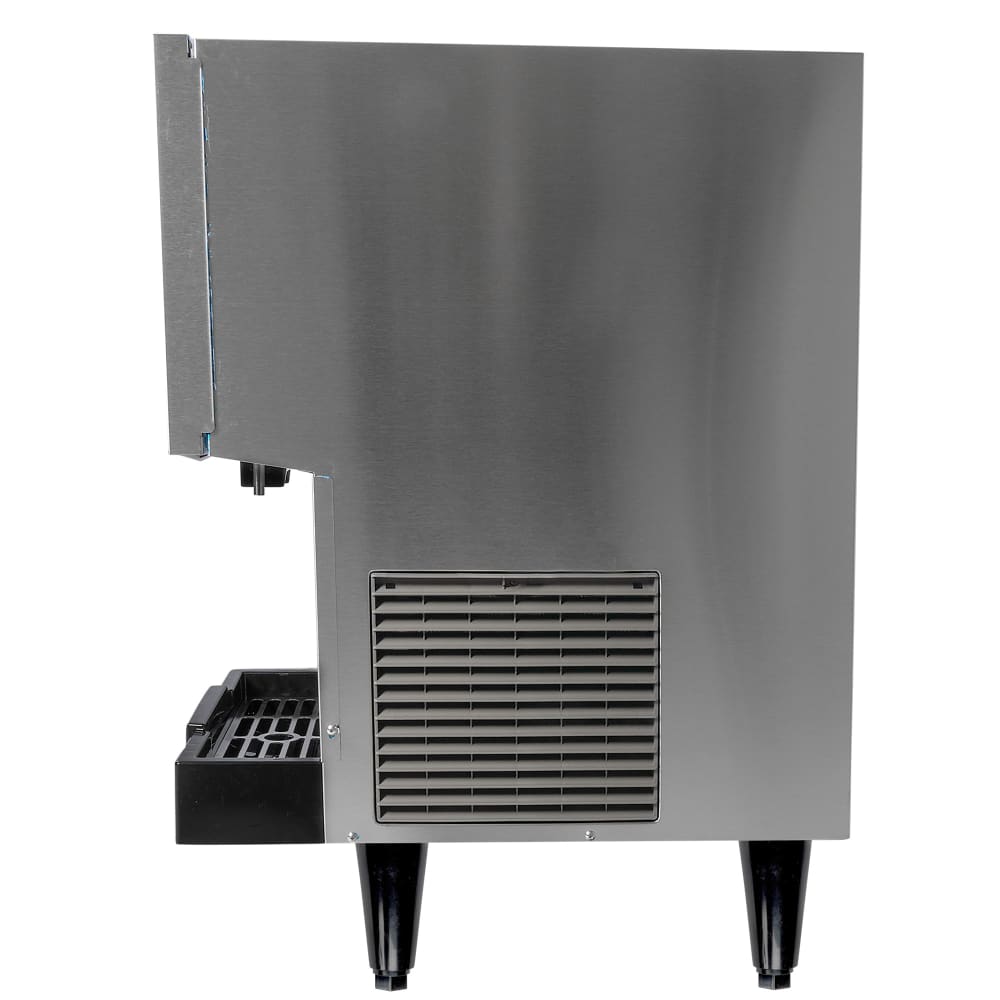

• Air cooled, self-contained condenser
• R-404A refrigerant
• 3,300 BTU
• Ambient temperature range: 45-100 degrees F
• Water temperature range: 45-90 degrees F
• Pressure range: 10-113 PSIG

Dimensions & Utilities

• 16⁵/₈ in. W x 24¹/₄ in. D x 31³/₄ in. H
• 8.5 A, 6.9 kW

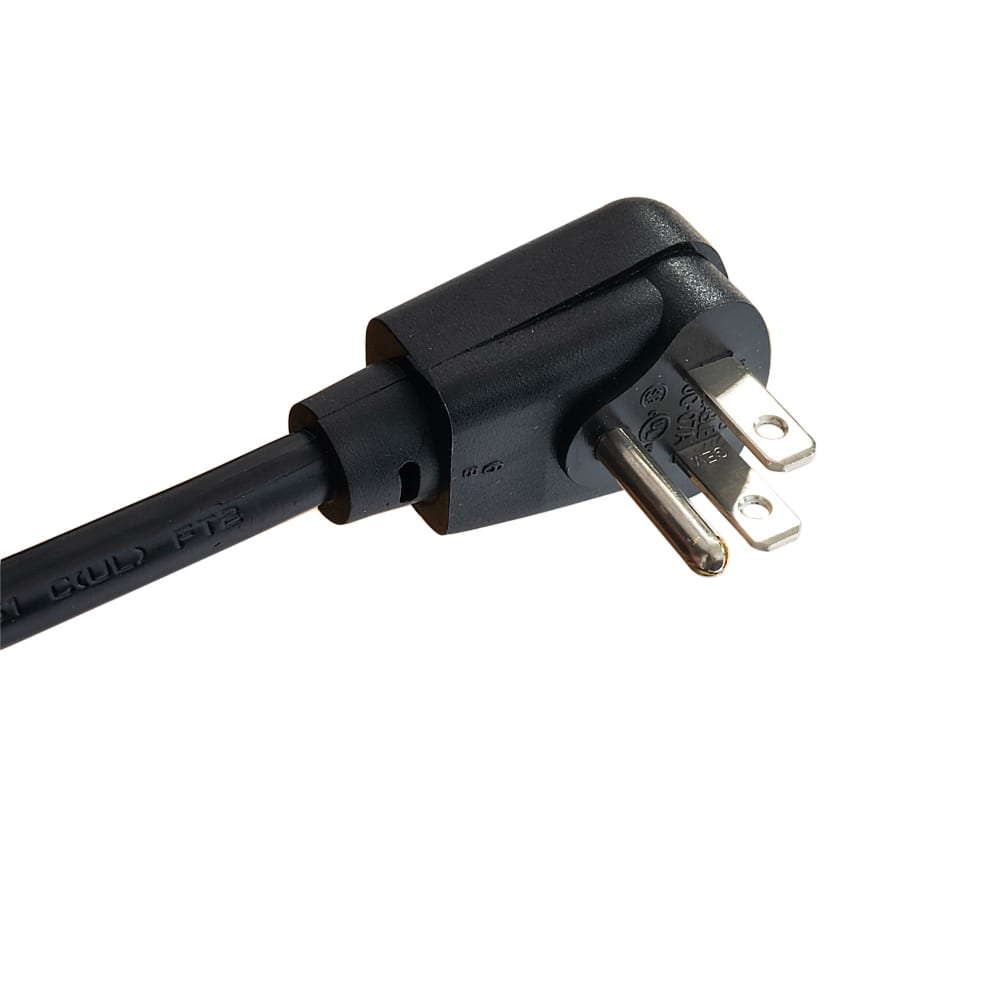

• 115 V/60 Hz/ 1 ph with 6-ft. cord and NEMA 5-15P plug
• ³⁄₄ in. MPT drain connection
• ¹⁄₂ in. FPT supply connection

Product Features

From The Manufacturer

Opti-Serve Ice Maker/Water Dispenser, Cubelet-Style, air-cooled, self-contained condenser, production capacity up to 257 lb/24 hours at 70°/50° (196 lb AHRI certified at 90°/70°), 10 lb built-in storage capacity, counter model, touchless LED sensor, 10-1/4" cup clearance, protected with H-GUARD Plus Antimicrobial Agent, R-404A refrigerant, 4" legs, 115v/60/1-ph, 8.5 amps, cord & NEMA 5-15P, NSF, UL, ADA Compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

3-year Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki DCM-271BAH-OS Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Optional Accessories

Certifications
