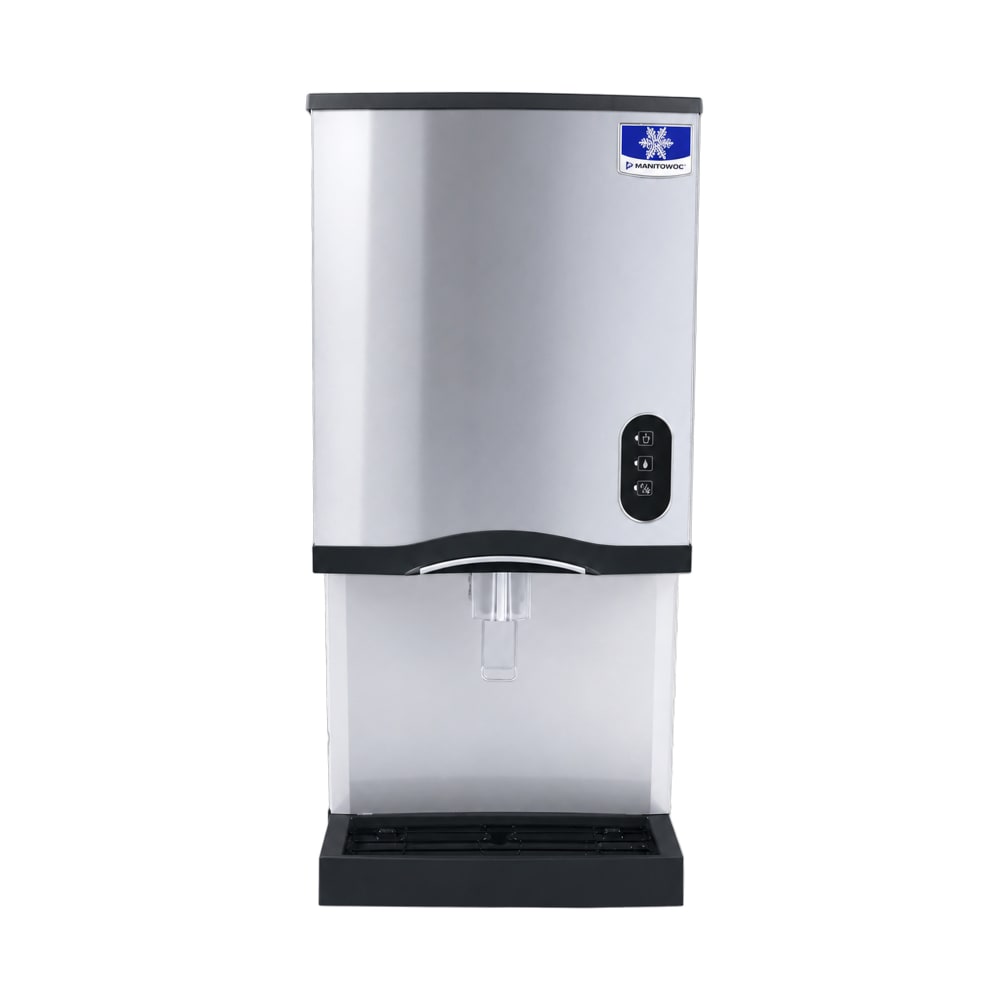

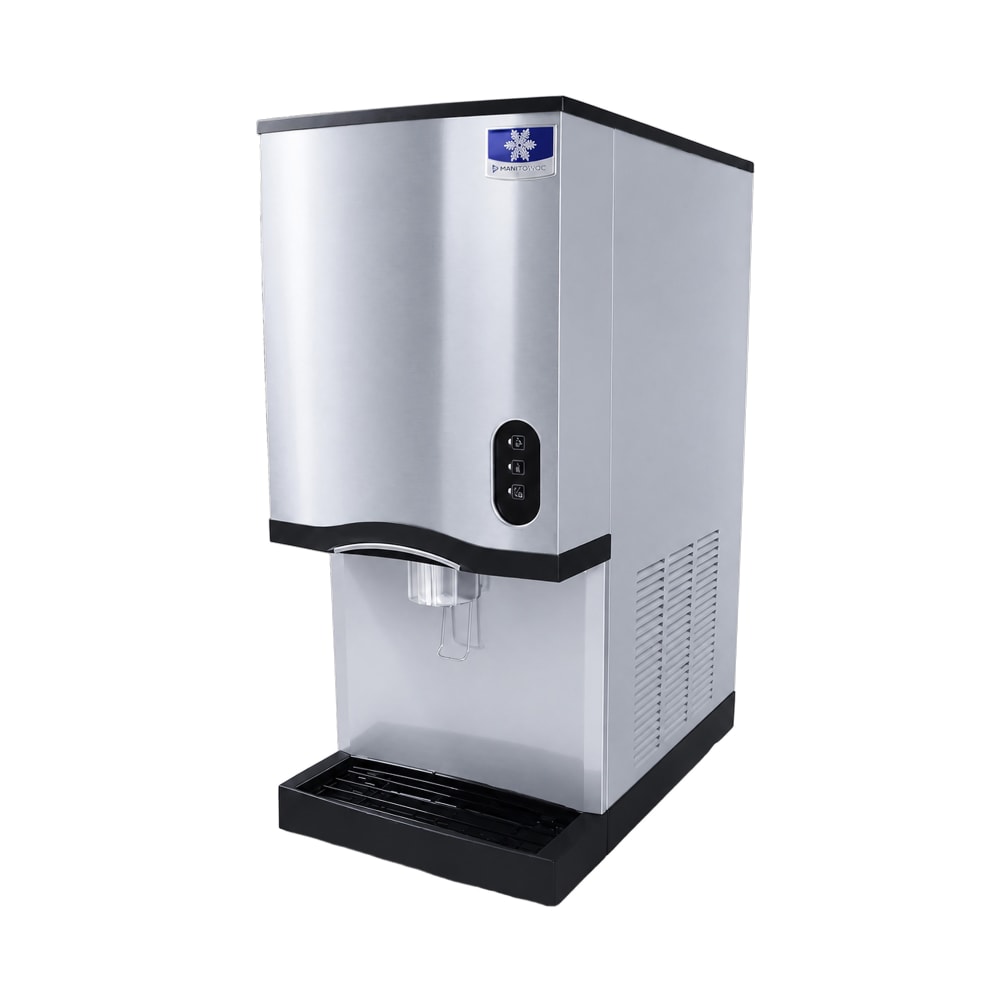

Manitowoc Ice CNF0201A-L Description

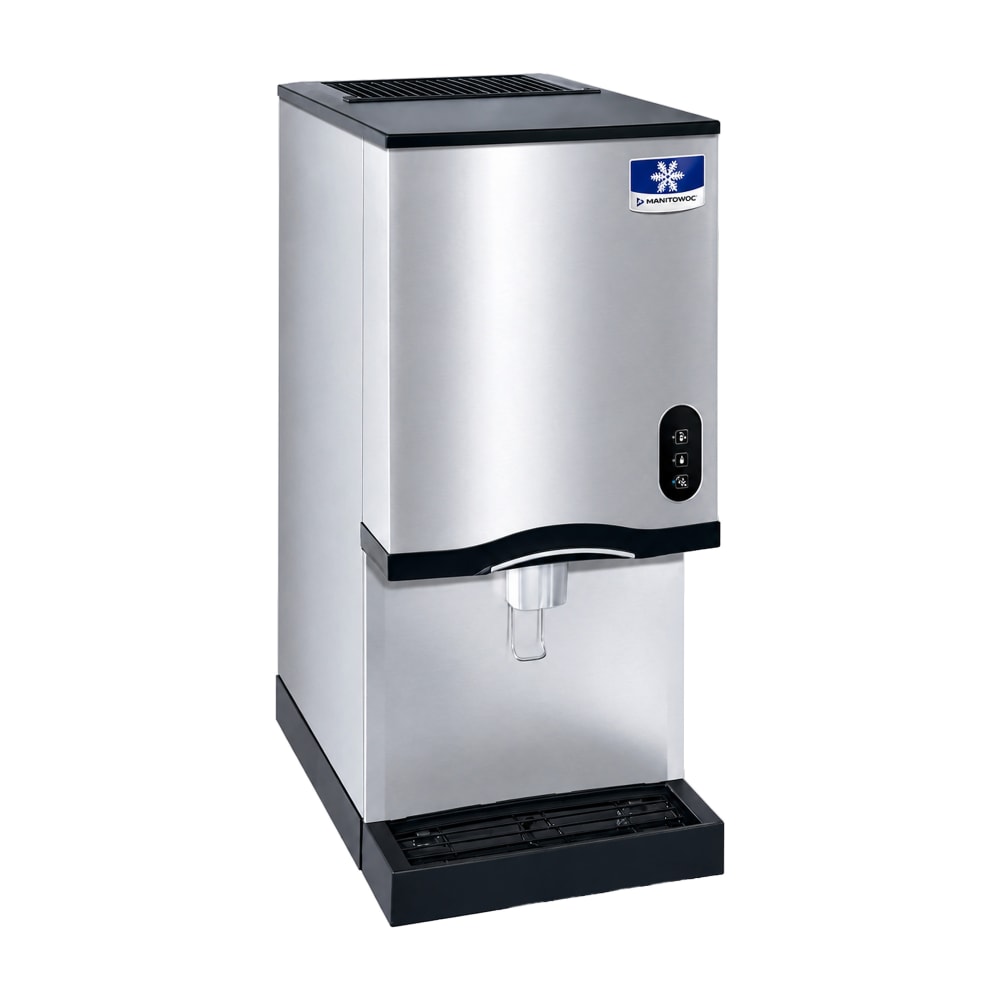

The Manitowoc CNF-0201A-L ice maker and dispenser produces as much as 315 pounds of nugget ice. The 85-percent ice-to-water consistency cools drinks quickly, and this ice type takes on the flavor of the beverage it is served with. A stainless steel DuraTech™ front panel protects the unit from scratches and stains. In addition to countertop dispensing for foodservice, the unit is a great addition to healthcare operations like long-term care facilities and hospitals with its quiet operation. The Manitowoc CNF-0201A-L ice dispenser has a large drain pan that prevents ice from falling on the floor and creating a mess.
Product Details
- Produces as much as 315 lbs. of ice per day
- 10-lb. storage capacity

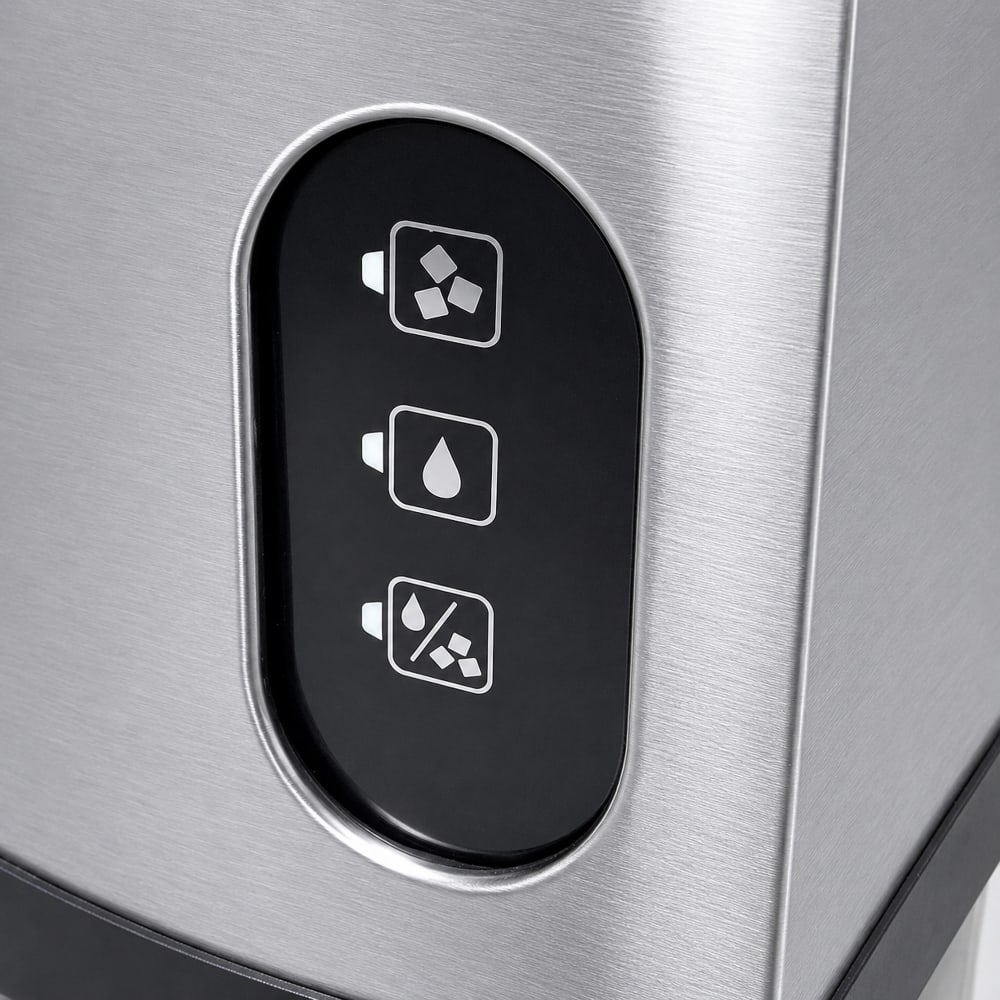

- Three dispense settings: ice only, water only, and ice and water together
- Nugget ice has an 85-percent ice-to-water ratio

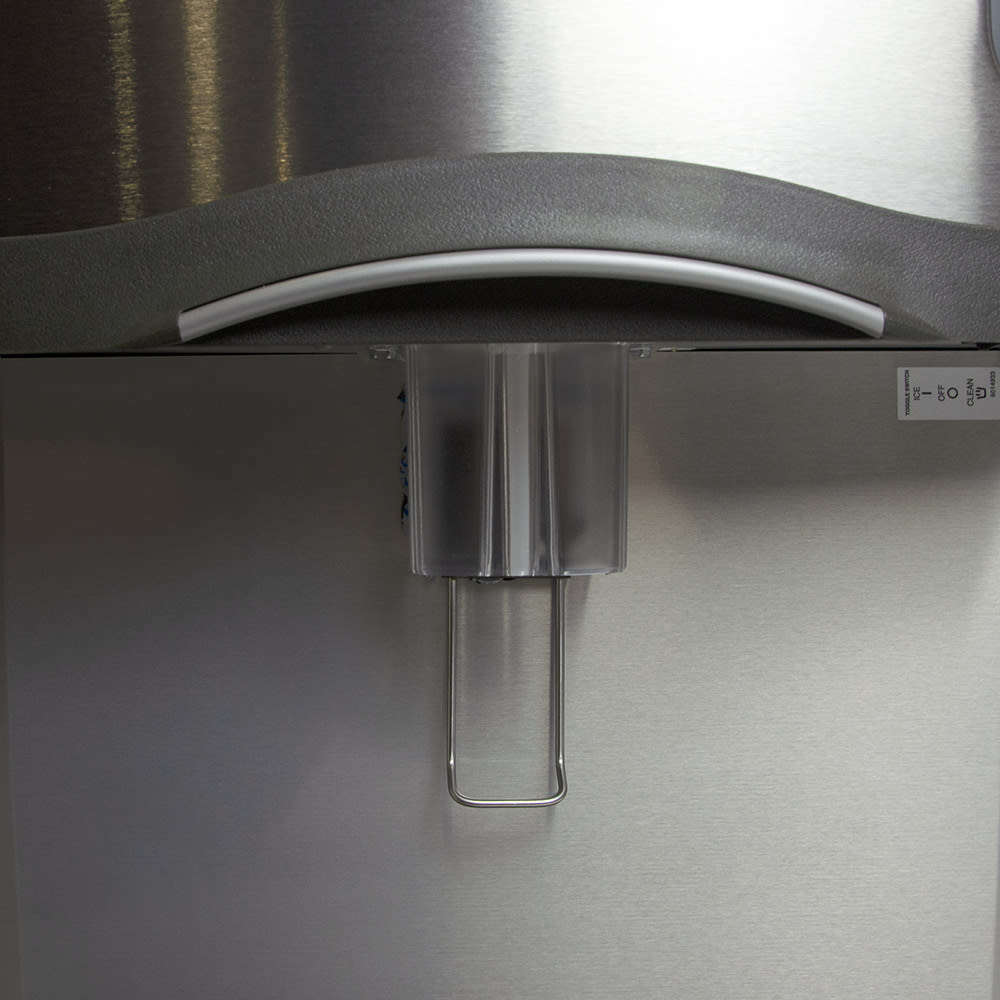

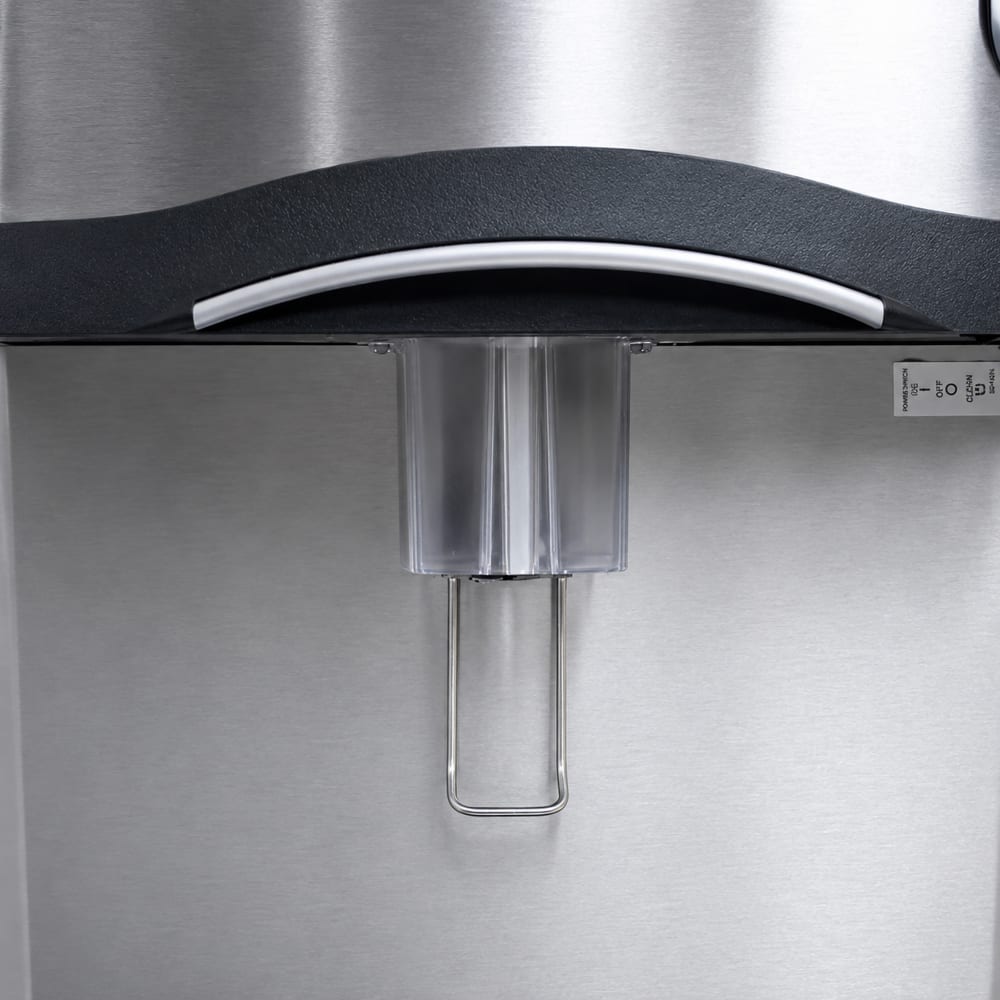

- Dispenses ice with an activation lever
- Dispensing opening is 101⁄2-in. high from the bottom grate to the chute, filling cups and small pitchers
- Blue LED light in dispensing area for low-light spaces
- DuraTech stainless steel front panel resists rust

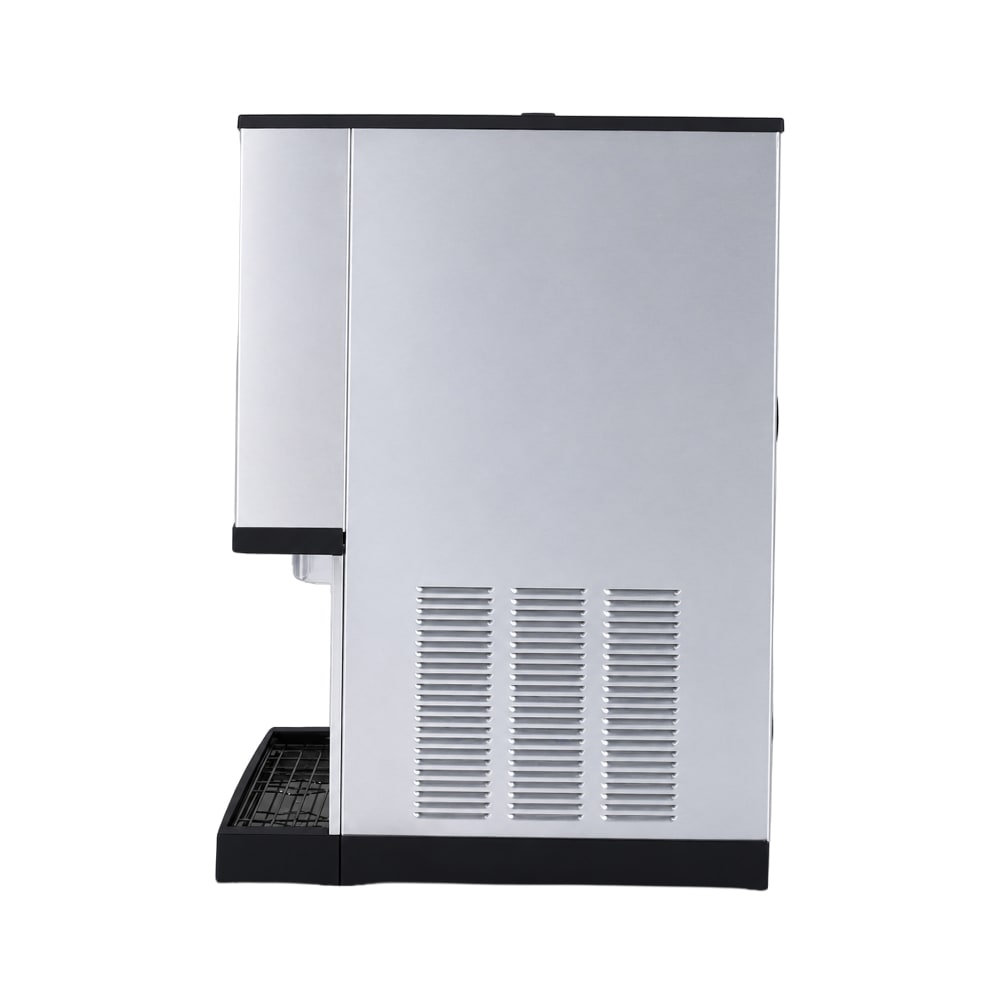

- Large drain pan collects ice that has spilled
- R404A refrigerant maintains cool temperatures
- Ambient temperature range for operation: 45-110 degrees F
- Water temperature range for operation: 45-90 degrees F
- 2,300 BTU
- 10.3 A, 6.69 kW, 1⁄3 HP

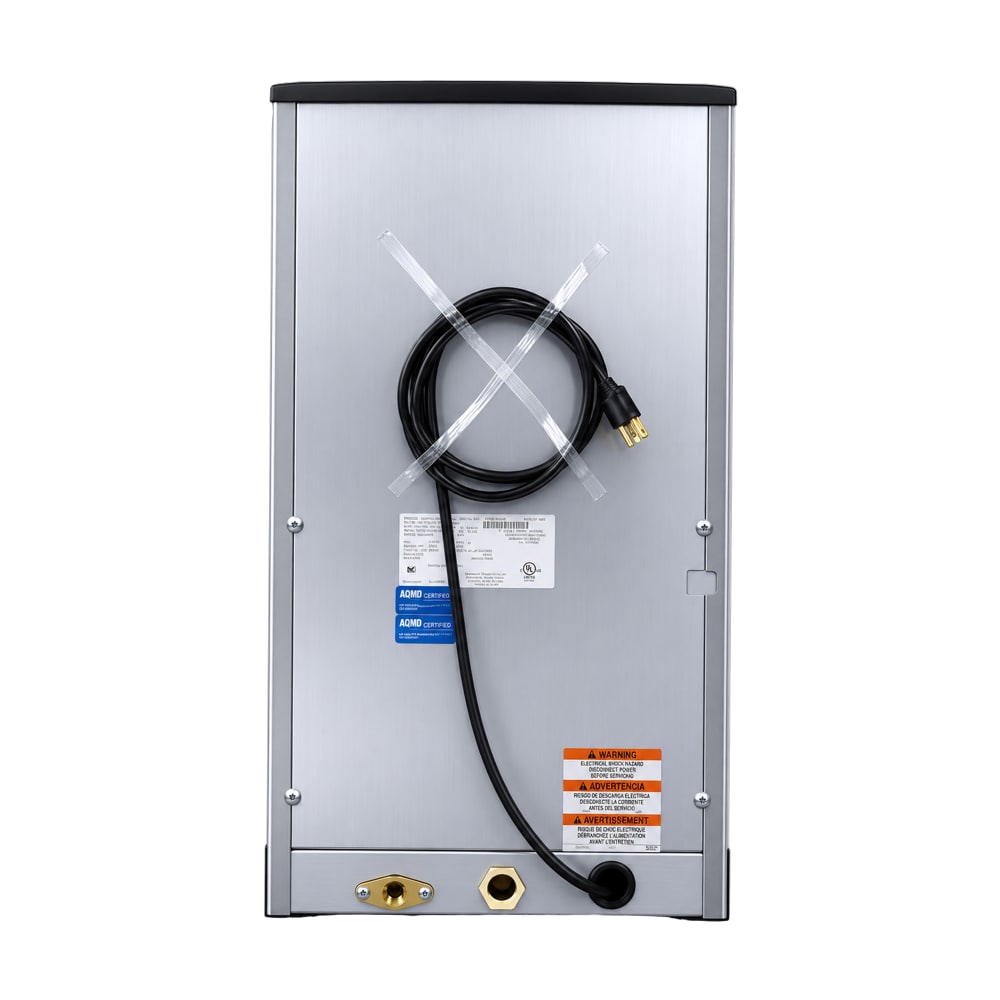

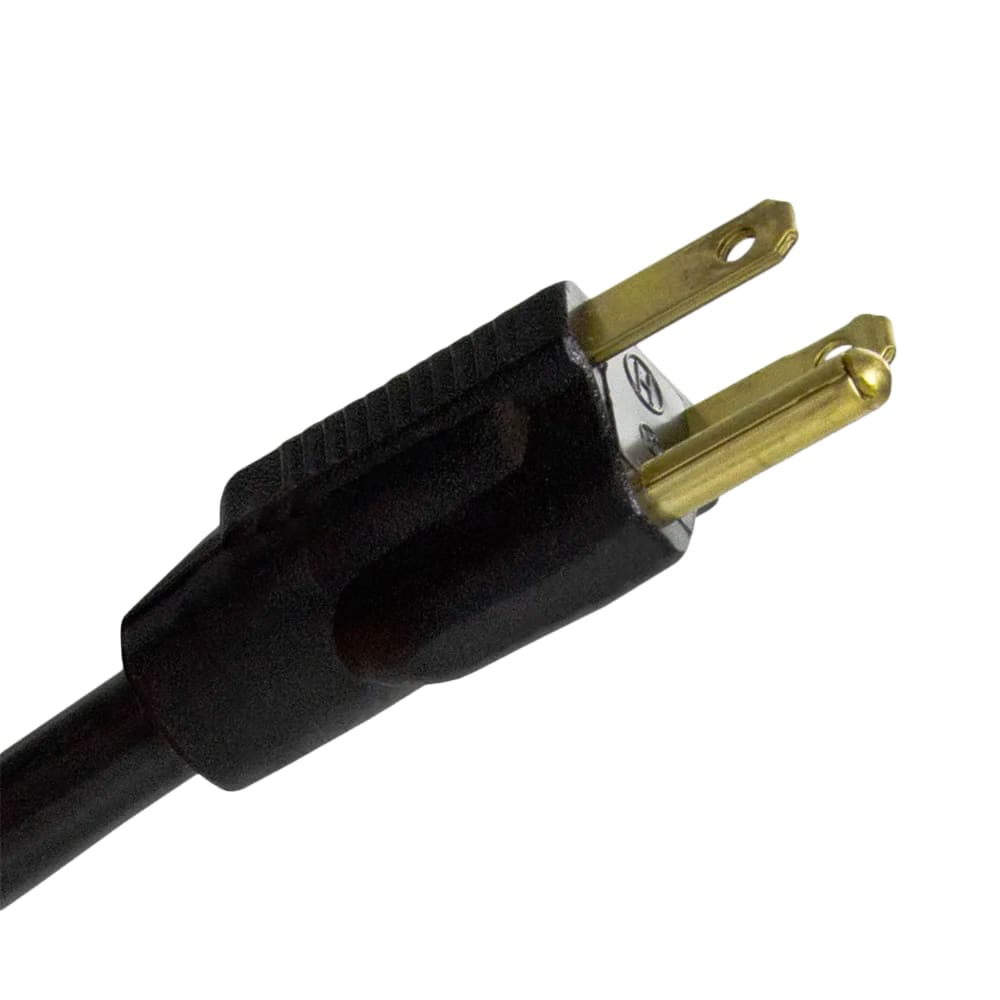

- 115 V/60 Hz/1 ph, 6-ft. power cord with a NEMA 5-15P plug
- Overall dimensions: 16.25 in. W x 24 in. D x 35 in. H
- CE approved; cULus listed; NSF certified
For additional information on ice machines, read our commercial ice machine buyers' guide.
Product Features
Ice Maker & Water Dispenser, 16-1/2"W x 24"D x 35"H, countertop, nugget style, air-cooled, self-contained condenser, production capacity up to 315 lb/24 hours at 70°/50° (222 lb at 90°/70°), 10 lb bin storage capacity, lever activated dispensing, Duratech™ exterior, R404A, 1/3 HP, NSF, cULus
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Manitowoc Ice CNF0201A-L Specifications
PDF Spec Sheet| Manufacturer | Manitowoc Ice |
| Voltage | 115 |
| Hertz | 60 |
| Product | Ice Dispenser |
| Compressor Type | Air Cooled |
| Height (in) | 35 |
| Serving Vessel | Cup |
| Bin Capacity (lb) | 10 |
| Depth (in) | 24 |
| Width (in) | 16.25 |
| Warranty | 2-year Parts & Labor; 5-year Compressor |
| Product Type | Ice Makers & Bins |
| Operation | Self Contained |
| Phase | 1 |
| Ice Type | Nugget |
| 24 Hr. Production (lbs) | 315 |
| Dispenser Type | Lever |
| Special Features | Duratech™ |
| Installation Type | Countertop |
| Dispenses | Ice & Water |
| Bin Capacity Range (lbs) | 1 - 49 |
| Weight | 187.00 |
