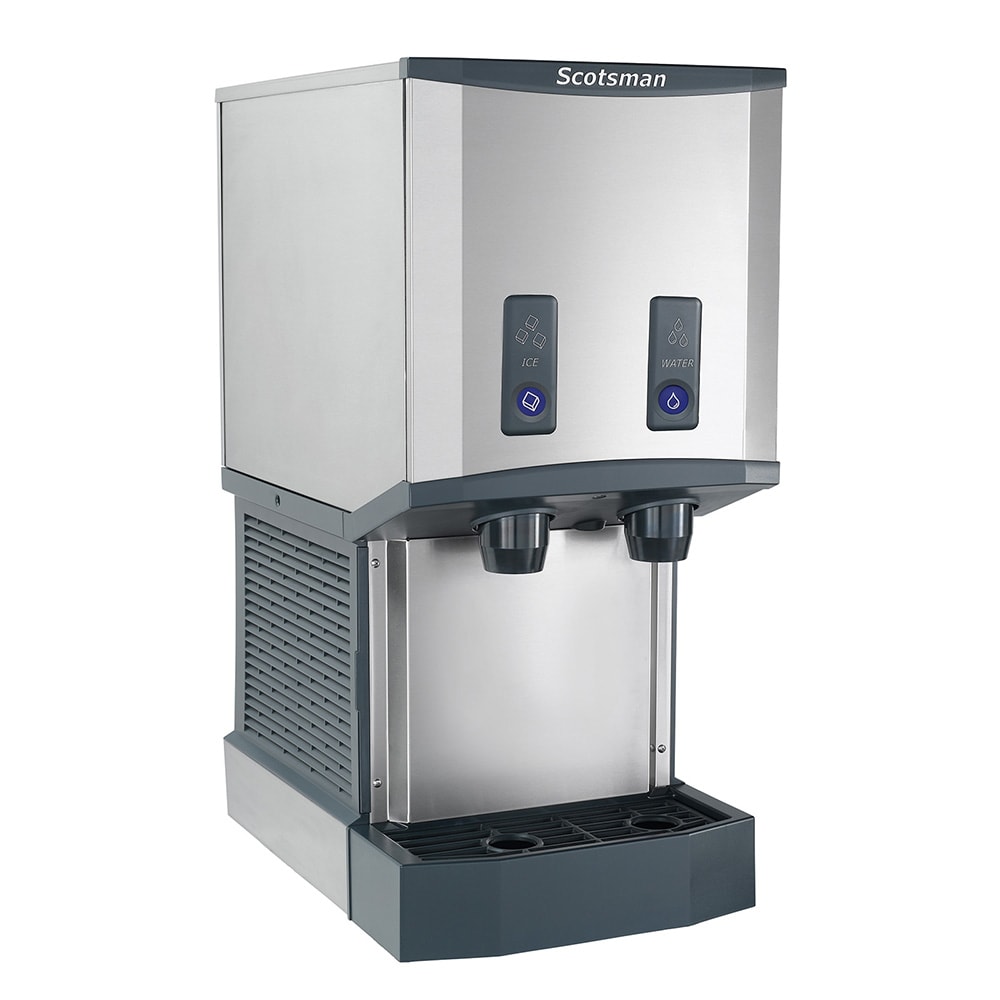

Scotsman HID312ABX-1 260 lb Countertop Water & Nugget Ice Dispenser - 12 lb Storage, Cup Fill, Push-Button Dispense, 115v
Typically ships in 4 - 8 Business Days
Retail Price: $14,345.00
$5,881.00 /Each
Selected Dispenser Type: Push Button
| Push Button |
| Sensor |
Scotsman HID312ABX-1 Description
Durable enough for everyday use, the Scotsman HID312ABX-1 ice and water dispenser's auger, evaporator, and exterior panels are made of stainless steel—a rust- and corrosion-resistant metal that can be wiped clean as needed. At the push of a button, it dispenses water and chewable, absorbent 3⁄4-inch by 5⁄16-inch by 3⁄8-inch nugget ice; this ice is gathered and stored in its 12-pound storage bin. Its buttons and other key components are treated with AgION™ antimicrobial agent to inhibit bacterial, mildew, and fungal growth. To optimize sanitation, its bin, air filter, spouts, sink, and grill can be removed to enable a more thorough cleaning.
In ideal conditions, the Scotsman HID312ABX-1 ice dispenser produces a maximum of 260 pounds of ice a day—suitable for low-volume operations. It features a SmoothStream™ dispensing system to maintain a clean working area and reduce splashes during water dispensing. To minimize the risk of contamination, its refrigeration system is sealed. This unit is air cooled and operates with R290 refrigerant. To simplify operation, its unit-specific QR code retrieves service manuals, and its LED diagnostic lights communicate maintenance needs.
- Part of the Meridian® series
- For countertop placement
- 260-lb. maximum daily ice production
- 225-lb. AHRI-certified daily ice production
- 12-lb.-capacity storage bin

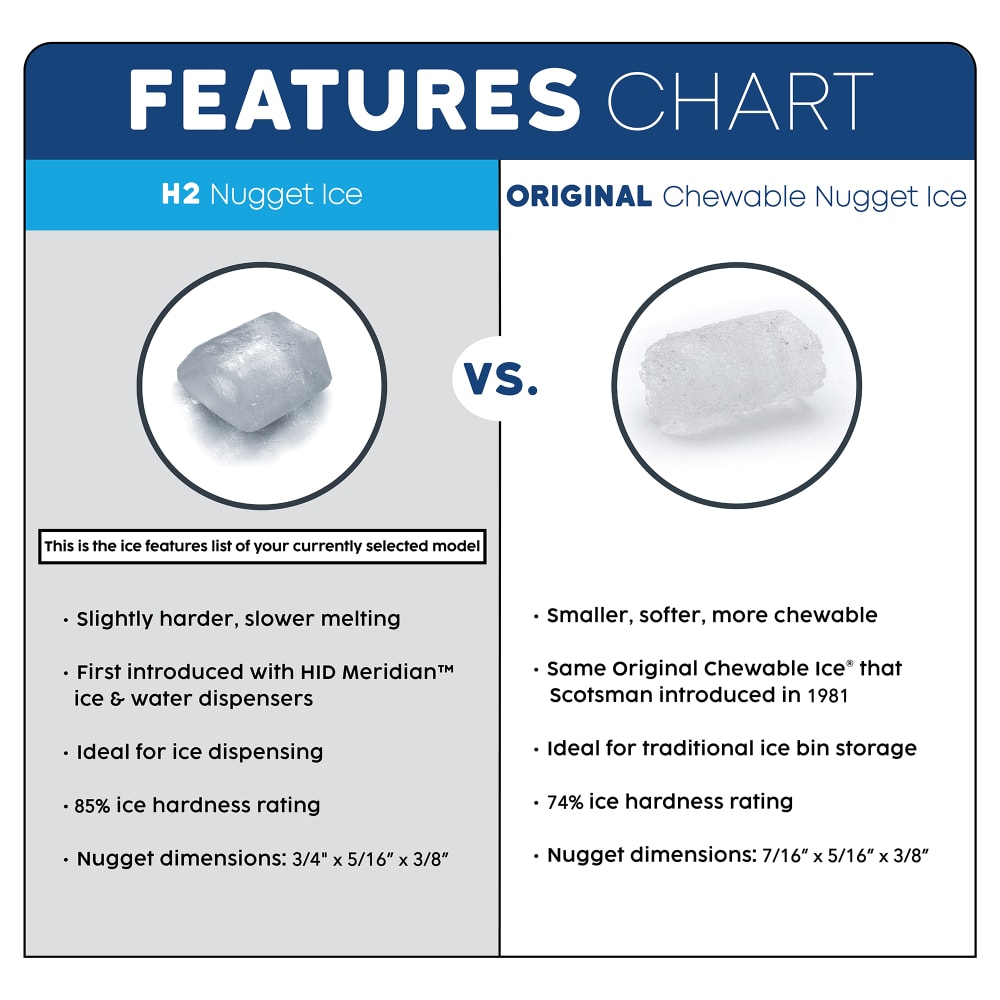

- Produces chewable H2 nugget ice
- Ice dimensions: 3⁄4 in. x 5⁄16 in. x 3⁄8 in.

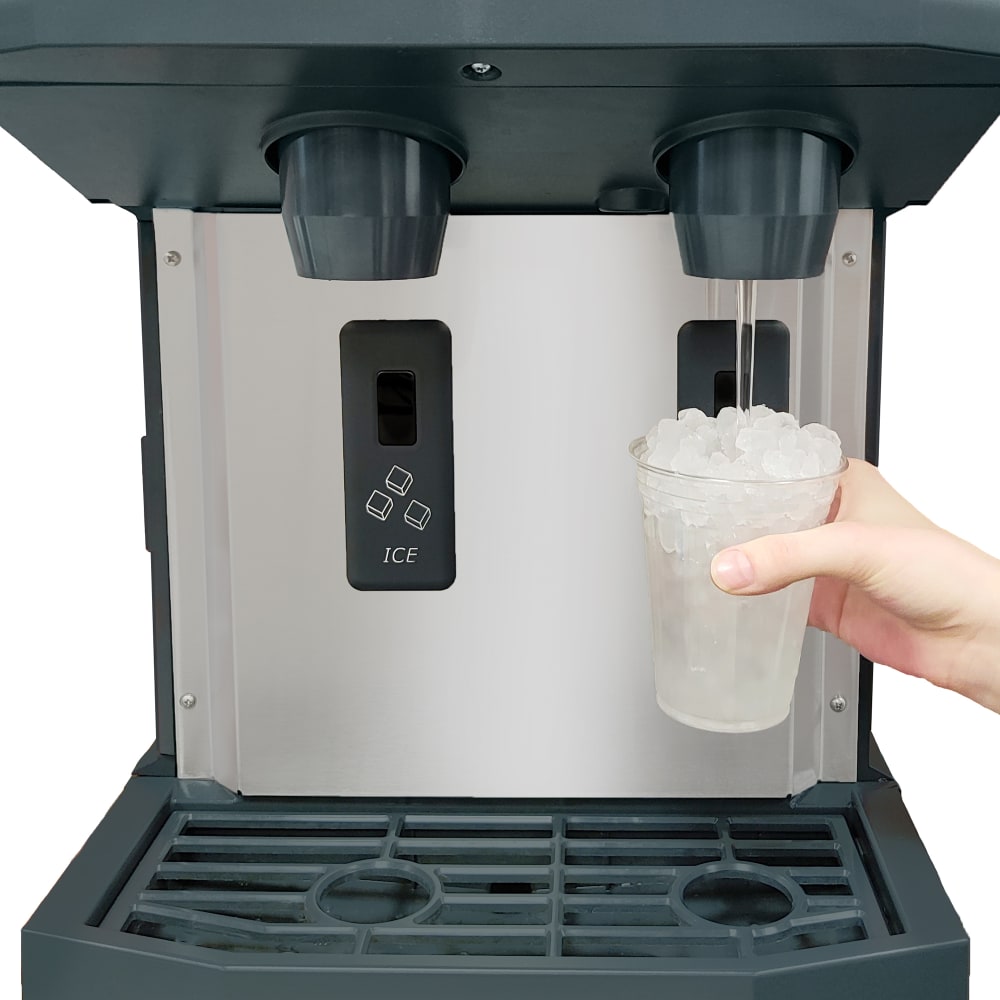

- SmoothStream water dispensing minimizes splashing
- 11-in. dispensing area
- Enlarged, 8⁄10-in. sink drain
- Recessed utility chase
- Sealed, maintenance-free bearings
- Push-button water and ice dispensing
- Buttons and key components treated with AgION antimicrobial agent
- Bin, air filter, sink, spouts, and grill are removable for thorough cleaning
- Air-cooled refrigeration system is sealed to reduce contamination risks
- Auger, evaporator, and exterior panels are made of durable stainless steel
- Cools with R290 refrigerant
- Unit-specific QR code
- LED diagnostic lights and USB drive streamline service and updates
- 3,200-BTU heat transfer capacity
- Operating ambient air temperature: 50-100 degrees F
- Operating incoming water temperature: 40-100 degrees F
- Operating incoming water pressure: 20-80 PSI
- Overall: 16 1⁄4 in. W x 24 19⁄50 in. D x 35 in. H
- 15 A, 4.9 kW
- 115 V/60 Hz/1 ph, 7 1⁄2-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman HID312ABX-1 within the 48 contiguous states.
From The Manufacturer
Meridian™ Ice & Water Dispenser, push-button dispensing, H2 Nugget Ice, air-cooled, production capacity up to 260 lb/24 hours at 70°/50° (225 lb AHRI certified at 90°/70°), 12 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless steel evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless steel exterior, AgION™ antimicrobial protection, R290 refrigerant, includes 7.5’ power cord with NEMA 5-15P plug, 115V/60/1-ph, 7.0 amps, cULus, NSF
Watch a video about this product
Scotsman HID312ABX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 260 |
| Also Known As | HID312AB-1 |
| Amps | 7 |
| Bin Capacity (lb) | 12 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.38 |
| Dispenser Type | Push Button |
| Dispenses | Ice & Water |
| Height (in) | 35 |
| Hertz | 60 |
| Ice Type | Nugget |
| Installation Type | Countertop |
| NEMA | 5-15P |
| Operation | Self Contained |
| Phase | 1 |
| Product | Ice Dispensers |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Meridian™ |
| Serving Vessel | Cup |
| Special Features | H2 Harder Nugget Ice |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 16.25 |
| Weight | 183.00 |
