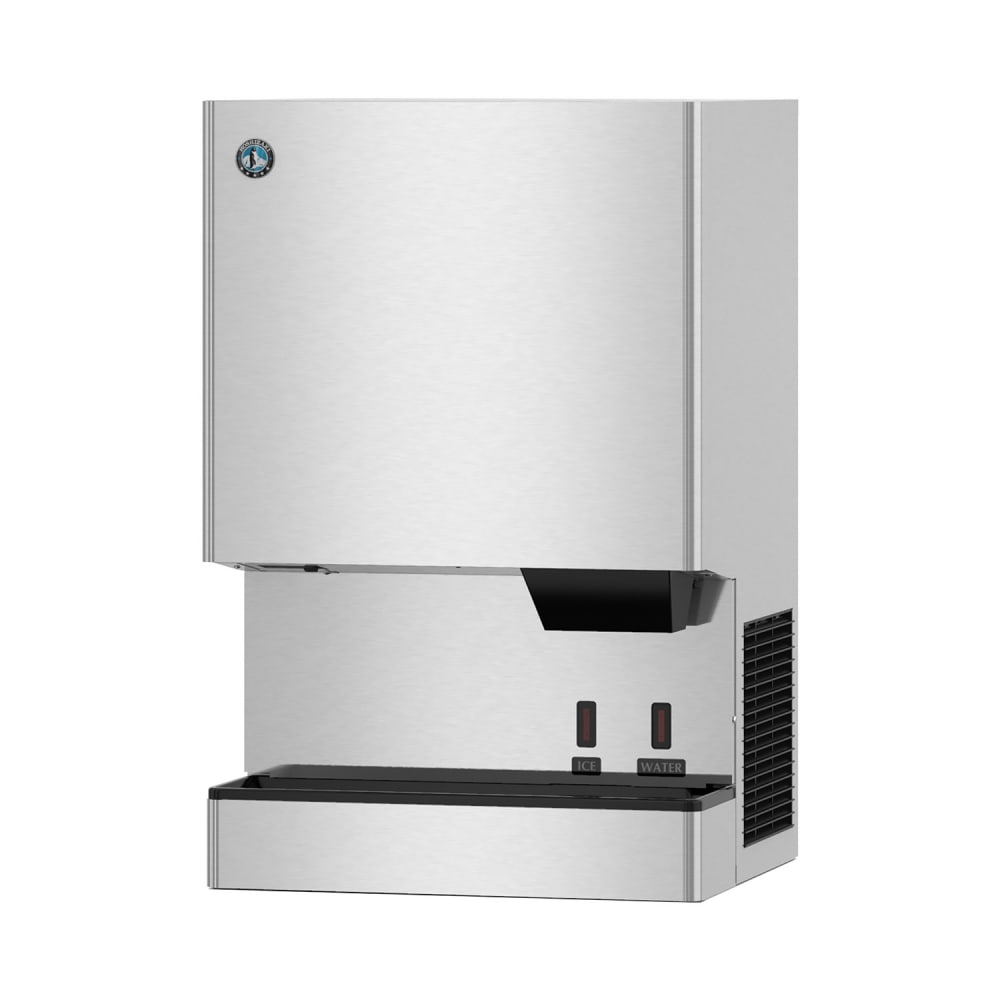

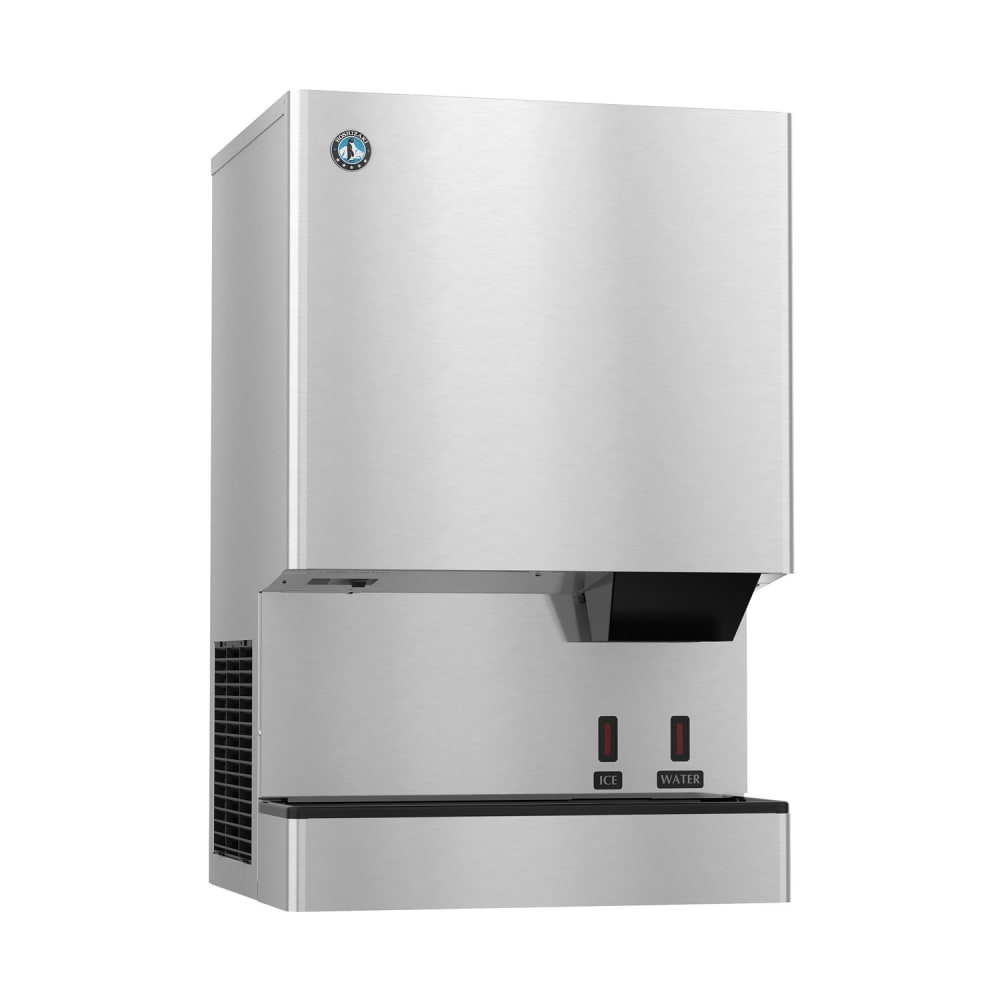

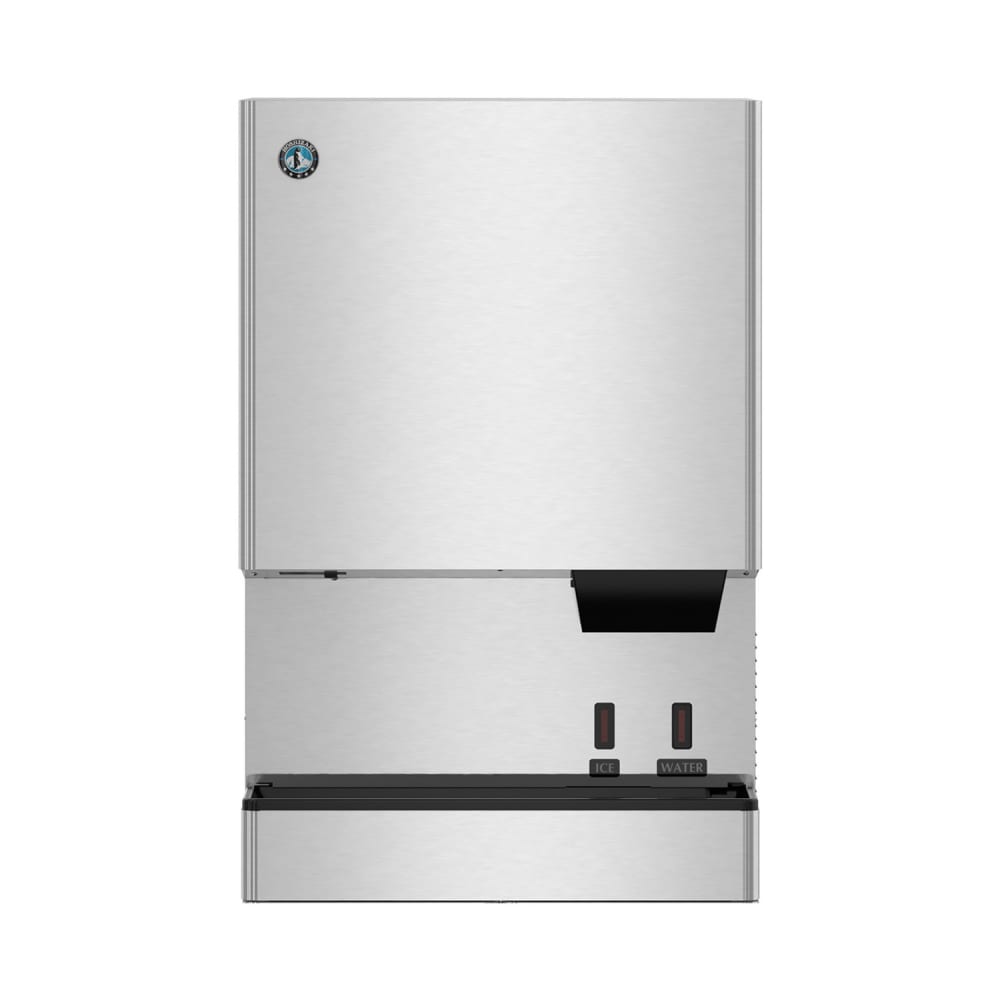

Hoshizaki DCM-300BAH-OS 321 lb Countertop Water & Nugget Ice Dispenser - 40 lb Storage, Cup Fill, 115v

With its stainless steel bin, auger, and exterior, the Hoshizaki DCM-300BAH-OS countertop ice and water dispenser is durable and corrosion resistant. It produces nugget ice that is popular among customers for its small size and soft chewability. Ensuring ice remains fresh and clean for maximum satisfaction, the tank flushes for two seconds every hour. For convenient, hands-free operation, water and ice are dispensed using an LED sensor

Product Details

• 321-lb. maximum daily ice production
• 232-lb. AHRI-certified daily ice production
• Stainless steel auger
• LED sensor controls ease operation
• 40-lb. bin capacity
• 2-sec. flush cycle cleans out dispenser every hour
• Stainless steel bin and exterior protects against scratches and rust
• Produces cubelet (nugget) ice
• Cubelet size: ¹⁄₂ in. x ³⁄₈ in. x ⁵⁄₈-in. outer edge x ¹⁄₄-in. inner edge
• Air-cooled system
• H-Guard Plus antimicrobial agent hinders bacteria growth
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSI
• Required clearances: 6 in. on sides, 6 in. on rear, 24 in. on top
• R-404A refrigerant
• 3,500-BTU heat transfer capacity

Dimensions & Utilities

• 26.03 in. W x 22¹⁄₂ in. D x 40.01 in. H
• 10.25 A, 6.84 kW
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Opti-Serve Ice Maker/Water Dispenser, Cubelet-Style, air-cooled, self-contained condenser, production capacity up to 321 lb/24 hours at 70°/50° (232 lb AHRI certified at 90°/70°), 40 lb built-in storage capacity, counter model, LED sensor operation, stainless steel bin & exterior, protected with H-GUARD Plus Antimicrobial Agent, R-404A refrigerant, 115v/60/1-ph, 10.25 amps, supplied without legs (optional stand sold separately), NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki DCM-300BAH-OS Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Optional Accessories

Certifications
