Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.

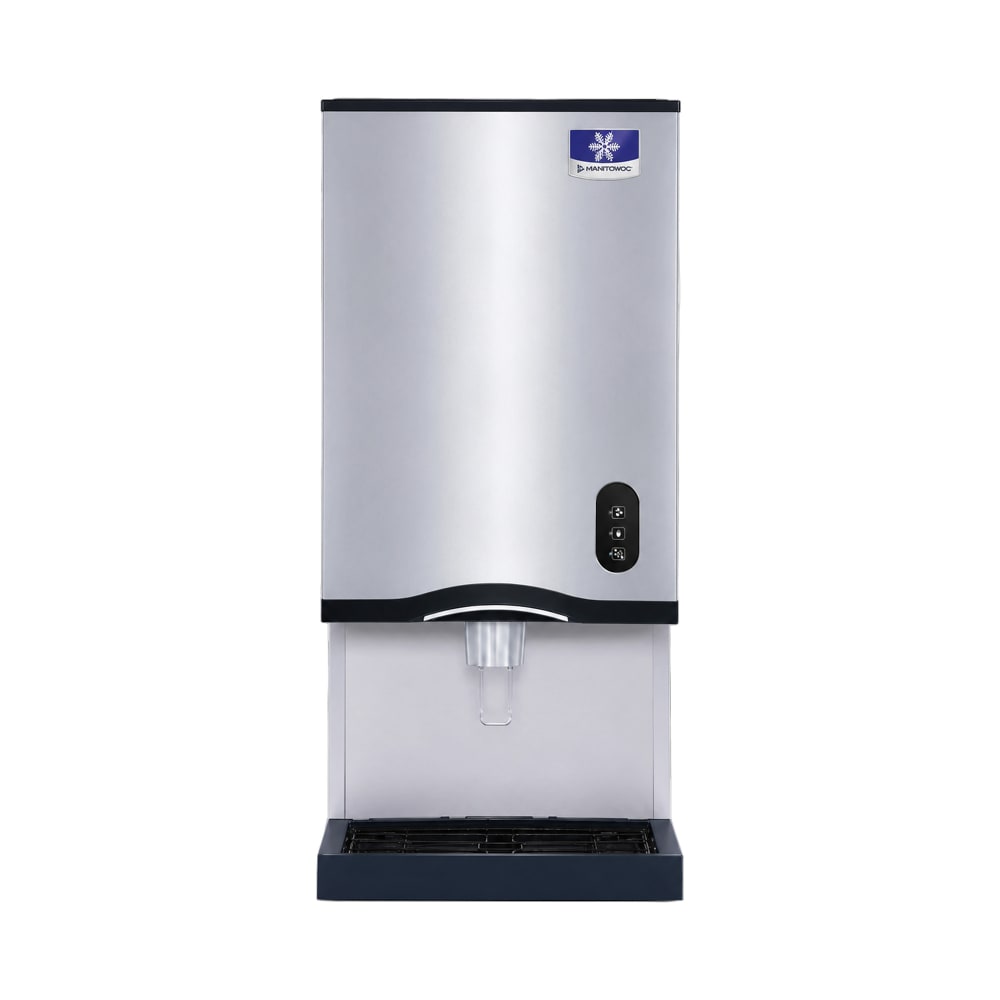

Manitowoc Ice CNF0202A-L 315 lb Countertop Water & Nugget Ice Dispenser - 20 lb Storage, Cup Fill, 115v
Typically ships in 4 - 8 Business Days
$6,530.00 /Each
Contact us for details!
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Manitowoc Ice CNF0202A-L Description

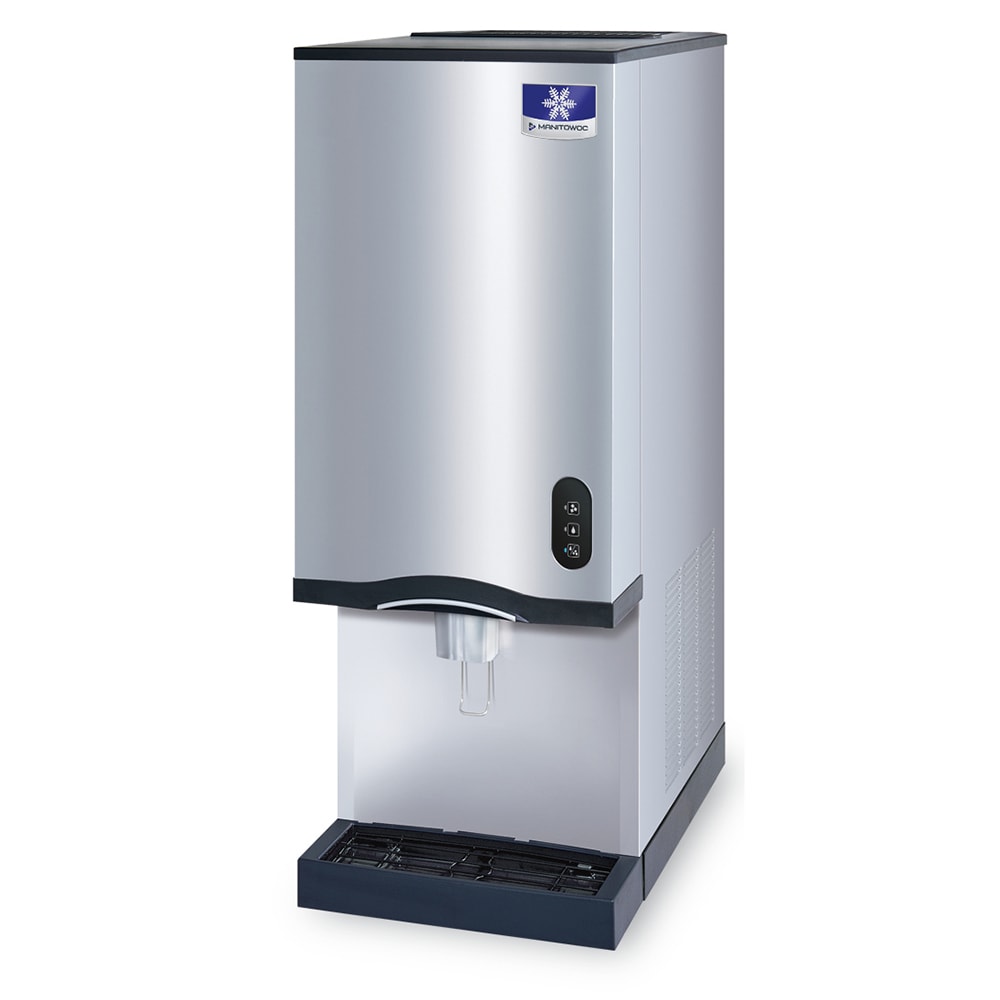

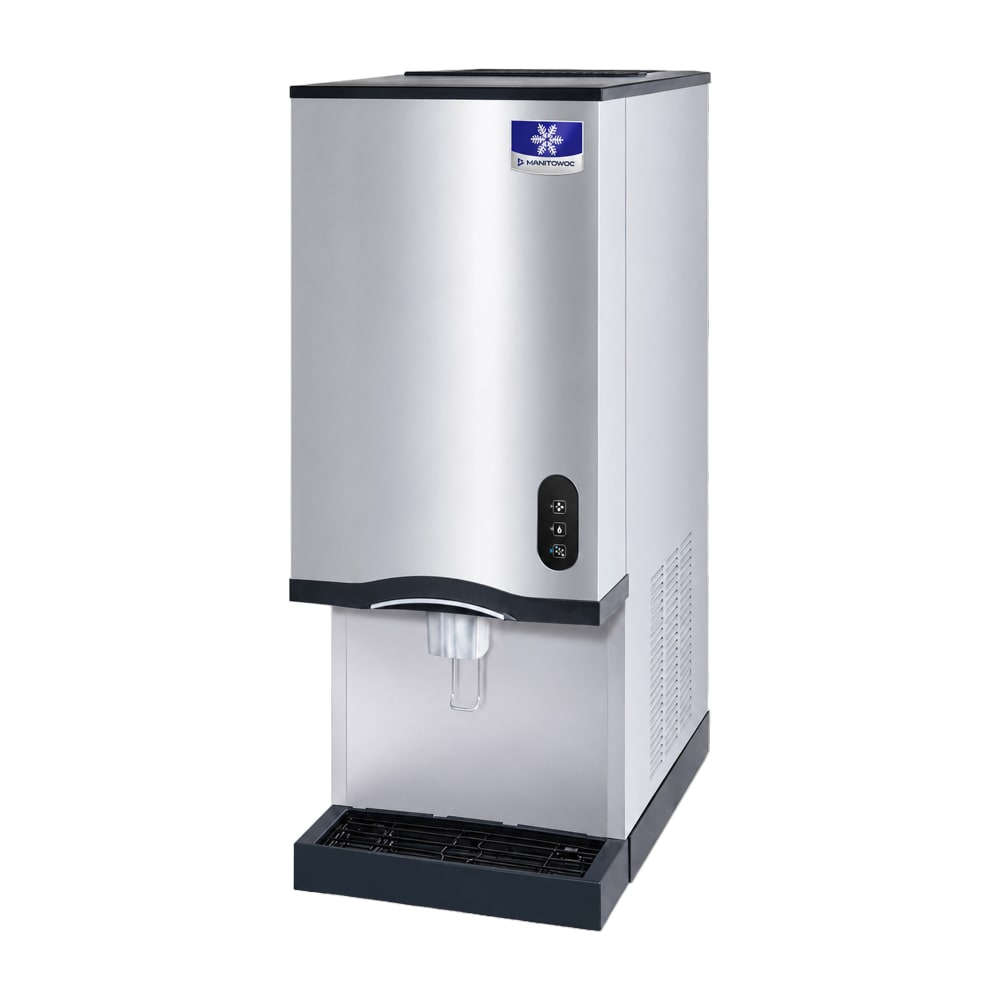

The Manitowoc Ice CNF0201A-L ice and water dispenser’s nugget ice is popular with customers because it is small and chewable. Blue LED lighting helps users find the dispensers in low-lit areas and ensures they can see what they’re doing. Keeping floors dry, a large tray under the dispenser catches any stray ice or water, while the DuraTech™ front panel resists hardwater discoloration and staining. To provide casual ice and water dispensing, this machine is a good fit in areas such as lobbies, cafeterias, or break rooms.
Product Details
- Produces small nugget ice
- DuraTech front panel
- Operation switch controls cleaning and power

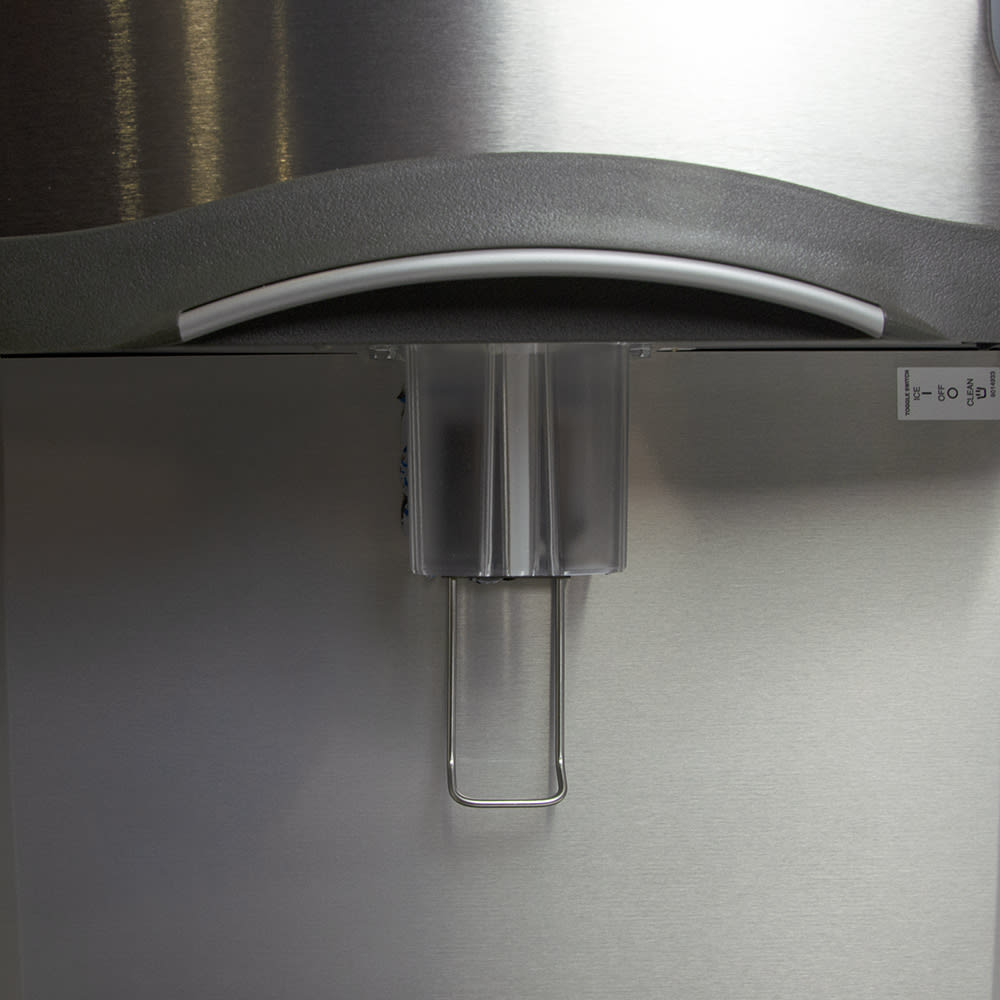

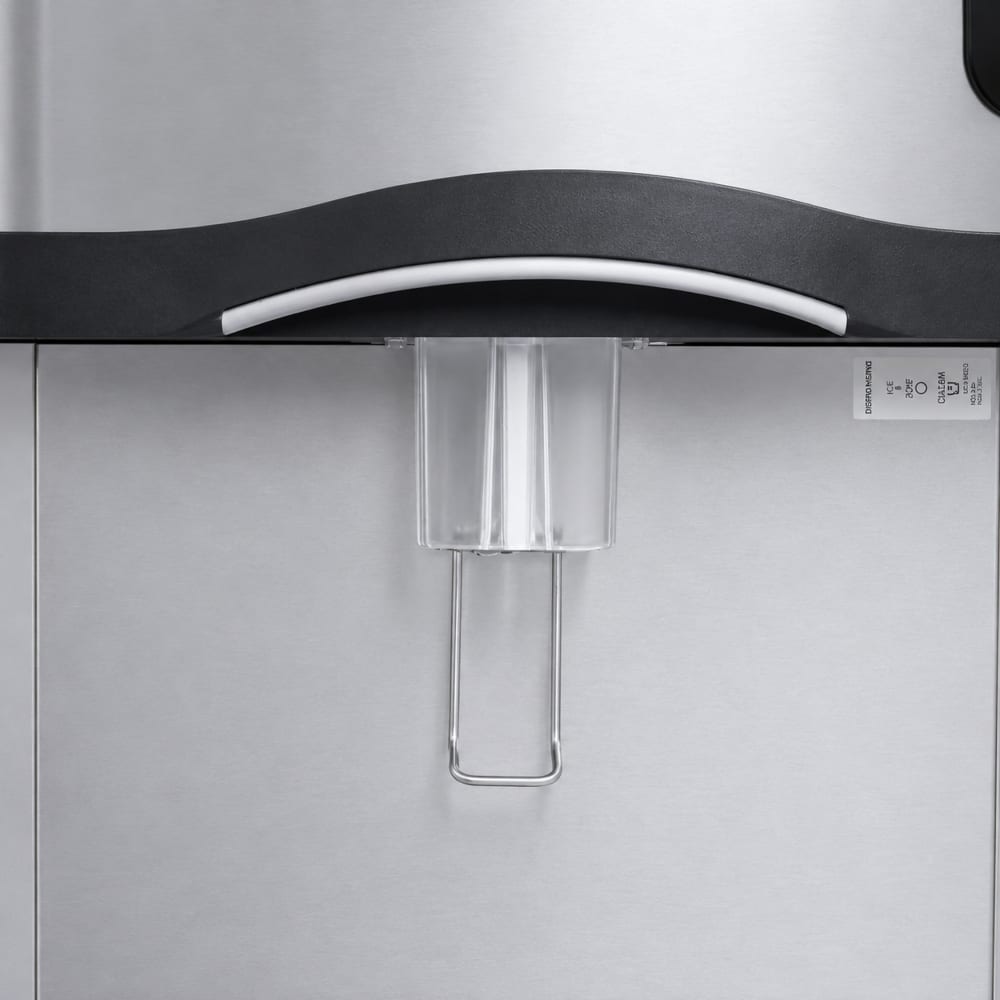

- Simple lever dispenser
- Produces 315 lb./24 hr. of ice at 70 degrees F air, 50 degrees F water
- Produces 222 lb./24 hr. of ice at 90 degrees F air, 70 degrees F water
- Large drain pan limits ice spillage
- Blue LED light for dispenser visibility in low ambient lighting

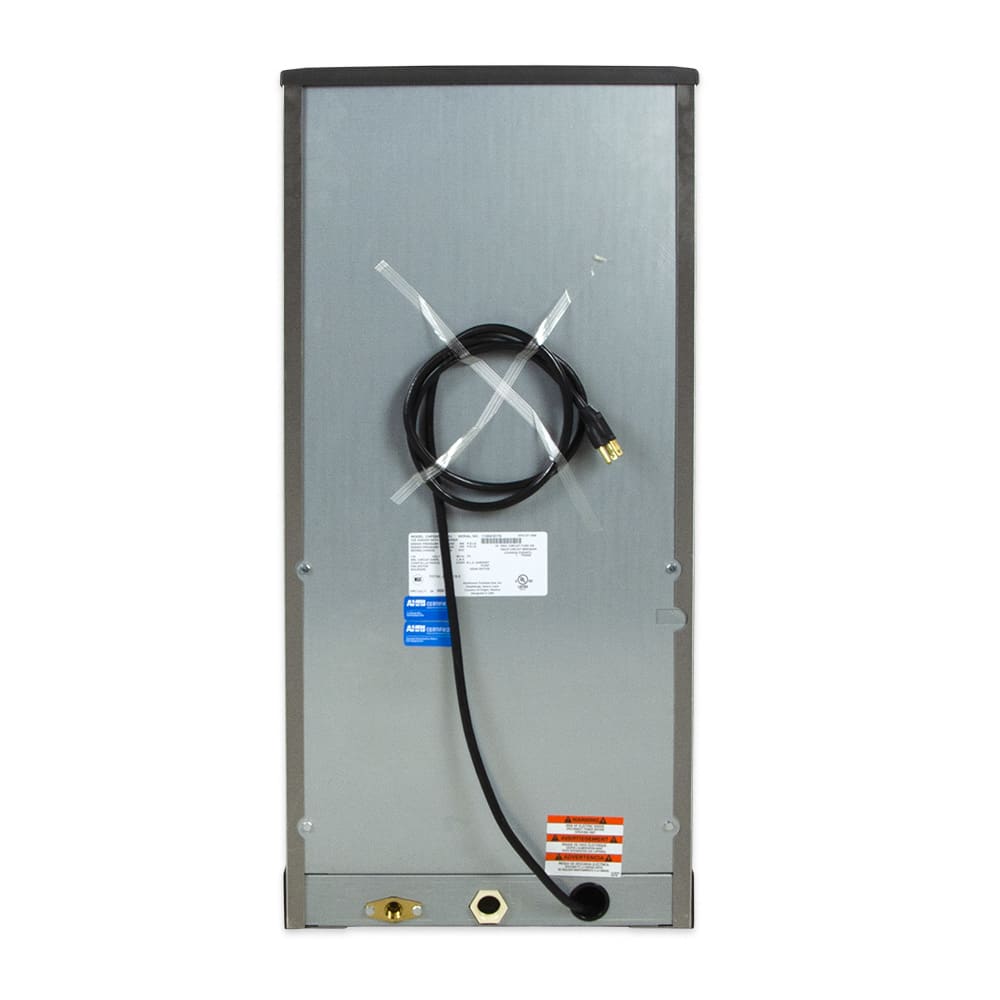

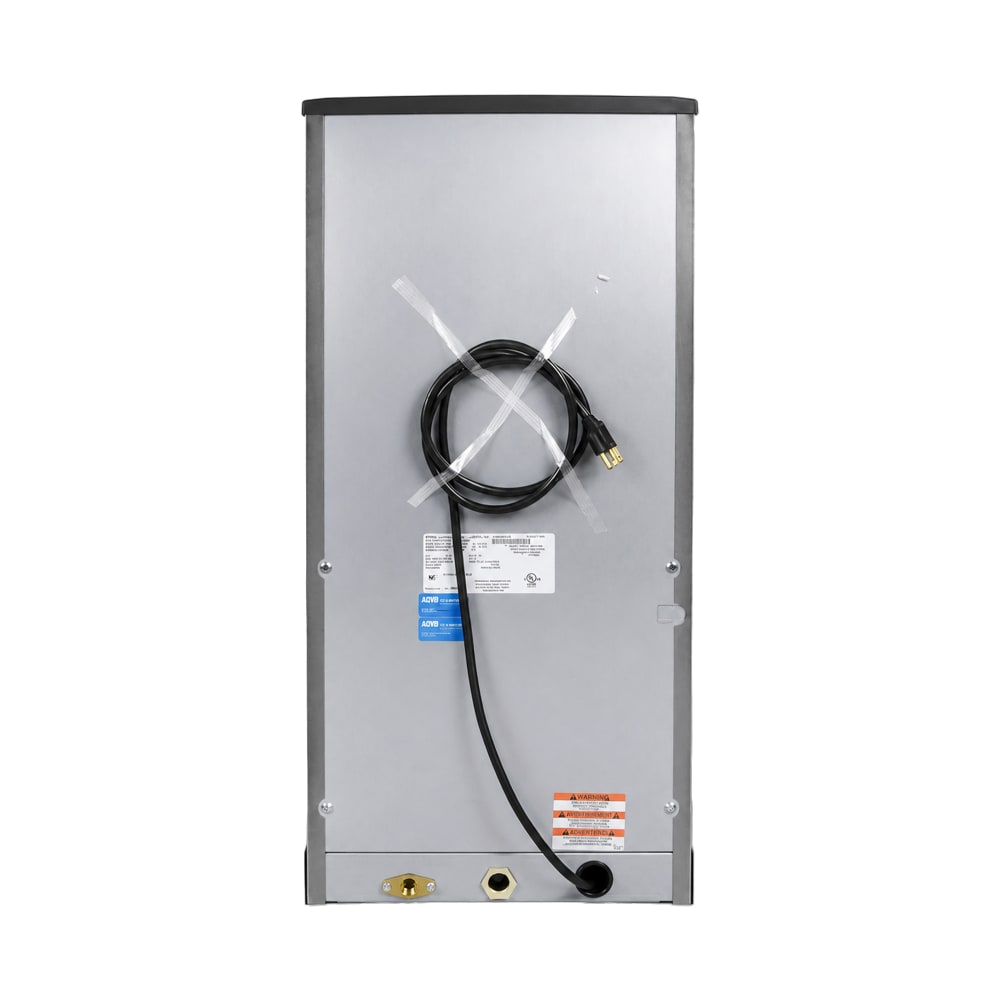

- Rear or underside drain connections do not jut out the sides
- Air-cooled system
- 20-lb. bin capacity
- Ideal ambient air temperature: 45-110 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Ideal clearances: 24 in. on top, 8 in. on sides, 5 in. on back
- R404A refrigerant
- 2,300-BTU heat transfer capacity
Dimensions & Utilities
- 16.25 in. W x 24 in. D x 42 in. H
- 10.3 A, 6.69 kW, 1⁄3 HP

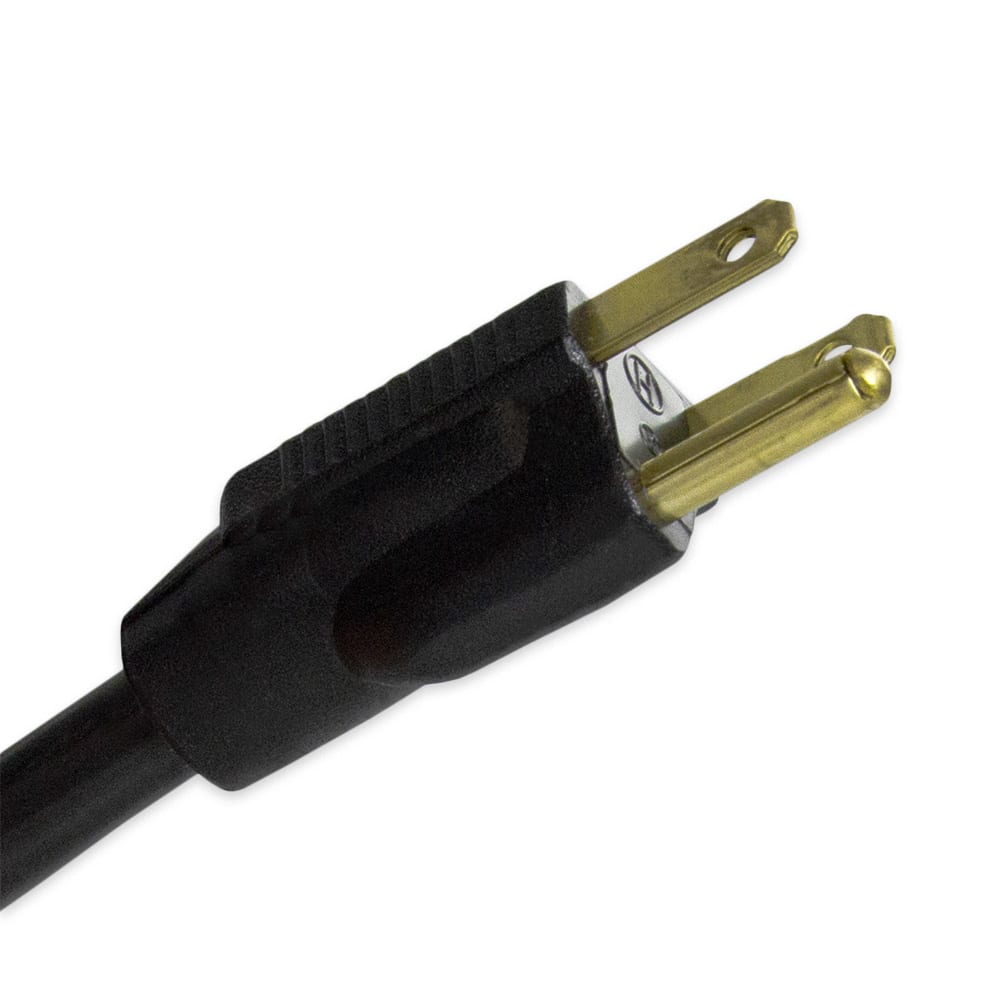

- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features

*Free shipping on Manitowoc Ice CNF0202A-L within the 48 contiguous states.
From The Manufacturer
Ice Maker & Water Dispenser, 16-1/4"W x 24"D x 42"H, countertop, nugget style, air-cooled, self-contained condenser, production capacity up to 315 lb/24 hours at 70°/50° (222 lb at 90°/70°), 20 lb bin storage capacity, lever activated dispensing, Duratech™ exterior, R404A, 1/3 HP, NSF, cULus
*Image may not depict product color, inclusions or accessories.

Manitowoc Ice CNF0202A-L Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Manitowoc Ice |
24 Hr. Production (lb) | 315 |
Amps | 10.3 |
Bin Capacity (lb) | 20 |
Compressor Type | Air Cooled |
Depth (in) | 24 |
Dispenser Type | Lever |
Dispenses | Ice & Water |
Height (in) | 42 |
Hertz | 60 |
Ice Type | Nugget |
Installation Type | Countertop |
NEMA | 5-15P |
Operation | Self Contained |
Phase | 1 |
Product | Ice Dispensers |
Product Type | Ice Makers & Bins |
Rating | Best |
Refrigerant | R404A |
Serving Vessel | Cup |
Special Features | Duratech™ |
Suggested Use | Commercial |
Suggested Use | Home/Office |
Voltage | 115 |
Warranty | 2-year, 5-year Compressor Parts |
Water Inlet (in) | 0.38 |
Width (in) | 16.25 |
Weight | 198.00 |

Important Prop 65 information for California residents.
- Manitowoc Ice RNS20
Manitowoc Ice CNF0202A-L Accessories
Compare to Similar Items
Attributes | ![]() Current Item: Manitowoc Ice CNF0202A-L 315 lb Countertop Water & Nugget Ice Dispenser - 20 lb Storage, Cup Fill, 115v |
![]() Hoshizaki DCM-300BAH-OS 321 lb Countertop Water & Nugget Ice Dispenser - 40 lb Storage, Cup Fill, 115v |
![]() Hoshizaki DCM-300BAH 321 lb Countertop Water & Nugget Ice Dispenser - 40 lb Storage, Cup Fill, 115v |
![]() Manitowoc Ice CNF-0202A 315 lb Countertop Water & Nugget Ice Dispenser - 20 lb Storage, Cup Fill, 115v |
---|---|---|---|---|
Customer Rating |
|
|
|
|
Price | $6,530.00 | $7,750.00 | $7,515.00 | $6,661.00 |
Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
Lead Time | Typically ships in 4 - 8 Business Days | IN STOCK: Ships in 1 Business Day | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day |
Installation Type | Countertop | Countertop | Countertop | Countertop |
Dispenses | Ice & Water | Ice & Water | Ice & Water | Ice & Water |
Dispenser Type | Lever | Sensor | Push Button | Sensor |
Bin Capacity (lb) | 20 | 40 | 40 | 20 |
Ice Type | Nugget | Nugget | Nugget | Nugget |
Serving Vessel | Cup | Cup | Cup | Cup |
Series | Opti-Serve | |||
Operation | Self Contained | Self Contained | Self Contained | Self Contained |
Special Features | Duratech™ | CleanCycle24™ | CleanCycle24™ | Duratech™ |
Rating | Best | Best | Best | Best |
Width (in) | 16.25 | 26 | 26 | 16.25 |
24 Hr. Production (lb) | 315 | 321 | 321 | 315 |
Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
Refrigerant | R404A | R404A | R404A | R404A |
Warranty | 2-year, 5-year Compressor Parts | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 2-year, 5-year Compressor Parts |
