TA Series - Roll-In Heated Cabinet

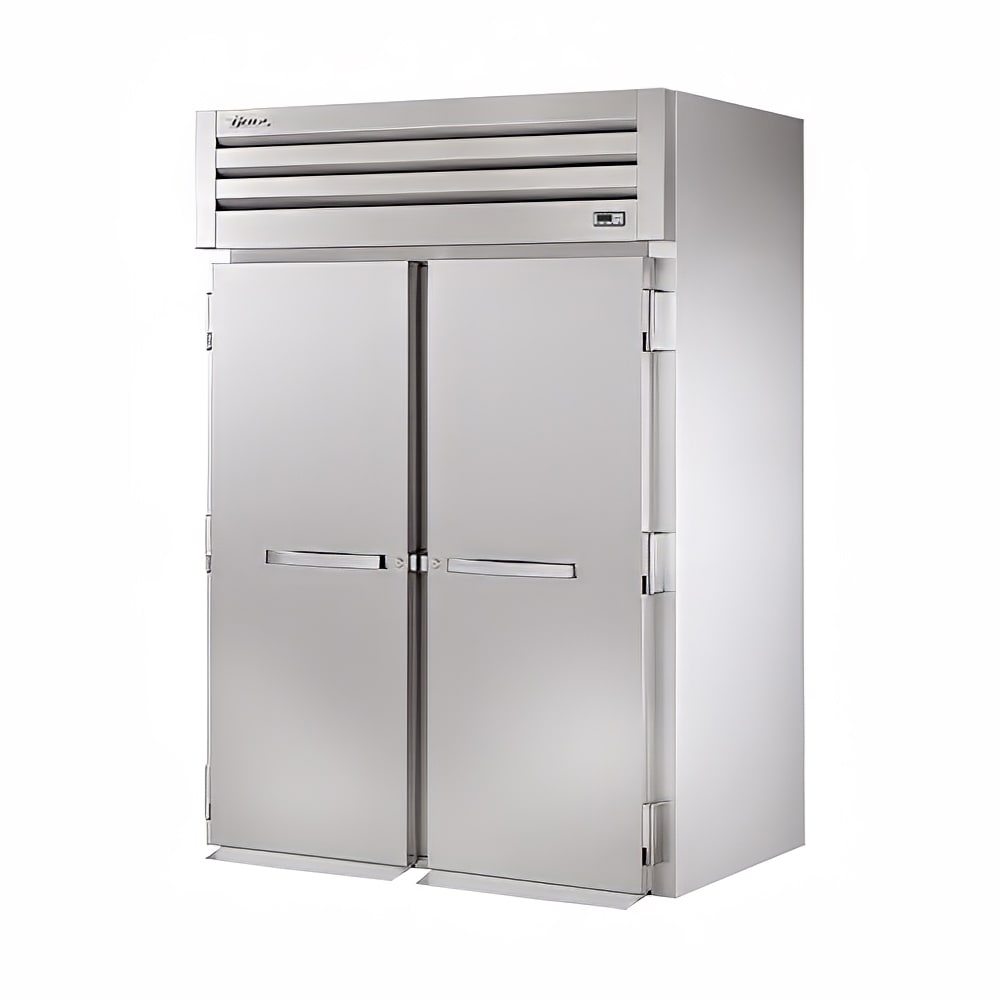

Model TA2HRT-2S - 2 Solid Swing Doors, 75 Cu. Ft.
TRUE - 100% Manufactured in America - Over 60 years experience - Best In Class 2001-2008 Eight Consecutive Years
- Provides cabinet holding temperature of 80 degree to 180 degree F (26.6 degree to 82.2 degree C)
- Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet. Fans are controlled by exterior on/off switch.
- Compartmentalized, incandescent, interior lighting (one for each door).
- Two (2) stainless steel, finned tube heating elements (1000 watts each) per section for uniform generation of electric heat. Cabinet comes with a total of 4000 watts.
- 300 series stainless steel exterior front, sides, back and bottom. The very finest stainless with higher tensile strength for fewer dents and scratches
- Anodized aluminum interior cabinet liner. 300 series stainless steel door liner and floor with coved corners.
- Three (3) lifetime guaranteed, cam-lift hinges per door. Full 180 degree open capability with a stay open feature at 120 degree .
- Designed to accept roll-in racks (inboard castors) with a maximum dimensions of 27' L x 29' D x 66' H. (686 mm x 737 mm x 1677 mm) One (1) heavy duty gauge stainless steel ramp standard per door.
- Field reversible door swing.
- Manual humidity control is a standard feature (turn counterclockwise to ventilate)
- Heater - stainless steel for corrosion resistance.
- Entire cabinet structure and solid doors are foamed-in-place using high density, CFC free, polyurethane insulation. Optional Features / Accessories Up-charge and lead times may apply
- Electronic temperature control (factory installed).
- Correctional facilities options
- Metal door handles (factory installed) Warranty Info
- 1 year warranty on all parts and labor
- Additional 4 year on compressor. (U.S.A. only) Installation Manual
- View Installation Manuals for True Refrigeration Equipment
Remote Cabinet Info
Remote cabinets (condensing unit supplied by others; system comes standard with 404A expansion valve and requires R404A refrigerant). Contact Customer Service for more information.
SPEC SERIES Heated Roll-in, two-section, stainless steel front & sides, (2) stainless steel doors with locks, cam-lift hinges, color-coded temperature display, aluminum interior, interior lighting, stainless steel ramp, 4KW, 115/208-230v/60/1 (requires hard wiring), 9' cord, [accommodates 27"Wx29"Dx66"H carts, NOT included], cULus, NSF, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
True Refrigeration STA2HRI-2S SpecificationsPDF Spec Sheet
|Size||Full Height (69" +)|
|Specialty Options||Roll In|
|Also Known As||TA2HRI2S, TA2HRI-2S, TRUTA2HRI2S, TRUE TA2HRI-2S, 890TA2HRI2S|
|Category||Pass Thru/Specialty Heated Cab|
|Construction||SS Exterior & Alum Interior|
|Doors||Full Solid/ Full Solid|
