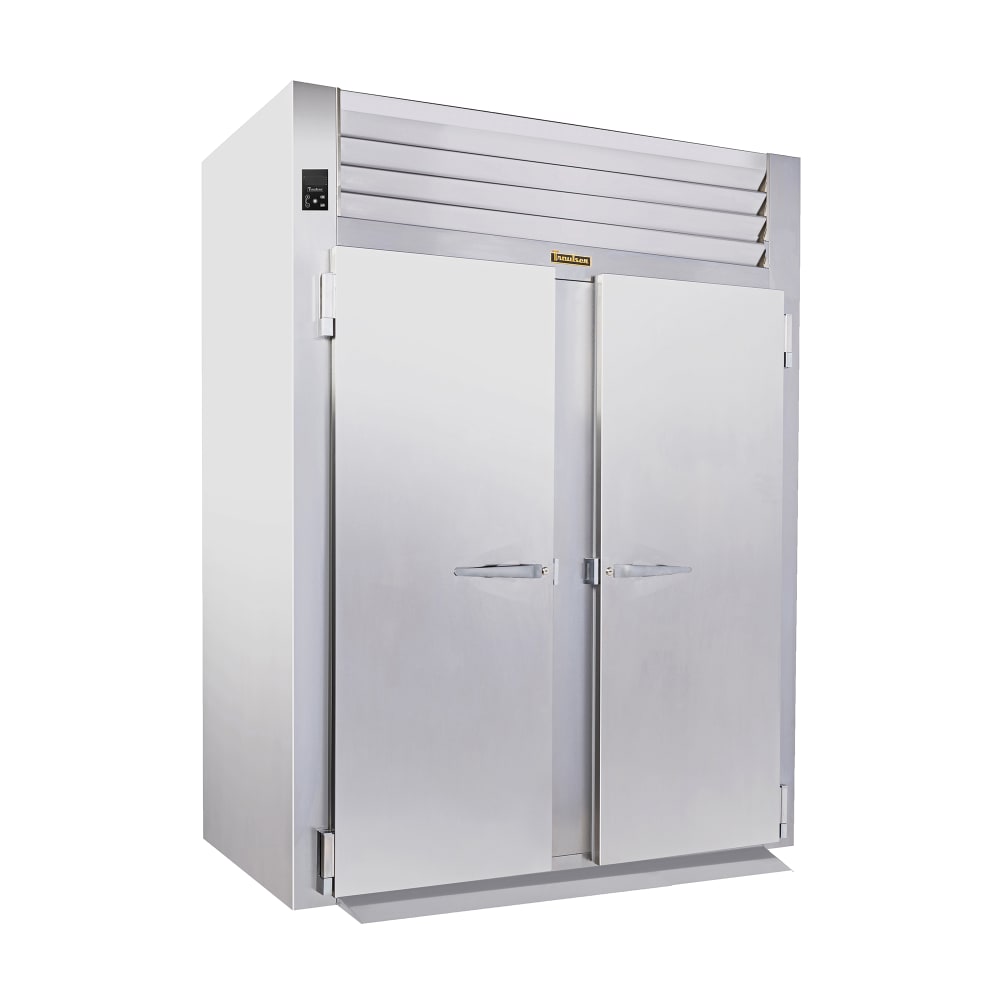

Traulsen RIH232L-FHS Full Height Insulated Stationary Heated Cabinet w/ (2) Rack Capacity, 208v/1ph

The Traulsen RIH232L-FHS 208 roll-in holding cabinet has a ducted fan air distribution system that minimizes temperature stratification inside the cabinet while lowering energy consumption. Air is forced across the large surface area so heat is moved through a down-air distribution duct, ensuring that heat is evenly distributed throughout the cabinet without drying food out. A serpentine-style heater is used to generate electric heat, and a top-mounted vent helps control humidity so food does not become soggy. Stainless steel rack guides are easily removable. Full-length, stainless steel doors are self-closing but have a stay open feature at 120 degrees so loading and unloading the cabinet is easy. Gaskets on the door keep heat from escaping, while polyurethane insulation keeps heat inside on the cabinet and doors. The Traulsen RIH232L-FHS 208 roll-in holding cabinet accepts roll-in racks that are up to 66 inches tall.

Product Details

• 2-section roll-in model
• Serpentine style heater generates electric heat
• Vent at the top of the cabinet controls humidity
• Ducted fan air distribution system minimizes temperature stratification while lowering energy use
• Air is forced across surface area to move heat through a down-air duct where it is evenly distributed throughout the cabinet
• Incandescent lights are automatic when the door opens so you can easily see food
• Full-length, stainless steel doors with locks to prevent unauthorized access
• Doors are self-closing with a stay open feature at 120 degrees so loading and unloading food is simple
• Cam-lift hinges and horizontal work flow door handles are guaranteed for life
• Magnetic, EZ clean door gaskets keep heat from escaping
• Breaker caps are stainless steel
• Door liner, interior rack guides, threshold ramps, and louver assembly are stainless steel
• Control system includes an on/off switch LED display, temperature display, high/low cabinet temperature alarm, door open alarm, clean condenser alarm, evaporator coil and discharge line sensor failures, and a power supply interruption
• 140-180 degrees F temperature range
• One time start-up temperature adjustment feature
• Stainless steel rack guides are easily removable
• Roll-in racks up to 66 in. tall are accepted
• Stainless steel ramp is attachable
• Stainless steel exterior is easy to clean and resists corrosion, stains, and dents
• Cabinet and doors are insulated with 2 in. polyurethane so heat stays inside
• 208 V/60 Hz/1 ph, 3000 W, 15.5 A, 9 ft. cord with NEMA L14-20P plug
• Overall Dimensions: 68 in. W x 35⁹⁄₁₆ in. D x 83¹⁄₄ in. H

*Free shipping on Traulsen RIH232L-FHS within the 48 contiguous states.

From The Manufacturer

Spec-Line Heated Cabinet, Roll-in, two-section, stainless steel exterior and interior, standard depth cabinet, full-height doors, accepts 66" high rack (by others) with microprocessor controls, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor
