True G4SM-23-HC~TSL01 28" Self Service Bakery Case w/ Straight Glass - (4) Levels, White, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 598-G4SM23WHT • MPN: G4SM-23-HC~TSL01 WHT
Ships Free

Extended Lead Time (14+ days)

Need it quicker? Call us today! 800-541-8683
(0 reviews)Write a Review
Retail Price: $3,463.11

Selected Color: White


Image may not depict product color, inclusions or accessories.

True Refrigeration G4SM-23-HC~TSL01 Description

True Refrigeration

The True G4SM-23-LD self-service bakery case has a white powder coated exterior that protects against corrosion and resists scratching. The white aluminum interior is durable and makes the product more visible. The stainless steel floor is resistant to corrosion and is very durable; the heavy-duty, steel frame rail is black powder coated for corrosion protection. All of the cabinet is insulated with a high-density, polyurethane insulated called Ecomate that has zero ozone depletion potential and zero global warming potential.

The door and sides are made from double pane thermal insulated glass so cold air stays inside the cabinet. A 12-inch-long extruded handle makes opening the door easy, while the self-closing feature helps cold air stay inside the cabinet. For easy cleaning, the magnetic door gasket is easy to remove without tools. Four white PVC-coated wire shelves are on 12-inch adjustable increments to accommodate varying sizes of product. The True G4SM-23-LD self-service bakery case has an illuminated exterior front sign panel that will draw customers to your pastries, breads, and desserts.

Product Details

  • 4 white PVC-coated wire shelves are adjustable on 12-in. increments
  • Double pane, thermal insulated glass sides and door let customers easily see products inside
  • Door is self-closing to help with temperature recovery and has a 12-in.-long extruded handle that makes opening the door easy
  • Magnetic door gasket keeps cold air from escaping and removes easily without tools for cleaning
  • LED interior lighting makes products more visible
  • 33-38 degrees F temperature range
  • Exterior front sign panel is illuminated to grab customers’ attention
  • Self-contained capillary tube system uses R-134A refrigerant that is environmentally friendly
  • Evaporator coil, compressor, and condenser help maintain cabinet temperatures
  • Sealed, cast iron, self-lubricating evaporator fan motor and larger fan blades give more efficient low velocity, high volume airflow design
  • Airflow design ensures consistent, cold holding temperatures and fast recovery time
  • Bottom-mounted condensing unit is easy to reach for maintenance
  • Epoxy-coated evaporator resists corrosion
  • 115 V/60 Hz/1 ph, 5.4 A, 9-ft. cord with a NEMA 5-15P plug

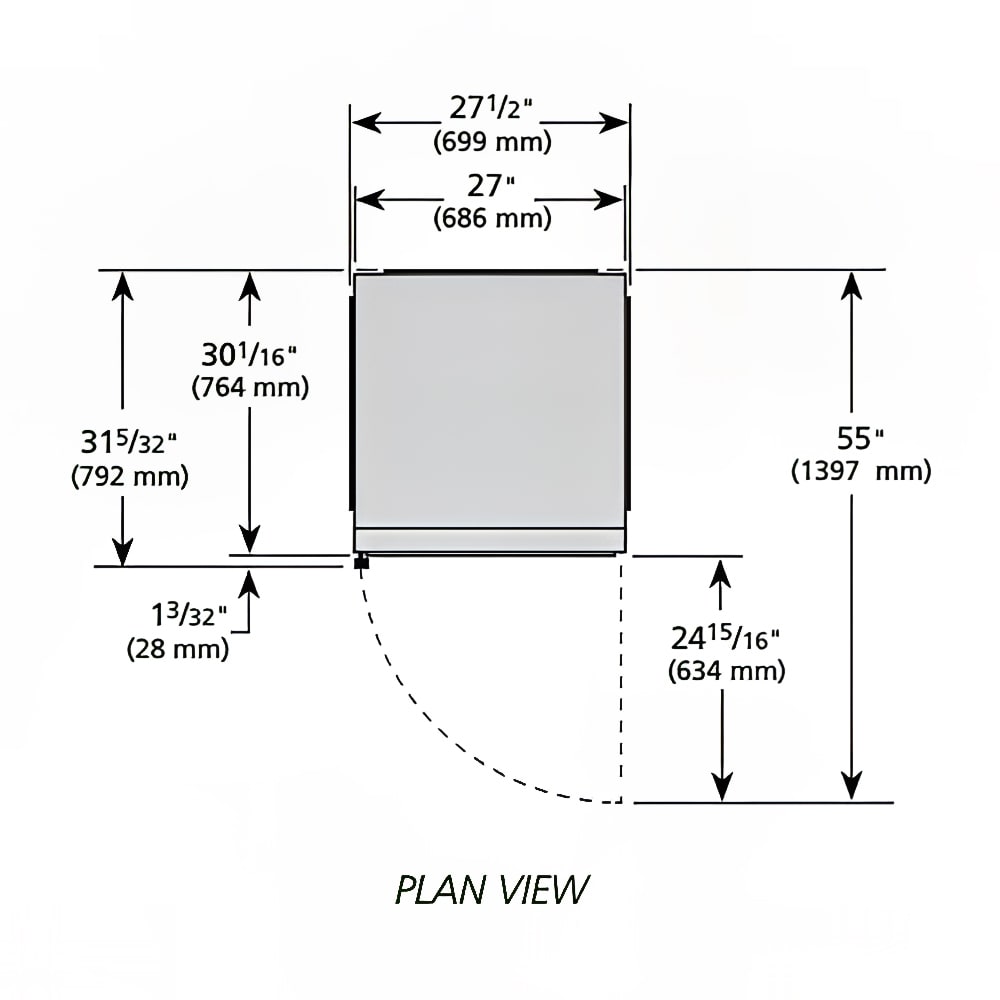

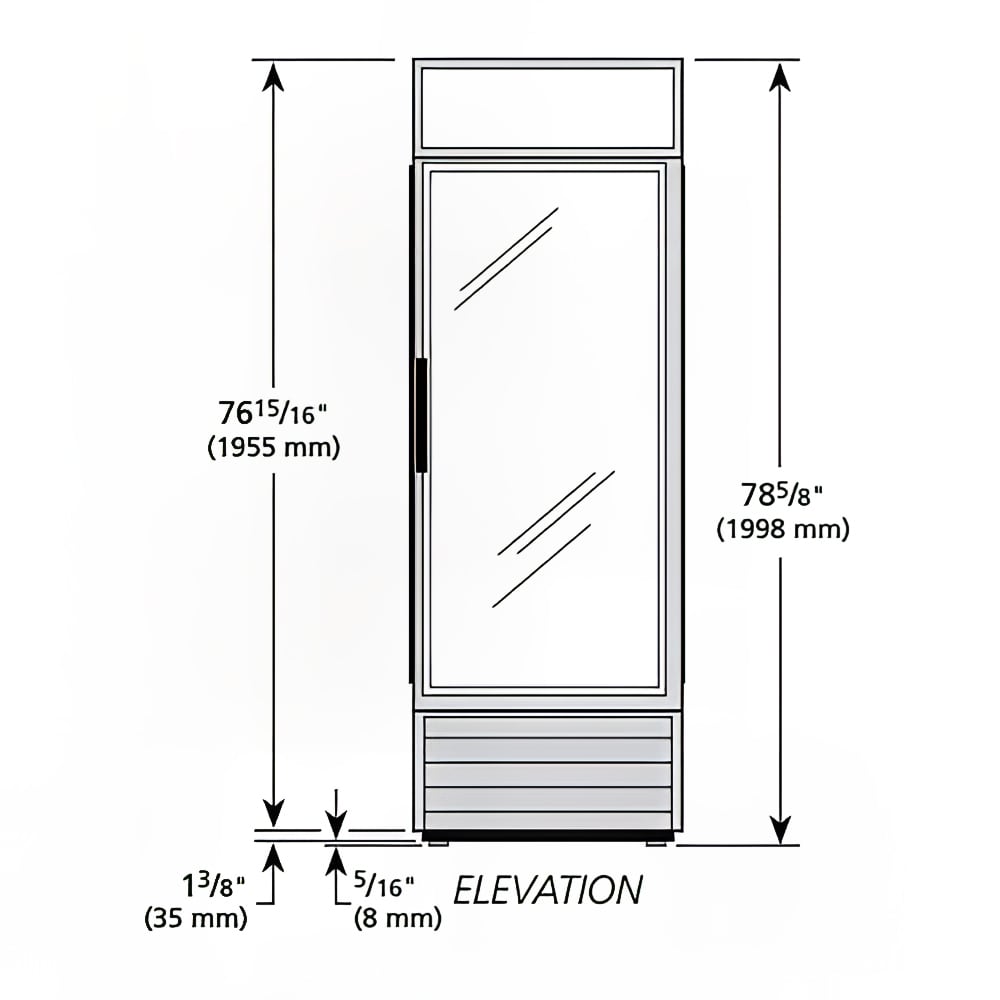

  • Overall Dimensions: 2712 in. W x 3018 in. D x 7858 in. H
  • NSF-7 compliant to store and display packaged or bottled product
  • UL-EPH, and cULus listed; Energy Star certified


  • White powder coated exterior resists corrosion and scratching
  • White aluminum interior gives cabinet a clean look and is durable
  • Stainless steel floor resists corrosion
  • Entire cabinet has high-density, polyurethane insulation called Ecomate that is environmentally friendly and keeps cool air inside
  • Heavy-duty steel frame rail is black powder coated for corrosion protection
  • Leg levelers keep the cabinet stable

Specialty Merchandiser, reach-in, one-section, True standard look version 01, 23 cu. ft., (4) shelves, bronze powder coat finish exterior, white aluminum interior liner with stainless steel floor, (4) Low-E thermal glass sides including (1) hinged glass door, low UV emitting LED lighting, bottom mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1, 5.4 amps, NEMA 5-15P, cULus, UL EPH Classified, MADE IN USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

True Refrigeration G4SM-23-HC~TSL01 Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Access Self Service
Door Type Hinged
Finish White
Height (in) 78
Length (in) 28
Number of Levels 4
Shelving Type Wire
Specialty Options Glass Sides
Specialty Options Stainless
Style Straight Glass
Refrigeration Type Refrigerated
Warranty 3 year parts & labor / 5 year compressor
Also Known As G4SM-23-LD
Phase 1
Hertz 60
Voltage 115
Product Bakery Display Case
Product Type Commercial Refrigeration
Weight 375.00
True G4SM-23-HC~TSL01 Certifications
  • UL
  • NSF
  • Energy Star
