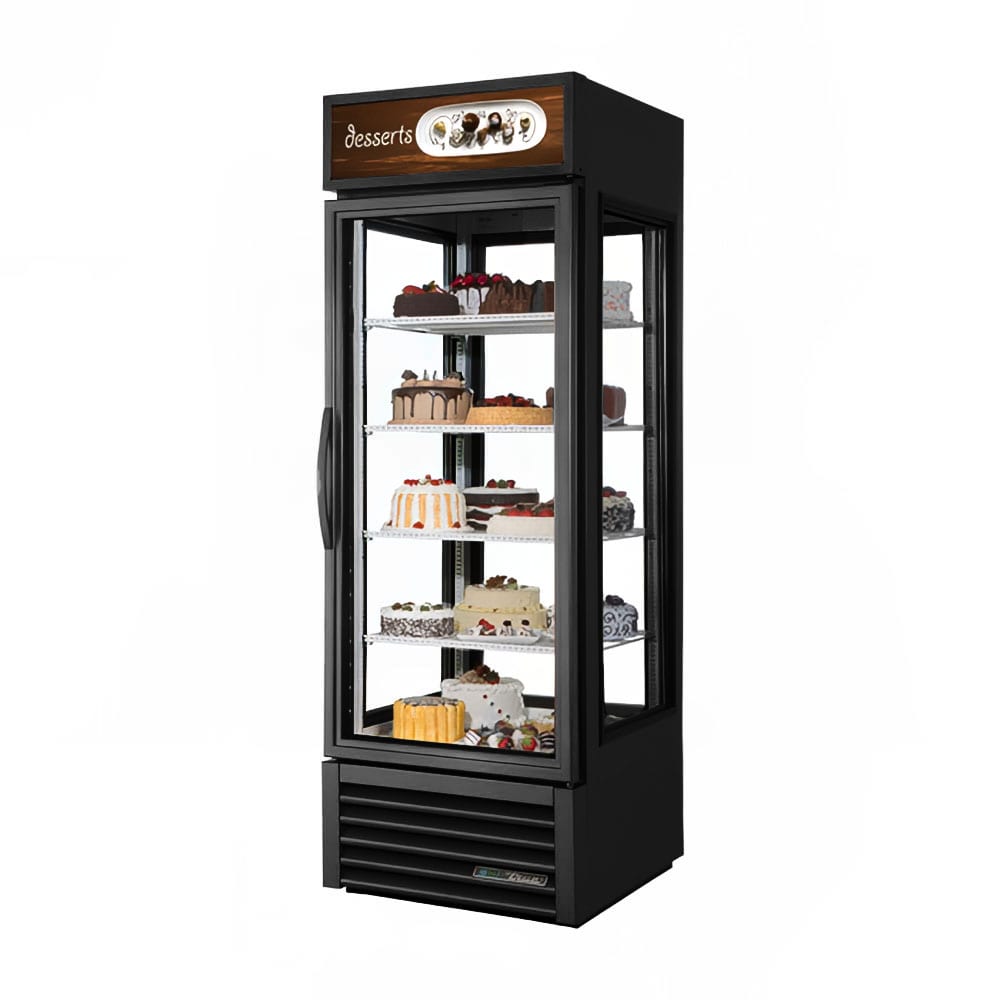

True G4SM-23-HC~TSL01 28" Self Service Bakery Display Case w/ Straight Glass, (5) Levels, Black, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 598-G4SM23BK • MPN: G4SM-23-HC~TSL01 BLK

Ships Free

Extended Lead Time (14+ days)

Need it quicker? Call us today! 800-541-8683
(0 reviews)Write a Review

Image may not depict product color, inclusions or accessories.

True Refrigeration G4SM-23-HC~TSL01 Description

True Refrigeration

The True G4SM-23-LD BLK specialty self-service merchandiser is perfect for holding flowers, bakery items, and other items that need to be held within a 33 to 38 degree Fahrenheit temperature range. The compressor, evaporator coil, and condenser help maintain even temperatures. Cold air stays inside the cabinet since it is entirely insulated with foamed-in-place Ecomate.

The door and glass sides are also insulated to keep cold air inside, and they let customers easily see into the cabinet to choose products. LED interior lights illuminate the cabinet and make products visible to your customers. Since the True G4SM-23-LD BLK specialty self-service merchandiser has four PVC coated wire shelves on adjustable 12-inch increments, you can fix them according to the heights of your products.

Product Details

  • 33-38 degrees F temperature range
  • Sealed, cast iron evaporator fan motor and larger fan blades provide low velocity, high volume airflow
  • Airflow design ensures cold temperatures and fast temperature recovery
  • Self-contained capillary tube system uses R-134A refrigerant that is environmentally friendly
  • Condenser, evaporator coil, and compressor maintain even temperatures
  • Condensing unit is mounted on the bottom so it can be easily accessed for maintenance
  • Evaporator is coated in epoxy to prevent corrosion
  • Exterior front sign panel lights up to grab customers’ attention
  • LED interior lighting makes product more visible
  • 115 V/60 Hz/1 ph, 5.4 A, 13 HP, 9-ft. cord with a NEMA 5-15P plug

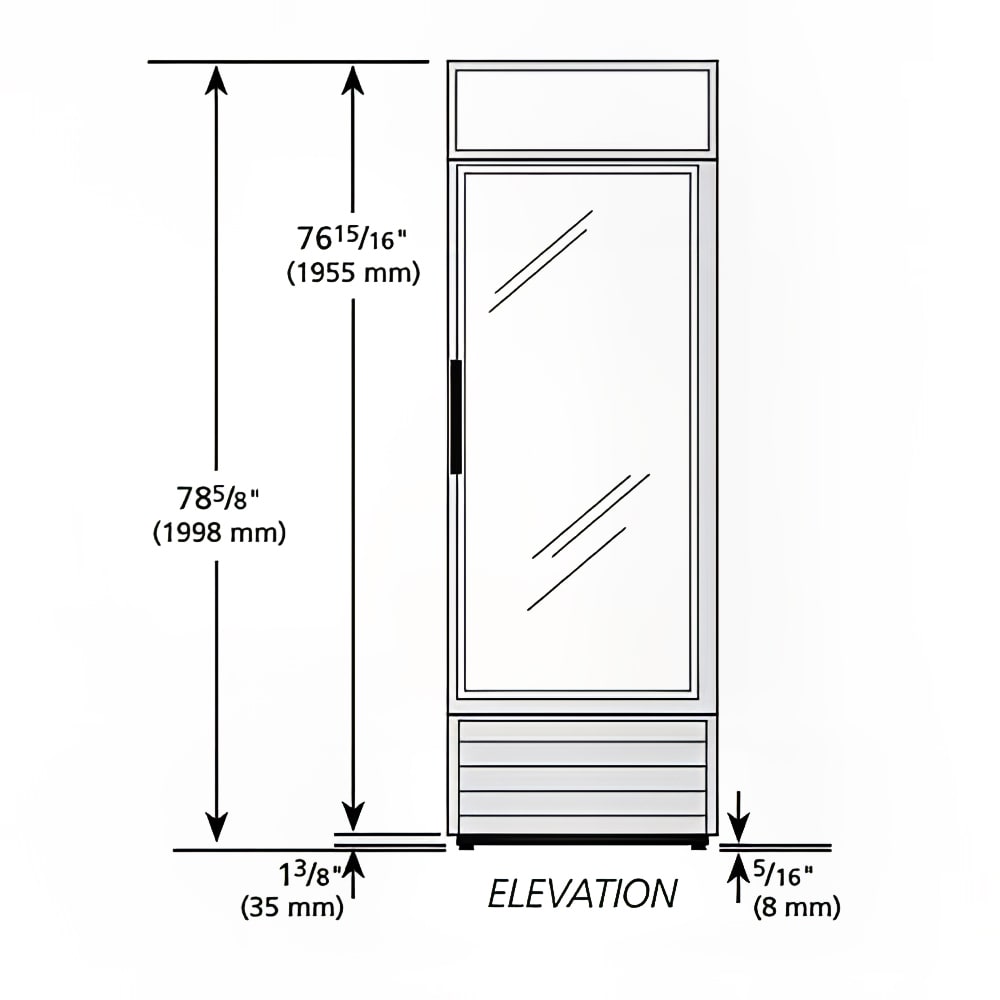

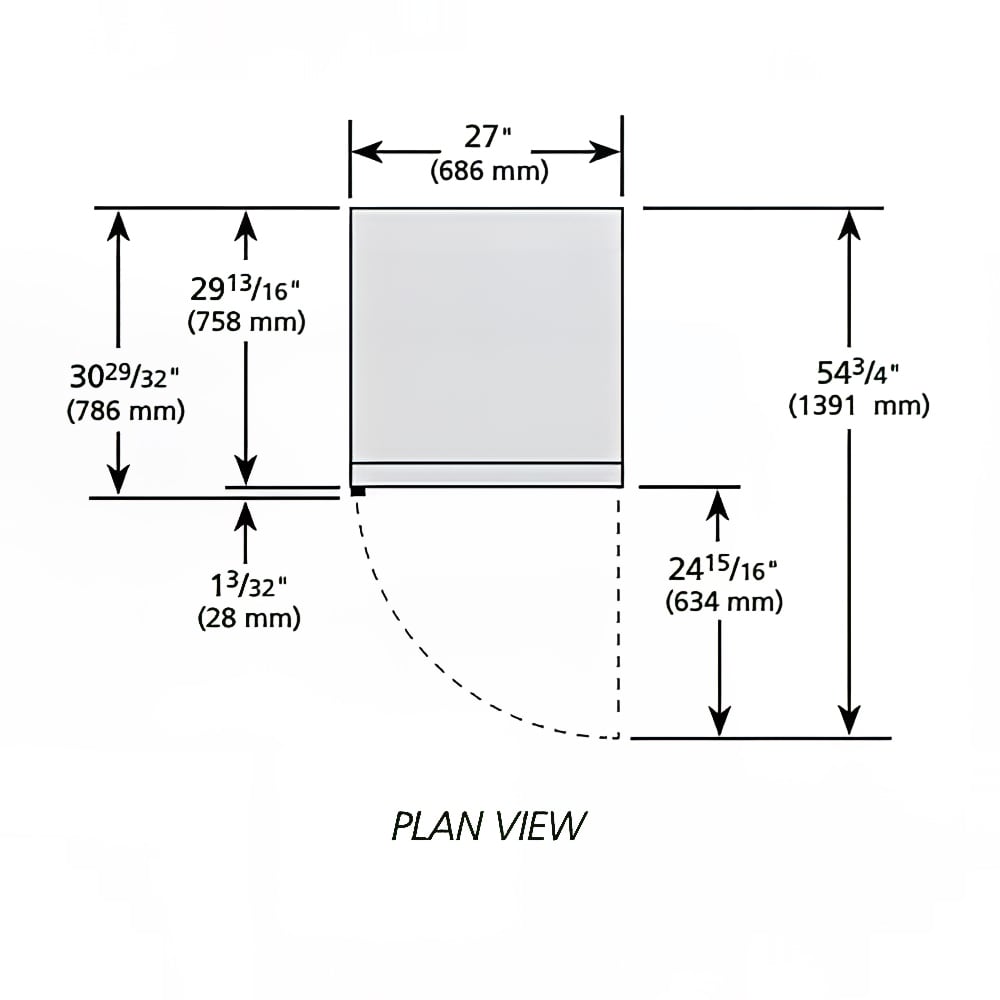

  • Overall Dimensions: 2712 in. W x 3018 in. D x 7858 in. H
  • NSF-7 compliant for storing or displaying packaged or bottled product
  • cULus and UL-EPH listed; Energy Star certified


  • Black laminated vinyl exterior will not chip or peel
  • White aluminum interior liner and stainless steel floor are durable
  • Whole cabinet is insulated with Ecomate, a high-density, polyurethane insulation that is foamed in place for structure
  • Steel frame rail is black powder coated to resist corrosion and heavy duty to withstand rugged use
  • Frame rail has leg levelers for uneven flooring

Self-Closing Door and Adjustable Shelves

  • Double pane, thermal, insulated glass sides and door keep cold air inside the cabinet and provide ideal visibility of products
  • Door has a 12 in. long extruded handle that makes opening it easy
  • Self-closing door helps keep cold air inside the cabinet
  • Magnetic gasket on the door easily removes without tools for simple cleaning
  • 4 heavy-duty shelves are white PVC-coated wire and are on adjustable 12-in. increments to accommodate product height
  • 4 chrome-plated shelf clips for each shelf

Specialty Merchandiser, reach-in, one-section, True standard look version 01, 23 cu. ft., (4) shelves, bronze powder coat finish exterior, white aluminum interior liner with stainless steel floor, (4) Low-E thermal glass sides including (1) hinged glass door, low UV emitting LED lighting, bottom mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1, 5.4 amps, NEMA 5-15P, cULus, UL EPH Classified, MADE IN USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

True Refrigeration G4SM-23-HC~TSL01 Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Access Self Service
Also Known As G4SM-23, TRUE G4SM-23, TRUG4SM23, 890G4SM23, G4SM23, 675-089, G4SM-23-LD
Door Type Hinged
Finish Black
Height (in) 78
Length (in) 28
Number of Levels 4
Shelving Type Solid
Specialty Options Glass Sides
Style Straight Glass
Warranty 3 year parts & labor; 5 year compressor
Refrigeration Type Refrigerated
Phase 1
Hertz 60
Voltage 115
Weight 375.00
True G4SM-23-HC~TSL01 Certifications
  • UL
  • NSF
  • Energy Star
