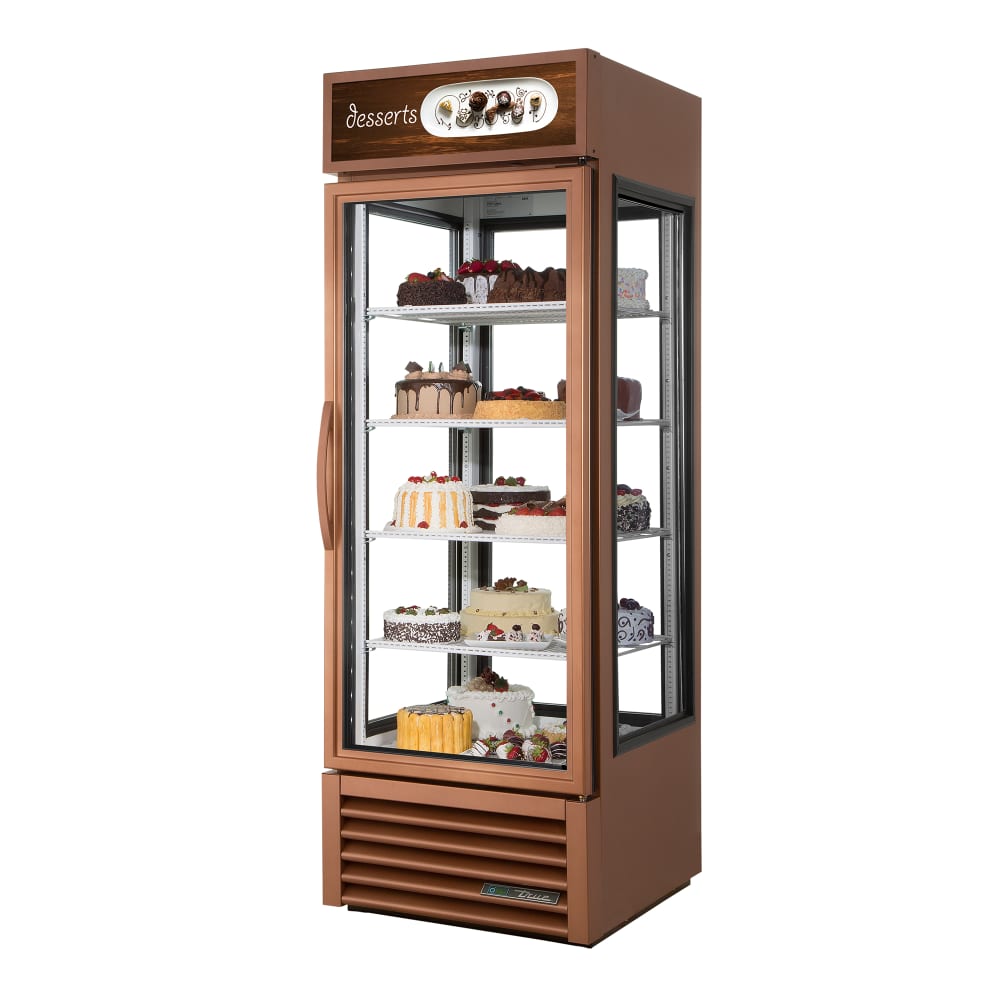

True G4SM-23-HC~TSL01 27 1/2" Self Service Bakery Display Case w/ Straight Glass - (5) Levels, Copper, 115v
Typically ships in 10 - 12 weeks
$6,818.49 /Each
Selected Access Style: Self Service
| Self Service |
| Full Service |
Selected Color: Copper
True Refrigeration G4SM-23-HC~TSL01 Description
The True G4SM-23-HC~TSL01 self-service bakery case has four levels of shelving and 23 cubic feet of interior space to display product. Its strong, PVC-coated shelves are made of wire, promoting airflow through the gaps to provide uniform product temperatures. Because they are made of glass, the sides and door provide a view of items inside, and the door is hinged with a magnetic gasket to ensure a tight seal. This door self-closes to reduce energy loss, and the cabinet is insulated with foamed-in-place polyurethane to prevent temperature fluctuations.
To streamline installation, the True G4SM-23-HC~TSL01 bakery case has a self-contained refrigeration system. It uses environmentally friendly R290 hydrocarbon refrigerant to keep the cabinet between 33 and 38 degrees Fahrenheit. To catch the attention of customers, the front sign panel is illuminated, and the interior is brightened with LED lights to enhance the display. Increasing the unit's efficiency, the condensing fan motor reverses upon compressor startup to rid the condensing coil of dust and dirt.
- 1 section
- Bottom-mounted, self-contained refrigeration system
- 23-cu.-ft. interior space
- Temperature holding range: 33-38 degrees F
- 4 PVC-coated wire shelves
- 4 Low-E thermal glass sides
- 1 hinged glass door
- Door is self-closing with a magnetic gasket
- 12-in. door handle
- LED lighting
- Illuminated front sign panel
- Exterior has a copper powder-coat finish
- White aluminum interior liner
- Stainless steel floor
- R290 hydrocarbon refrigerant
- Foamed-in-place polyurethane insulation
- Epoxy-coated evaporator
- Reverse condensing fan motor removes dirt from condensing coil
- Shelves: 23 5⁄8 in. L x 20 7⁄8 in. D
- Overall: 27 1⁄2 in. W x 30 1⁄8 in. D x 78 5⁄8 in. H
- 5.4 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration G4SM-23-HC~TSL01 within the 48 contiguous states.
From The Manufacturer
Specialty Merchandiser, reach-in, one-section, bottom mounted self-contained refrigeration, True standard look version 01, 23 cu. ft., (4) shelves, (4) Low-E thermal glass sides including (1) hinged glass door, LED lighting, non-peel or chip copper powder coated cold rolled steel exterior, white aluminum interior liner with stainless steel floor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.4 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
True Refrigeration G4SM-23-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Self Service |
| Color | Copper |
| Cubic Feet | 21.2 |
| Depth (in) | 30.13 |
| Design | Straight |
| Door Type | Hinged |
| Height (in) | 78.63 |
| Hertz | 60 |
| Number of Levels | 5 |
| Phase | 1 |
| Product | Bakery Display Cases |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Refrigerated |
| Series | G4SM Series |
| Shelving Type | Wire |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor Parts |
| Width (in) | 27.5 |
| Weight | 355.00 |
