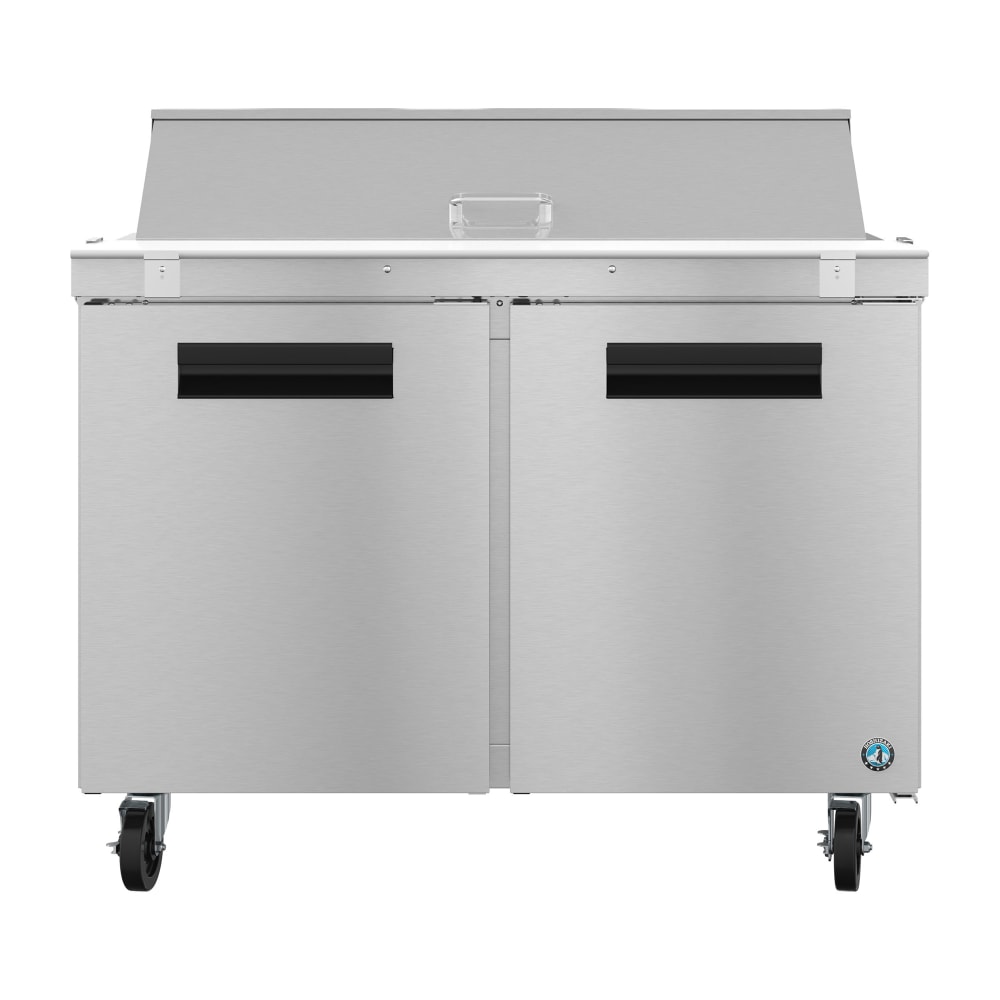

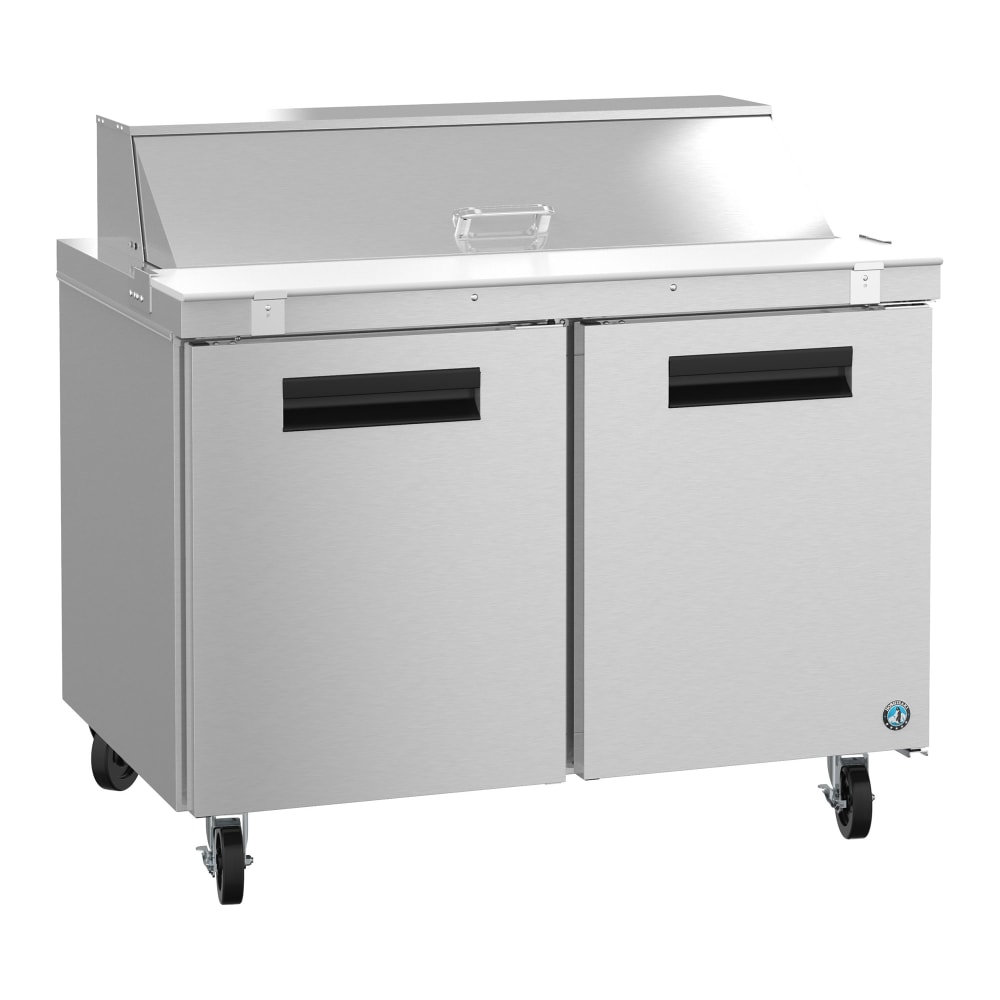

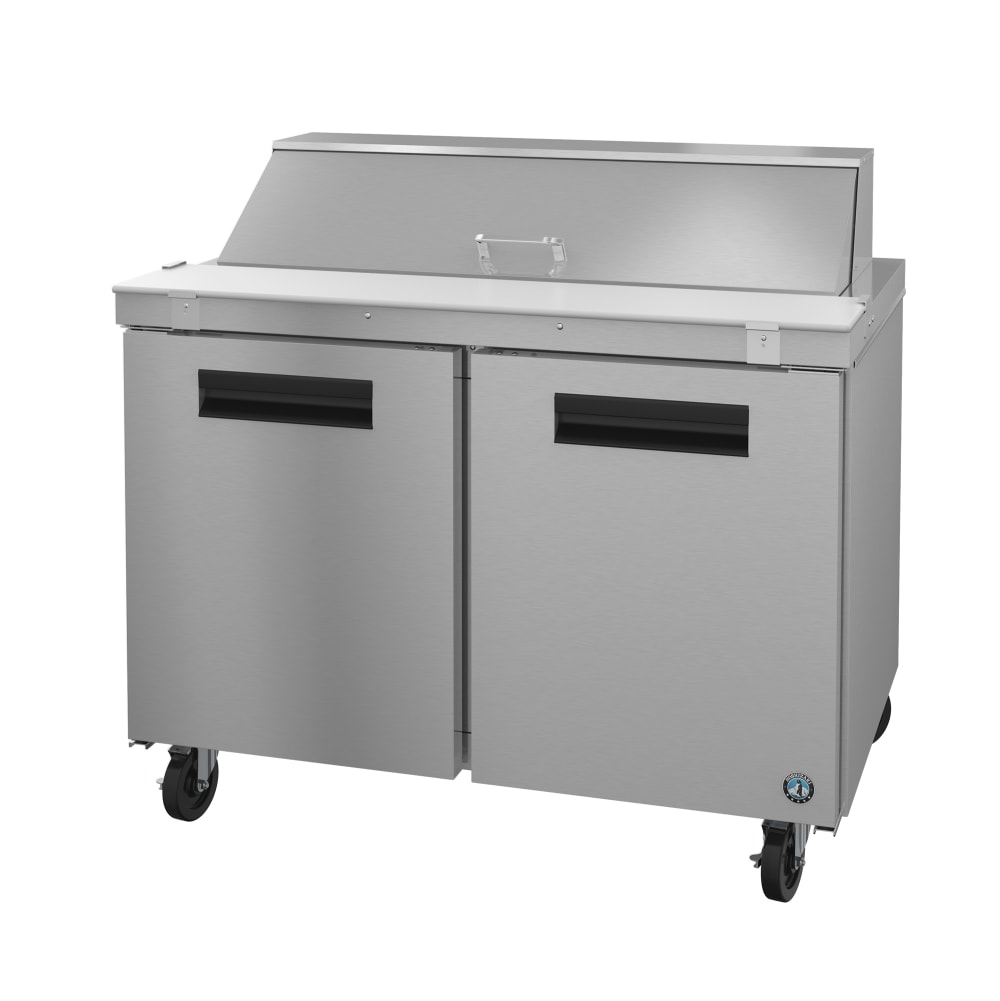

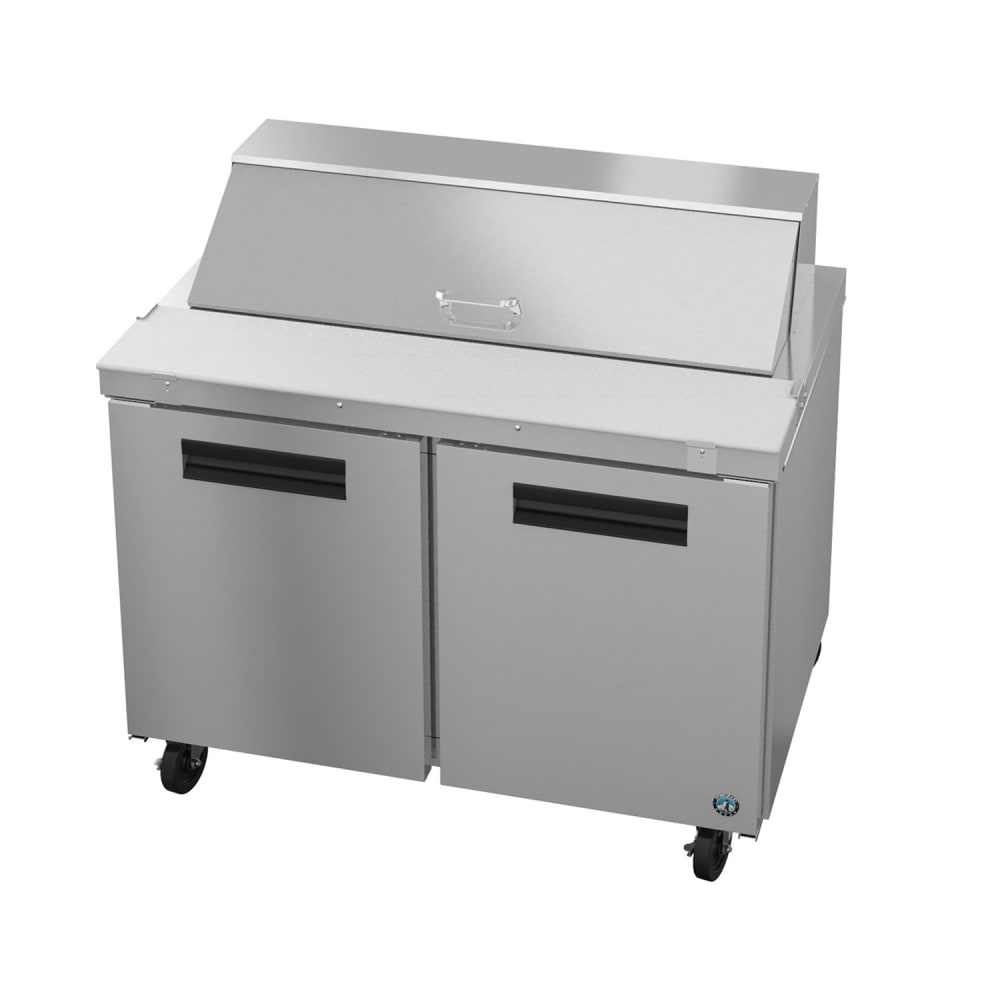

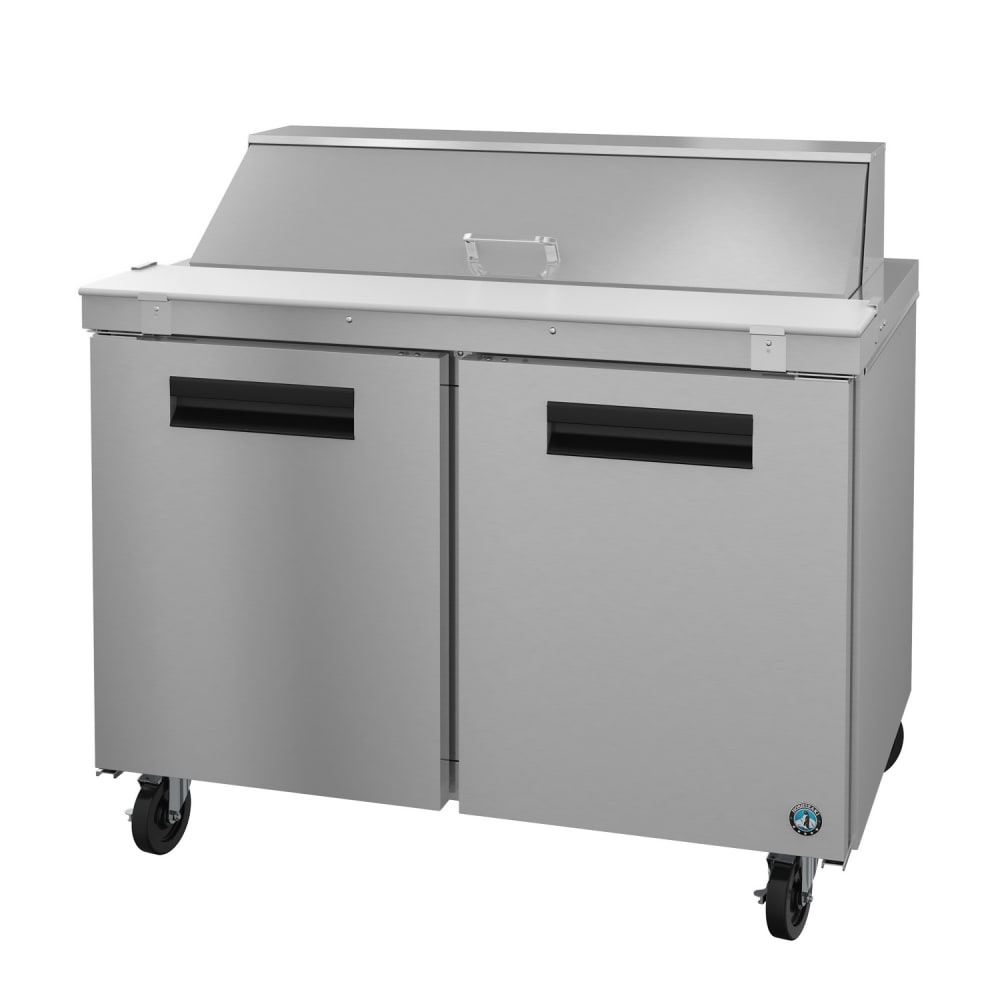

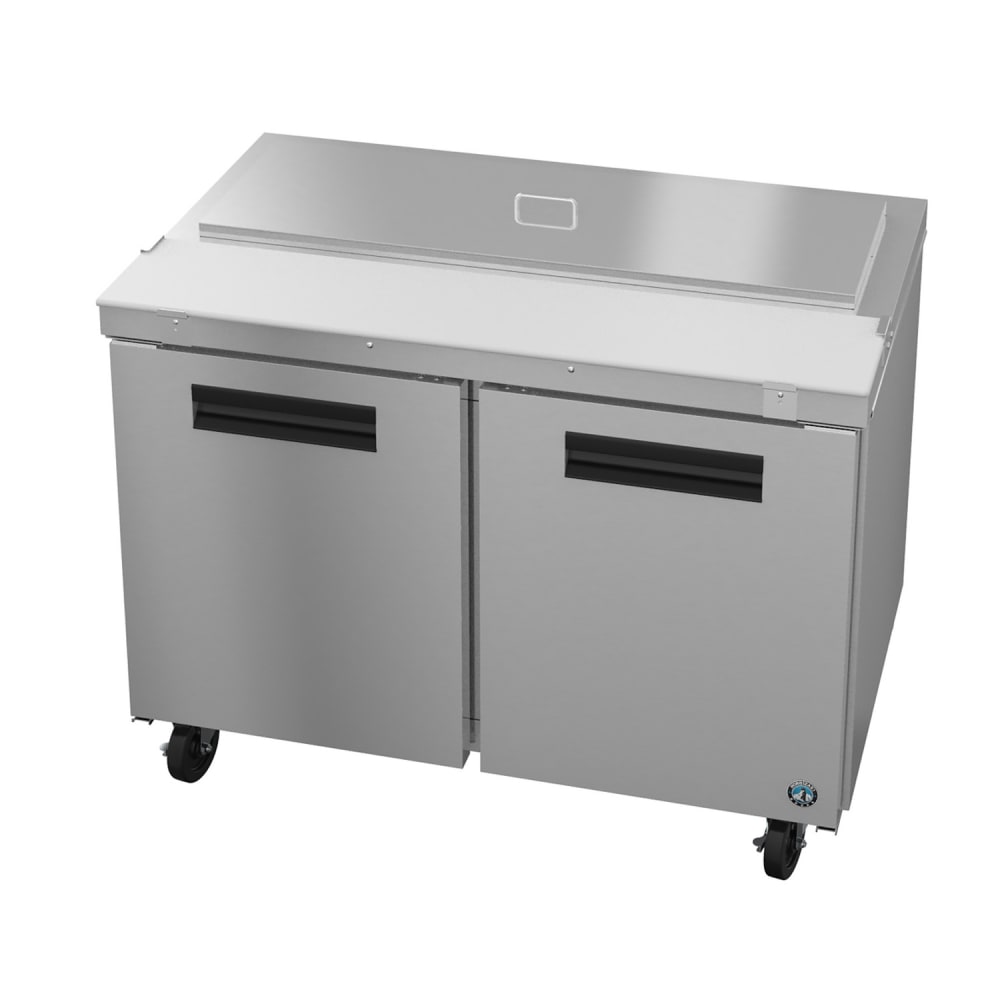

Hoshizaki SR48B-12 48" Steelheart Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

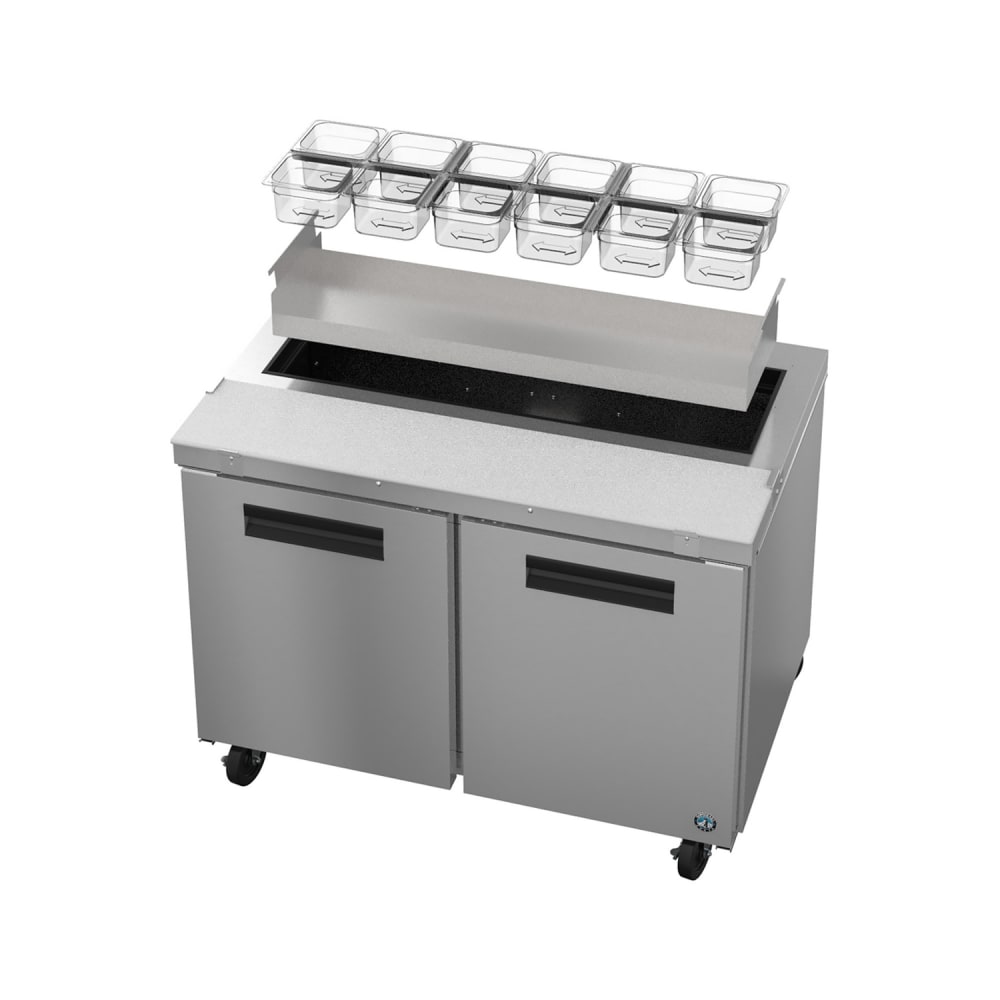

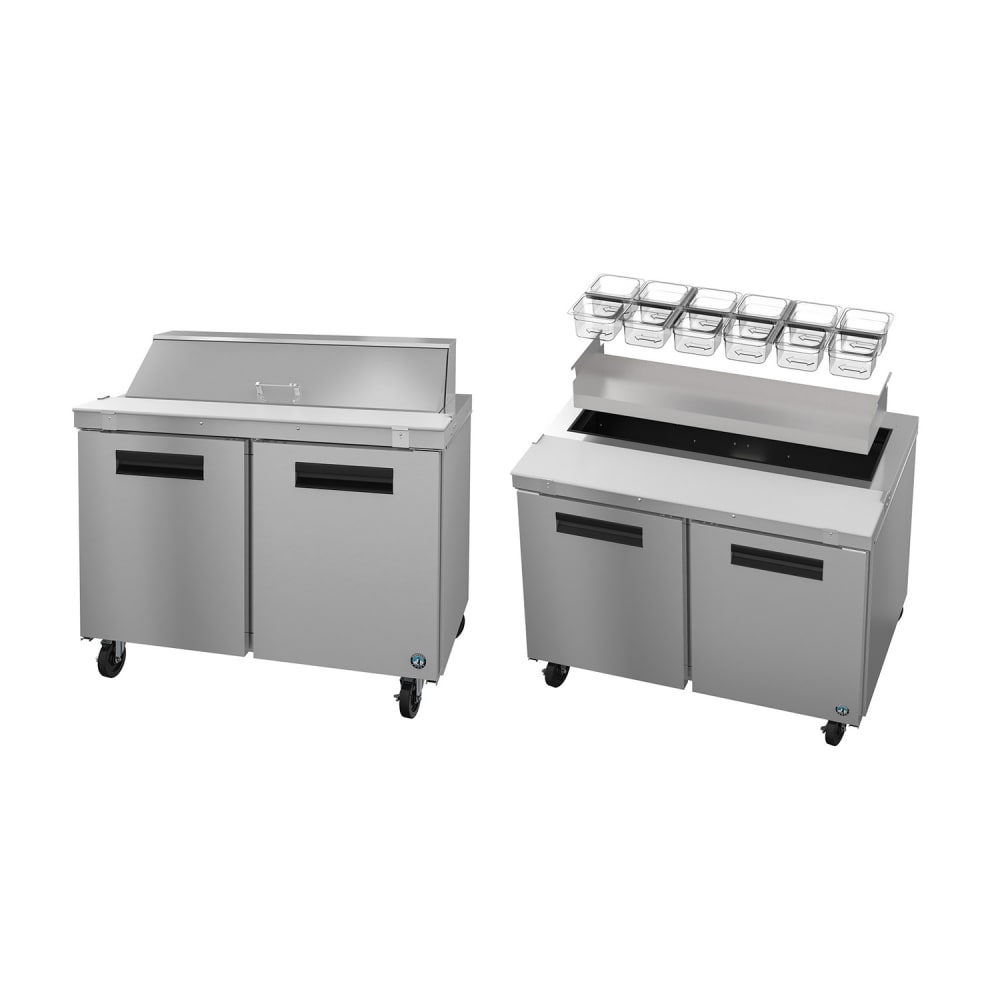

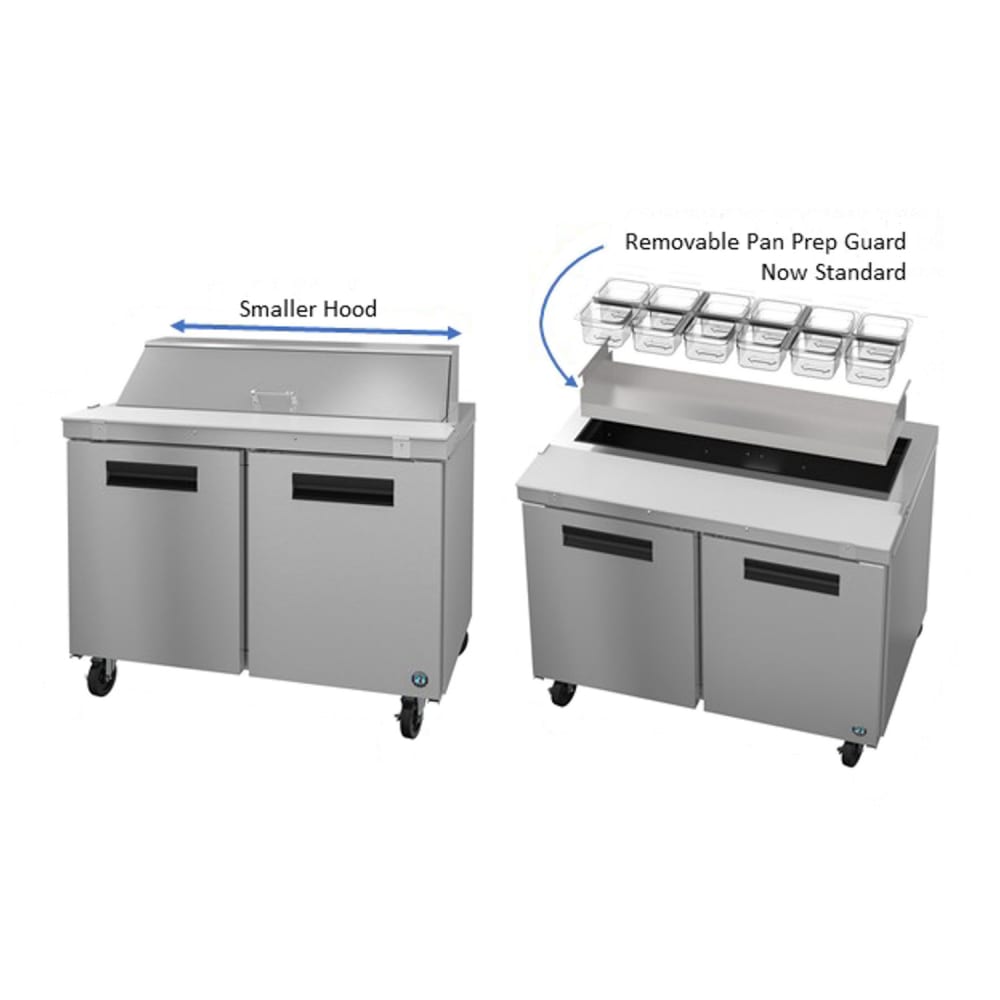

The Hoshizaki SR48B-12 prep table is a piece of equipment designed to be incorporated behind the counter of delis and similar establishments looking to craft custom sandwiches, salads, subs, tacos, or quesadillas. This is done on the ¹/₂-inch-thick cutting board. This unit ships with 12 sixth-size pans designed keep pre-prepped produce or meat close at hand; these pans sit 1¹/₂ inches below the fitted stainless steel cover. The cover is hinged for simple opening and closing to shield the product from contaminants when needed. This two-section unit is 48 inches in width by 35 inches in depth by 44¹/₄ inches in height, and its self-contained, front-breathing design can be installed with minimal hassle. For other inventory, the base features a cabinet that's accessed behind two heavy-duty doors, which remain closed with the one-piece magnetic gasket. A spring-assisted design feature allows this door to close when it's accidentally left ajar, and it features a 90-degree stay-open feature.

Inside the Hoshizaki SR48B-12 sandwich and salad prep table's two-section interior is a 13.66 cubic-foot capacity. This space can comfortably hold two epoxy-coated shelves that are adjustable in 1¹/₂-inch increments using aluminum supports. The doors and cabinet remain well insulated with high-density, 2-inch-thick CFC-free polyurethane. For additional cooling, the base benefits from a self-contained refrigeration system utilizing capillary tubes with R290 hydrocarbon refrigerant. Its effective air distribution works effectively in ambient temperatures as high as 100 degrees Fahrenheit. Users can control the temperature setpoint from 32 to 52 degrees Fahrenheit, and for simple autonomy that streamlines this unit's operation, it's supplied with a time-initiated defrost system.

Product Details

• 2-section interior
• 13.66-cu.-ft. interior space
• Provided with 12 sixth-size pans (with full set of adapter bars)
• 2 adjustable shelves
• ¹/₂-in.-thick cutting board
• Fitted with 2 solid-hinged doors
• Steeped design protects 1-piece magnetic door gasket
• Spring-assisted, self-closing doors stay open at 90 degrees
• Stainless steel top cover
• Interior, exterior, and front made of stainless steel
• 6-in. casters (2 brakes)

Refrigeration System

• Self-contained system with R290 hydrocarbon refrigerant
• Holding temperature range: 32-52 degrees F
• Epoxy-coated evaporator coil
• Front-breathing design
• Time-initiated defrost system reduces excess frost

Dimensions & Utilities

• 48 in. W x 35 in. D x 44¹/₄ in. H
• 3 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

From The Manufacturer

Steelheart Series Sandwich Top Refrigerator, reach-in, two-section, 48"W, 13.66 cu. ft., self-contained rear mounted refrigeration system, (2) solid hinged doors, (2) adjustable shelves, provided with (12) 1/6 pans 4" deep, 6" maximum pan depth (top rail), 10" D x 1/2" thick white polyethylene cutting board & a full set of adapter bars, stainless steel interior, stainless steel exterior front, sides & hinged top cover, (4) 6" casters (2 with brakes), hot gas condensate removal, R290 hydrocarbon refrigerant, 1/5 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

Food Pans Included

Food Pans are included with this item

6-year Parts; 5-year Labor; 7-year Compressor Parts
