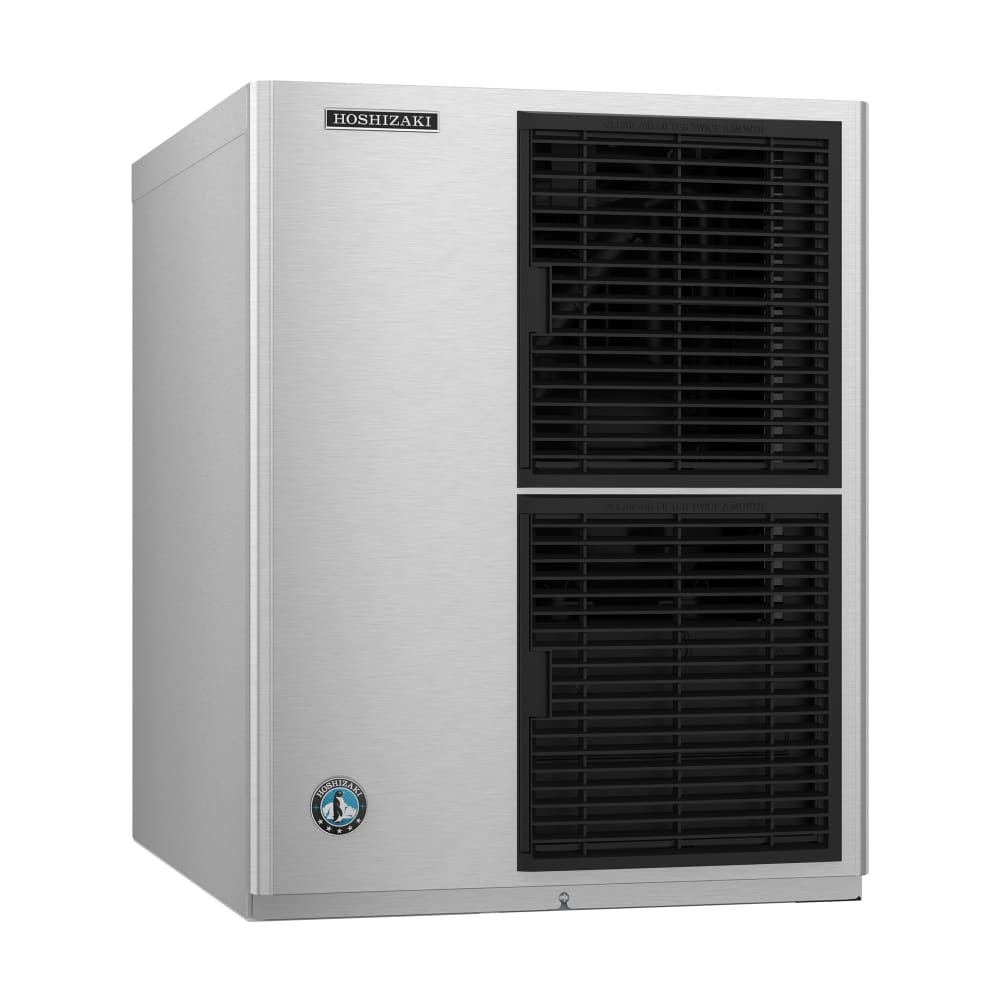

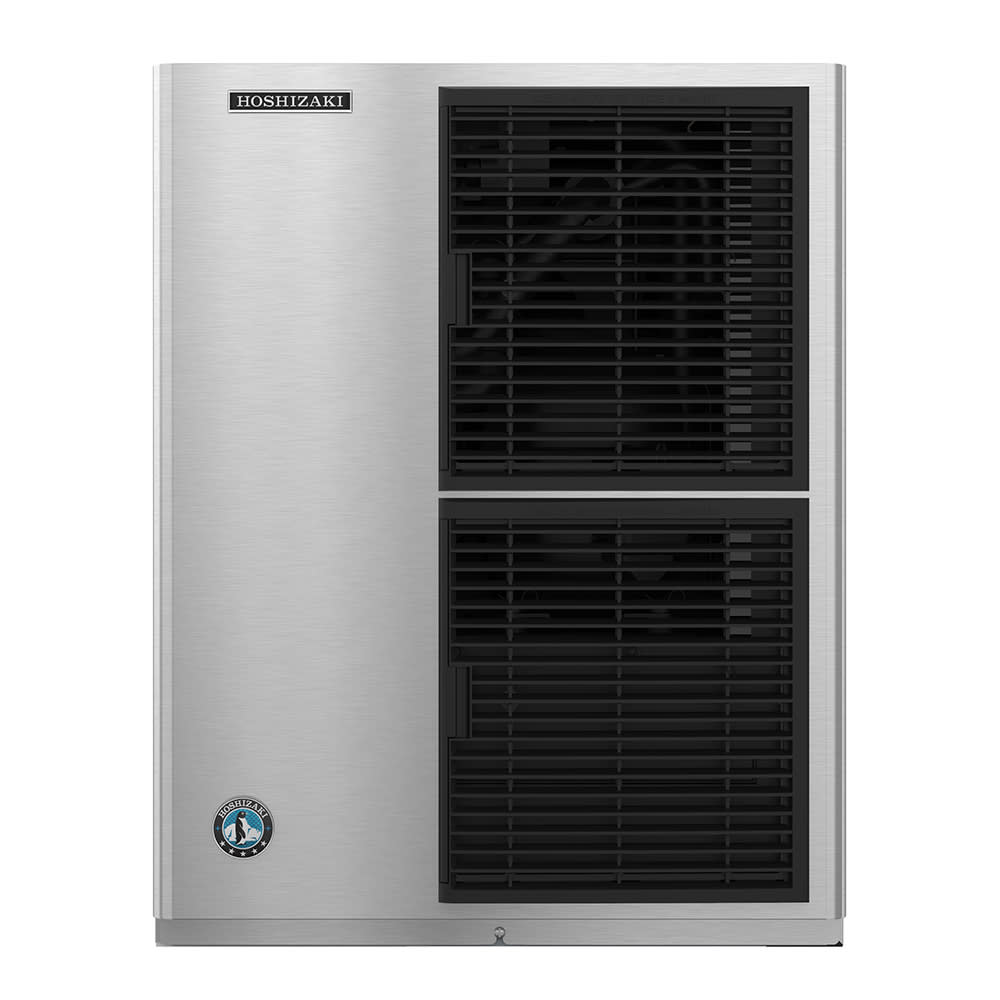

Hoshizaki KM-520MAJ 22" Crescent Cube Ice Machine Head - 556 lb/24 hr, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 440-KM520MAJ • MPN: KM-520MAJ
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,995.00

Image may not depict product color, inclusions or accessories.

Hoshizaki KM-520MAJ Description


The Hoshizaki KM-520MAJ ice machine head has H-GUARD Plus antimicrobial protection, reducing the risk of slime and mold growth. Its evaporator is made of stainless steel, which minimizes the risk of corrosion and lasts longer than nickel-plated evaporators. This unit monitors itself for problems and beeps in a pattern to indicate any issues that it finds. A self-diagnostic system helps speed up the repair process so that the machine can run efficiently.

The Hoshizaki KM-520MAJ ice maker produces crescent cubes that melt very slowly and take up more space in cups than other ice types. In this way, crescent cubes help reduce the total amount spent on beverages. Crescent-cube ice forms on each side of the evaporator plate and then drops into a bin or dispenser.

Product Details

  • 556-lb. daily ice production capacity
  • 480-lb. AHRI-certified daily ice production capacity
  • Condenser is air cooled
  • Removable air filters

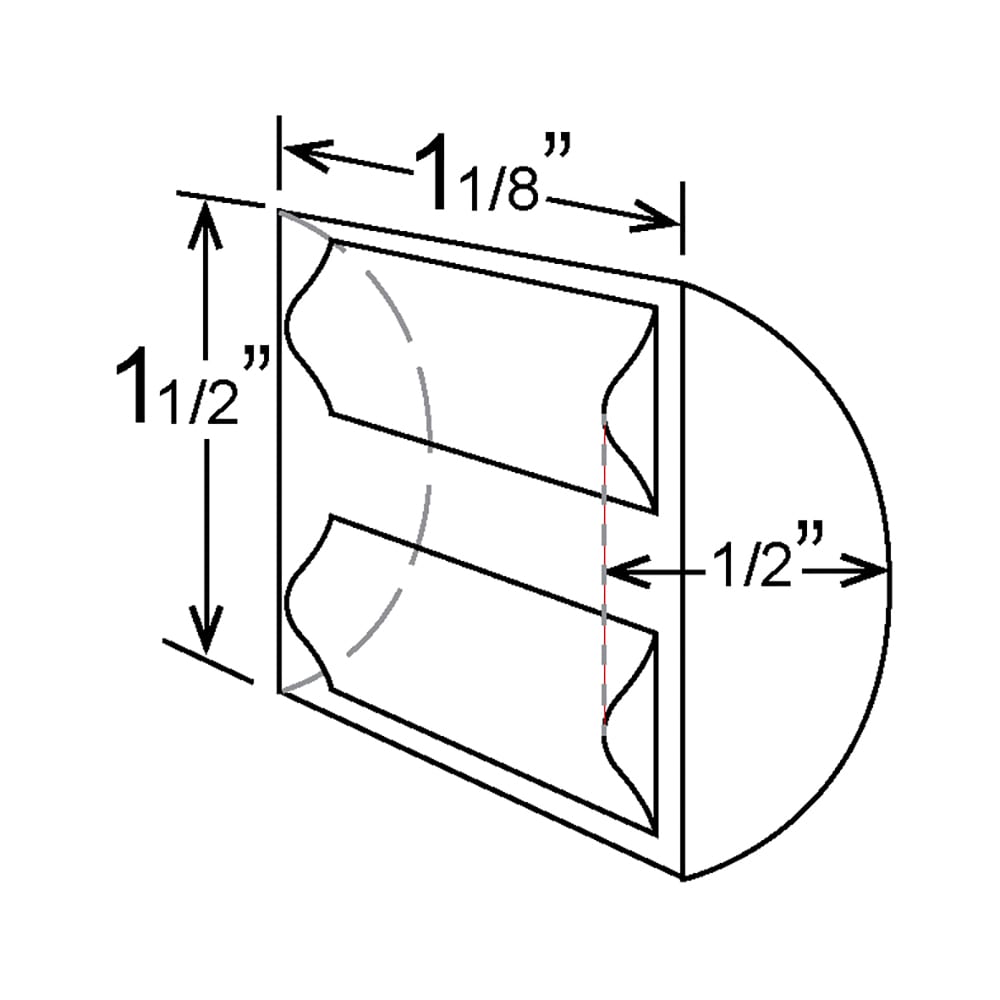

  • Crescent-cube ice size: 1.125 in. x 1.5 in. x 0.5 in.
  • Quick-cleaning parts that snap into place
  • System self-adjusts to counteract changing conditions
  • CycleSaver™ design reduces the number of cycles each day
  • Durable, rust-resistant stainless steel exterior
  • Plastic louvers
  • H-GUARD Plus antimicrobial protection reduces mold, mildew, and bacteria
  • EverCheck™ system alerts users of system issues with beep patterns
  • Cools with R404A refrigerant
  • Cleaning cycle
  • Ice bin sold separately
  • 6,600 BTU
  • UL listed; AHRI, NSF, and ENERGY STAR certified

Product Features

Hoshizaki KM520MAJ Features

Required Operating Conditions

  • Ambient air temperature: 45-100 degrees F
  • Incoming water temperature: 45-90 degrees F
  • Incoming water pressure: 10-133 PSIG
  • Clearances: 6 in. on both sides, 6 in. behind, and 6 in. above
  • Copper water tubing with a minimum 0.25-in. inner dia. for water supply
  • Hard pipe with a minimum 0.75-in. inner dia. for draining

Dimensions and Utilities

  • 22 in. W x 27.375 in. D x 28 in. H
  • 10.6 A, 4.68 kW
  • 115 V/60 Hz/1 ph

For additional information about these units, check out our ice makers buying guide.

Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 556 lb/24 hours at 70°/50° (480 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 10.6 amps, NSF, UL, ENERGY STAR®

Warning Small Important Prop 65 information for California residents.

Hoshizaki KM-520MAJ Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 556
Height (in) 28
Ice Type Crescent Cube
Warranty 3-yr parts & labor; 5-yr parts & labor on evaporator; 5-yr parts on compressor & air-cooled condenser
Voltage 115
Compressor Type Air Cooled
Hertz 60
Phase 1
Product Type Ice Makers & Bins
Recommended Bins B-250PF, B-300PF, B-300SF, B-500PF, B-500SF, B-700PF, B-700SF, B-800PF, B-800SF, B-900PF, B-900SF, B-1150SS, B-1300SS, DB-130H, DB-200H
Depth (in) 27.4
Width (in) 22
Product Ice Machine Head
Cold Water (in) 1/2
Indirect Waste Size (in) 3/4
Amps 10.6
Production Range (lbs/day) 100-999 lb
Width (in) Range 10 - 29
Special Features CycleSaver™
Weight 151.00
Hoshizaki KM-520MAJ Certifications
  • UL
  • NSF
  • Energy Star
