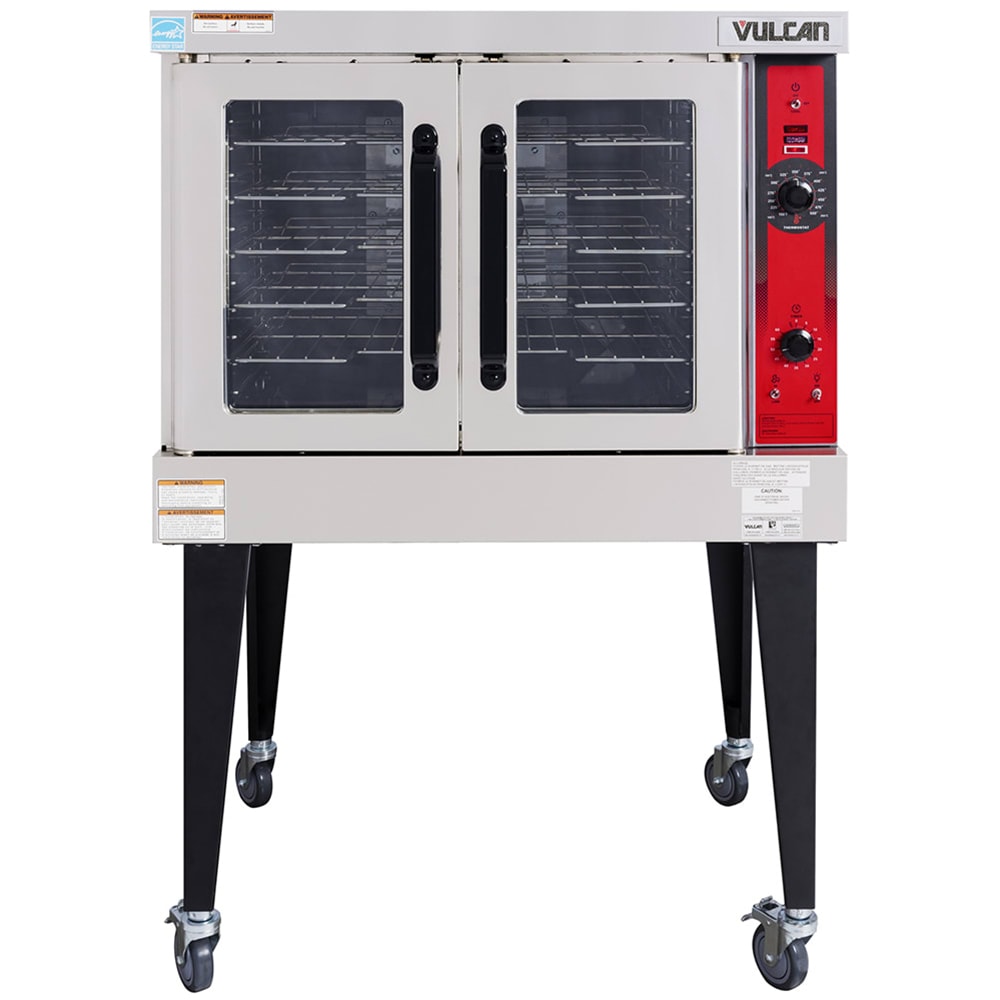

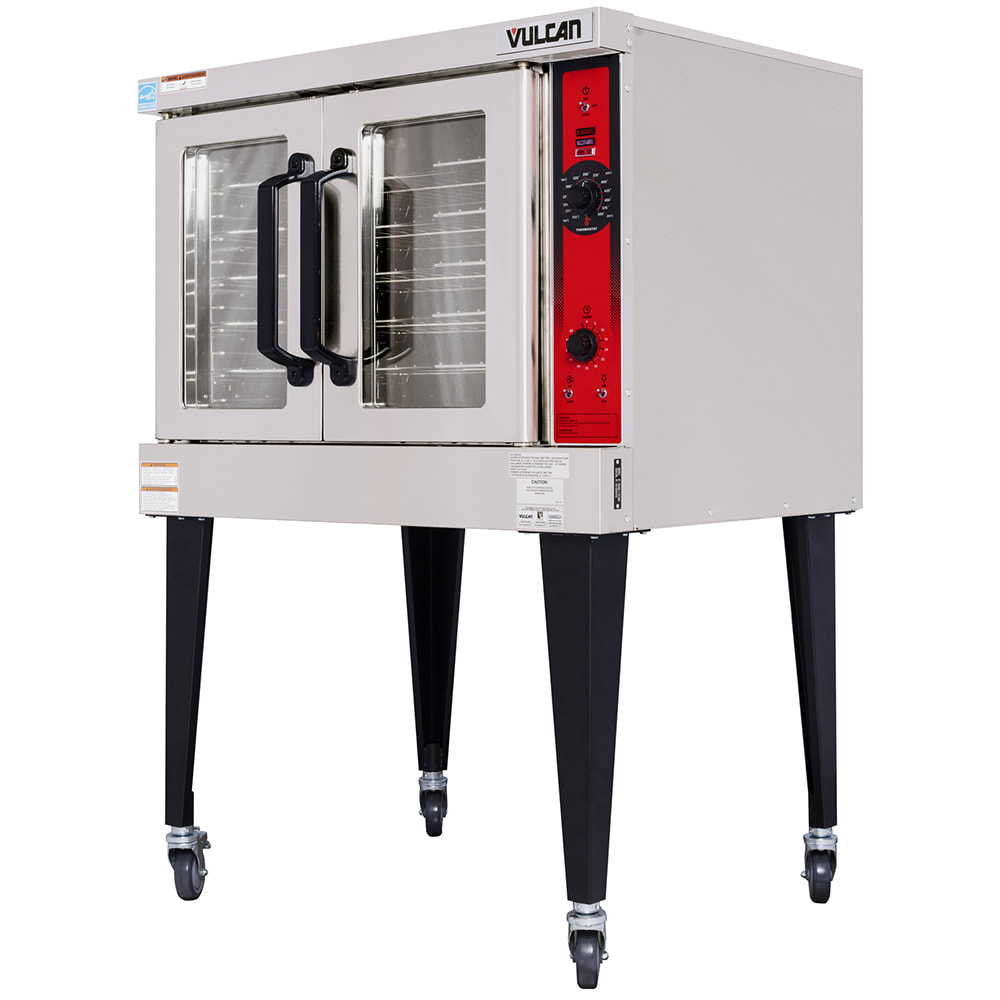

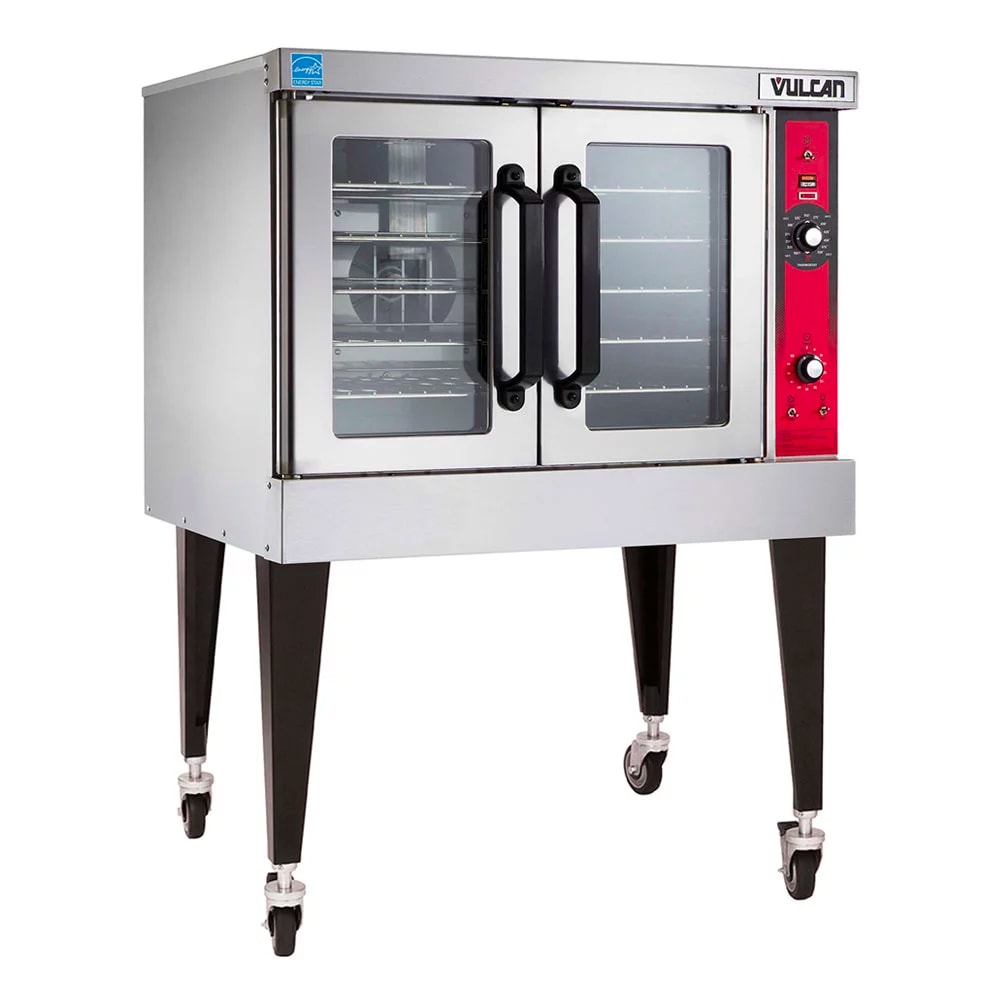

Vulcan VC4ED Single Full Size Electric Convection Oven - 12.5 kW, 240v/1ph

The Vulcan VC4ED full-size convection oven comes with a user-friendly control panel. An amber light shows when the unit is on or off, while a white heat light lets the operator know if the heating elements are on. A large knob enables the user to adjust the temperature from 150 to 500 degrees Fahrenheit, while air velocity can be set to high or low with the fan control knob. When preparing moist products, the moisture vent damper control can open the vent to release excess humidity.

There are five nickel-plate racks that adjust to 11 different positions, and the corrosion-resistant porcelain enamel simplifies cleaning. Made of stainless steel, the exterior is heavy duty for frequent use. Insulation is built into the unit for structure and to retain heat. Independently controlled doors have double pane glass for visibility into the cabinet without releasing warm air, and the Vulcan VC4ED electric convection oven uses solid sheath elements to heat the unit.

Product Details

• Made of durable stainless steel
• Porcelain enamel interior resists corrosion
• 5 nickel-plated racks can be placed in 11 different positions
• Insulation keeps heat in the cabinet
• Independently operated doors
• Double pane glass in the doors enables operators to see product without releasing heat
• Interior lights shine on product for more visibility
• Electric solid sheath elements heat the unit
• 240 V/60 Hz/1 ph, 12.5 kW, ¹⁄₂ HP
• Interior dimensions: 29 in. W x 22¹/₈ in. D x 20 in. H
• Overall dimensions: 40¹/₄ in. W x 41¹/₈ in. D x 54³/₄ in. H

User-Friendly Control Panel

• Temperature range: 150-500 degrees F
• Solid state control adjusts the temperature
• 60-min. timer has an audible alarm so users can complete other tasks during cooking.
• Moisture vent damper control opens and closes to release moisture
• Amber light shows when the unit is on or off
• White heat light shows when the heating elements are on or off
• Fan control can be turned to high or low to control the velocity of air in the unit

*Free shipping on Vulcan VC4ED within the 48 contiguous states.

From The Manufacturer

Convection Oven, electric, single-deck, standard depth, solid state controls, 60 minute timer, (5) nickel plated racks, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 1/2 HP, 12.5kW, NSF, cUL, UL, ENERGY STAR®

*Shown with Optional Accessories

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan VC4ED Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
