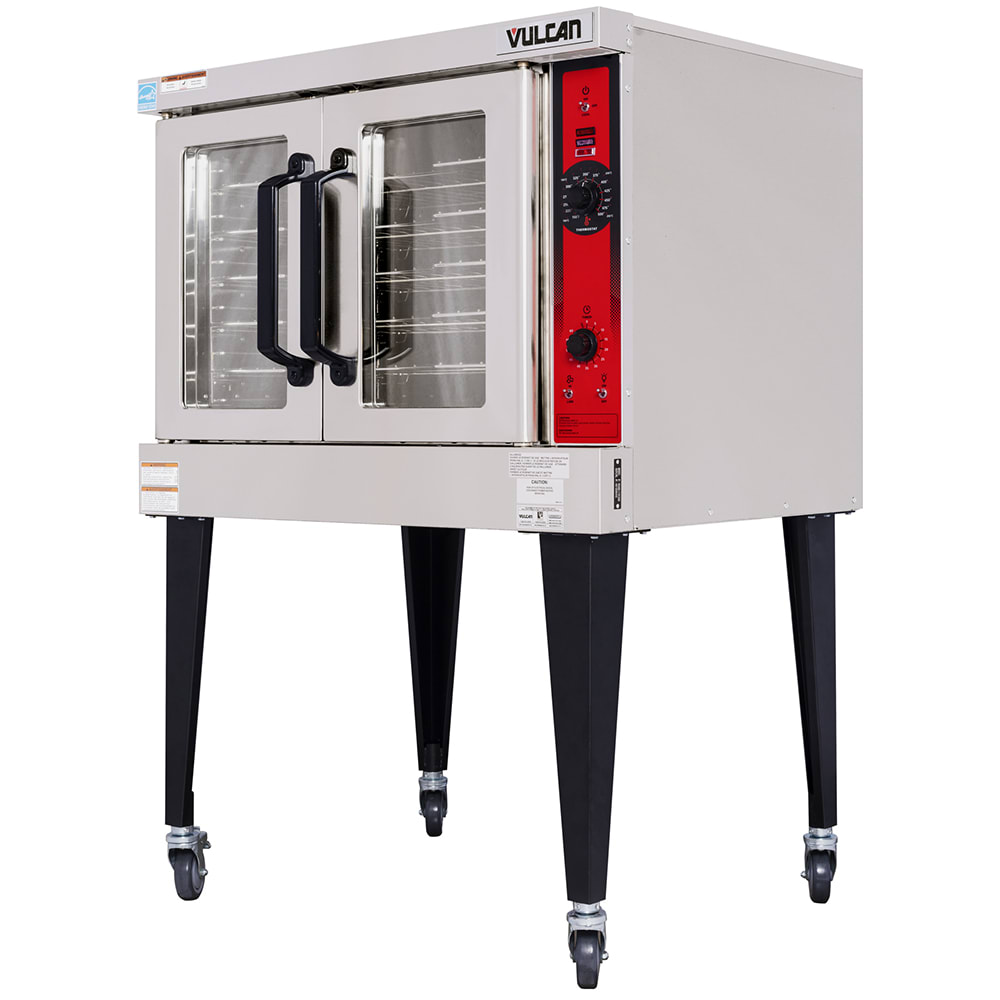

Vulcan VC4ED Full Size Electric Convection Oven - 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 207-VC4ED2081 • MPN: VC4ED 2081
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $4,005.00

Selected Voltage: 208V, 1 Phase

Image may not depict product color, inclusions or accessories.

Vulcan VC4ED Description


The Vulcan VC4ED full-size electric convection oven has stainless steel sides, front, and top to provide minor damage resistance and make the oven easy to clean. The stainless steel doors are independently operated to add strength and allow for access to product. Double-pane windows on the doors and interior lights permit users to view food while it is cooking. Temperatures range between 150 and 500 degrees Fahrenheit and can be adjusted with solid-state controls. When the cook cycle is finished, the operator is alerted with an audible alarm. The Vulcan VC4ED oven’s cavity measures 29 inches wide by 2218 inches deep by 20 inches tall, providing space for five nickel-plated racks that adjust to 11 positions. The steel interior has a porcelain coating that releases baked on messes better than steel surfaces.

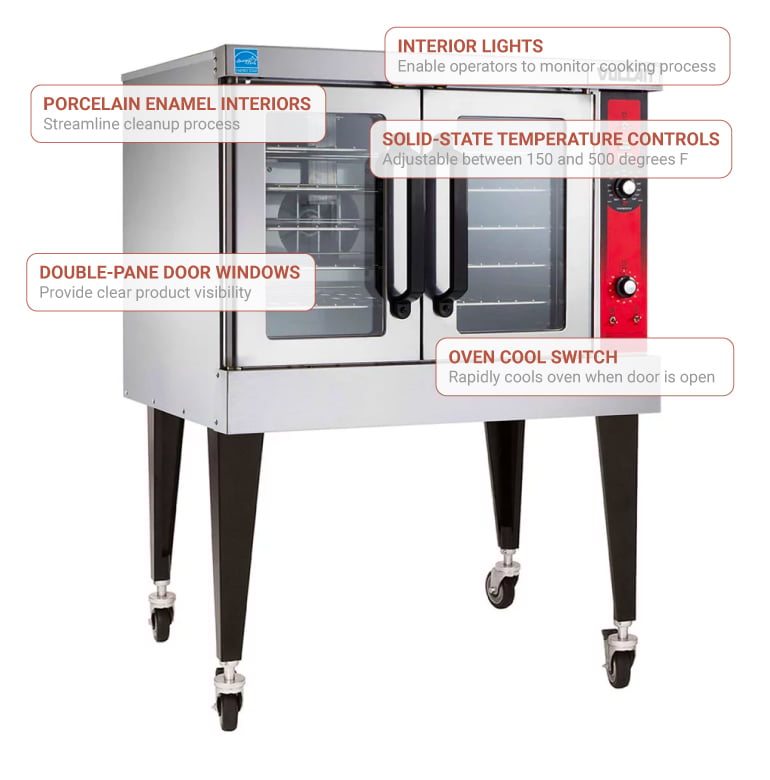

Product Details

  • 150-500 degrees F temperature range can be adjusted with solid-state controls
  • Audible alarm on the 60-min. timer alerts the operator when the cook cycle has concluded
  • (5) 2814-in. x 2012-in. nickel plated racks can be used in 11 positions
  • Moisture vent damper control helps control humidity
  • Porcelain coating on the steel interior releases baked-on product so it is easy to clean
  • Oven cool switch rapidly cools the interior down when the door is open
  • Product is accessed with stainless steel, independently-operated doors
  • Double-pane windows on the doors offer product visibility
  • 2 interior lights allow operators to view cooking product
  • Front, sides, and top resist corrosion and minor damage with the stainless steel construction
  • 2334-in. legs are painted for a professional feel
  • 208 V/60 Hz/1 ph, 1212 kW, 12 HP
  • Interior Dimensions: 29 in. W x 2218 in. D x 20 in. H
  • Overall Dimensions: 4014 in. W x 4118 in. D x 5434 in. H
  • UL and cULus listed; NSF certified

Convection Oven, electric, single-deck, standard depth, solid state controls, 60 minute timer, (5) nickel plated racks, 25-3/4" high legs, stainless steel front, top and sides, stainless steel door with window, 1/2 HP, 12.5 kW, NSF, cUL, UL, 208v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan VC4ED Specifications

PDF Spec Sheet
Manufacturer Vulcan
Base Legs
Controls Digital
Door Construction Glass Only
Door Type Independent
Heat Electric
Interior Construction Stainless Steel
Number of Ovens Single
Pans (per deck) 5 Pans
Size Full Size
Type Floor Model
Warranty Limited 1-year
Hertz 60
Voltage 208
Phase 1
Product Type Ovens
Product Convection Oven
Weight 450.00
Vulcan VC4ED Certifications
  • UL
  • NSF
