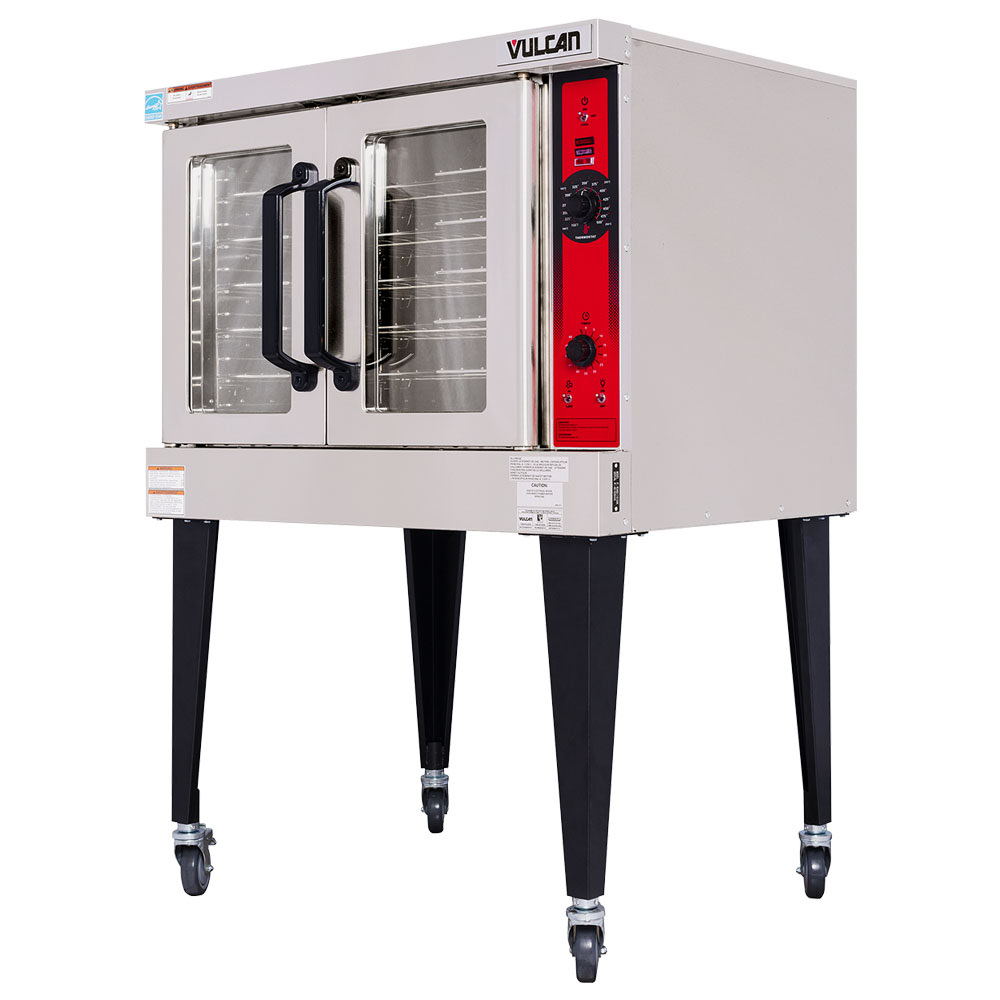

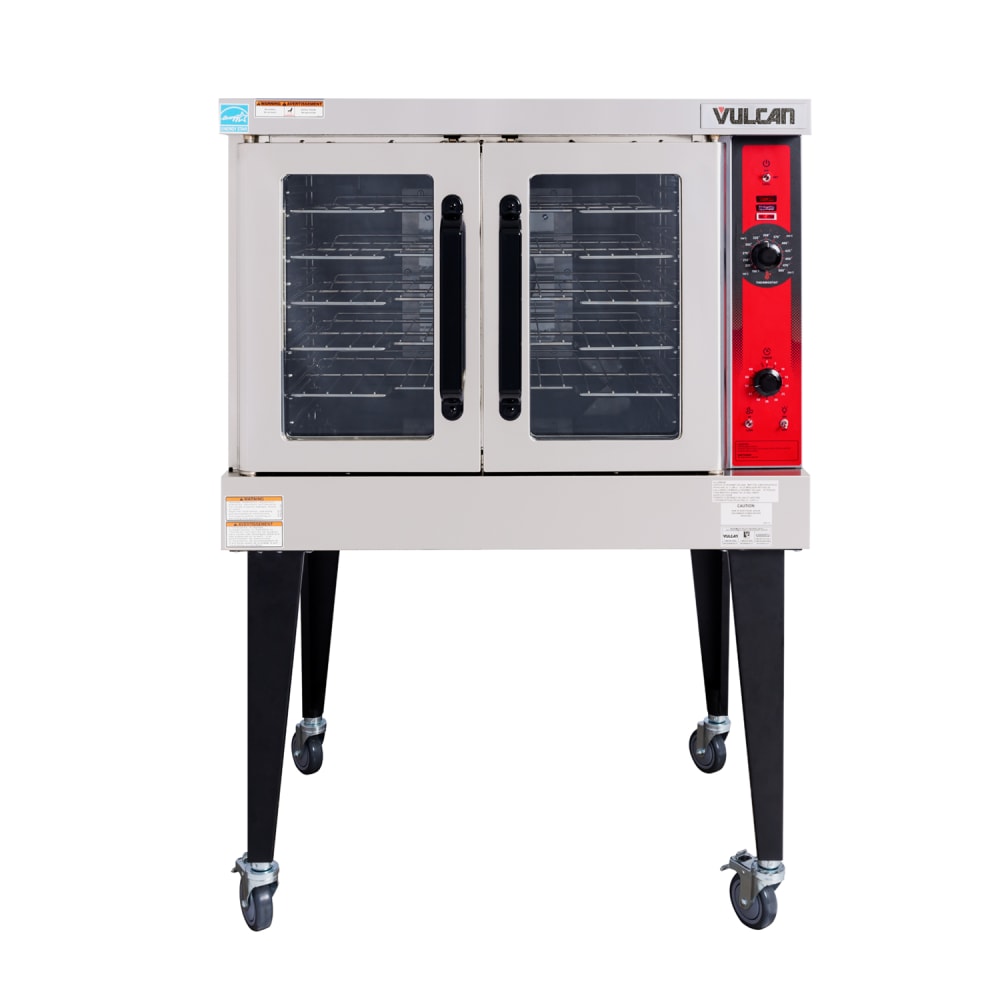

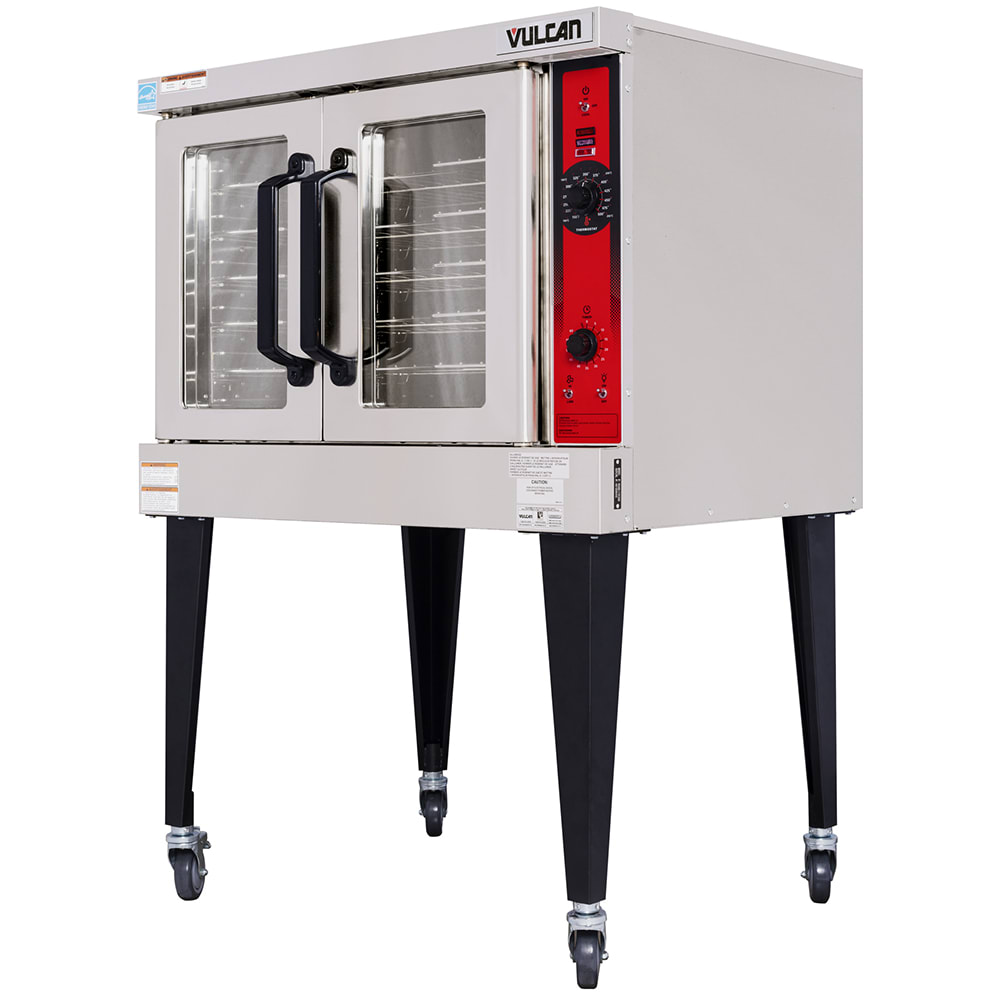

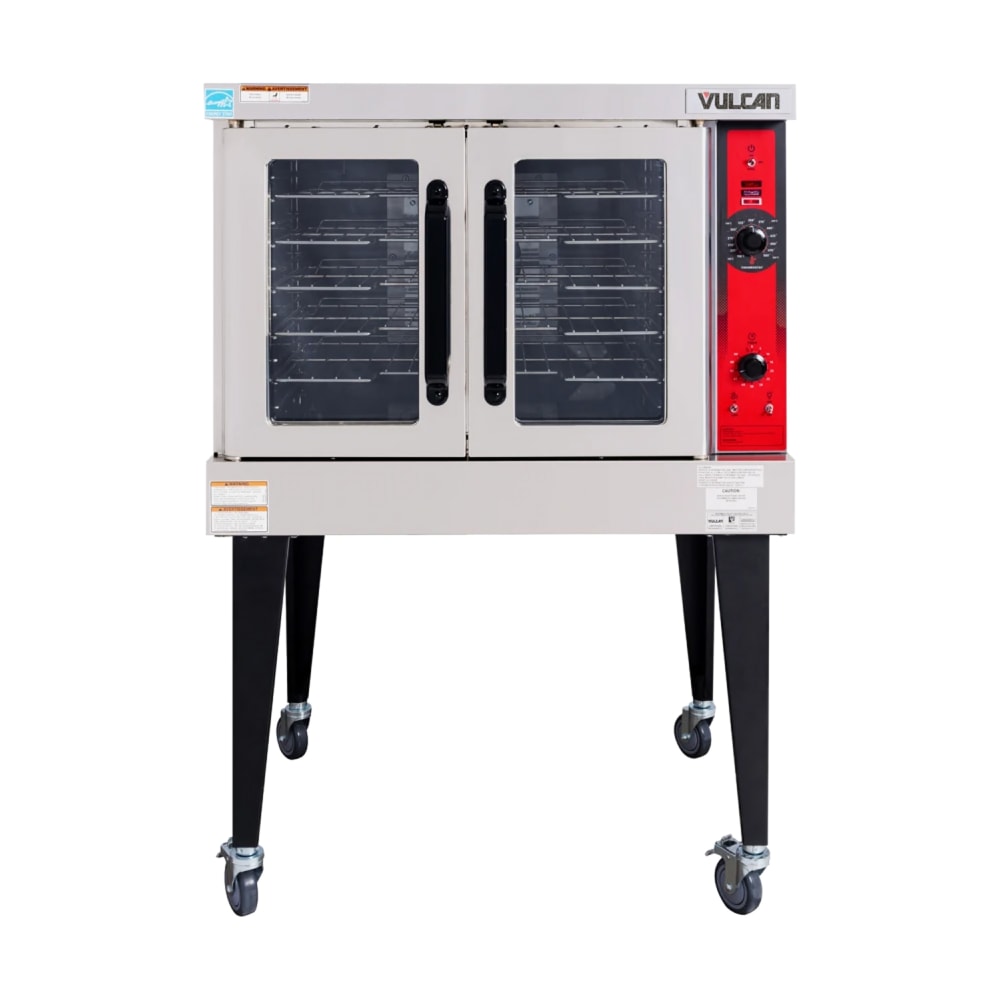

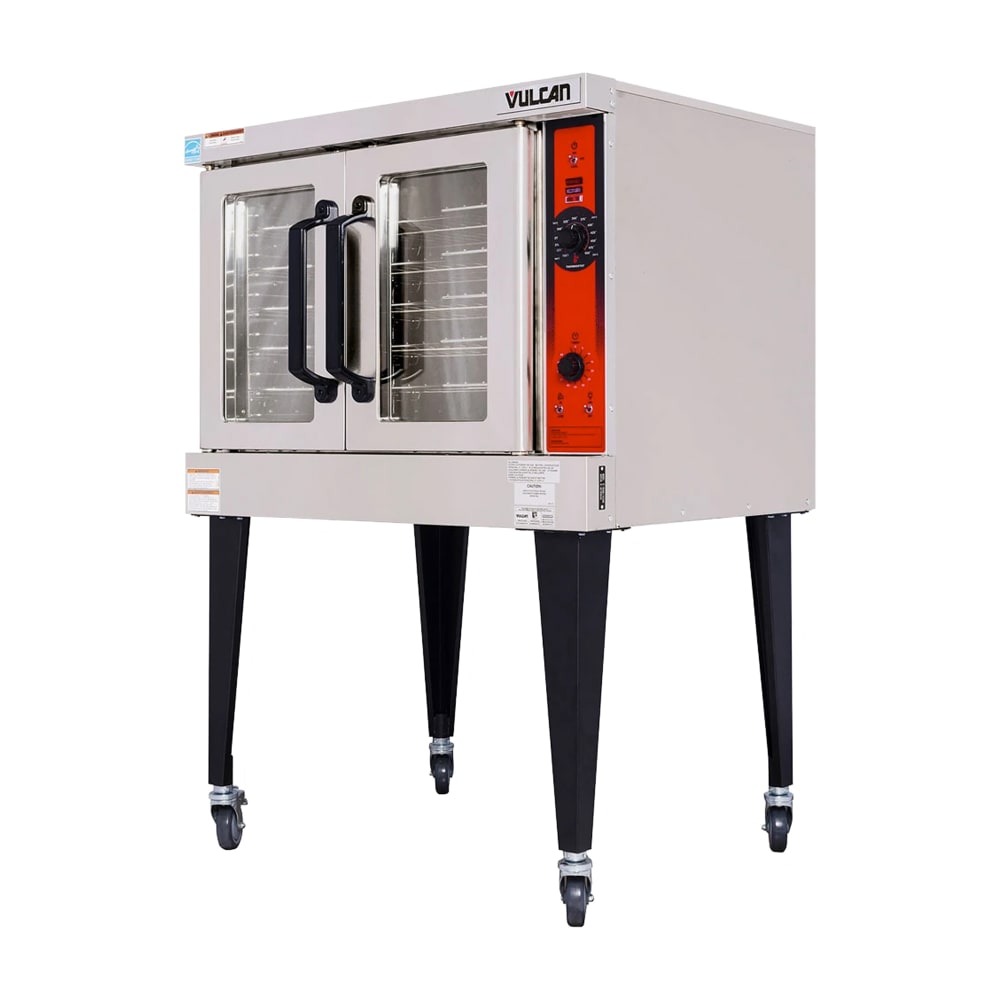

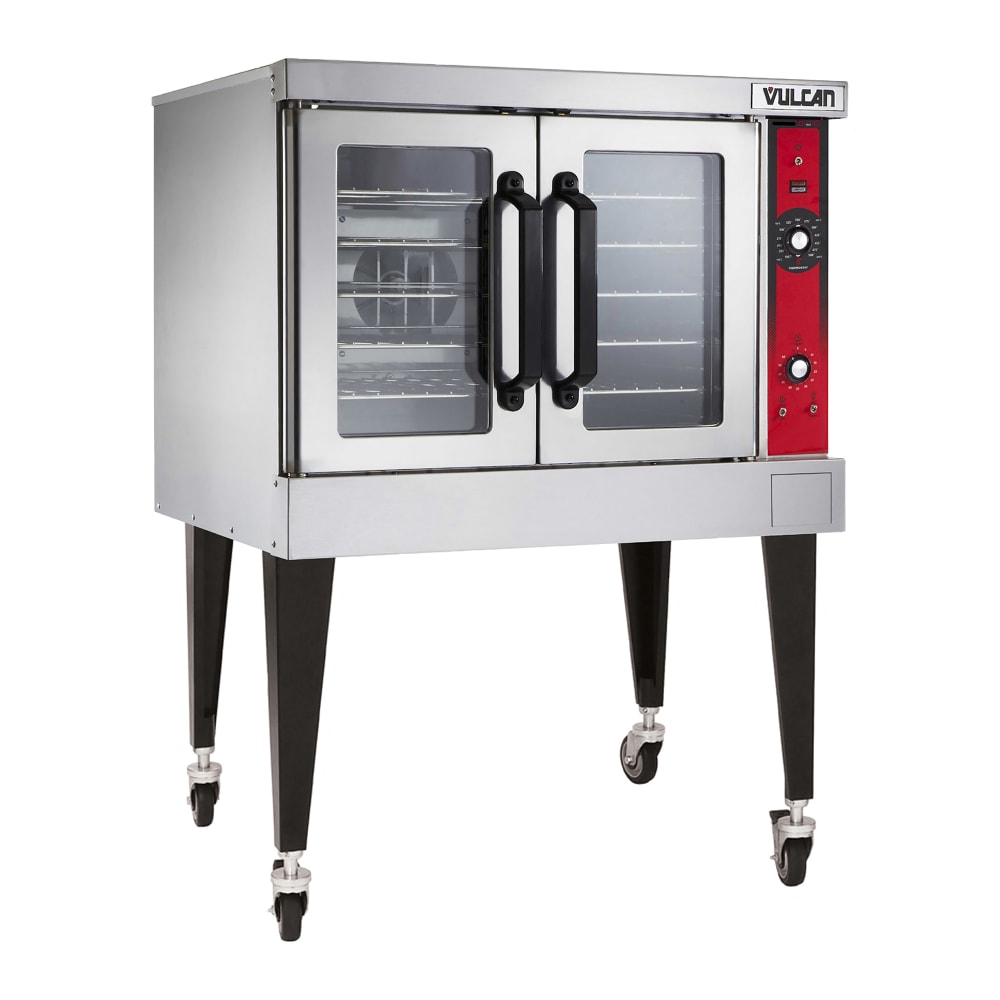

Vulcan VC4ED Single Full Size Electric Convection Oven - 12.5 kW, 208v/3ph

KaTom #: 207-VC4ED2083 • MPN: VC4ED 208/3
  • 207-VC4ED2083 Primary Thumbnail Image
  • 207-VC4ED2083 Multiple Thumbnail Image #1
  • 207-VC4ED2083 Multiple Thumbnail Image #2
  • 207-VC4ED2083 Multiple Thumbnail Image #3
  • 207-VC4ED2083 Multiple Thumbnail Image #4

Typically ships in 9 - 13 Business Days

Free Shipping Item

$6,590.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 208V, 3 Phase

Katie Duncan User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 12-01-2026 to save before the price increases!

Vulcan VC4ED Description

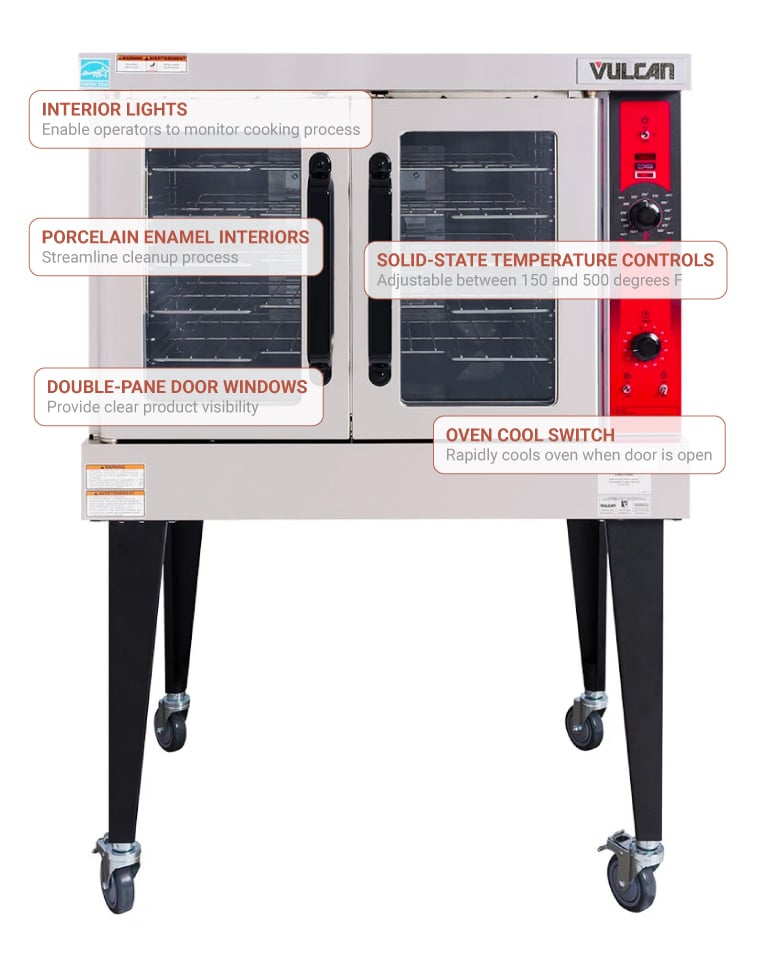

Standing on 23 3⁄4-inch-high legs, the Vulcan VC4ED full-size convection oven's cavity is at a comfortable working height, and it resists scratches and corrosion with its stainless steel front, sides, and top. Interior temperatures can be adjusted from 150 to 500 degrees Fahrenheit with the solid-state controls, while the 60-minute timer has an audible alarm, alerting users when food is done. Humidity is controlled by a moisture vent damper, so the oven can cook moist or crispy dishes.

The Vulcan VC4ED electric convection oven features 11 rack positions in the cavity, and the five included racks are adjustable between these positions and can be raised or lowered as needed. For cleaning, the racks can be removed, while the steel interior has a porcelain enamel coating that releases most baked-on product. Its oven doors operate independently and are made of dent-resistant stainless steel. Because of the double-pane windows, the doors display products, so users don't need to open them unless adding or retrieving product.

  • Solid-state temperature controls
  • Temperature range: 150-500 degrees F
  • Blower with a high and low speed
  • 60-min. timer has an audible alarm to alert the operator when time expires
  • (5) 28 1⁄4-in. x 20 1⁄2-in. racks
  • 11 rack positions
  • Vents for adjusting the humidity level
  • Porcelain-coated steel interior can be wiped down
  • Cooling switch lets fans blow air out the open doors
  • 2 internal lights
  • Double-pane windows for watching product as it cooks
  • Stainless steel doors open independently to limit heat loss
  • Front, sides, and top are made of stainless steel to prevent dings and dents
  • 23 3⁄4-in. legs are painted to offer a professional look

  • Interior: 29 in. W x 22 1⁄8 in. D x 20 in. H
  • Overall: 40 1⁄4 in. W x 41 1⁄8 in. D x 54 3⁄4 in. H
  • 35 A, 12.5 kW, 1⁄2 HP
  • 208 V/60 Hz/3 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Vulcan VC4ED within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Convection Oven, electric, single-deck, standard depth, solid state controls, 60 minute timer, (5) nickel plated racks, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 1/2 HP, 12.5kW, NSF, cUL, UL, ENERGY STAR®
Warranty Icon
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan VC4ED Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.

Warning Small WARNING: Important Prop 65 information for California residents.

Equivalent Items












Related Categories
0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

It includes five racks with 11 adjustable positions.

— KaTom Foodservice Equipment Specialist

Yes, it uses a two-speed 1⁄2 HP blower motor.

— KaTom Foodservice Equipment Specialist

It adjusts from 150 to 500°F using solid state controls.

— KaTom Foodservice Equipment Specialist

It has a 60-min. timer with audible alarm.

— KaTom Foodservice Equipment Specialist

Yes, it has independent doors with double-pane glass windows.

— KaTom Foodservice Equipment Specialist

It requires 2-in. rear, 4-in. right, and 1-in. left clearance.

— KaTom Foodservice Equipment Specialist

It uses 208 V/60 Hz/3 ph with 12.5 kW power.

— KaTom Foodservice Equipment Specialist

The interior has porcelain-coated steel with removable racks.

— KaTom Foodservice Equipment Specialist

Yes, it has a vent damper for humidity control.

— KaTom Foodservice Equipment Specialist

The unit has stainless steel front, top, and sides.

— KaTom Foodservice Equipment Specialist

It is a freestanding convection oven supported on legs.

— KaTom Foodservice Equipment Specialist

It has one oven chamber.

— KaTom Foodservice Equipment Specialist

It holds 5 full-size pans.

— KaTom Foodservice Equipment Specialist

It accommodates full-size pans.

— KaTom Foodservice Equipment Specialist

It measures 40 1⁄4 in. W x 41 2⁄15 in. D x 54 3⁄4 in. H.

— KaTom Foodservice Equipment Specialist

It is an electric convection oven.

— KaTom Foodservice Equipment Specialist

It has digital controls.

— KaTom Foodservice Equipment Specialist

Yes, its doors operate independently.

— KaTom Foodservice Equipment Specialist

The oven interior is made of stainless steel.

— KaTom Foodservice Equipment Specialist

Its temperature range is from 150°F to 500°F.

— KaTom Foodservice Equipment Specialist

It is cULus Listed, ENERGY STAR certified and NSF certified.

— KaTom Foodservice Equipment Specialist

Yes, the oven doors have viewing windows.

— KaTom Foodservice Equipment Specialist

It has 11 rack positions.

— KaTom Foodservice Equipment Specialist

It includes 5 oven racks.

— KaTom Foodservice Equipment Specialist

Yes, the oven racks can be adjusted.

— KaTom Foodservice Equipment Specialist

An audible alarm sounds when the cooking timer ends.

— KaTom Foodservice Equipment Specialist

It includes legs.

— KaTom Foodservice Equipment Specialist

Yes, it offers humidity control.

— KaTom Foodservice Equipment Specialist
