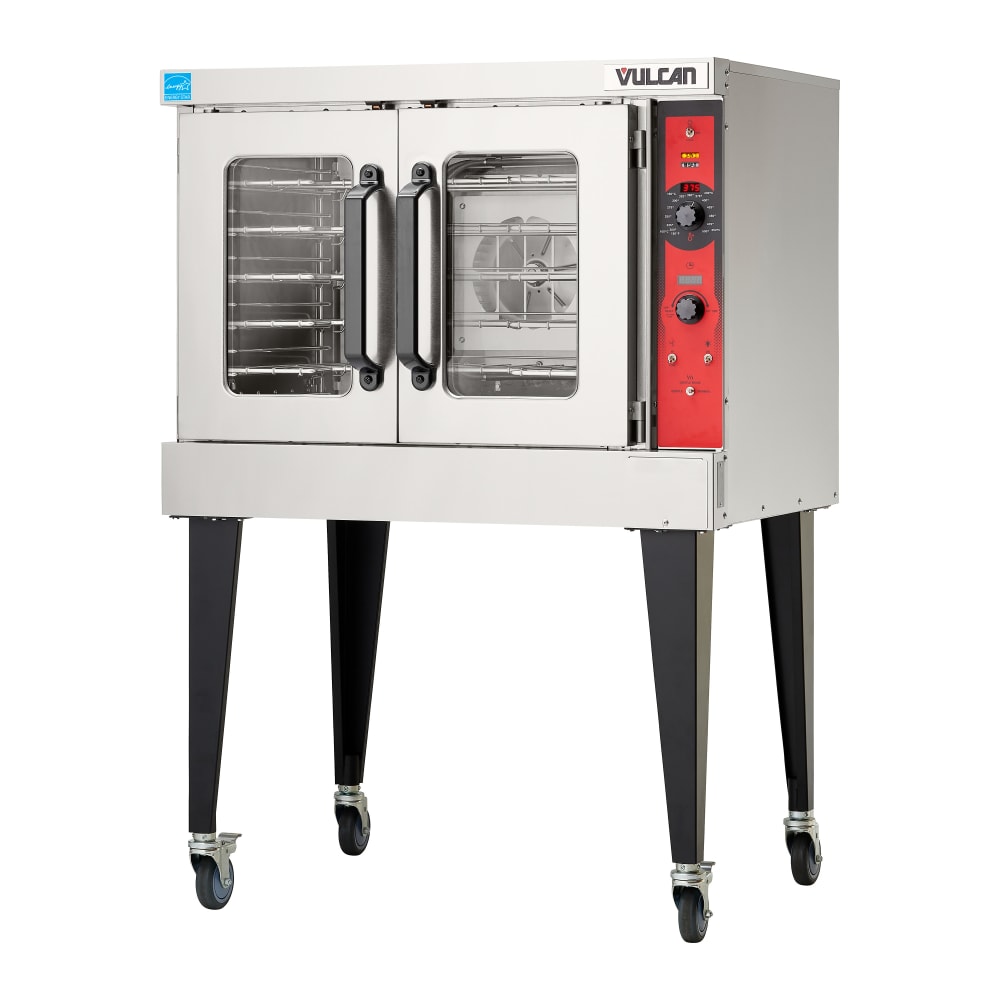

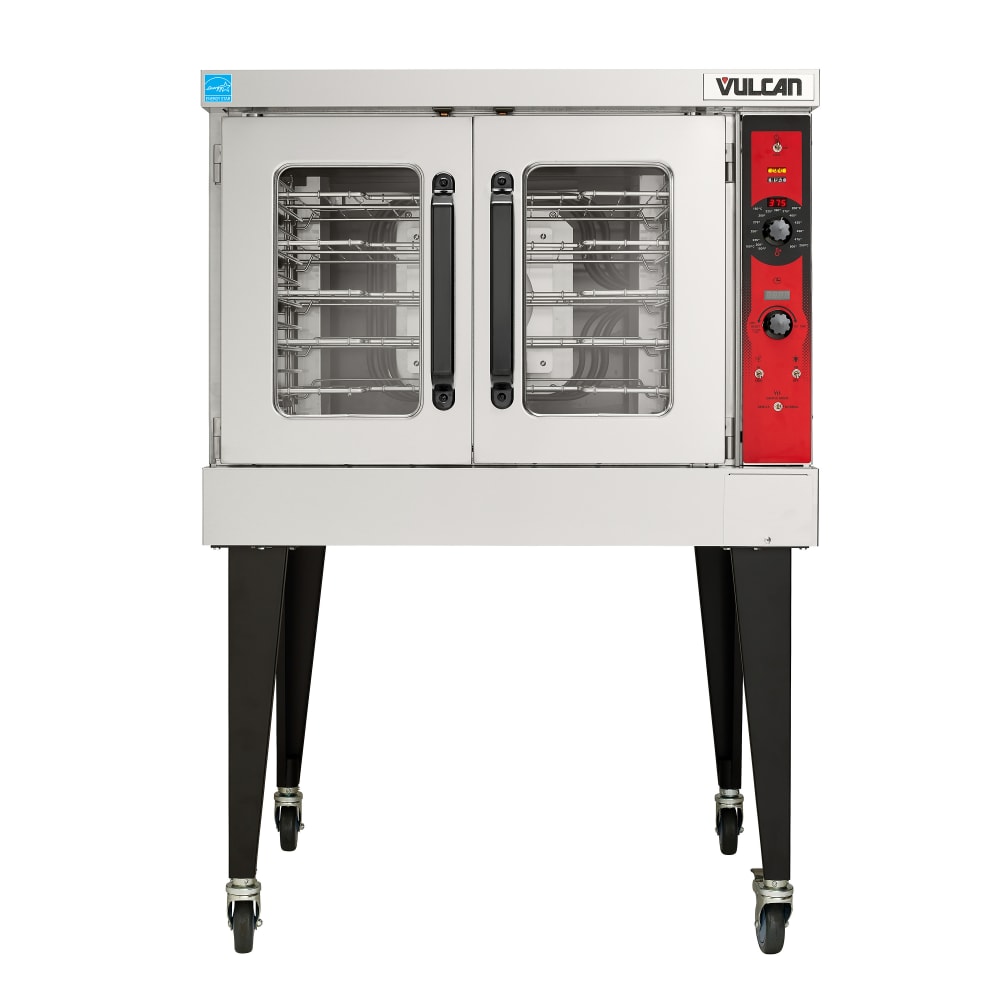

Vulcan VC5ED Single Full Size Electric Convection Oven - 12 1/2 kW, 208v/1ph
Typically ships in 2 - 3 weeks
$6,684.00 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Attention: Order by 12-01-2026 to save before the price increases!
Vulcan VC5ED Description
The Vulcan VC5ED convection oven's front, sides, and top are made of rust-resistant stainless steel, which is efficient to clean. The top, rear, sides, and bottom are insulated to retain heat. The two stainless steel doors operate independently, can be removed for cleaning, and have double-pane windows that enable the user to see the interior. This interior is made of porcelain enamel over steel and is illuminated by interior lights.
The Vulcan VC5ED electric convection oven comes equipped with five nickel-plated oven racks and nickel-plated, 11-position rack guides with positive racks stops. Solid, electric sheath elements provide heat, while a two-speed blower motor distributes the steam throughout the oven cavity. The moisture vent prevents food from becoming soggy. An oven switch initiates rapid cooldown and the solid-state temperature dial control utilizes an LED display to assist the user with operation. The 5-hour countdown timer features an audible alarm to alert nearby operators.
- Front, sides, and top made of rust-resistant stainless steel
- Top, rear, sides, and bottom are insulated to retain heat

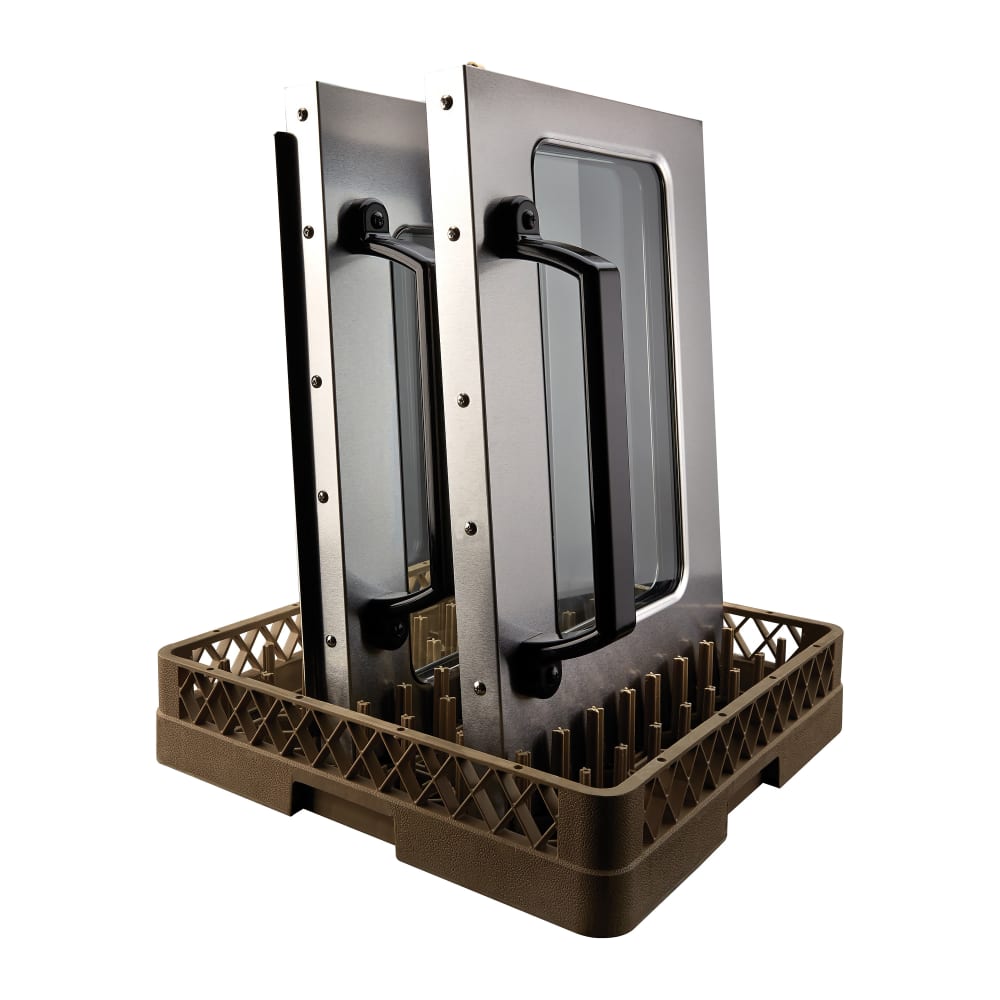

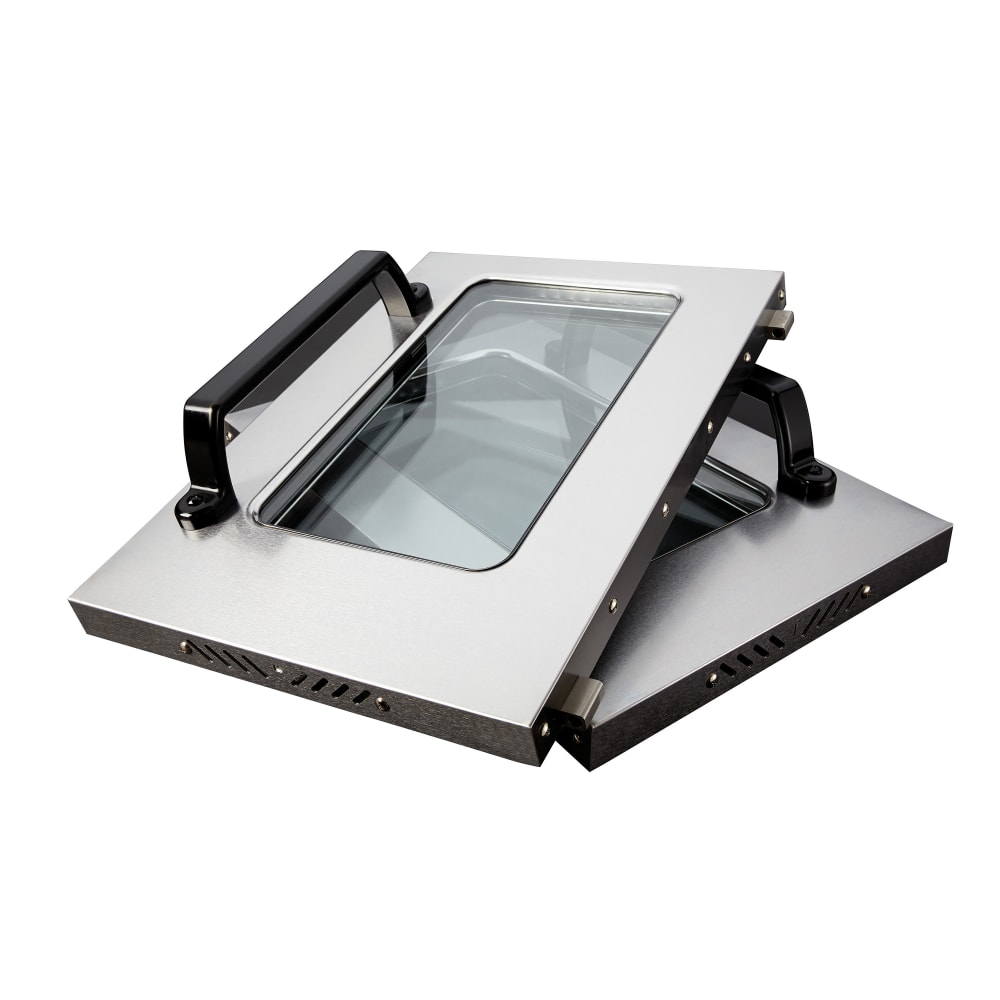

- Stainless steel doors open independently and are removable for cleaning
- Double-pane windows on the doors provide interior visibility
- Interior is made of porcelain enamel over steel
- Oven lights illuminate the interior
- 5 nickel-plated oven racks
- 11-position, nickel-plated rack guide with positive rack stops
- Solid, electric sheath elements provide heat
- 2-speed oven blower motor
- Moisture vent prevents food from getting soggy
- Oven cool switch enables rapid cool down

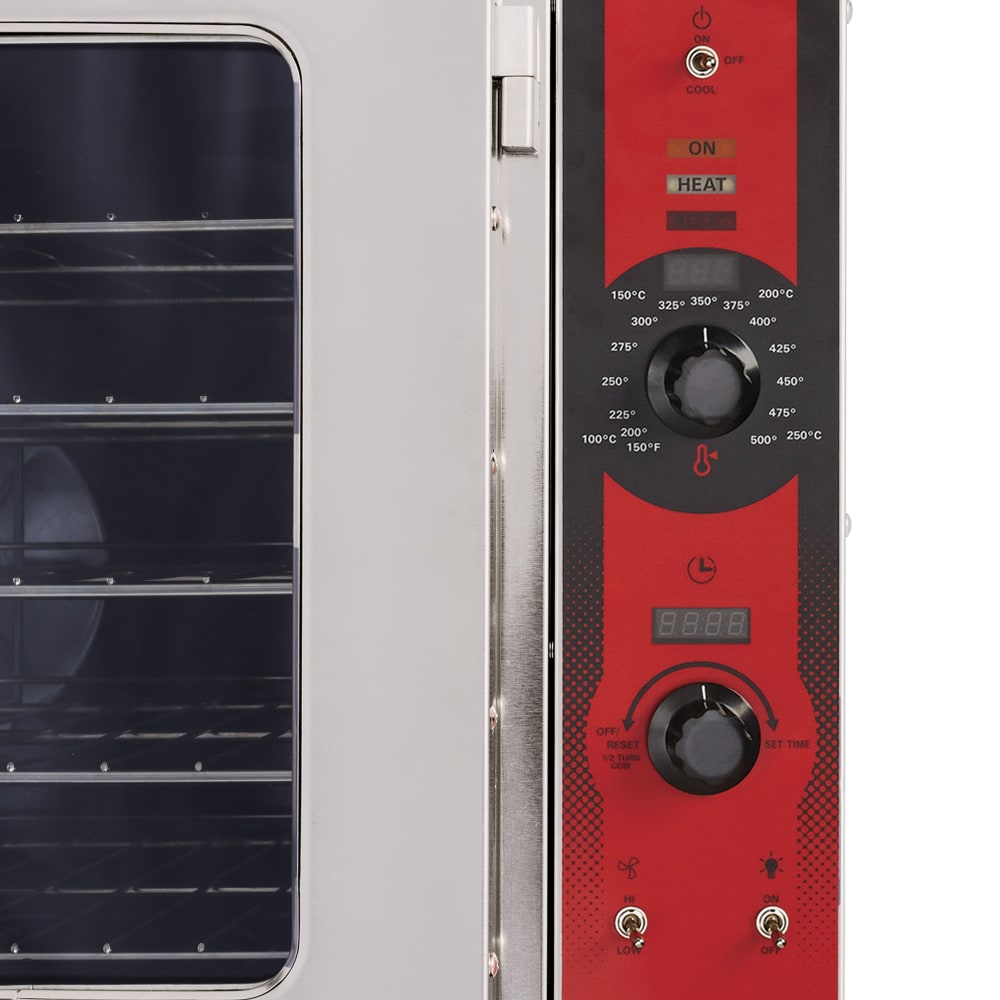

- Solid-state temperature dial uses a digital display to enable user control
- Temperature range: 150-500 degrees F
- 5-hour timer comes with an audible alarm
- Interior: 29 in. W x 22 1⁄8 in. D x 20 in. H
- Overall: 40 1⁄10 in. W x 40 in. D x 54 in. H
- 60 A, 12.5 kW, 1⁄2 HP
- 208 V/60 Hz/1 ph
*Shown with Optional Accessories
*Free shipping on Vulcan VC5ED within the 48 contiguous states.
From The Manufacturer
Vulcan VC5ED Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 40 |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 54.75 |
| Hertz | 60 |
| kW | 12.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | VC5E Series |
| Size | Full Size |
| Voltage | 208 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 337.00 |
WARNING: Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It is a freestanding convection oven supported on legs.
It has one oven chamber.
It holds 5 full-size pans.
It accommodates full-size pans.
It measures 40 1⁄4 in. W x 40 in. D x 54 3⁄4 in. H.
It is an electric convection oven.
It has manual controls.
Yes, its doors operate independently.
Its temperature range is from 150°F to 500°F.
It is ENERGY STAR certified, NSF certified and UL Listed.
Yes, the oven doors have viewing windows.
It includes 5 oven racks.
Yes, it has adjustable fan-speed settings.
Yes, it has interior lighting.
An audible alarm sounds when the cooking timer ends.
Yes, it has a cool-down switch or mode.
It includes legs.
Yes, it offers humidity control.
The oven interior is made of porcelain on steel.
It has 11 rack positions.
