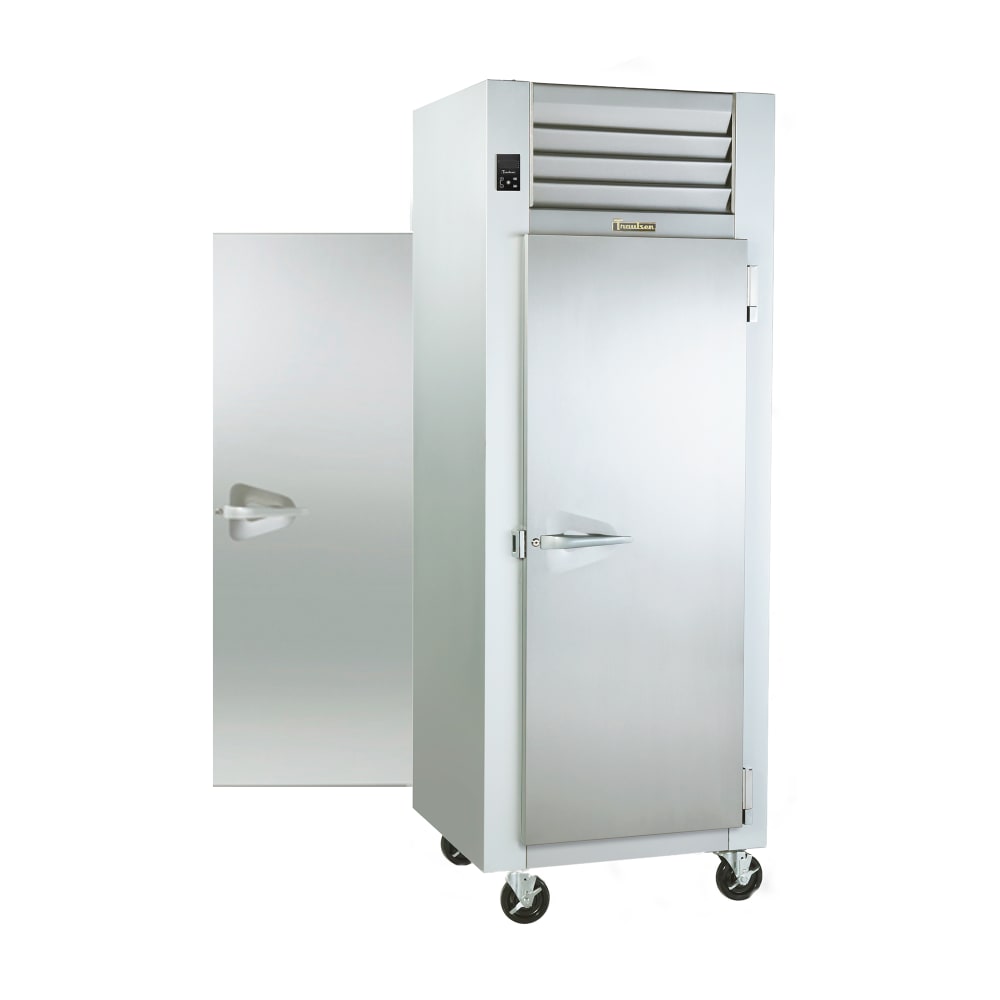

Traulsen AHT132NPUT-HHS 26" One Section Pass Thru Refrigerator, (4) Right Hinge Solid Doors, 115v

This stainless steel Traulsen AHT132NPUT-HHS one section pass-thru refrigerator is 26³/₈ inches wide by 32 inches deep by 83¹/₄ inches high. For convenient sizing, this refrigerator sits on four 6-inch adjustable stainless steel legs and has a 22¹/₂-cubic-foot capacity. This pass-through refrigerator is accessible from both the front and back, and it features four half doors that reduce the amount of escaped cold air each time the unit's interior is accessed. The three shelves in the refrigerator are coated for durability and adjustable for changing storage needs.

The Traulsen AHT132NPUT-HHS one-section pass-thru refrigerator is made to be easily accessible to kitchen staff and servers from both sides. It’s design works to streamline the process of making and serving cold foods to restaurant guests. The refrigeration system is self-contained, top-mounted, and uses a thermostatic expansion valve to hold the temperatures between 33 and 38 degrees Fahrenheit. This system includes an air-cooled hermetic compressor, condensate evaporator, and plenum-effect blower motor for consistent operation, and uses environmentally friendly, non-flammable R-450A refrigerant for user safety.

Product Details

• Pass-thru refrigerator
• 1 section
• 22¹/₂-cu.-ft. capacity
• Heavy-gauge stainless steel exterior
• Anodized aluminum interior
• 3 adjustable wire shelves can support 225 lbs. each
• Coated shelves
• 4 self-closing, locking half doors with stay-open feature
• Extruded handles
• Magnetic, EZ-clean door gaskets
• Door liner protects gaskets
• LED interior lighting with exterior switch
• Foamed-in-place, high-density polyurethane insulation
• 6 in. adjustable stainless steel legs

Refrigeration System

• R-450A eco-friendly and non-flammable refrigerant
• Self-contained
• Temperature holding range: 34 to 38 degrees F
• Thermostatic expansion valve
• Air-cooled hermetic compressor
• Plenum-effect blower coil
• High humidity evaporator coil outside the food zone
• Top-mounted, non-electric condensate evaporator

Dimensions & Utilities

• 26³/₈ in. W x 32 in. D x 83¹/₄ in. H
• ¹/₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug

Product Features

From The Manufacturer

Spec-Line Refrigerator, Pass-thru, one-section, self-contained refrigeration, stainless steel exterior, aluminum interior, standard depth, narrow half-height doors, (3) adjustable wire shelves per section, microprocessor controls, 6" adjustable stainless steel legs, 1/3 HP, UL, UL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

6-year Parts & Labor; 7-year Compressor
