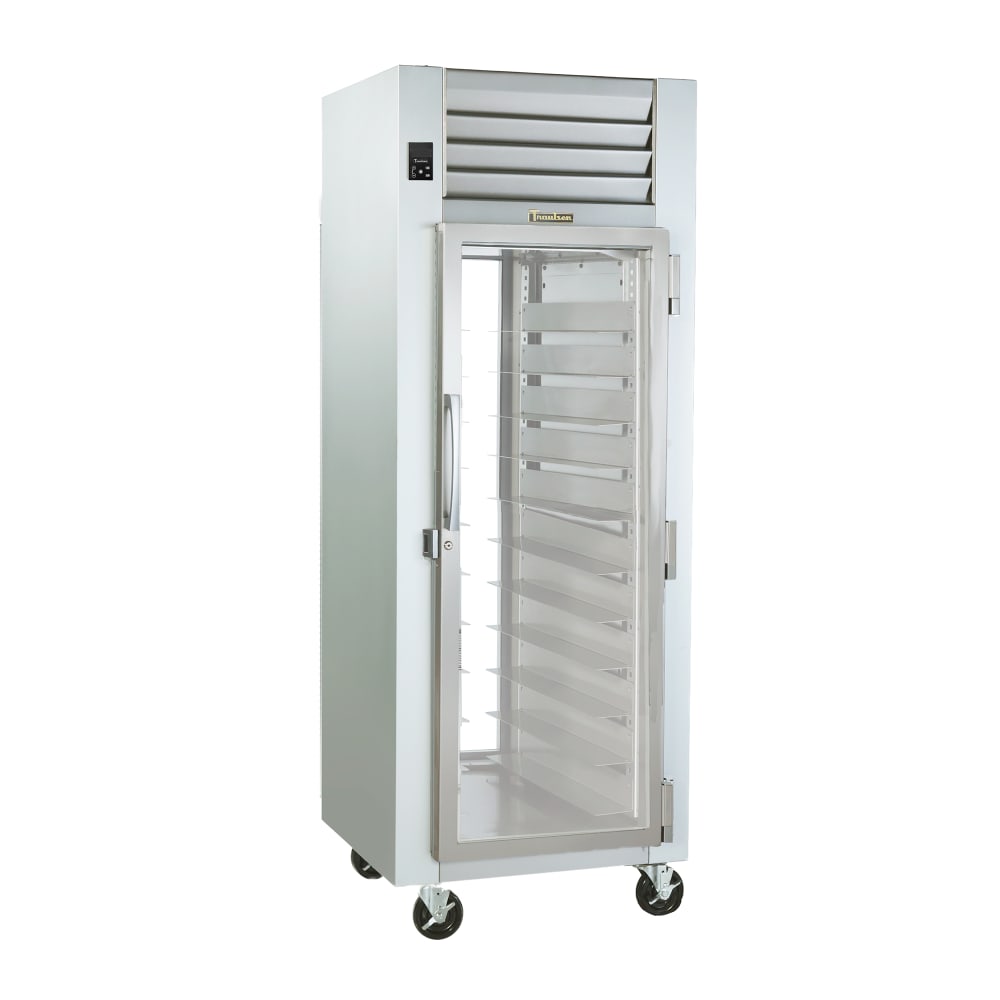

Traulsen AHF132WP-FHG Full Height Insulated Heated Cabinet w/ (3) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$16,185.02 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Need an Energy Star® Heated Cabinet?
See our selection of Traulsen Energy Star® certified Heated Cabinet products below
Traulsen AHF132WP-FHG Description
The Traulsen AHF132WP-FHG full-height heated cabinet has locking full-height doors that reduce the risk of theft and tampering. To provide a view of products inside, the doors are made of glass, and they can be propped open 120 degrees to streamline loading and unloading. If an employee forgets to close the doors, they will self-close to reduce energy loss, and to further preserve energy, the cabinet is insulated with high-density polyurethane.
To remain stable, the Traulsen AHF132WP-FHG insulated heated cabinet is positioned on 6-inch legs, which can be adjusted to prevent wobbling. Using microprocessor controls, the temperature can be adjusted from 135 to 180 degrees Fahrenheit. Product can be stored on three adjustable wire shelves. This unit has doors on both sides of the cabinet for pass-thru operation, and overall, it measures 29.88 inches wide by 37.94 inches deep by 83.25 inches high.
Product Details
- Part of the Spec line
- 1 section
- Pass-thru cabinet
- Standard depth
- Durable stainless steel exterior
- Interior made of aluminum
- Ducted fan air distribution system
- Full-height glass doors with locks
- Doors have a stay-open feature and self-close
- Microprocessor controls
- Temperature range: 135-180 degrees F
- 3 adjustable wire shelves
- Incandescent lights activate automatically
- Polyurethane insulation
- 6-in. stainless steel, adjustable legs
Dimensions & Utilities
- 29.88 in. W x 37.94 in. D x 83.25 in. H
- 7.8 A, 1500 W
- 208 V/60 Hz/1 ph, 9-ft. cord with plug
From The Manufacturer
Spec-Line Heated Cabinet, Pass-thru, one-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height glass door or doors with Santoprene® EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6" adjustable stainless steel legs, NSF, UL
*Image may not depict product color, inclusions or accessories.
Cord Attached
This product includes a cord and plug
Traulsen AHF132WP-FHG Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Controls | Digital |
| Cubic Feet | 24.8 |
| Depth (in) | 37.94 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| kW | 1.5 |
| Pan Capacity | 3 |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Shelves |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 29.88 |
| Series | Spec-Line |
| Control Location | Top |
| Load Type | Pass Thru |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| NEMA | L14-20P |
| Hinge Configuration | Right |
| Weight | 385.00 |
Important Prop 65 information for California residents.
