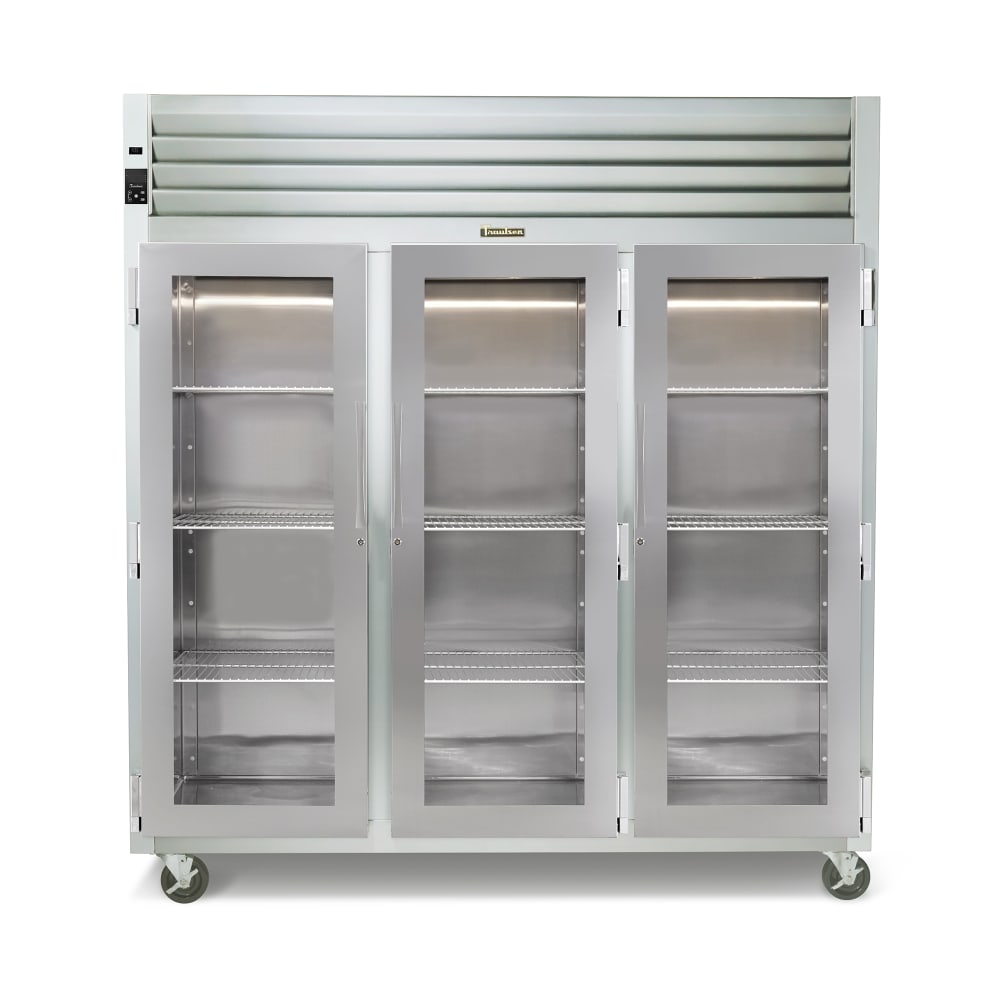

Traulsen AHF332W-FHG Full Height Insulated Stationary Heated Cabinet w/ (9) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$27,441.32 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Need an Energy Star® Heated Cabinet?
See our selection of Traulsen Energy Star® certified Heated Cabinet products below
Traulsen AHF332W-FHG Description
The Traulsen AHF332W-FHG Spec-Line heated cabinet uses a ducted fan air distribution system to circulate warm temperatures evenly without altering food textures. It produces and maintains safe temperatures ranging between 140 and 180 degrees Fahrenheit, and operators can manipulate temperatures with the Smart Control, which uses smart sensors to acclimate the cabinet to various environments and settings. It also includes visual alarms if the unit powers off unexpectedly, illuminating the LED alarm to alert the operator. To minimize temperature changes, the cabinet and doors are insulated with 2-inch-thick, high-density polyurethane that's foamed in place.
This three-section Traulsen AHF332W-FHG heated cabinet includes three coated wire shelves per section, and each shelf accommodates as much as 225 pounds of product. Its reach-in configuration provides direct access to product, and the three doors enable operators to insert or remove product from a specific section without opening all the doors. The doors are glass to grant a direct view into the cabinet, and they self-close when opened to a position less than 120 degrees. If opened past 120 degrees, they'll lock in place to streamline product loading and retrieval. The cabinet's exterior is made of stainless steel, while the interior is made of anodized aluminum. To prevent wobbling on irregular surfaces, it's mounted on 6-inch, adjustable stainless steel legs.
Product Details
- Part of the A series
- 3-section, reach-in configuration
- Full-height unit
- 79-cu.-ft. capacity
- Stainless steel exterior
- Anodized aluminum interior
- 3 full-height, self-closing glass doors with Santoprene® E-Z clean gaskets and locks
- 1 left-hinged door and 2 right-hinged doors
- 9 adjustable wire shelves (3 per section)
- Shelf capacity: 225 lbs.
- Temperature range: 140-180 degrees F
- Ducted fan air distribution system
- Serpentine-style heater
- Top vent controls humidity
- Doors and cabinet insulated with 2-in.-thick, high-density, foamed-in-place polyurethane
- Smart Control with LED display
- 1-time startup temperature adjustment mechanism
- On/off switch on control face
- Automatically activated incandescent lights
- (4) 6-in. adjustable stainless steel legs
Dimensions & Utilities
- 861⁄8 in. W x 35 in. D x 831⁄4 in. H
- 15.5 A, 3000 W
- 208 V/60 Hz/1 ph
From The Manufacturer
Spec-Line Heated Cabinet, Reach-in, three-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height glass door or doors with Santoprene® EZ-Clean Gaskets, microprocessor controls, 6" adjustable stainless steel legs, NSF, UL
*Image may not depict product color, inclusions or accessories.
Hardwired
Product does not come with plug and must be hardwired to operate
Traulsen AHF332W-FHG Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Controls | Digital |
| Cubic Feet | 79 |
| Depth (in) | 35 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| kW | 3 |
| Pan Capacity | 9 |
| Sections | 3 |
| Size | Full Height |
| Slide Type | Shelves |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 86.13 |
| Series | Spec-Line |
| Control Location | Top |
| Load Type | Reach In |
| No. of Doors | 3 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Hinge Configuration | Left/Right |
| Weight | 851.00 |
