Traulsen AHF232WP-HHG Full Height Insulated Heated Cabinet w/ (6) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$25,046.51 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Looking for ENERGY STAR® Heated Cabinet?
See our selection of Traulsen ENERGY STAR® Heated Cabinet below
Traulsen AHF232WP-HHG Description

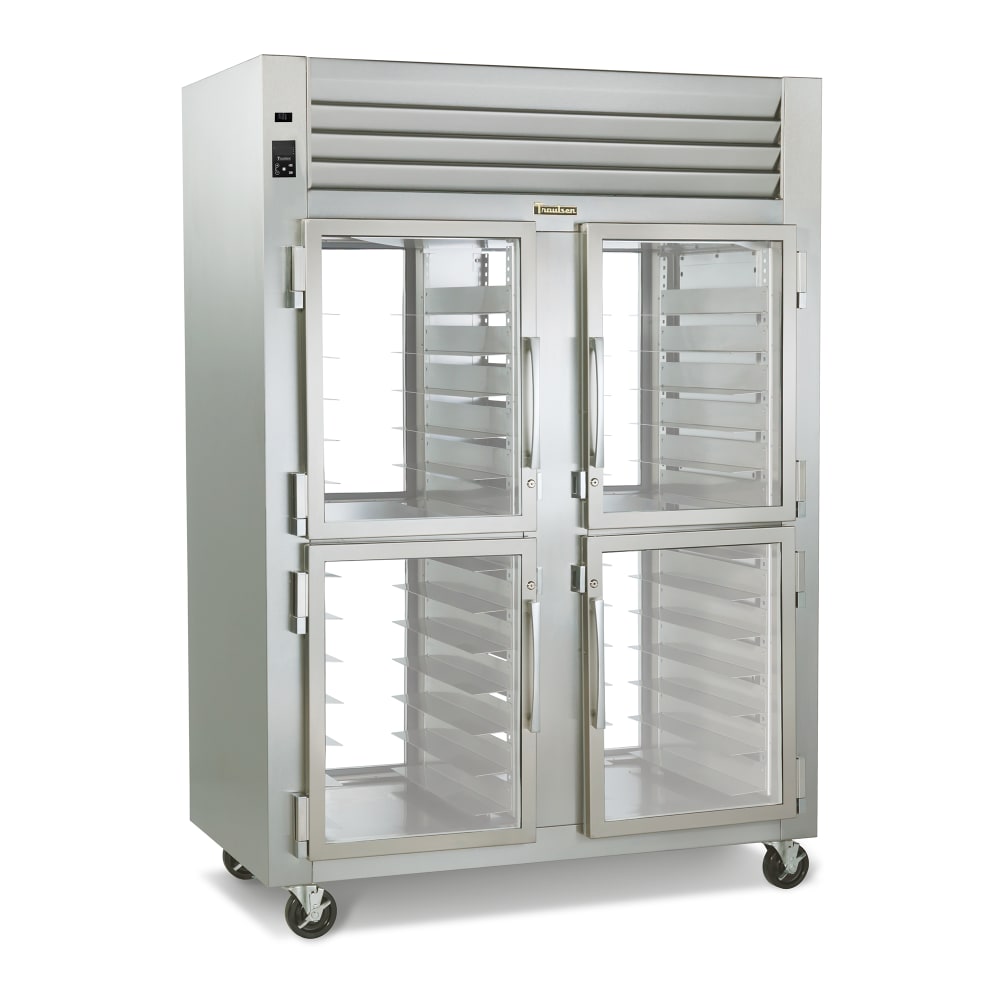

The Traulsen AHF232WP-HHG full-height heated cabinet has a pass-thru design that enables product retrieval from both sides. For uniform heating, the six wire shelves have gaps that enable air circulation, and to accommodate a range of items, they are adjustable. This unit can withstand high-volume use with its durable stainless steel exterior and its corrosion-resistant aluminum interior. Its cabinet is lined with high-density polyurethane insulation to retain warm air.
To help users view the inside of the unit, the Traulsen AHF232WP-HHG insulated heated cabinet's doors are made of glass, and when they're opened, incandescent lights automatically turn on. Users can load the cabinet by propping the doors open 120 degrees, and if employees walk away in a hurry, the doors will self-close to reduce temperature loss. This unit maintains a temperature of 135 to 180 degrees Fahrenheit. To evenly circulate warm air, it uses a ducted fan air distribution system.
Product Details
- Part of the Spec line
- Microprocessor controls
- Temperature range: 135-180 degrees F
- Half-height glass doors
- Doors self-close and stay open 120 degrees
- Pass-thru design with 2 sections
- Standard-depth cabinet
- 6 wire shelves can be adjusted if needed
- Incandescent lights turn on automatically
- Exterior made of rust-resistant stainless steel
- Aluminum interior resists corroding
- Ducted fan air distribution system
- 6-in. adjustable legs
Dimensions & Utilities
- 58 in. W x 3715/16 in. D x 831/4 in. H
- 15.5 A, 3000 W
- 208 V/60 Hz/1 ph, 9-ft. cord with plug
*Free shipping on Traulsen AHF232WP-HHG within the 48 contiguous states.
From The Manufacturer
Spec-Line Heated Cabinet, Pass-thru, two-section, stainless steel exterior, aluminum interior, standard depth cabinet, half-height glass doors, with EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation
*Image may not depict product color, inclusions or accessories.
Traulsen AHF232WP-HHG Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Cubic Feet | 52.8 |
| Depth (in) | 37.94 |
| Door Design | Dutch |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| kW | 3 |
| Load Type | Pass Thru |
| No. of Doors | 8 |
| Pan Capacity | 6 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 2 |
| Series | Spec-Line |
| Size | Full Height |
| Slide Type | Shelves |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 58 |
| Weight | 645.00 |
