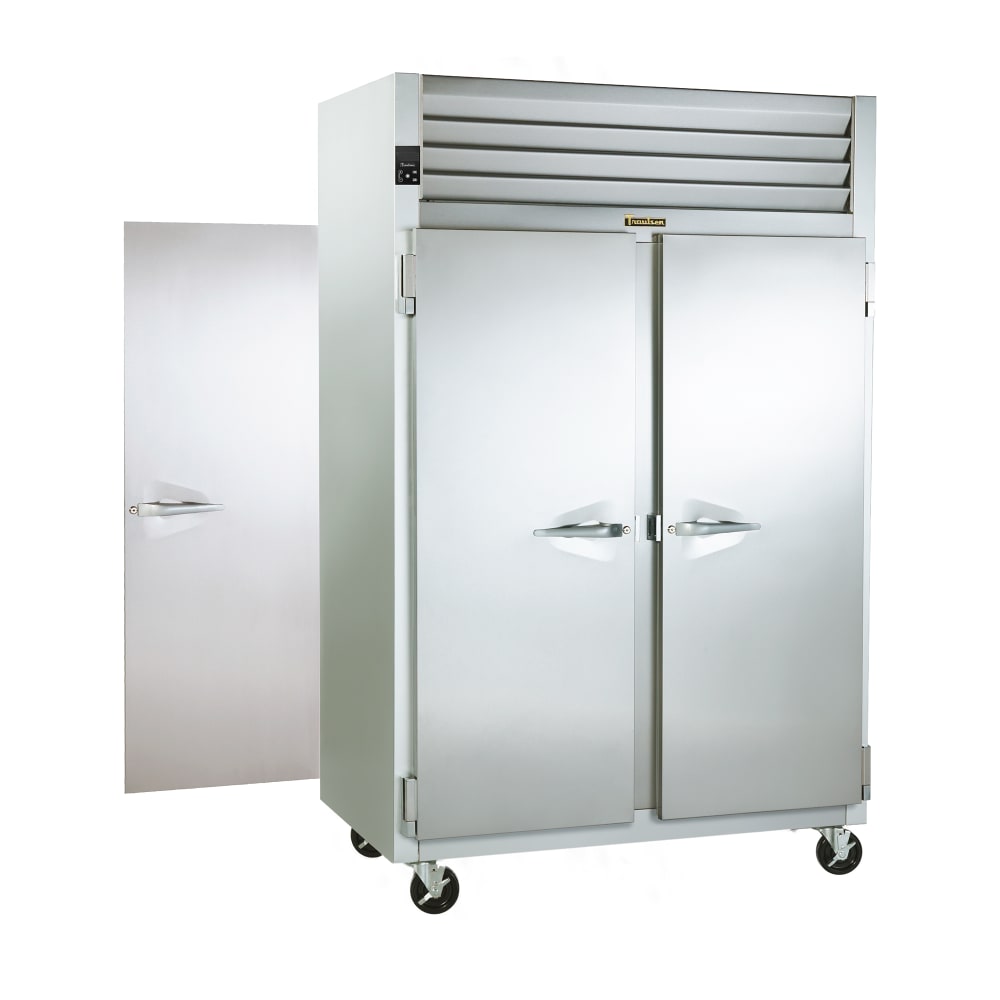

Traulsen AHF232WP-FHS Full Height Insulated Heated Cabinet w/ (6) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$21,148.88 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Traulsen AHF232WP-FHS Description
By propping the doors open 120 degrees, users can easily load and unload the Traulsen AHF232WP-FHS insulated heated cabinet. Doors are built onto each side for pass-thru use, and they have a self-closing feature that reduces heat loss. Designed with a standard-depth cabinet and two sections, this unit measures 58 inches wide by 37.94 inches deep by 83.25 inches high, and it includes six adjustable shelves to hold product. These shelves are made of wire with gaps to permit air circulation for even heating.
The Traulsen AHF232WP-FHS full-height heated cabinet circulates air using a ducted fan air distribution system. To effectively keep product warm, it operates within the range of 135 to 180 degrees Fahrenheit. The interior is made of strong, corrosion-resistant aluminum, and the exterior has a stainless steel construction that provides enough strength for repeated use. Fitted with adjustable legs, this unit sits stably on irregular surfaces.
Product Details
- Part of the Spec line
- Microprocessor controls
- Temperature range: 135-180 degrees F
- 2 sections
- Pass-thru design with standard-depth cabinet
- 6 adjustable wire shelves
- Incandescent lights are automatically activated
- Full-height solid doors
- Self-closing doors stay open 120 degrees
- Santoprene® EZ-Clean gaskets
- Exterior made of sturdy stainless steel
- Aluminum interior
- Ducted fan air distribution system
- 6-in. adjustable legs
Dimensions & Utilities
- 58 in. W x 37.94 in. D x 83.25 in. H
- 15.5 A, 3000 W
- 208 V/60 Hz/1 ph, 9-ft. cord with plug
From The Manufacturer
Spec-Line Heated Cabinet, Pass-thru, two-section, stainless steel exterior, aluminum interior, standard depth cabinet, full-height door or doors with Santoprene® EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6" adjustable stainless steel legs, NSF, UL, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Hardwired
Product does not come with plug and must be hardwired to operate
Traulsen AHF232WP-FHS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Controls | Digital |
| Cubic Feet | 52.8 |
| Depth (in) | 37.94 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| kW | 3 |
| Pan Capacity | 6 |
| Sections | 2 |
| Size | Full Height |
| Slide Type | Shelves |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 58 |
| Series | Spec-Line |
| Control Location | Top |
| Load Type | Pass Thru |
| No. of Doors | 4 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Hinge Configuration | Left/Right |
| Weight | 645.00 |
